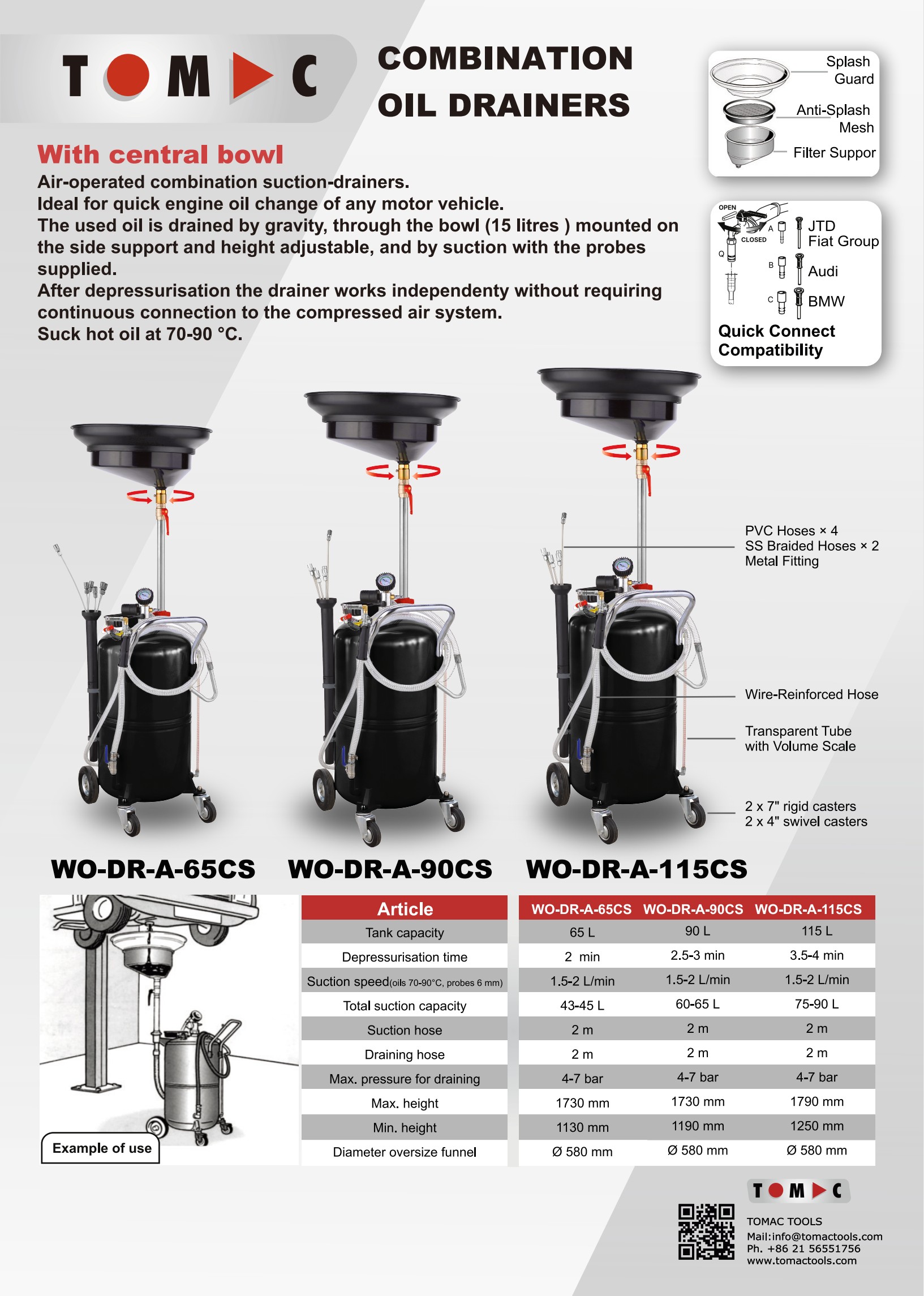

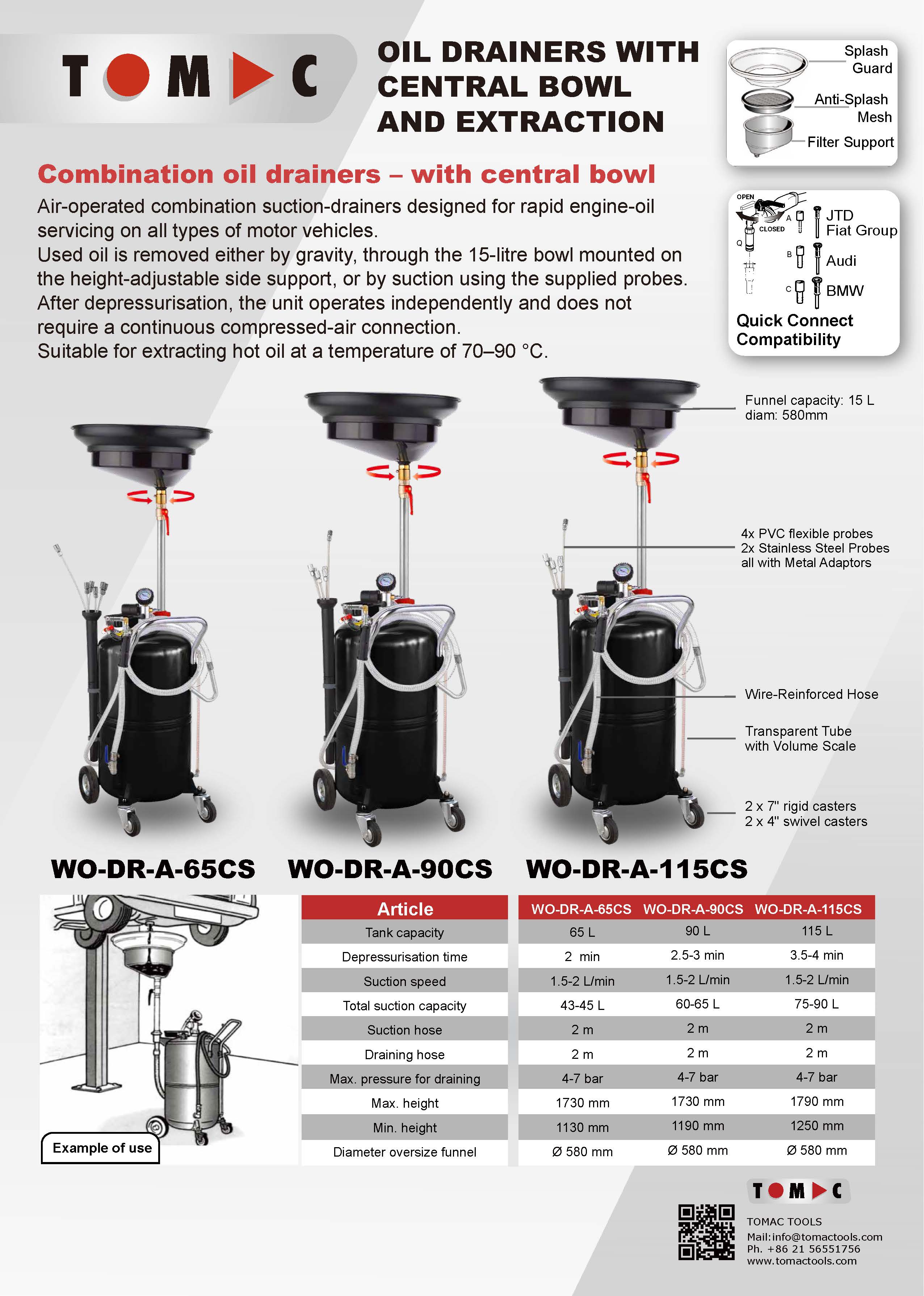

WO-DR-A-90CS TOMAC Air-Operated 90L Oil Drainer with Extractor, Vacuum Meter, and 15L Steel Funnel

Low MOQ accepted — orders as few as 10 pcs for flexible early procurement.

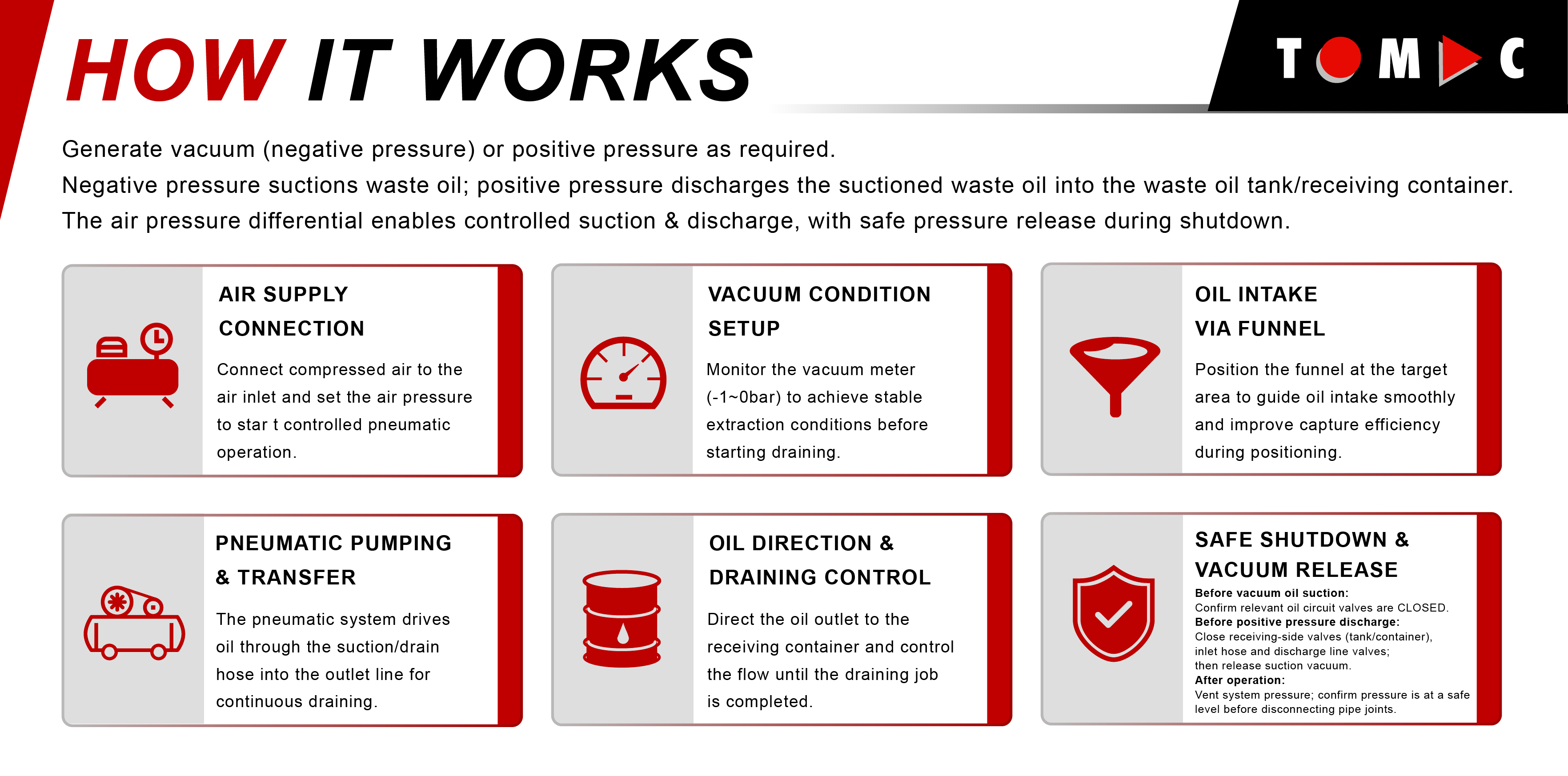

Vacuum-assisted extraction with vacuum meter (-1~0bar) delivers more consistent oil removal.

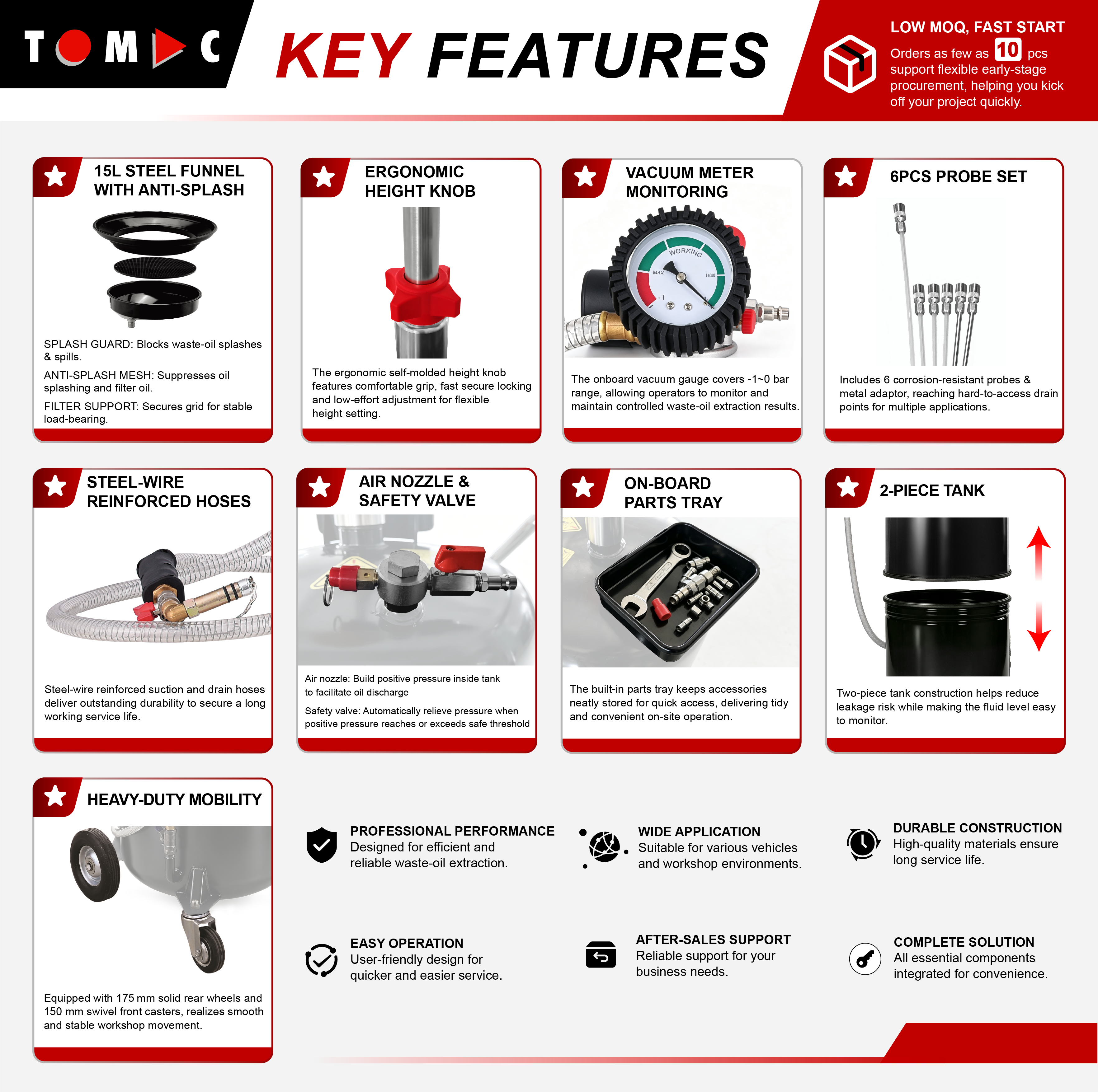

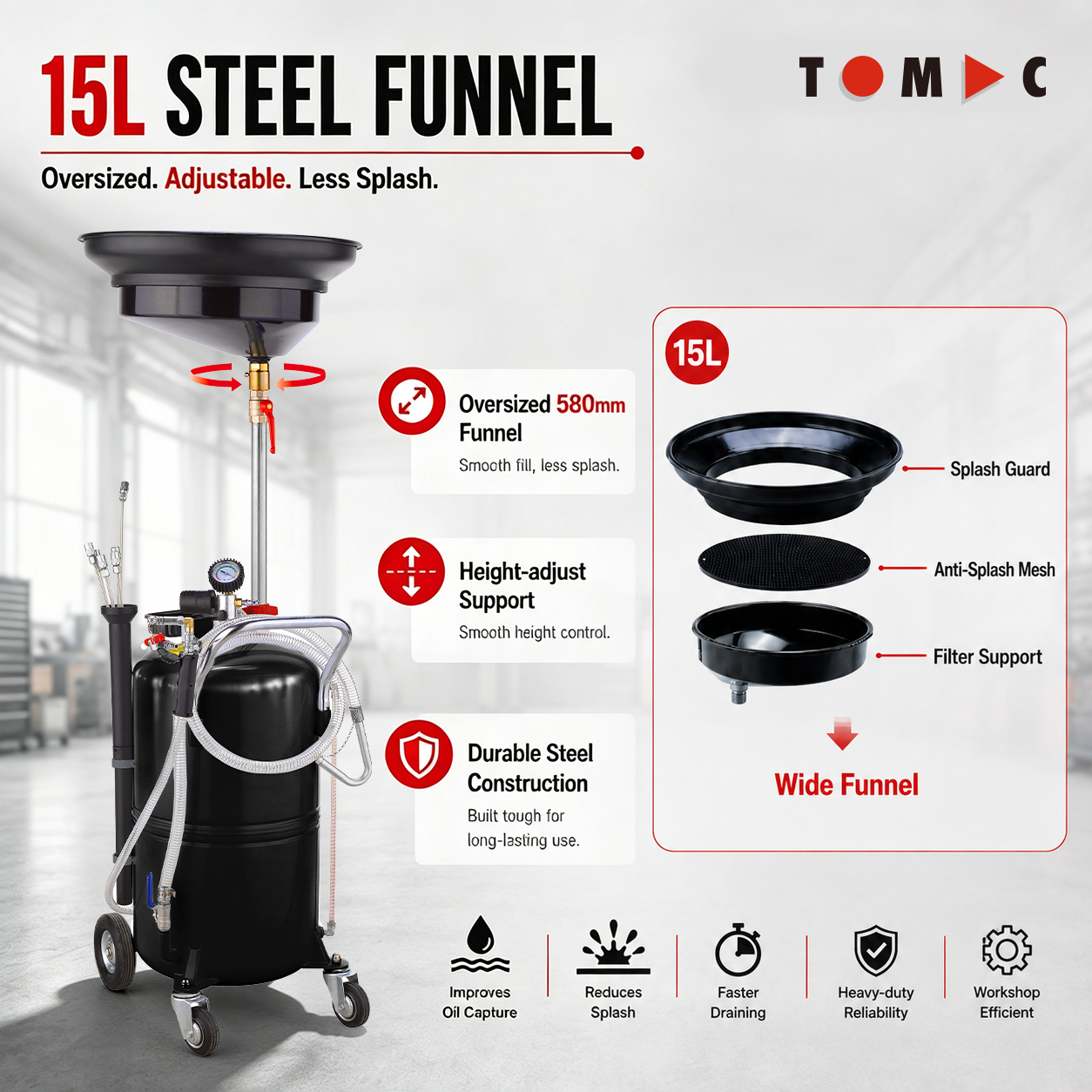

15L steel funnel supports quick oil capture for smoother operation.

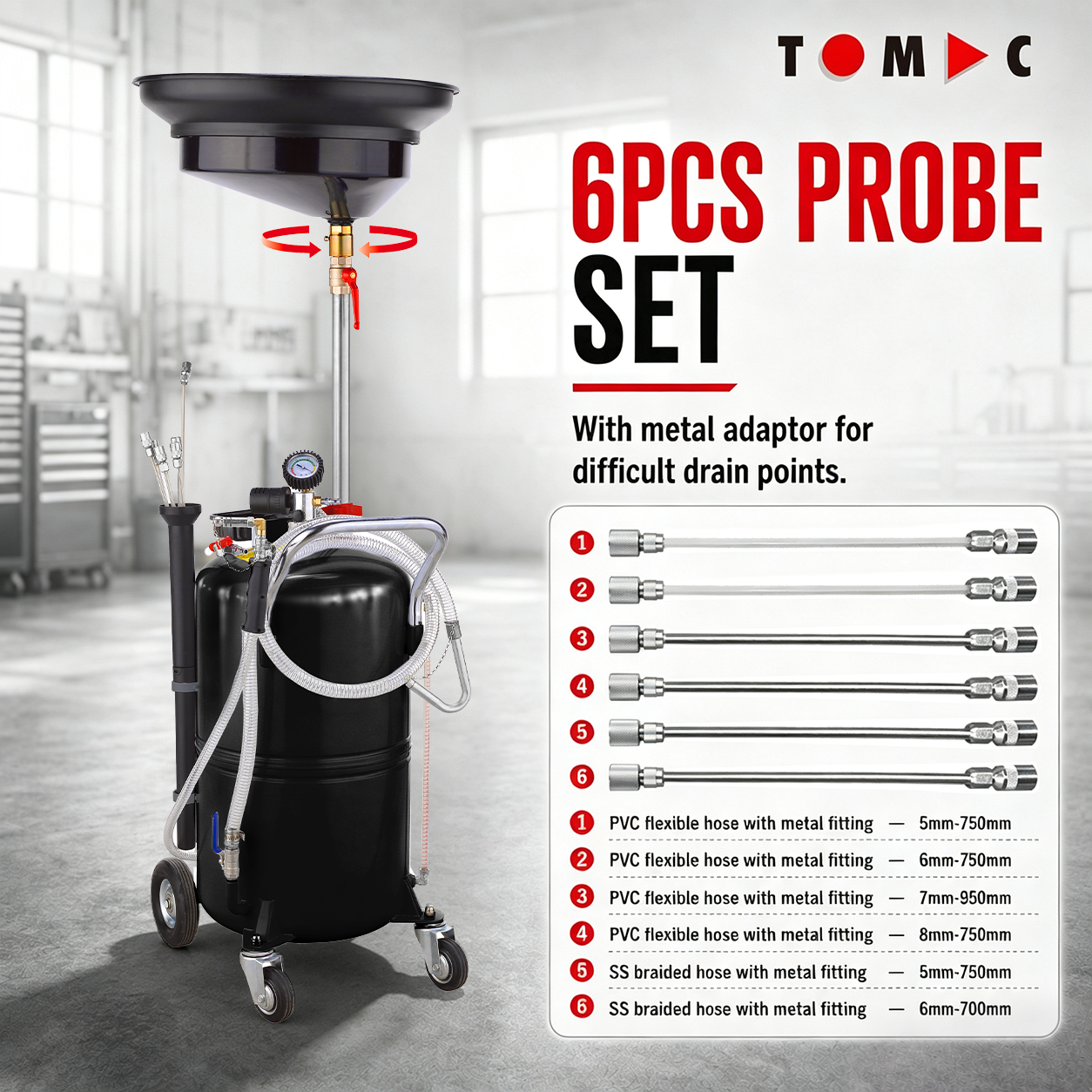

6pcs probe set with metal adaptor expands coverage for different drain points.

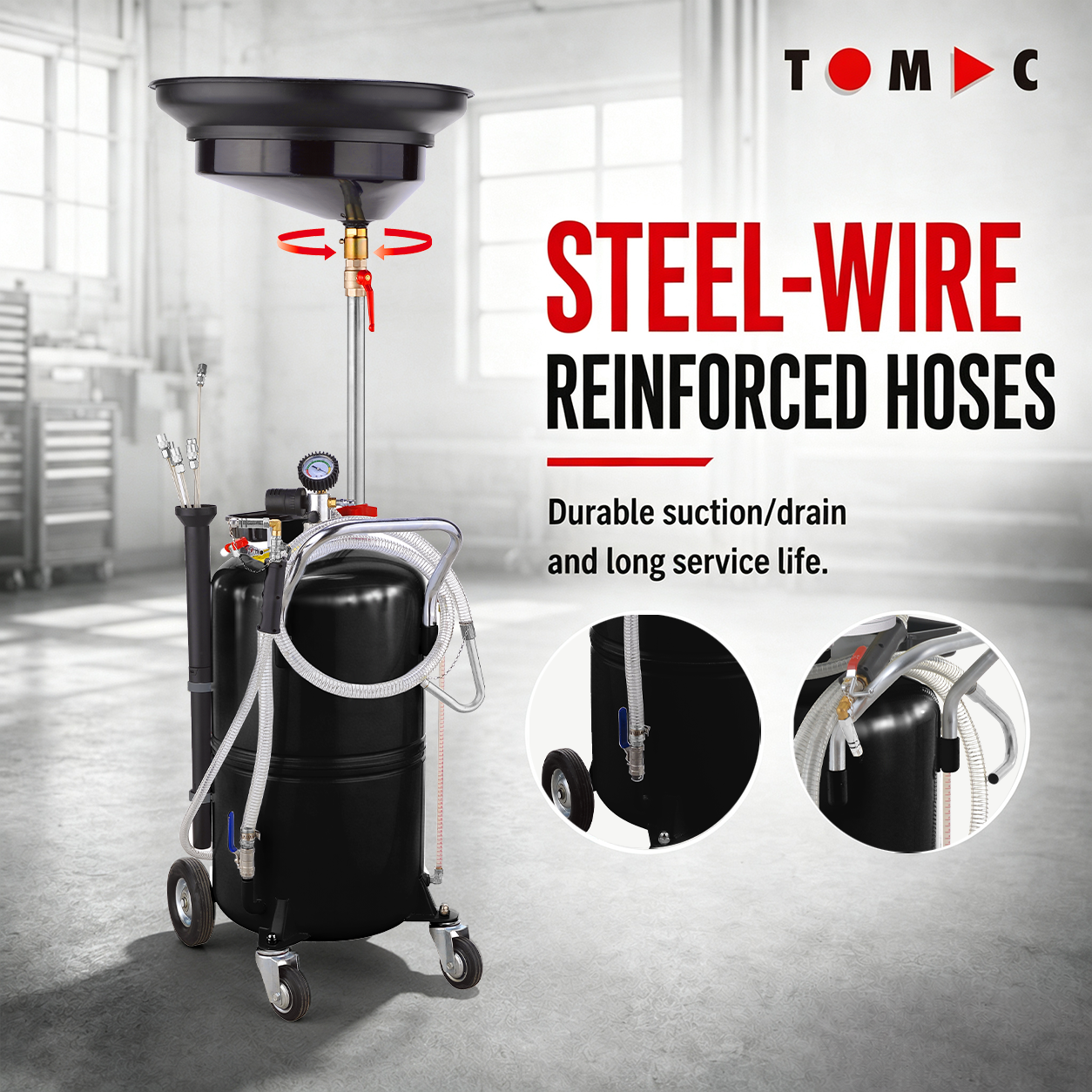

Steel-wire reinforced hoses for durable suction/drain and long service life.
Heavy-duty mobility — 175mm solid rear wheels + 100mm swivel front casters for smooth, stable movement.
High-capacity 90L tank helps handle bigger workshop workloads.

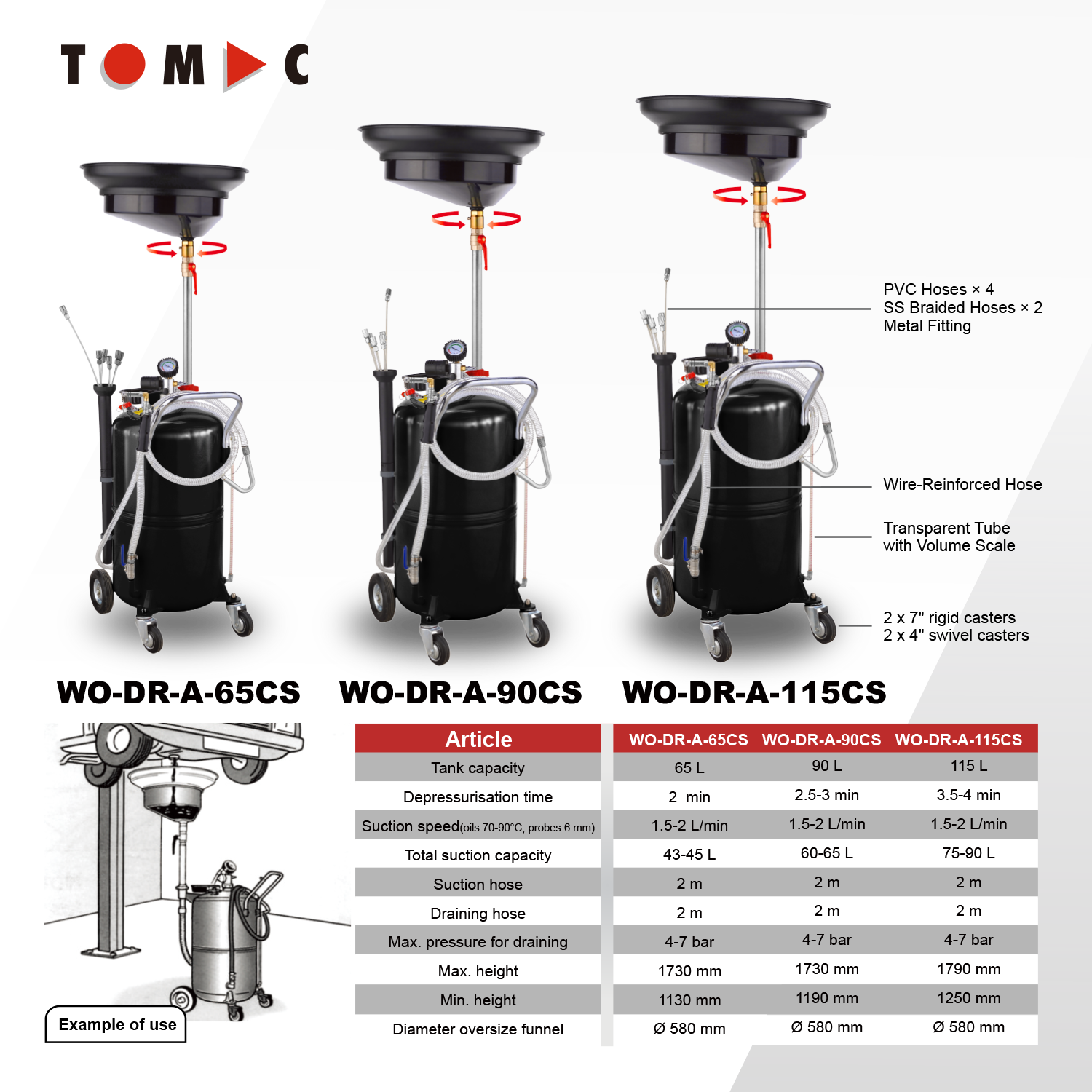

Product Specification	Details
Model	WO-DR-A-90CS
Tank Capacity	90L
Total Suction Capacity	60-65L
Tank Material	steel
Tank Size	415*796mm
Wall Thickness	1.5mm
Vacuum Meter	-1~0bar
Noise Level	75dB
Steel Telescopic Rod size	640*34mm
Steel Telescopic Rod Thickness	2.5mm
Steel Funnel Capacity	15L
Steel Funnel Diameter	437mm
Plastic Diameter of Filter Screen	408mm
Plastic Funnel Diameter	580mm
Max.Pressure for Draining	4-7bar
Gas Adapter Specifications	1/4"
Depressurisation Time	2.5-3min
Suction Speed	1.5-2L /min
Draining Size	3/4" *2m
Iron Bend Pipe Joint Specification	19x15.4mm
Suction Size	1/2" *2m
Iron Adapter Specification	15.8x10.6mm
Steel Tool Box	19615145mm
Fixed Wheel	7"
Swivel Wheel	4"
Max Height	1730mm
Min Height	1190mm
Plastic Probe Kit Box Length	676mm
Probe Kit	PVC Flexible probe with iron adapter 5750mm PVC Flexible probe with iron adapter 6750mm PVC Flexible probe with iron adapter 7950mm PVC Flexible probe with iron adapter 8750mm SS braided hose with SS adapter 5750mm SS braided hose with SS adapter 6700mm
Package Method	2 outer carton
Package Size	B0X1(Barrel):1 PCS/CTN 464696cm BOX2(Funnel):1 PCS/CTN :582358cm
Net/Gross weight	32/34kgs
MOQ	10pcs
Delivery Time	60 days
