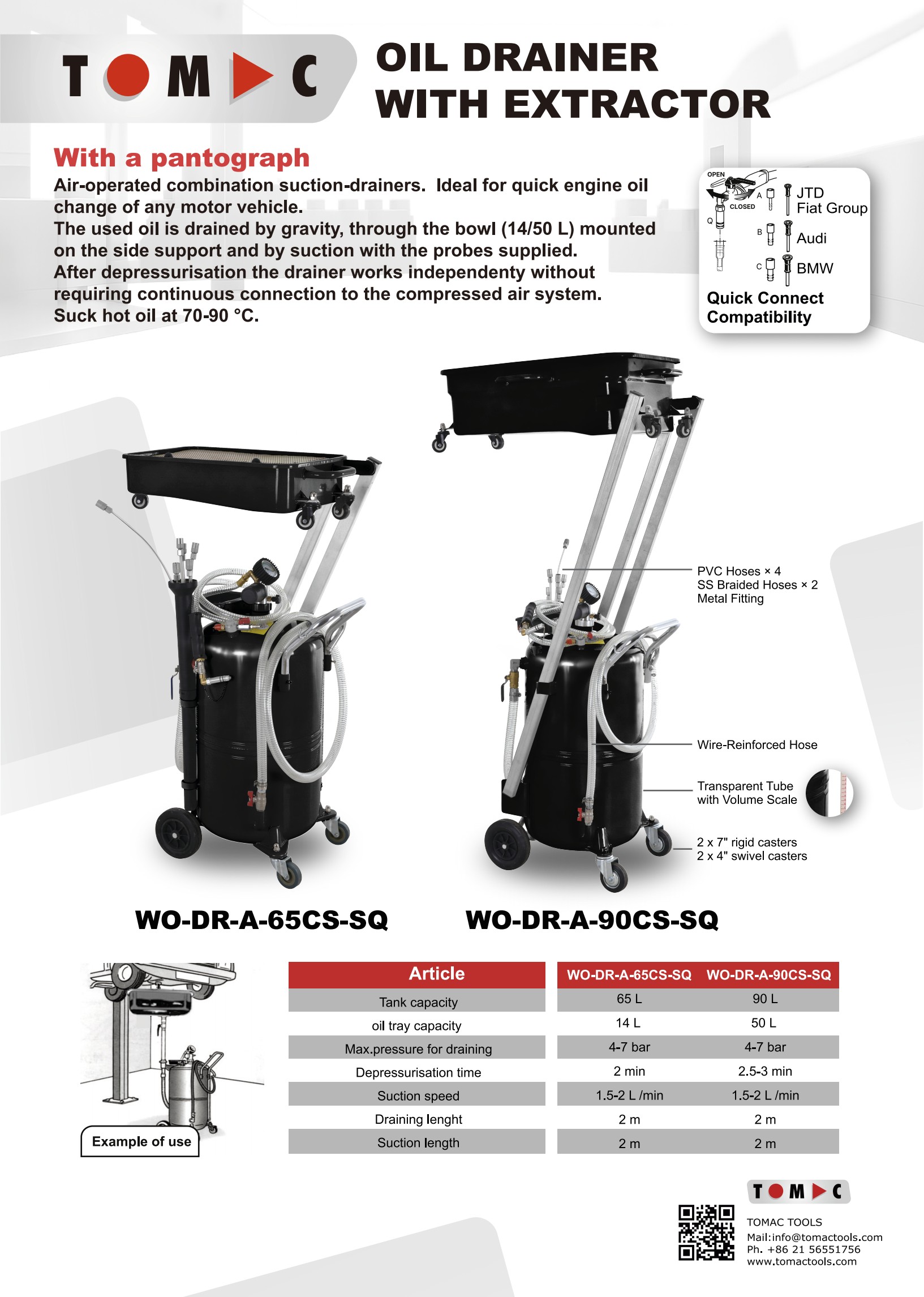

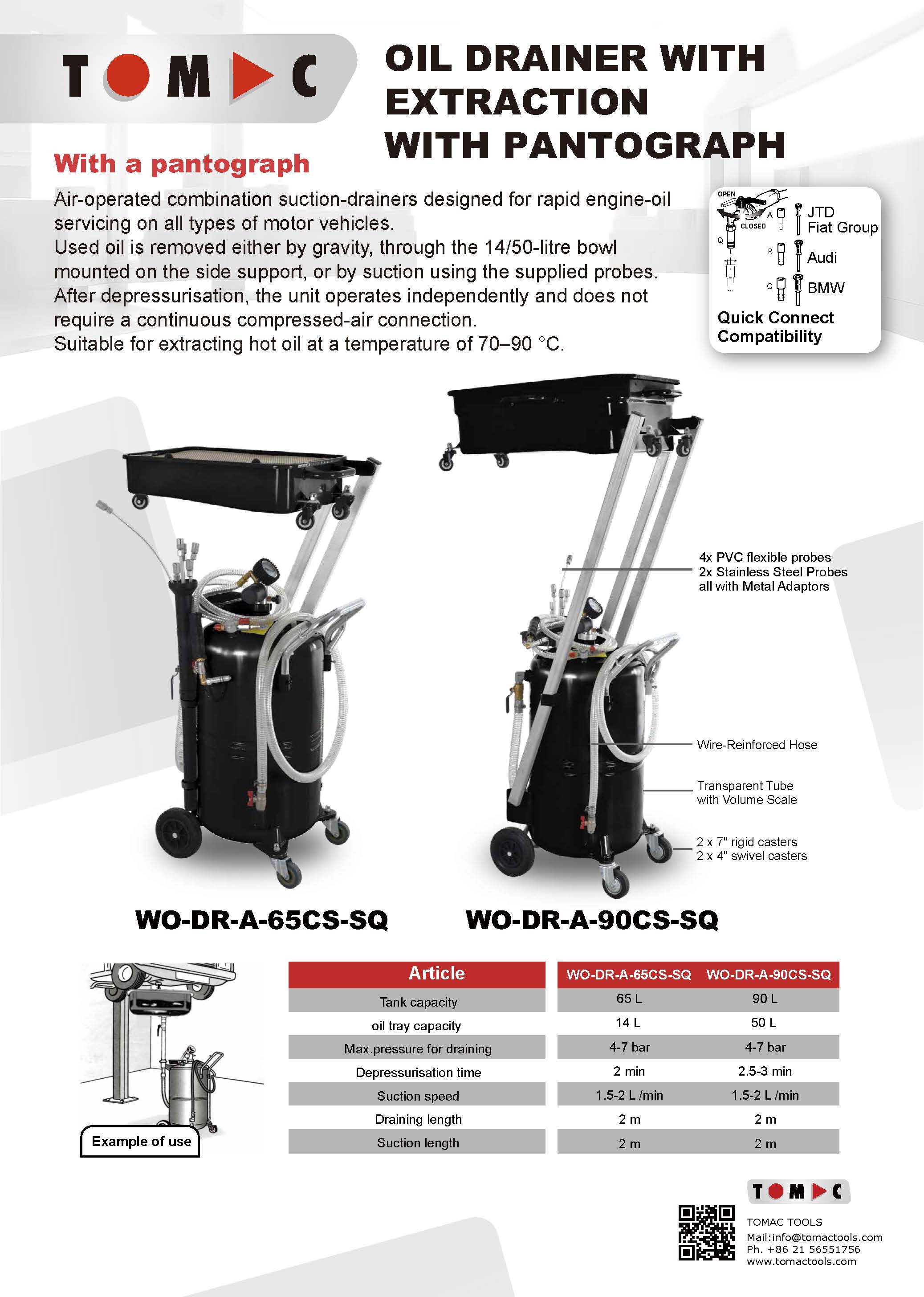

WO-DR-A-90CS-SQ TOMAC 90L Air-Operated Pantograph Vacuum Oil Drainer with Extractor, 50L Square Basin, 2m Steel-Wire Hose, 6pcs Probe Set

Low MOQ accepted — orders as few as 10 pcs for flexible early procurement.

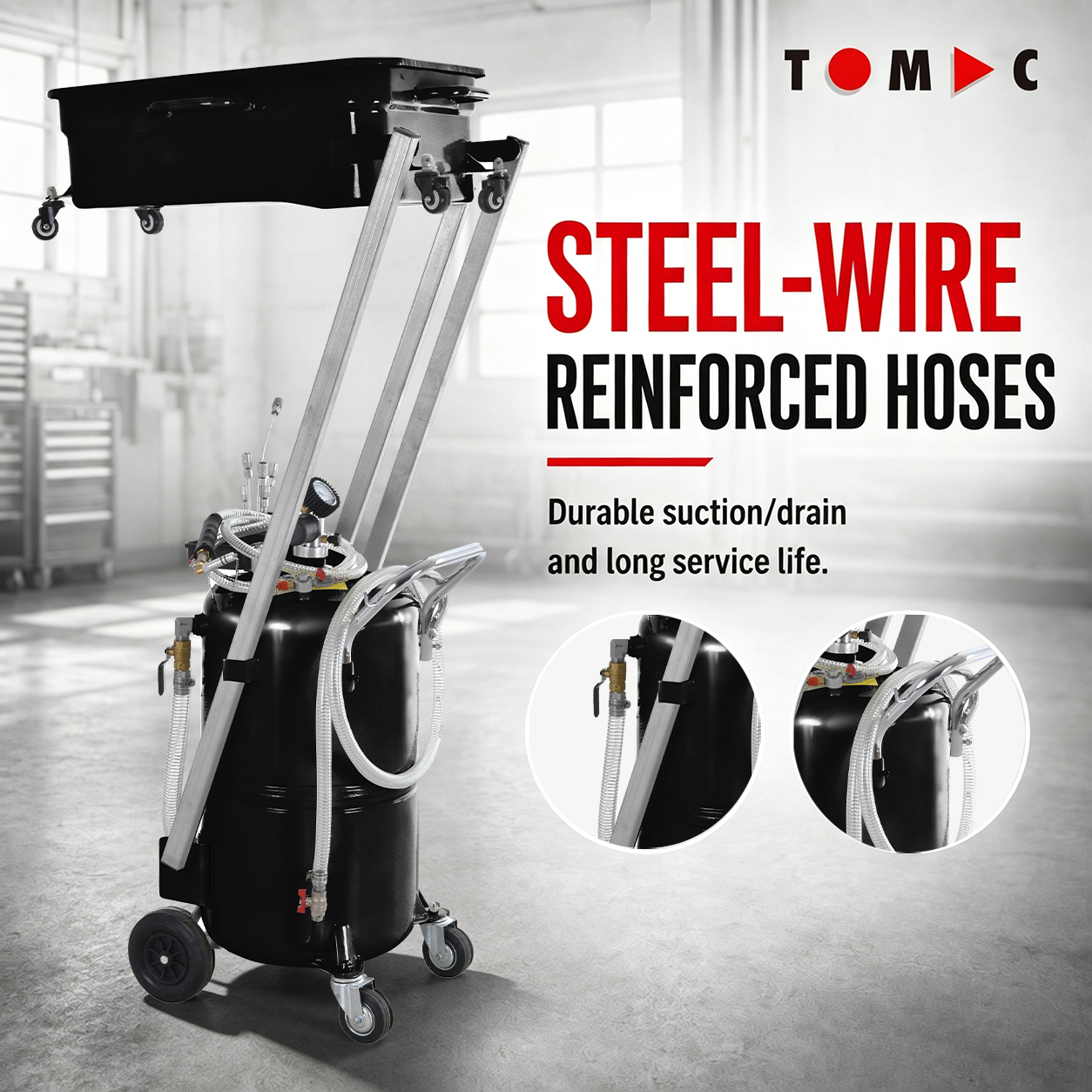

Steel-wire reinforced hoses (1/2" suction + 3/4" discharge) for durable, drip-resistant transfer with clear flow visibility.

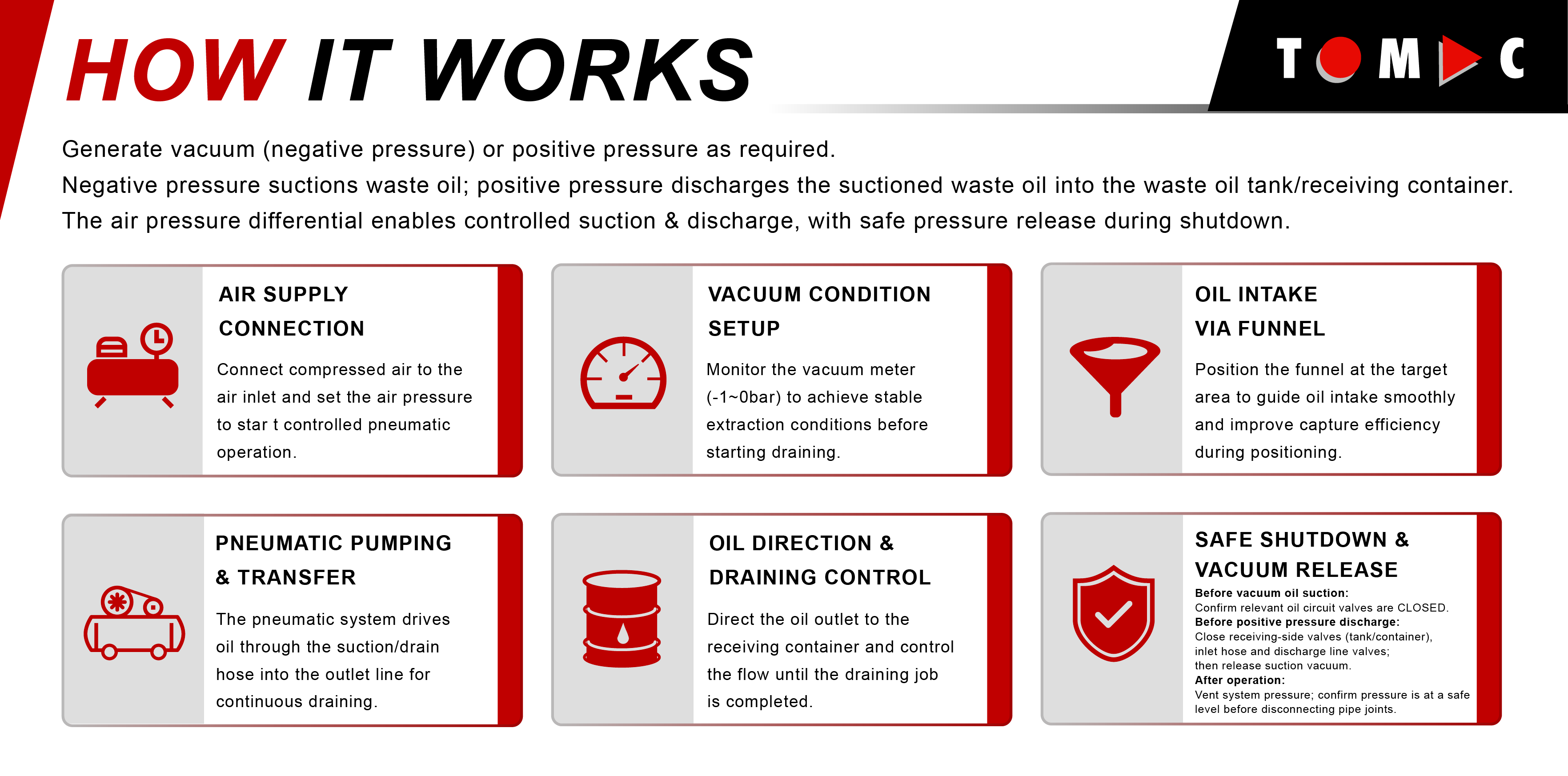

Vacuum-assisted extraction delivers controlled draining results.

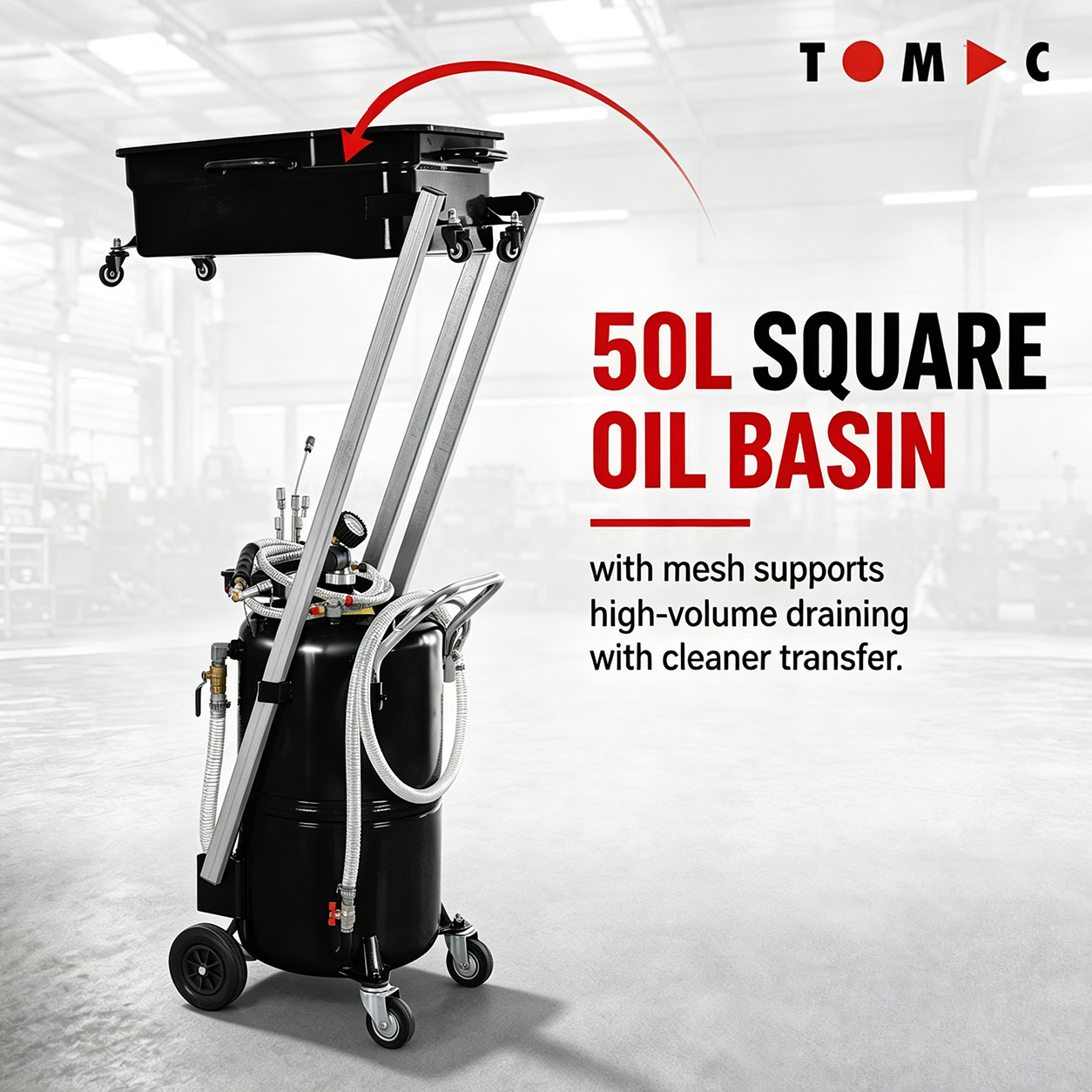

50L square oil basin with mesh supports high-volume draining with cleaner transfer.

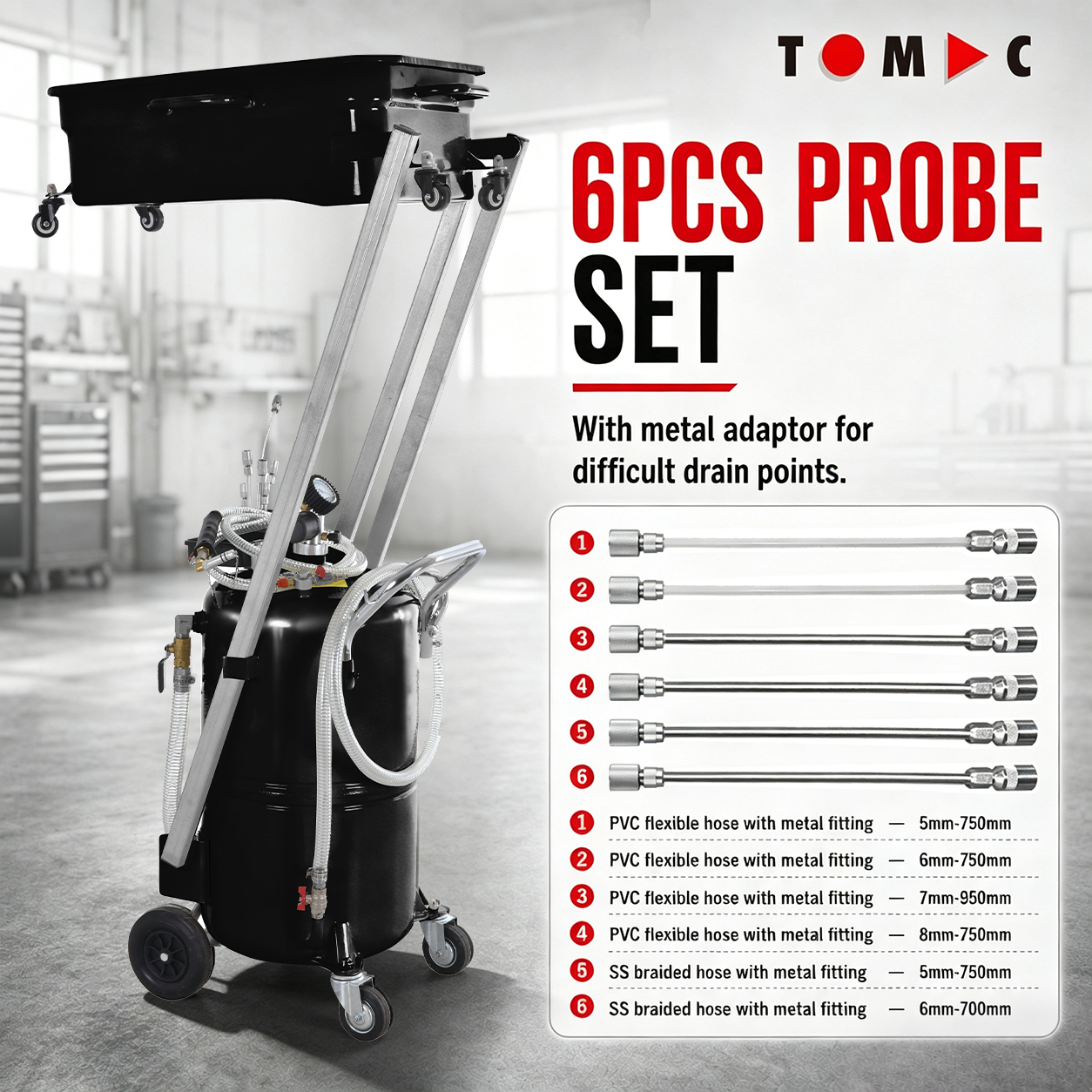

6pcs probe set with metal adaptor expands reach for different drain points.
Pantograph lift for workshop use enables easier draining at different positions.
Heavy-duty mobility — 175mm solid rear wheels + 100mm swivel front casters for stable movement.

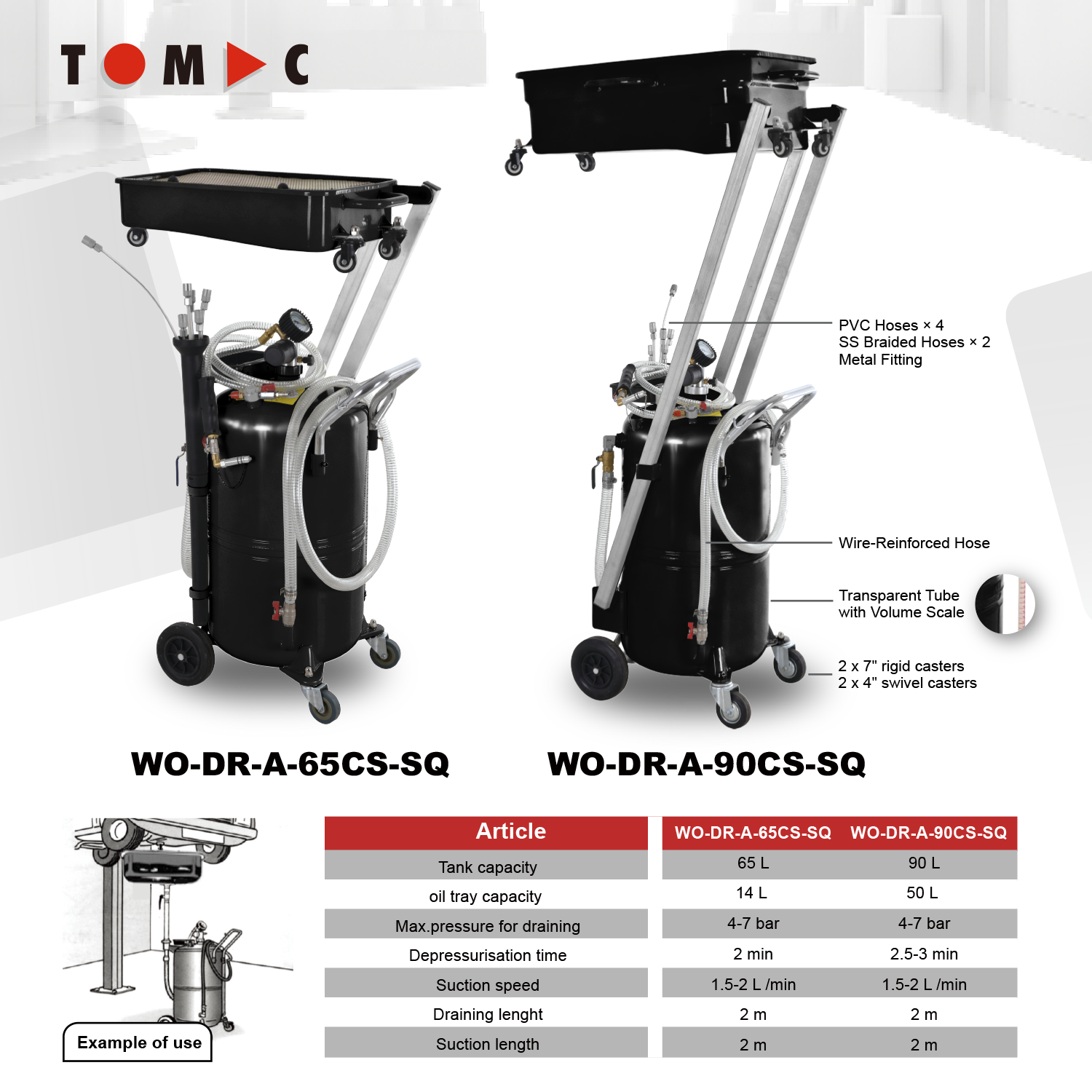

Product Specification	Details
Model	WO-DR-A-90CS-SQ
Tank Capacity	90L
Total Suction Capacity	60-65L

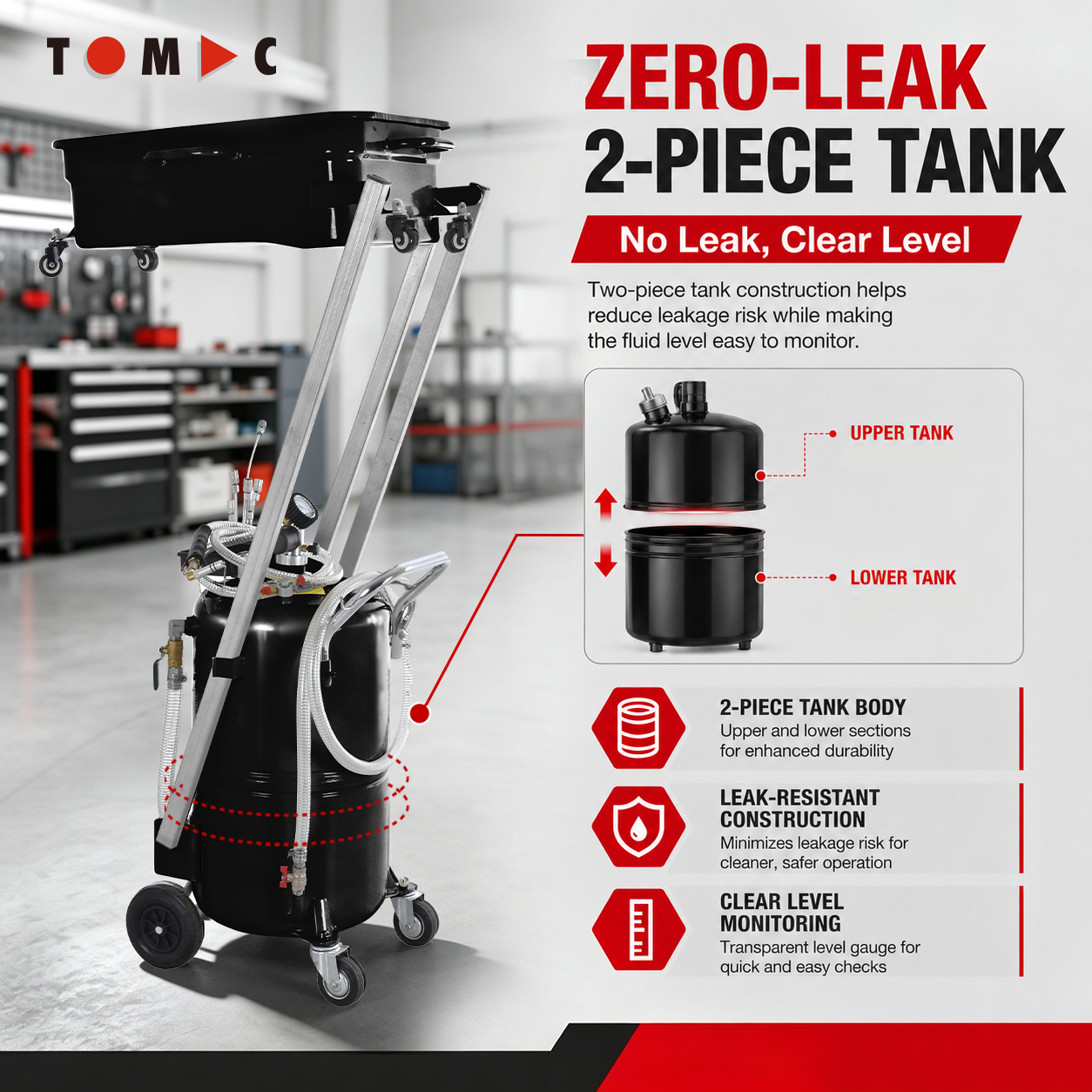

Tank Material	steel
Tank Size	415*796mm
Wall Thickness	1.5mm
Vacuum Meter	-1~0bar
Noise Level	75dB
Square Basin Capacity	50L
Square Basin Dimensions	700500250mm
Iron Square Tube Thickness	2.0mm
Tube Size	4025989mm
Iron Filter	645*448mm
Iron Filter Thickness	1.0mm
Max.Pressure for Draining	4-7bar
Gas Adapter Specifications	1/4"
Depressurisation Time	2.5-3min
Suction Speed	1.5-2L /min
Draining Size	3/4" *2m
Iron Bend Pipe Joint Specification	19x15.4mm
Suction Size	1/2" *2m
Iron Adapter Specification	15.8x10.6mm
Steel Tool Box	19615145mm
Fixed Wheel	7"
Swivel Wheel	4"
Max Height	1715mm
Plastic Probe Kit Box Length	676mm
Probe Kit	PVC Flexible probe with iron adapter 5750mm PVC Flexible probe with iron adapter 6750mm PVC Flexible probe with iron adapter 7950mm PVC Flexible probe with iron adapter 8750mm SS braided hose with SS adapter 5750mm SS braided hose with SS adapter 6700mm
Package Method	3 outer carton
Package Size	B0X1(Barrel):1 PCS/CTN 5454109cm BOX2(Square Basin):1 PCS/CTN :826430cm BOX3(Steel Tube):5 PCS/CTN :1612842cm
Net/Gross weight	96/101kgs
MOQ	10pcs
Delivery Time	60 days
