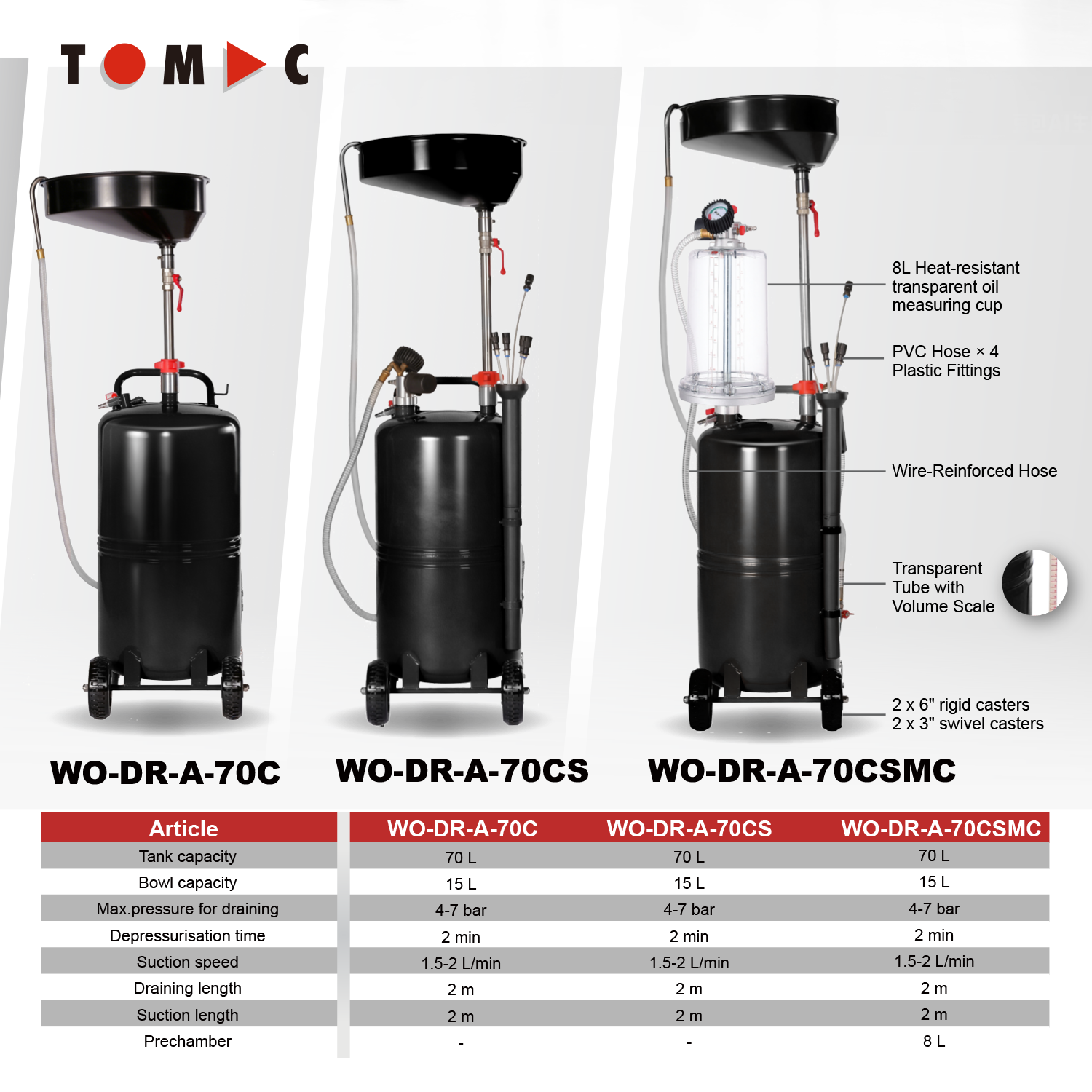

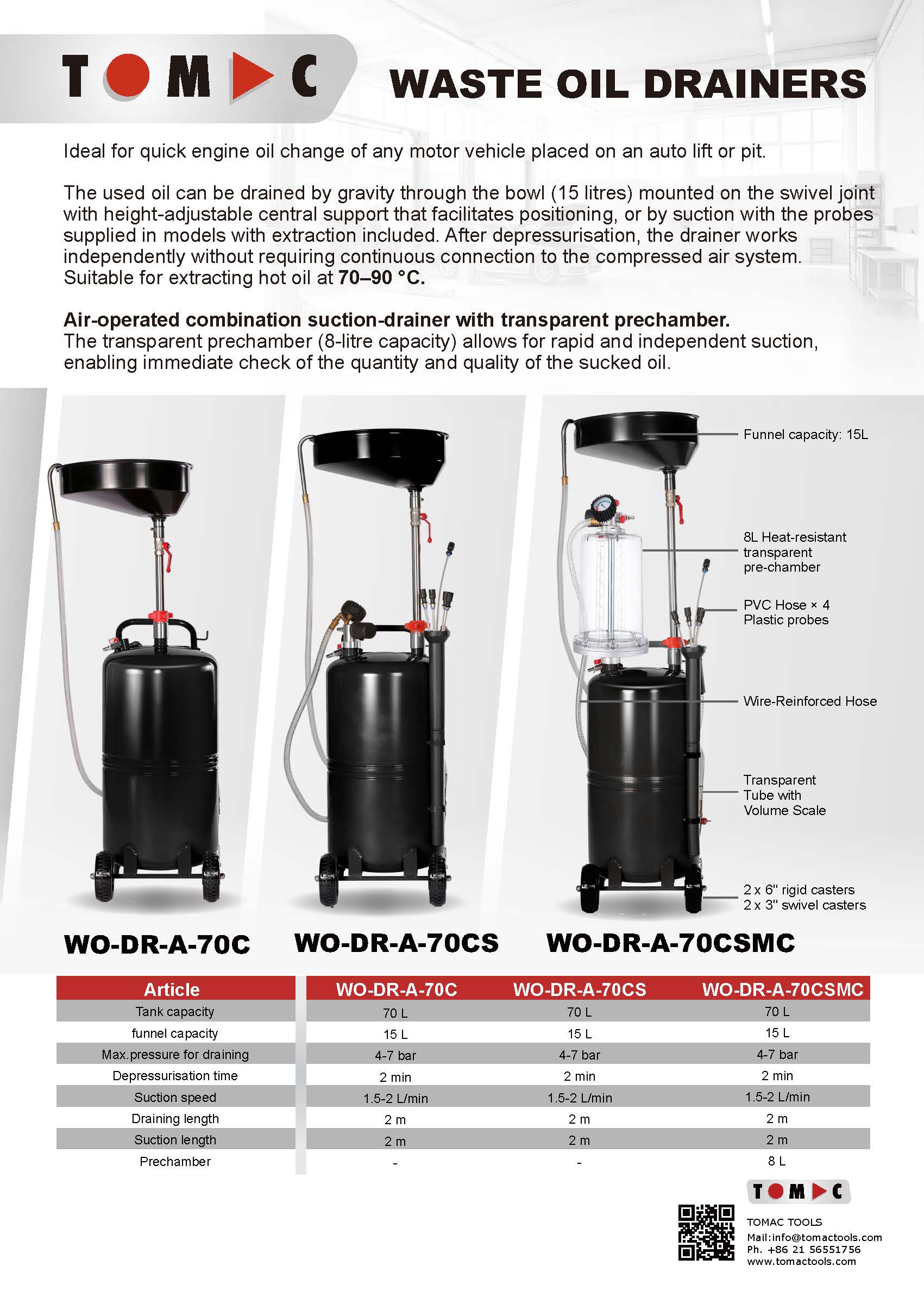

WO-DR-A-70CSMC TOMAC Air-Operated 70L Waste Oil Drainer With Suction Extraction Vacuum Meter Controllable 8L Prechamber 15L Funnel

Low MOQ accepted — orders as few as 10 pcs

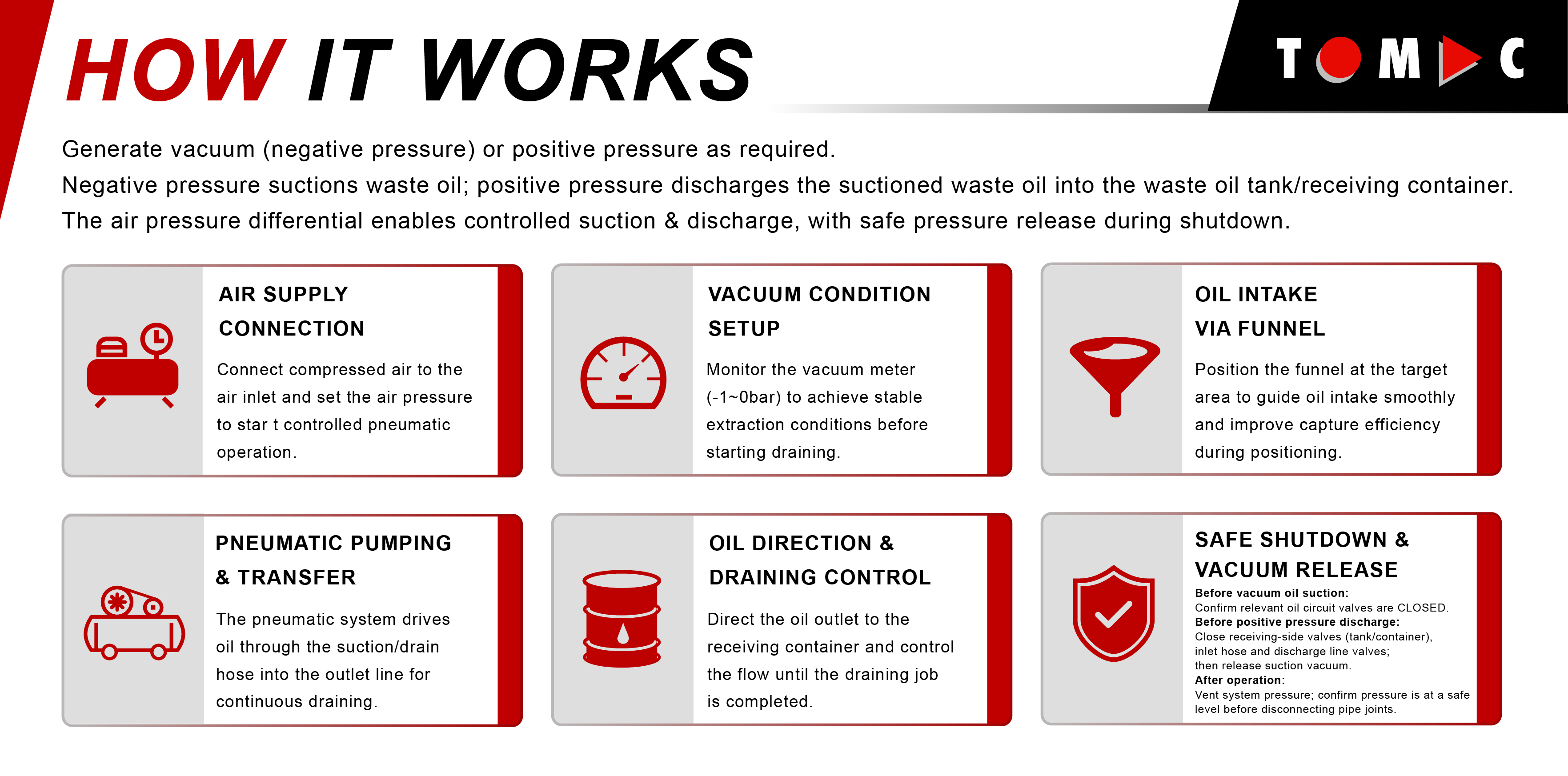

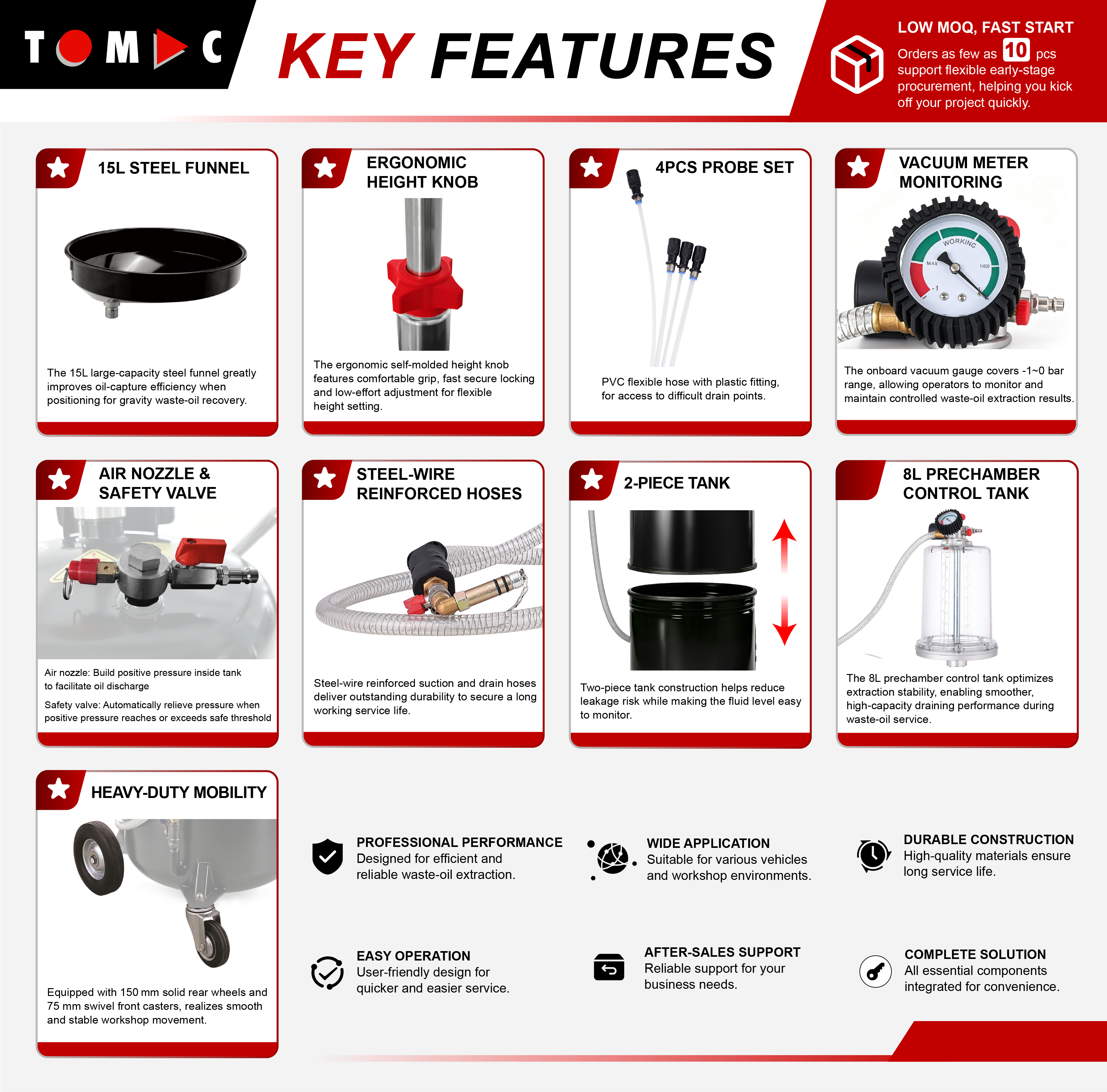

With suction extraction: supports vacuum suction (-1 to 0 bar) plus draining for flexible oil transfer
Controllable prechamber (8L): stabilizes suction/pressure for more consistent operation
Suction speed 1.5–2 L/min: speeds up extraction of waste oil
Hot oil compatible (working temperature 90°C): suitable for workshop hot-oil drainage 70–90°C

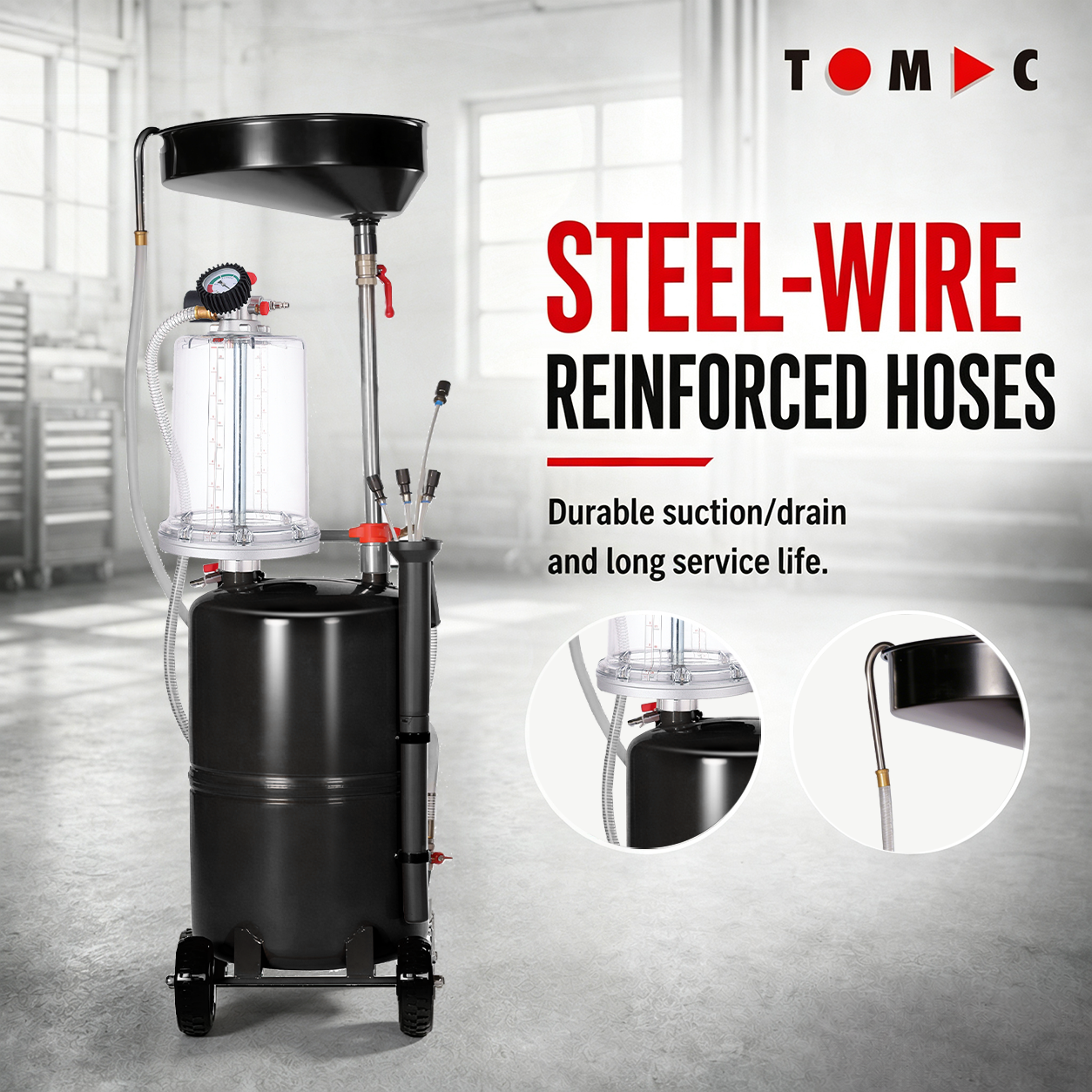

1/2" suction + 1/2" discharge: steel-wire reinforced suction hose + transparent PVC discharge hose (flow visibility, sealed plug helps reduce drips)
Complete probe kit (4pcs, PVC): convenient extraction into different positions
Eccentric 15L funnel basin (437mm): wider capture coverage for draining

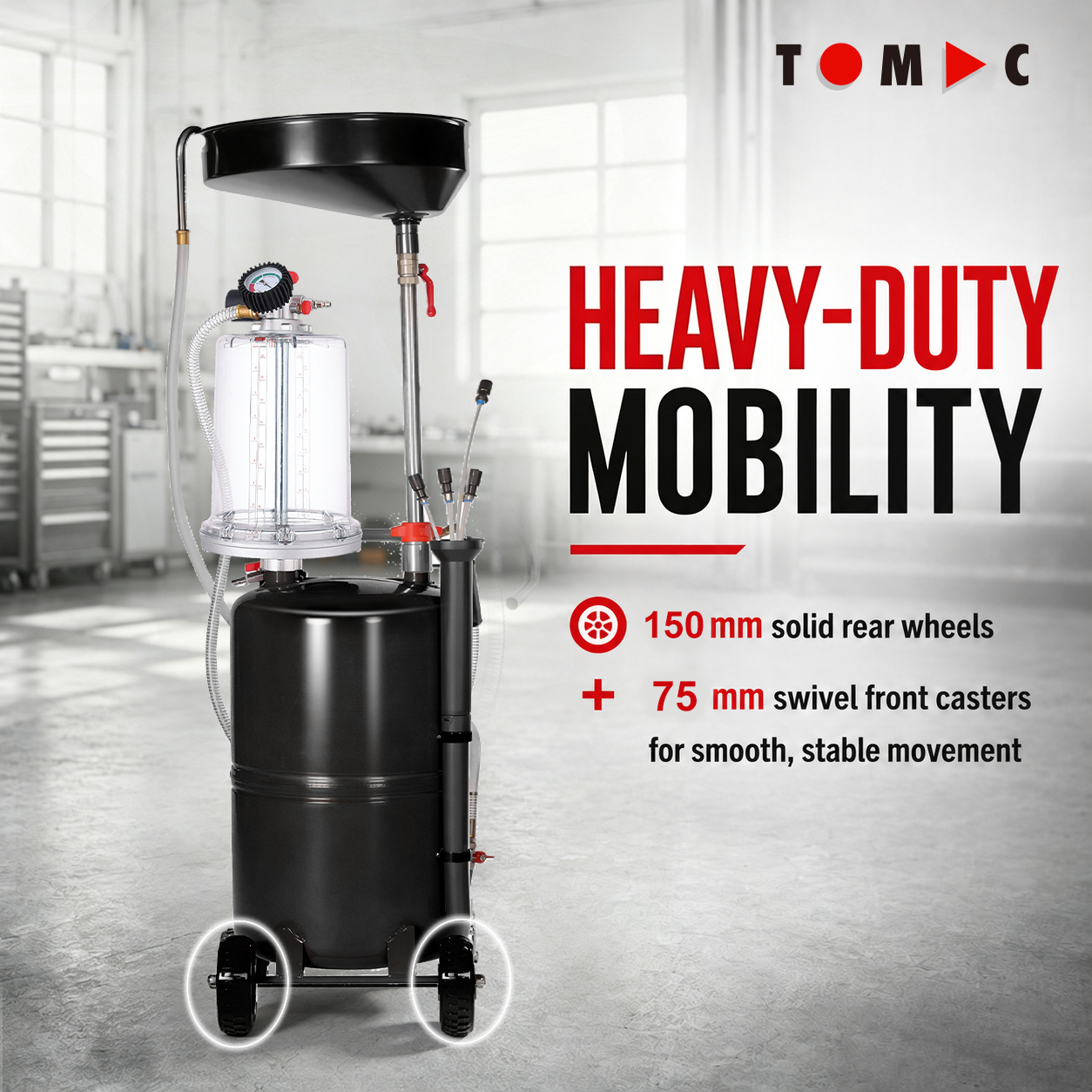

Heavy-duty mobility: 150mm solid rear wheels + 75mm swivel front casters for stable movement
Height range: Max 165cm / Min 140cm

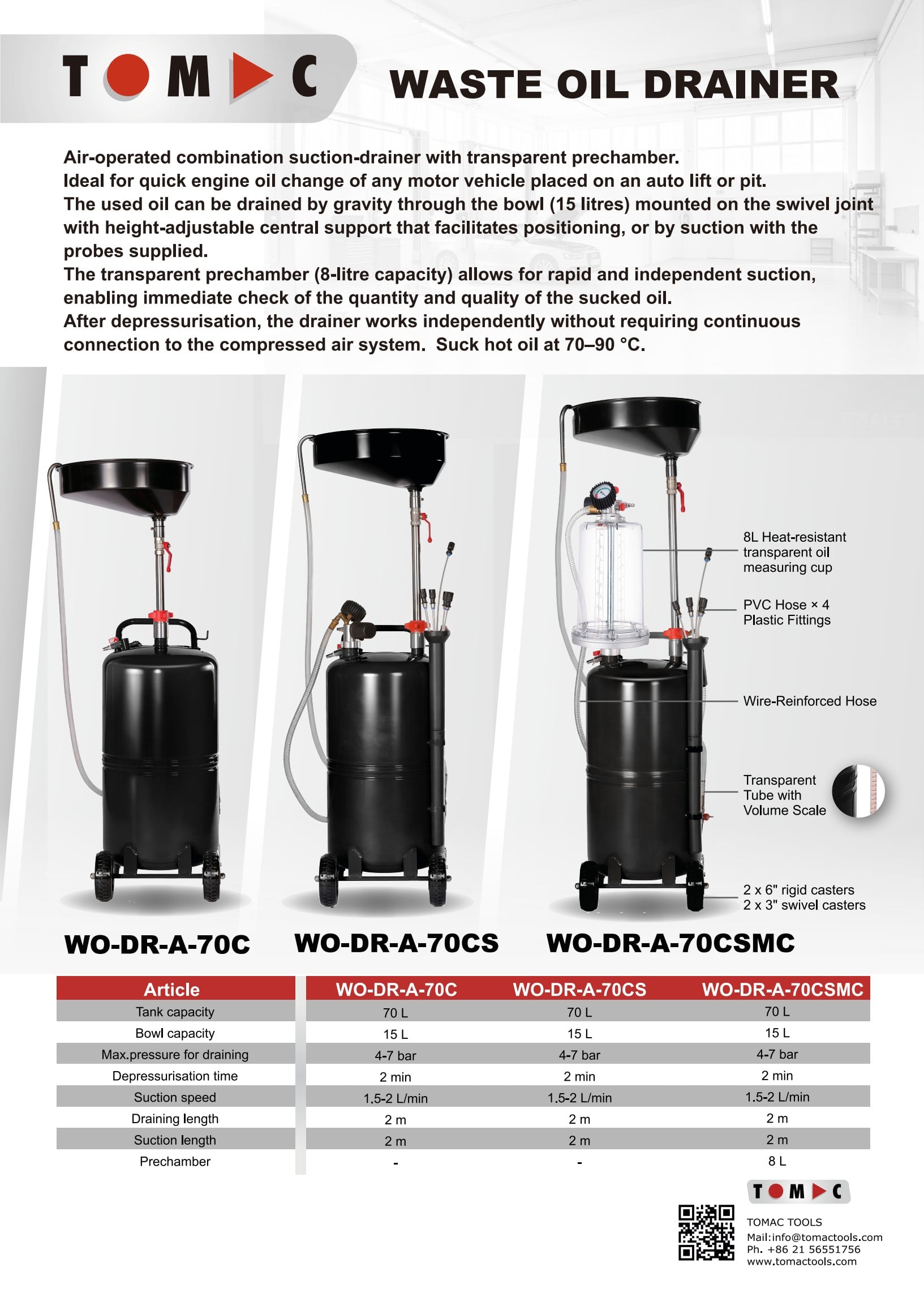

Product Specification	Details
Model	WO-DR-A-70CSMC
Tank Capacity	70L
Total Suction Capacity	\
Tank Material	steel
Tank Size	370*750mm
Wall Thickness	1.2mm
Steel Telescopic Rod Size	640*28mm
Steel Telescopic Rod Thickness	1.8mm
Vacuum Meter	-1~0bar
Noise Level	75dB
Prechamber Capacity	8L
Steel Funnel Capacity	15L
Steel Funnel Diameter	400mm
Max.Pressure for Draining	4-7bar
Depressurisation Time	2min
Suction Speed	1.5-2L /min
Draining Size	1/2" *2m
Material	PVC
SS Bend Pipe Joint Specification	14x12mm
Suction Size	1/2" *2m
Iron Adapter Specification	15.8x10.6mm
Fixed Wheel	6"
Swivel Wheel	3"
Max Height	1650mm
Plastic Probe Kit Box Length	\
Probe Kit	PVC Flexible probe with plastic adapter 5750mm PVC Flexible probe with plastic adapter 6750mm PVC Flexible probe with plastic adapter 6970mm PVC Flexible probe with plastic adapter 8750mm
Package Method	2 outer carton
Package Size	B0X1(Barrel):1 PCS/CTN 464696cm BOX2(Prechamber):1 PCS/CTN :272752cm
Net/Gross weight	32/34kgs
MOQ	50pcs
Delivery Time	60 days
