WO-DR-A-70CS TOMAC Air-Operated 70L Waste Oil Drainer with Extraction

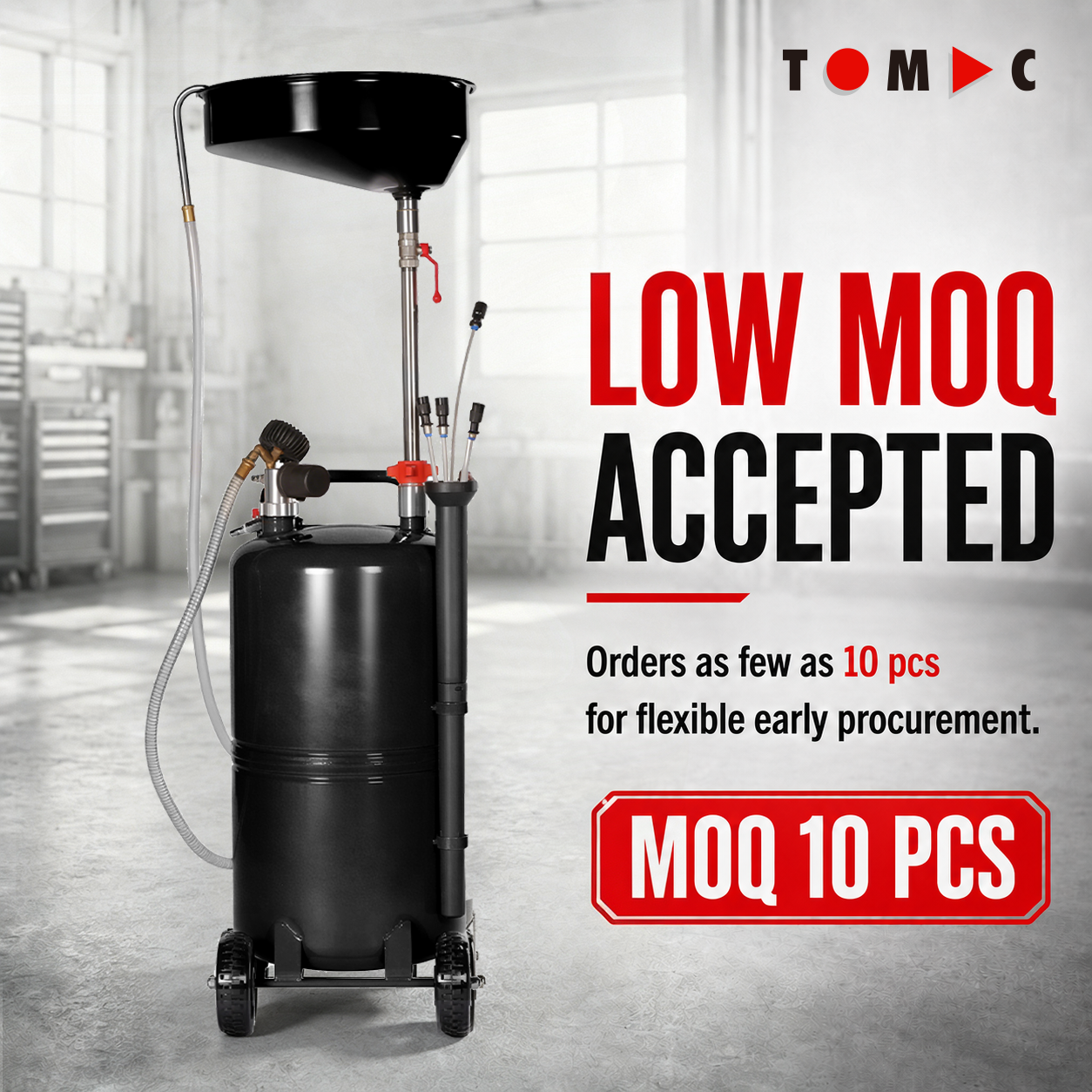

Low MOQ accepted — orders as few as 10 pcs

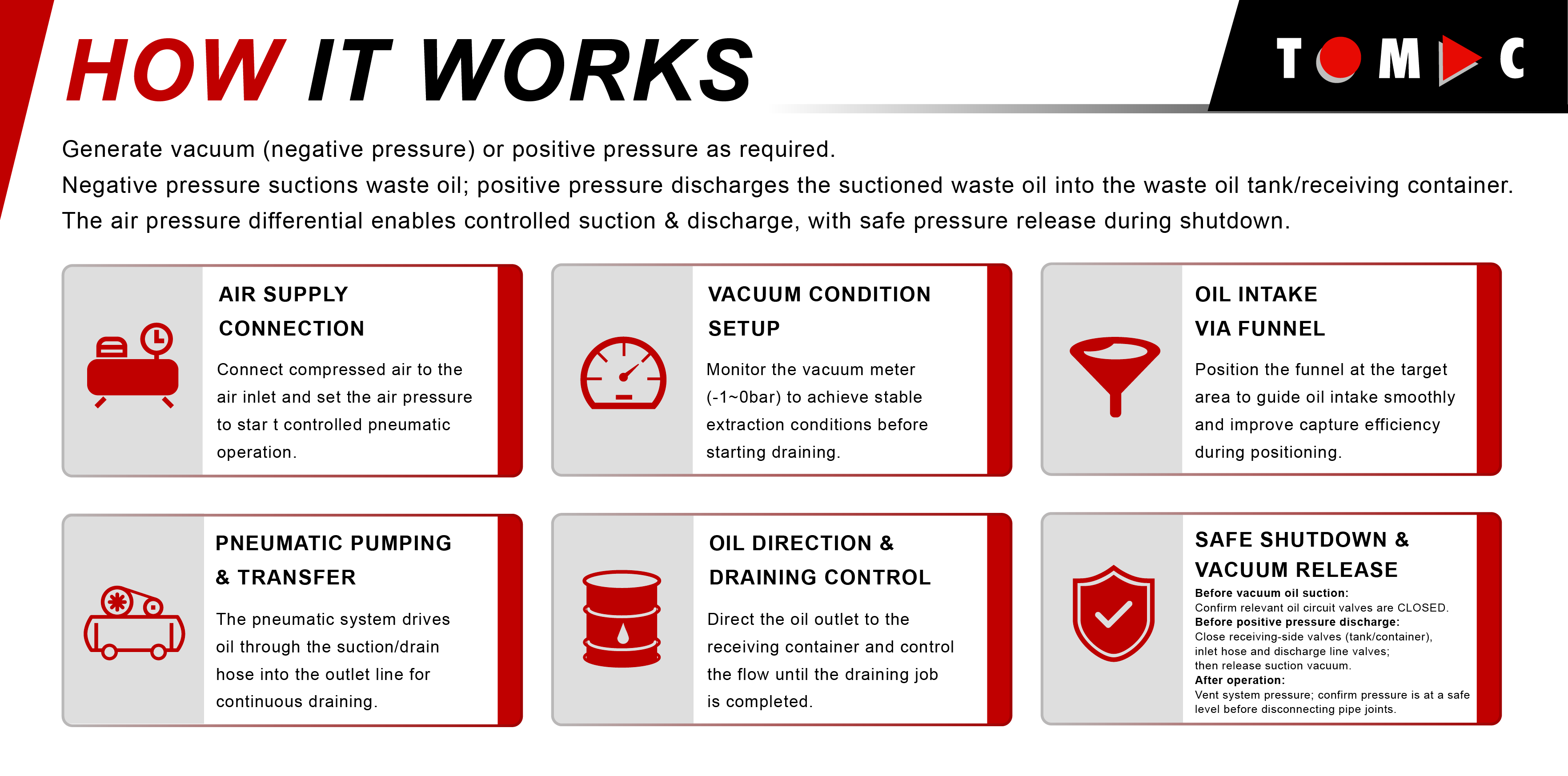

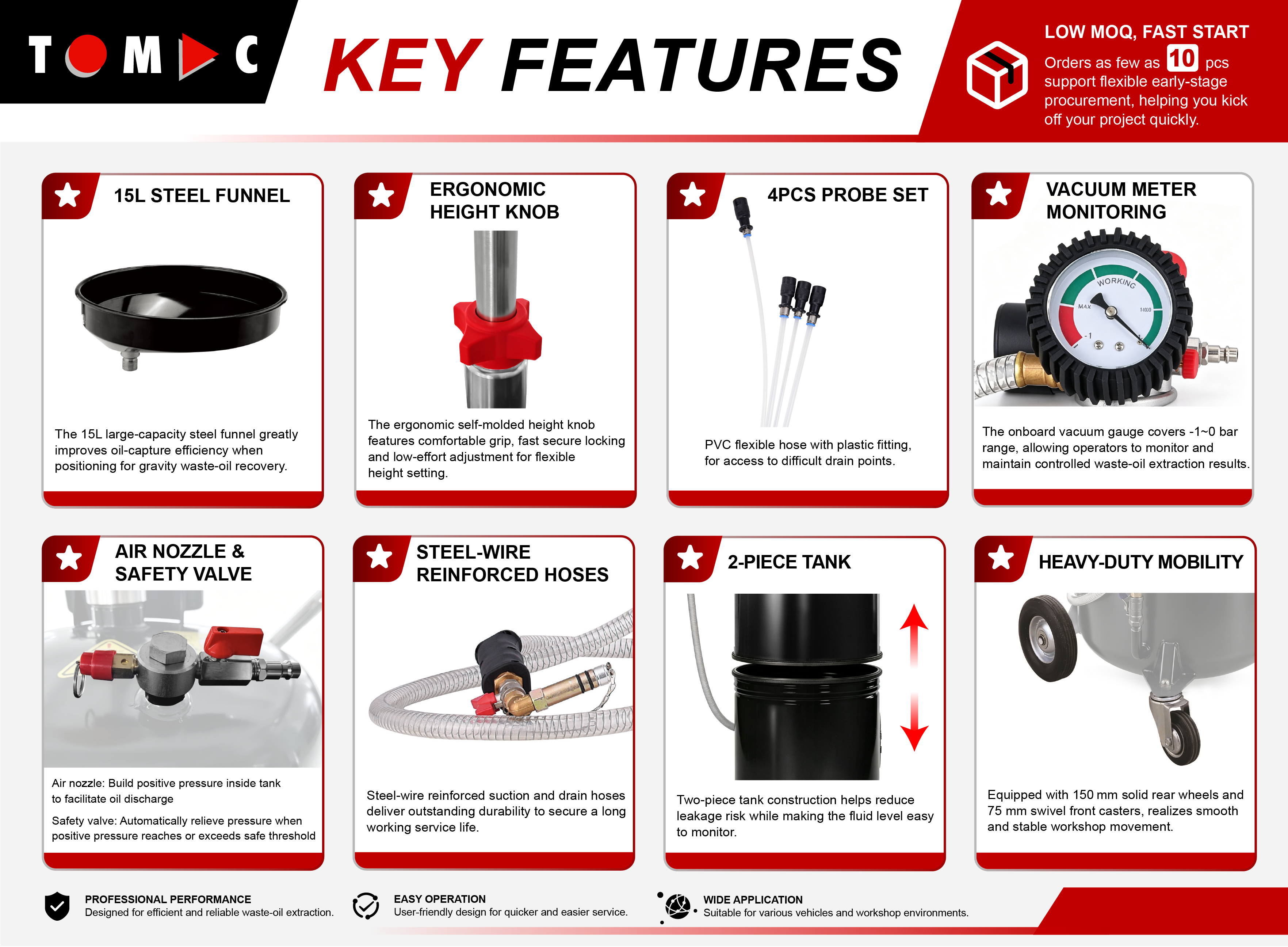

Extraction + draining: Supports suction extraction and draining for flexible oil transfer
Vacuum control: Vacuum meter -1 to 0 bar for better suction management
Strong suction performance: Suction speed 1.5–2 L/min
70L capacity + 15L funnel: Efficient capture and storage for workshop workflows
Working temperature 90°C: Built for hot oil (around 70–90°C) use

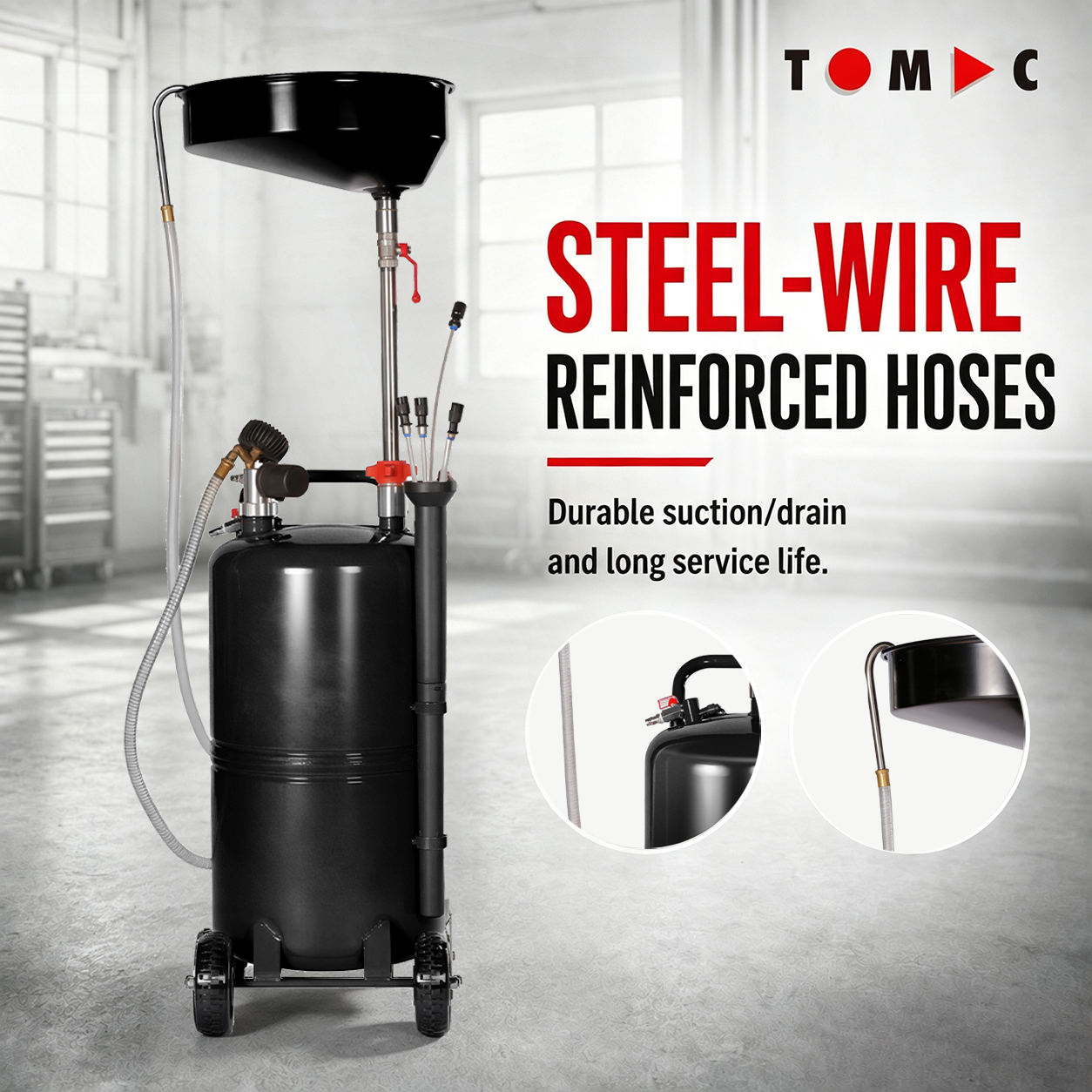

1/2" suction + 1/2" discharge: Steel-wire reinforced suction hose + transparent PVC discharge hose (flow visibility)
Draining pressure: 4–7 bar (max) for reliable discharge capability
Complete probe kit: 4 probes set (PVC) with plastic adapters for convenient positioning
No-drip design: Discharge hose includes sealing plugs to help prevent drips

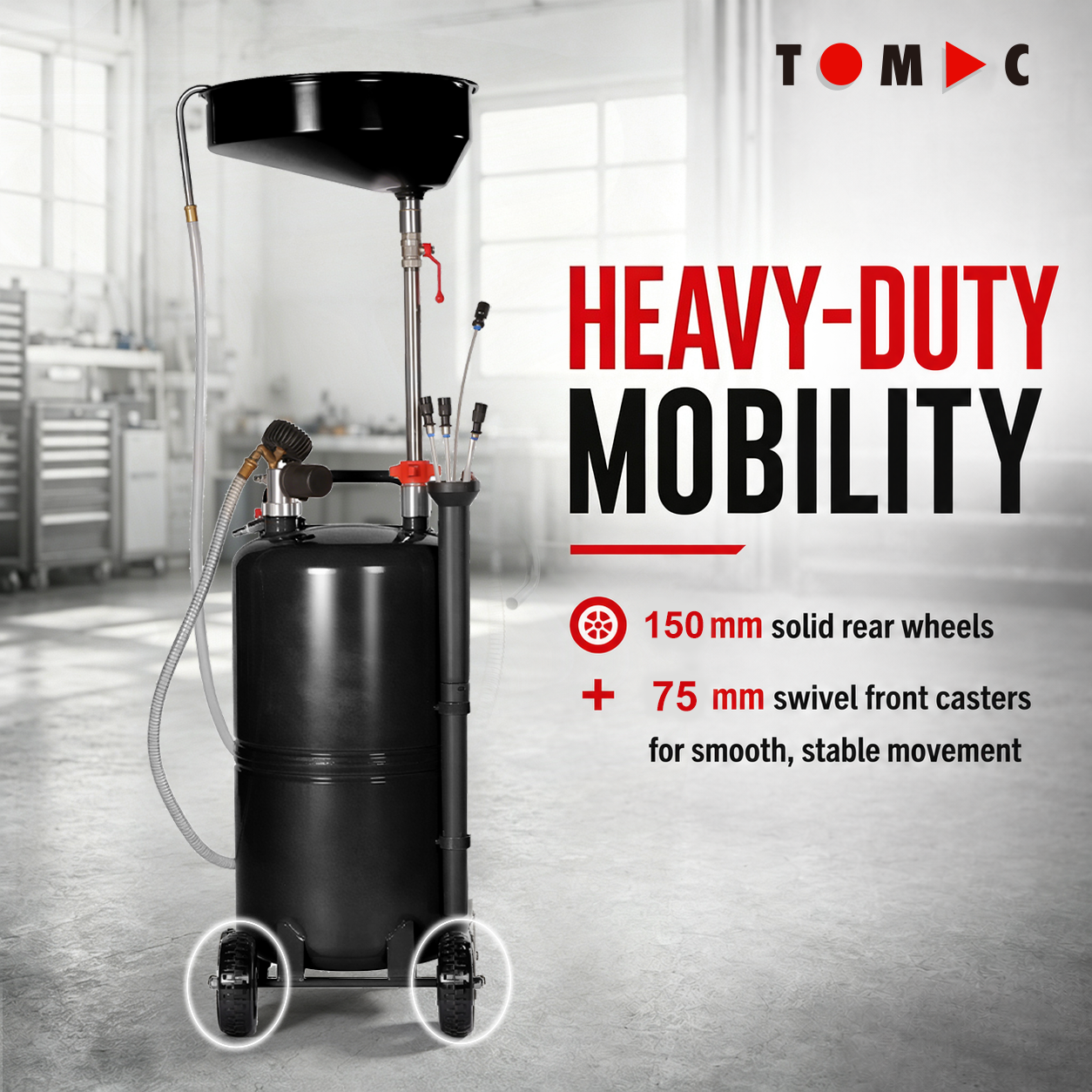

Heavy-duty mobility: 150mm rear wheels + 75mm swivel casters for stability and easy movement

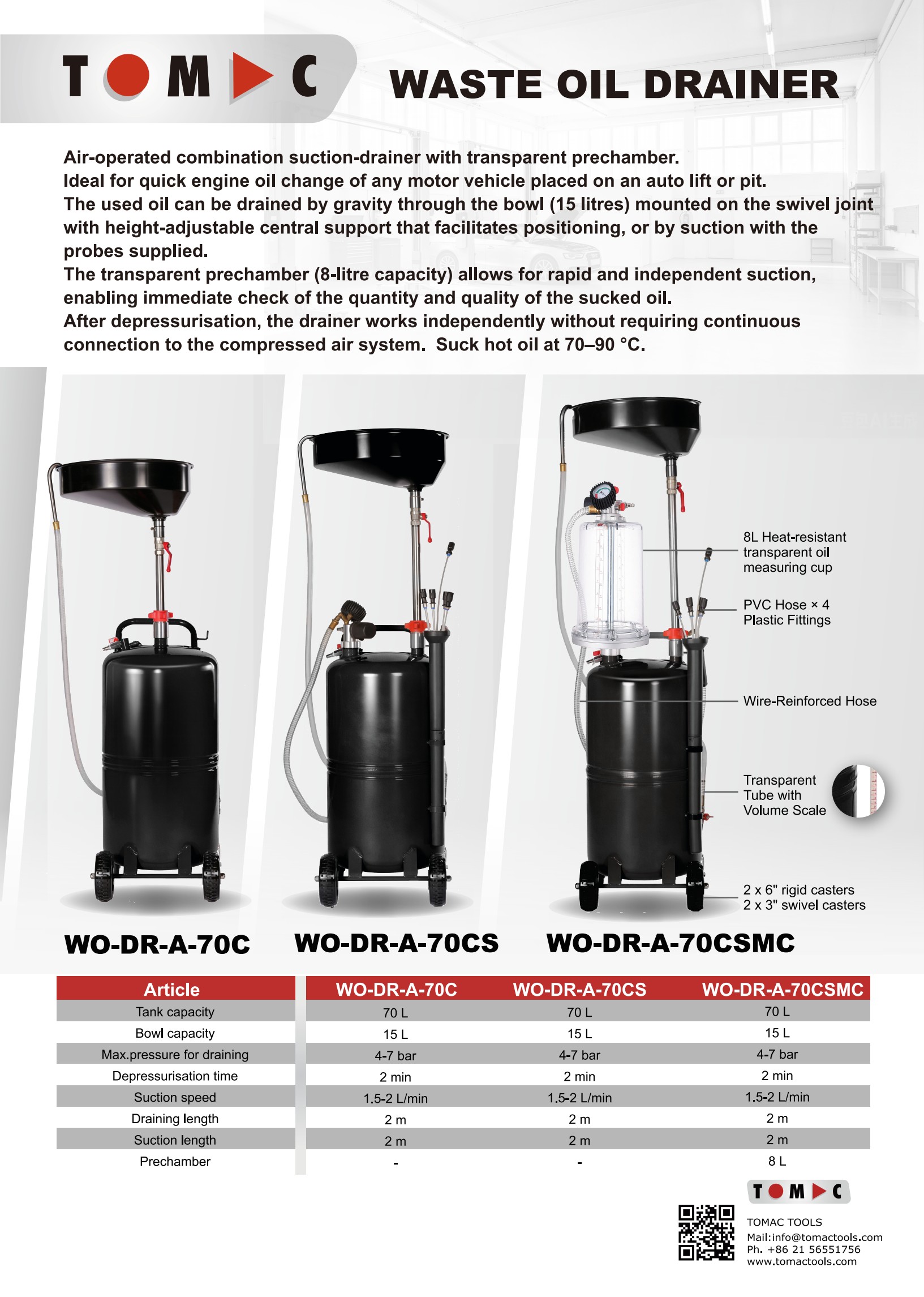

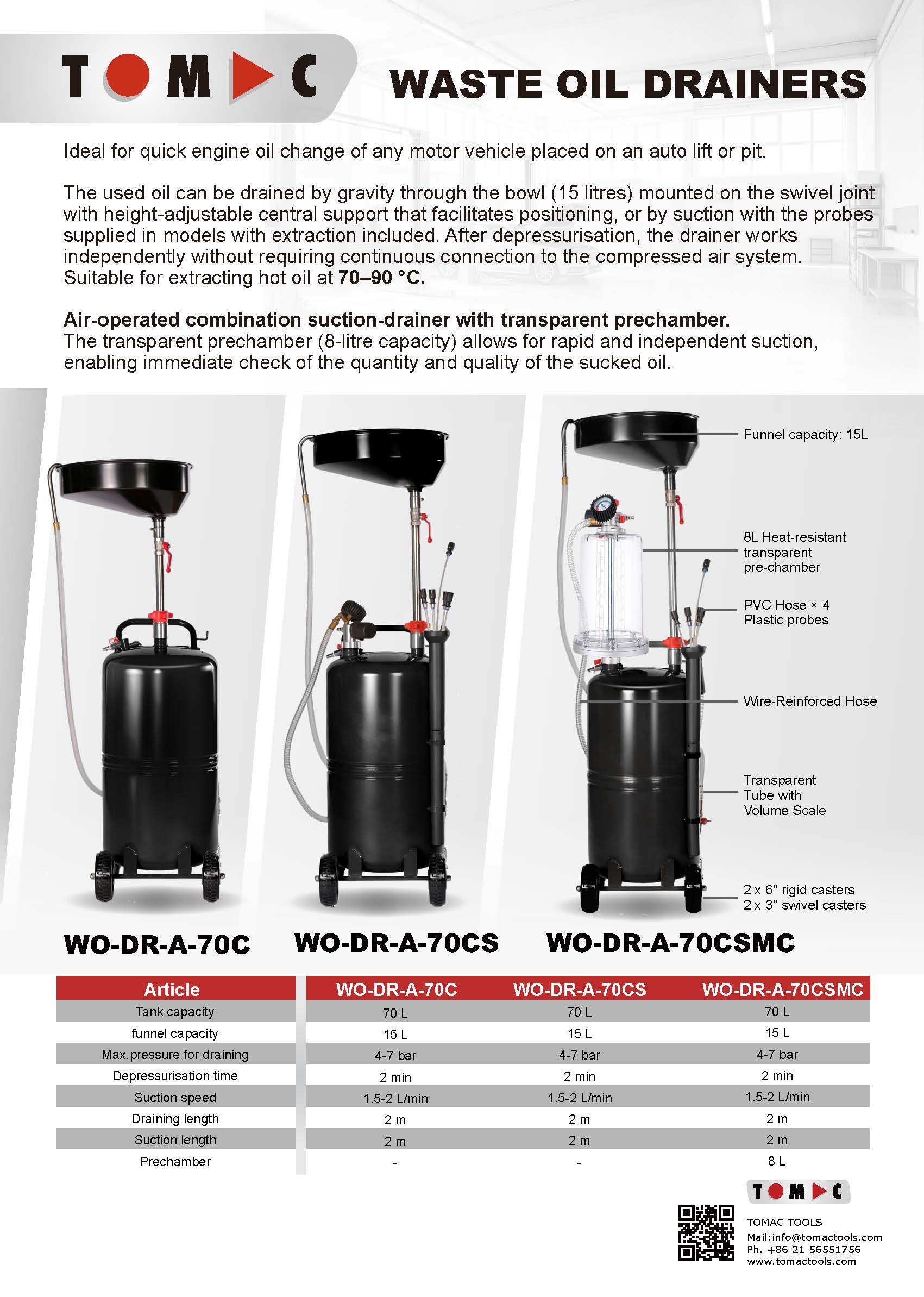

Product Specification	Details
Model	WO-DR-A-70CS

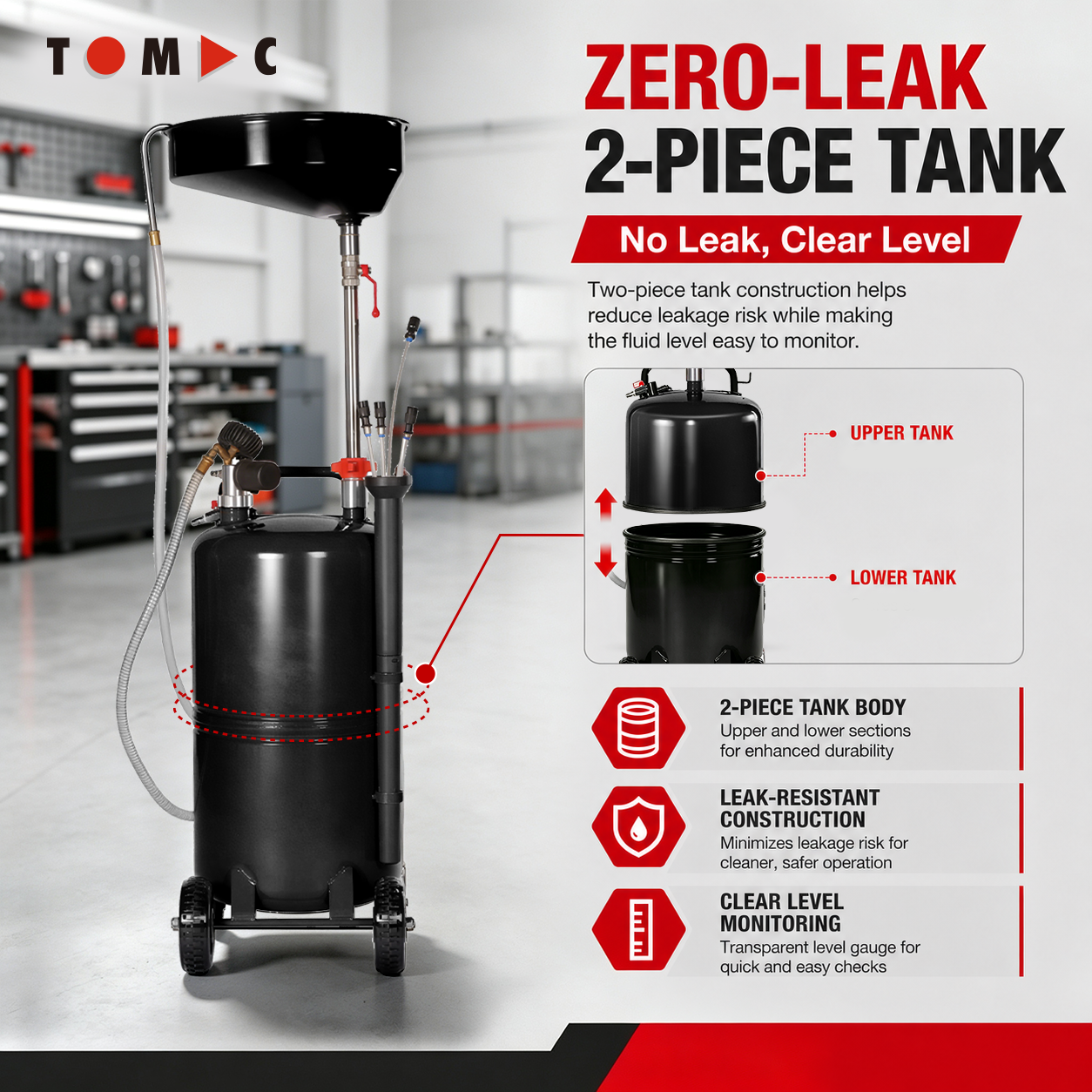

Tank Capacity	70L
Total Suction Capacity	\
Tank Material	steel
Tank Size	370*750mm
Wall Thickness	1.2mm
Steel Telescopic Rod Size	640*28mm
Steel Telescopic Rod Thickness	1.8mm
Vacuum Meter	-1~0bar
Steel Funnel Capacity	15L
Steel Funnel Diameter	400mm
Max.Pressure for Draining	4-7bar
Depressurisation Time	2min
Suction Speed	1.5-2L /min
Draining Size	1/2" *2m
Material	PVC
SS Bend Pipe Joint Specification	14x12mm
Suction Size	1/2" *2m
Iron Adapter Specification	15.8x10.6mm
Fixed Wheel	6"
Swivel Wheel	3"
Max Height	1650mm
Plastic Probe Kit Box Length	\
Probe Kit	PVC Flexible probe with plastic adapter 5750mm PVC Flexible probe with plastic adapter 6750mm PVC Flexible probe with plastic adapter 6970mm PVC Flexible probe with plastic adapter 8750mm
Package Method	1 outer carton
Package Size	1 PCS/CTN 464696cm
Net/Gross weight	32/34kgs
MOQ	50pcs
Delivery Time	60 days
