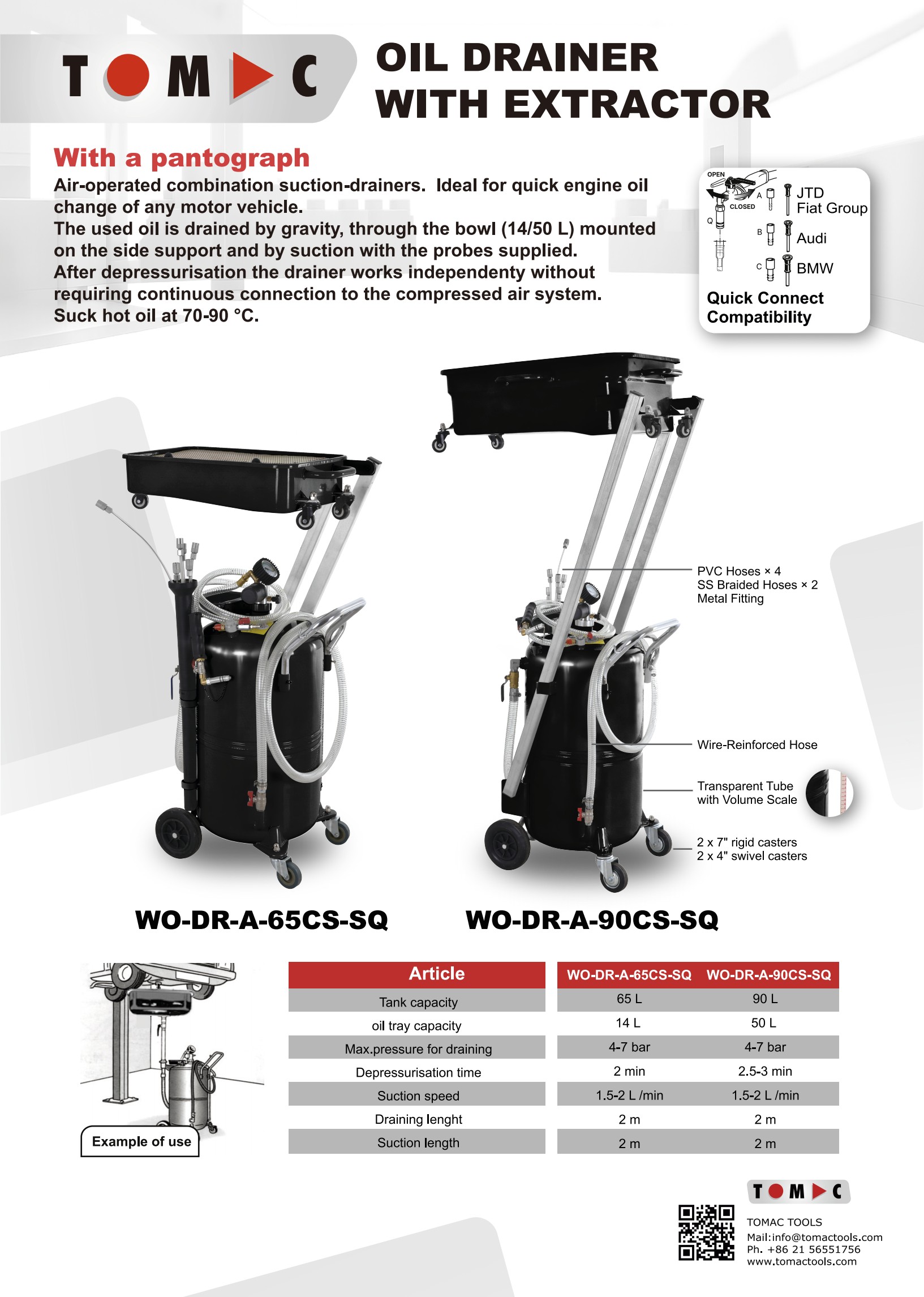

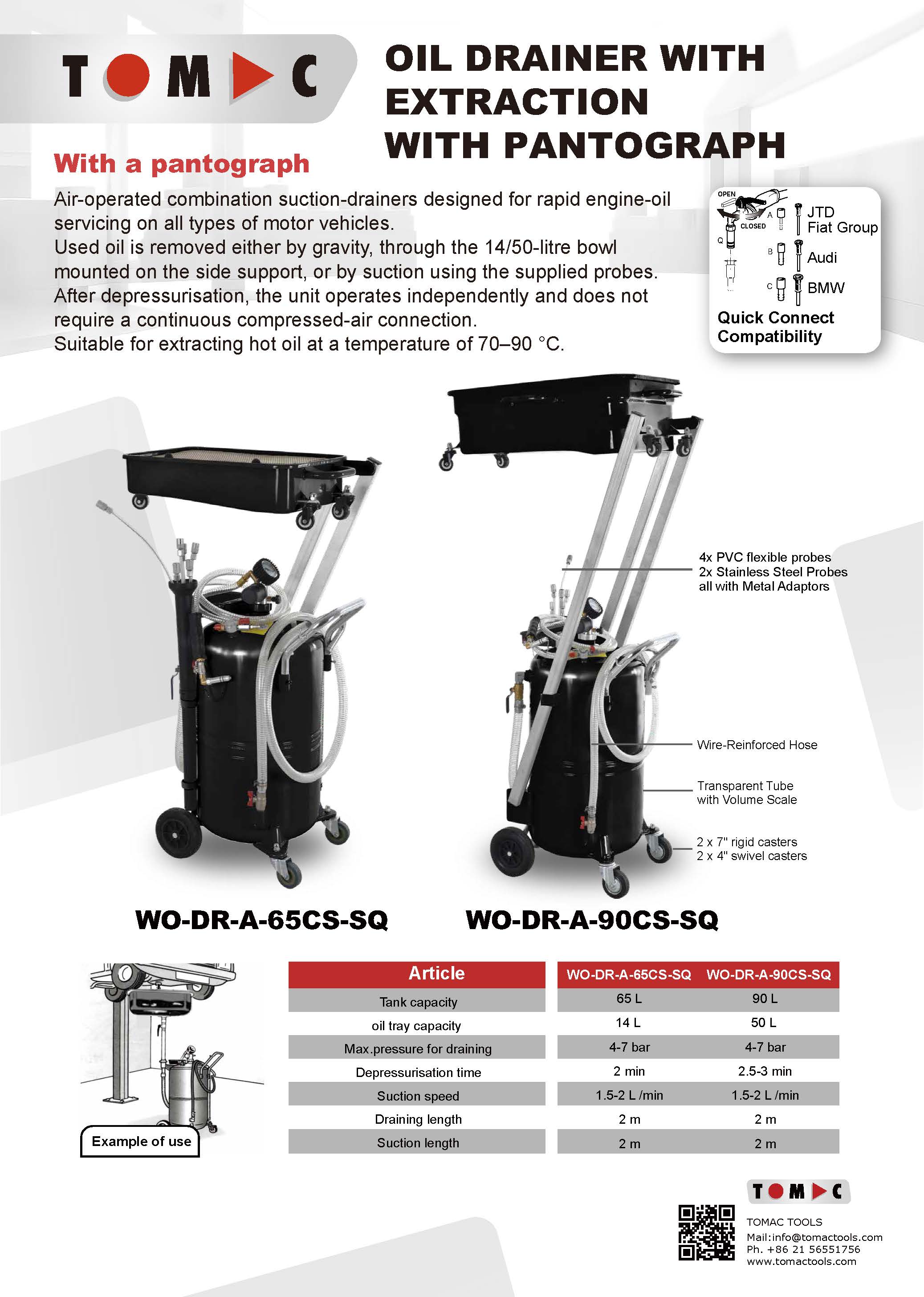

WO-DR-A-65CS-SQ TOMAC 65L Air-Operated Pantograph Vacuum Oil Drainer with Extractor, 14L Square Basin, 2m Steel-Wire Hose, 6pcs Probe Set

Low MOQ accepted — orders as few as 10 pcs for flexible early procurement.

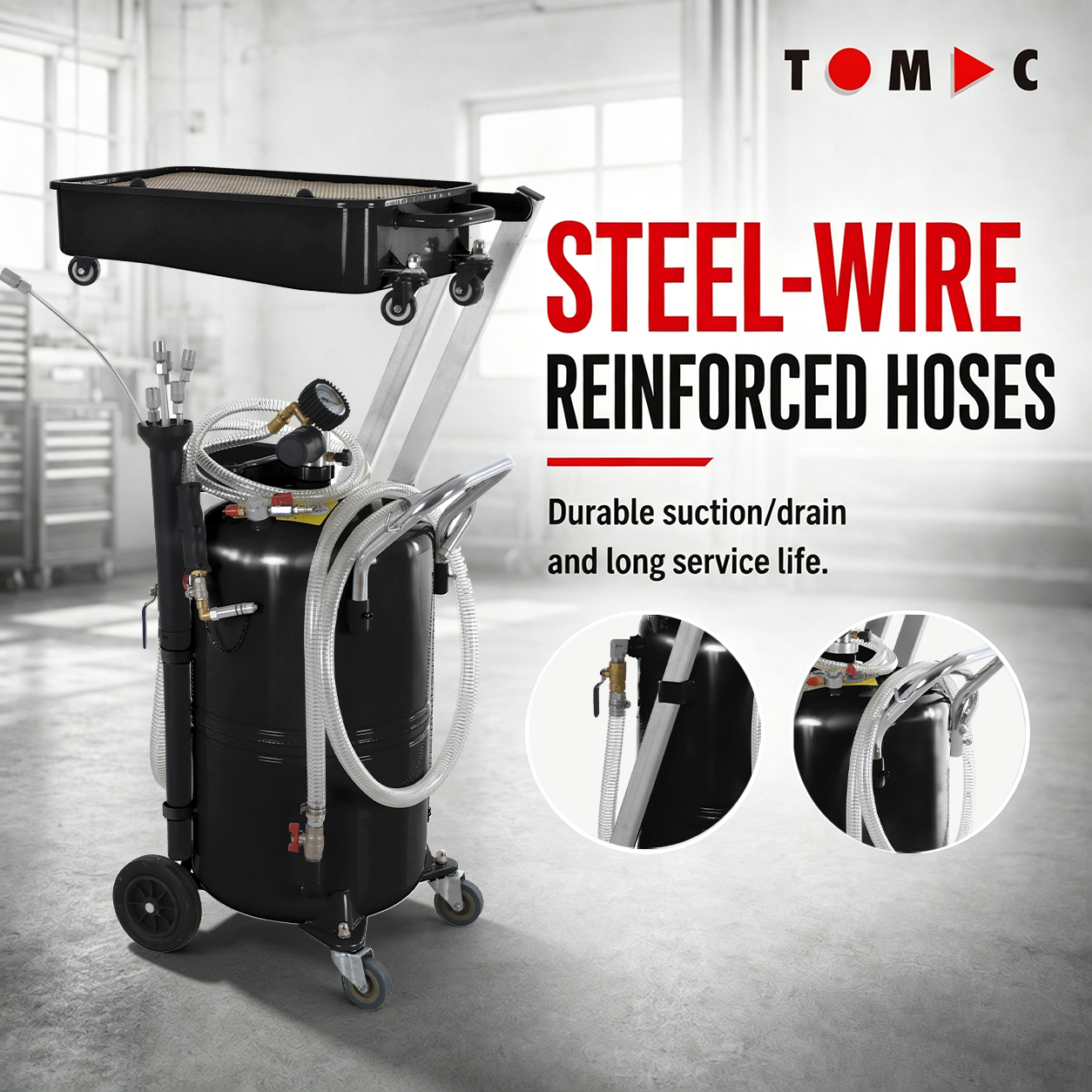

Steel-wire reinforced hoses (1/2" suction + 3/4" discharge) for durable, drip-resistant transfer with clear flow visibility.

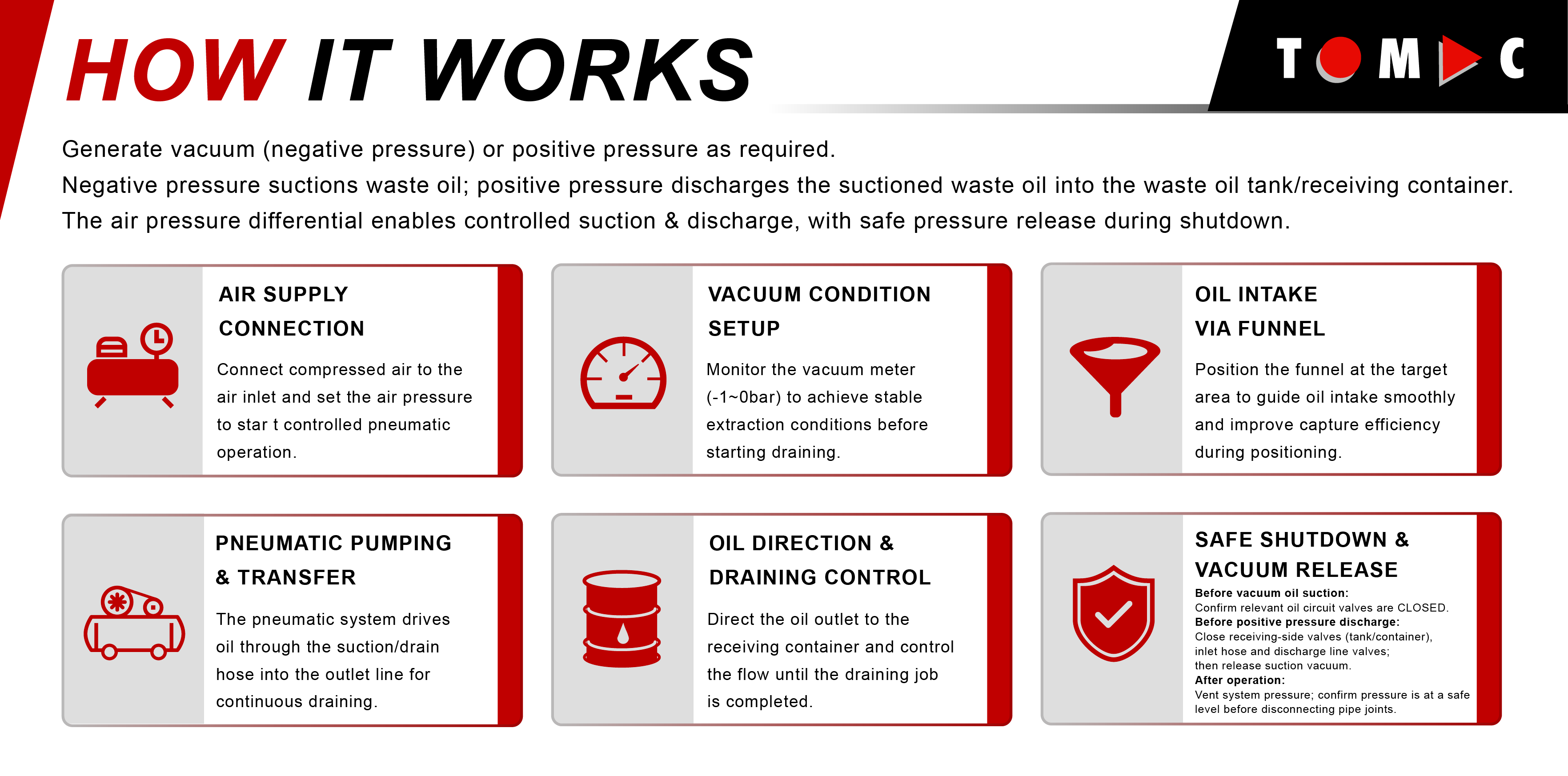

Vacuum extraction helps you drain waste oil with more control.

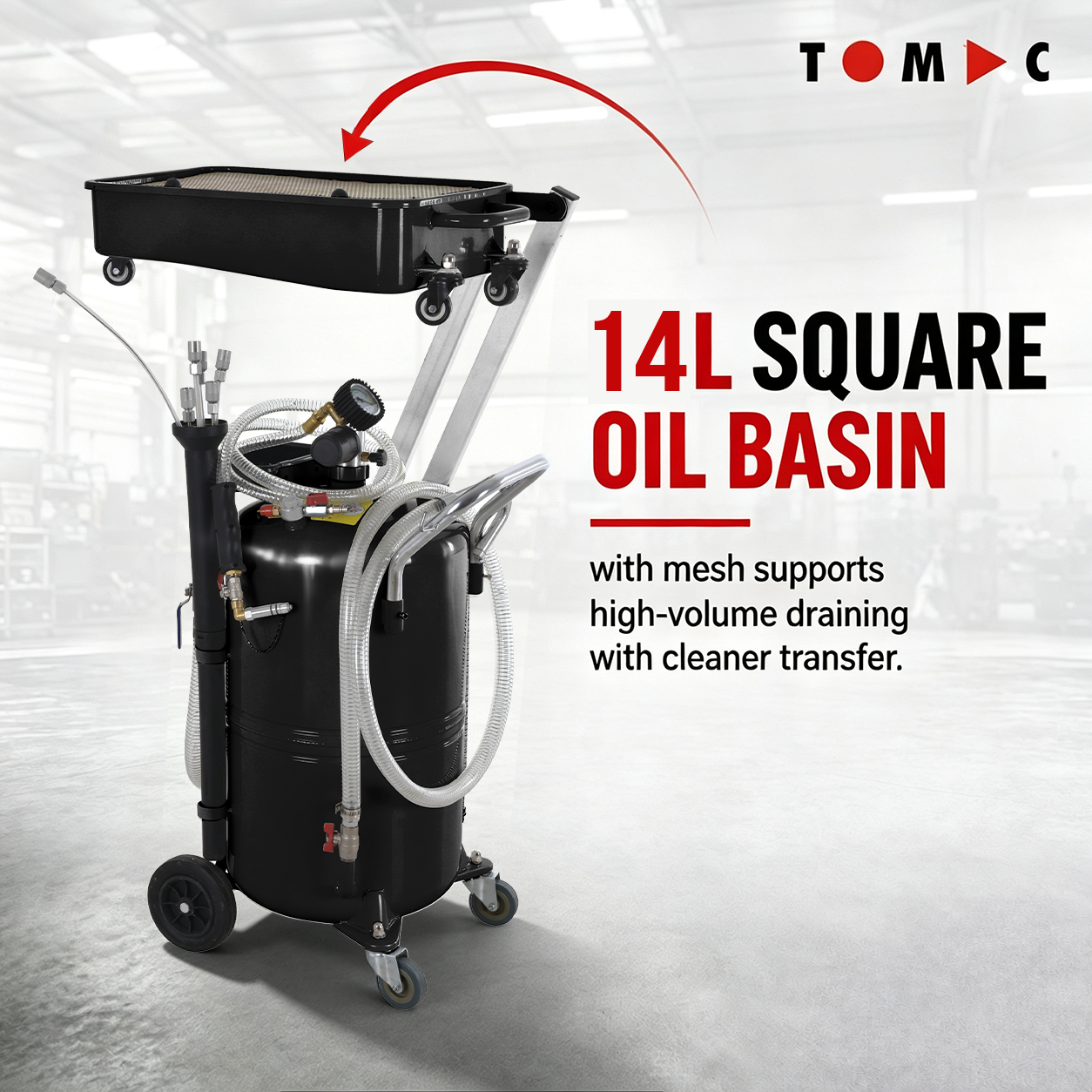

14L square oil basin with mesh supports high-volume collection with less mess.

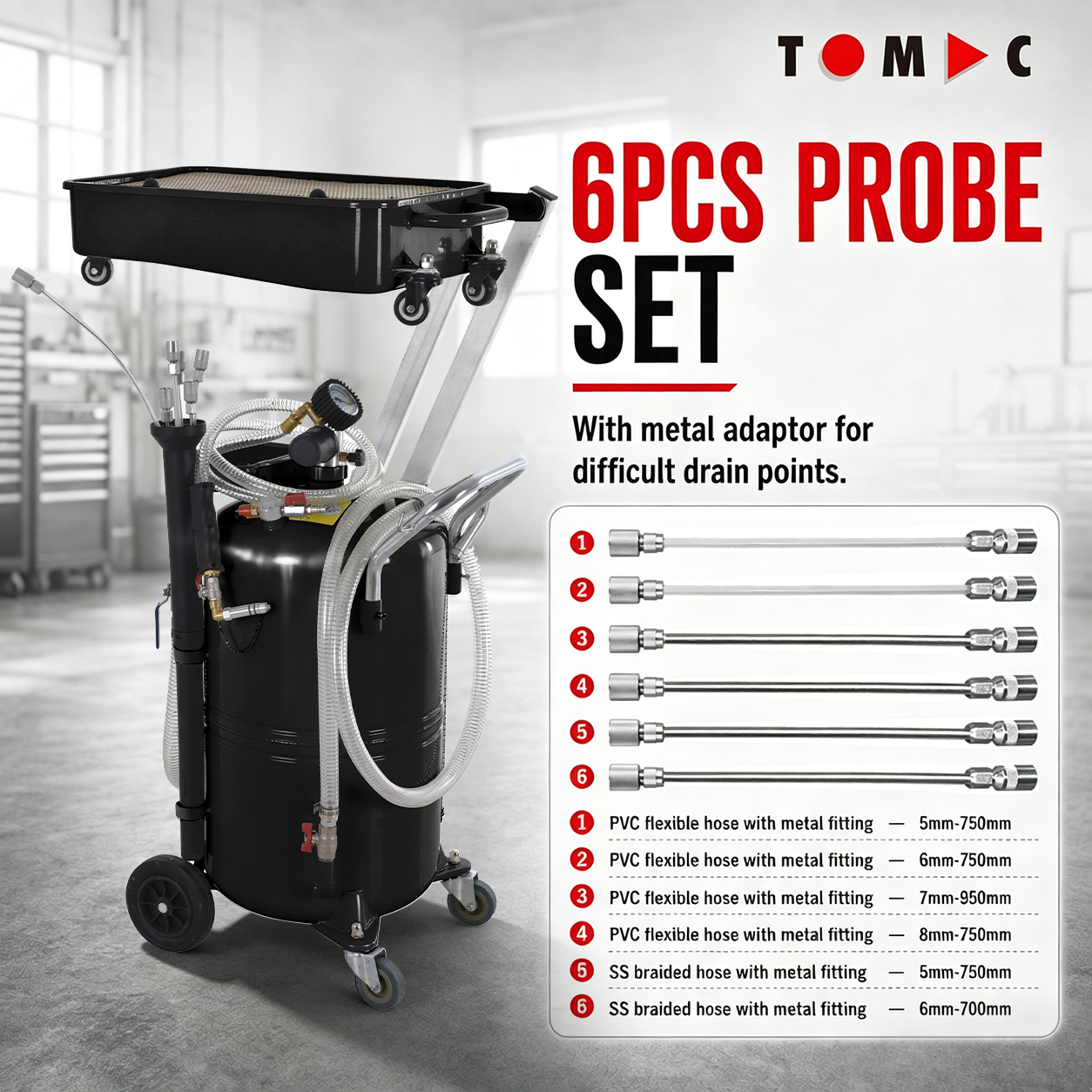

6pcs probe set with metal adaptor helps reach hard-to-access drain points.
Pantograph lift for workshop use enables easier draining at different positions.

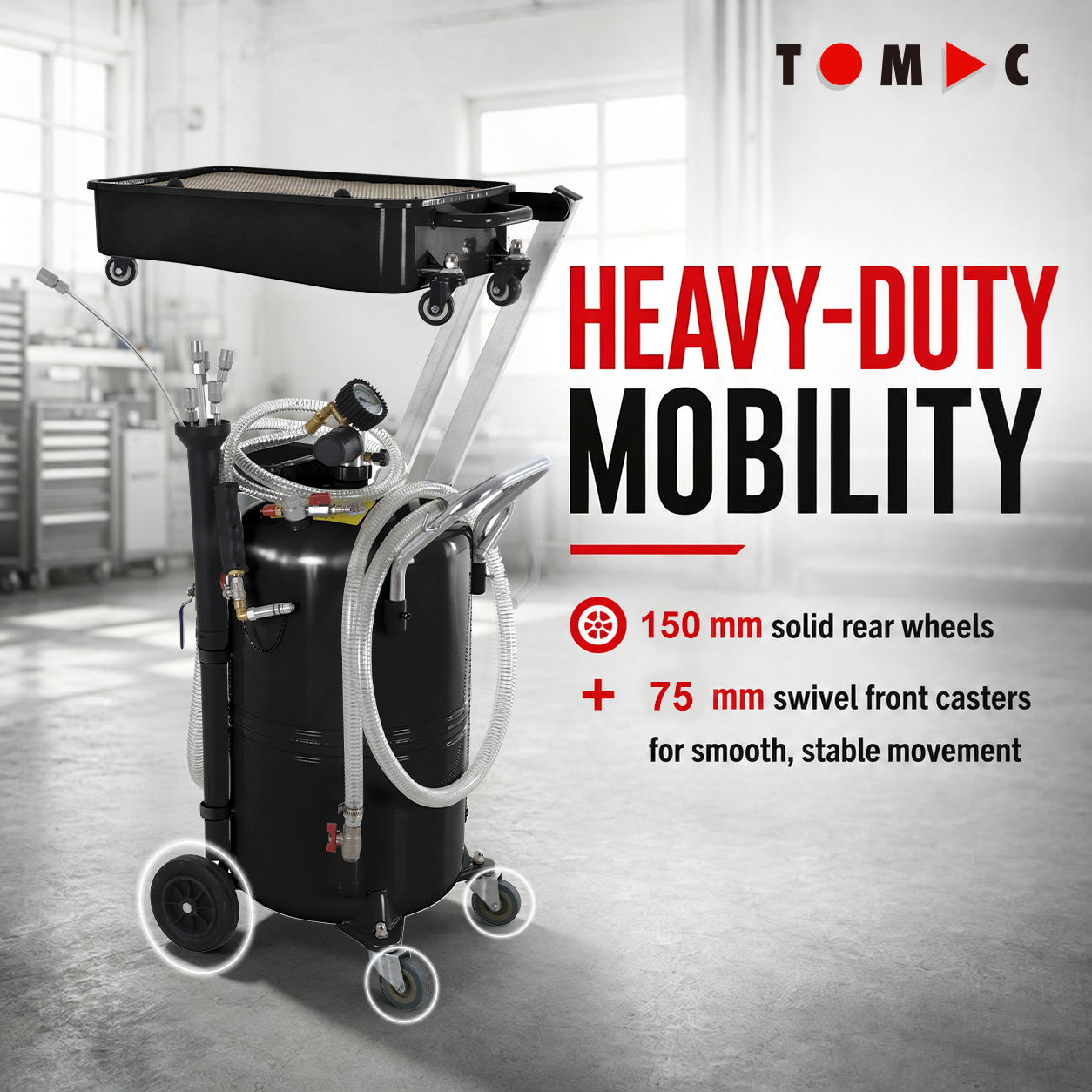

Heavy-duty mobility — 150mm solid rear wheels + 75mm swivel front casters for smooth, stable movement.

Product Specification	Details
Model	WO-DR-A-65CS-SQ
Tank Capacity	65L
Total Suction Capacity	60-65L

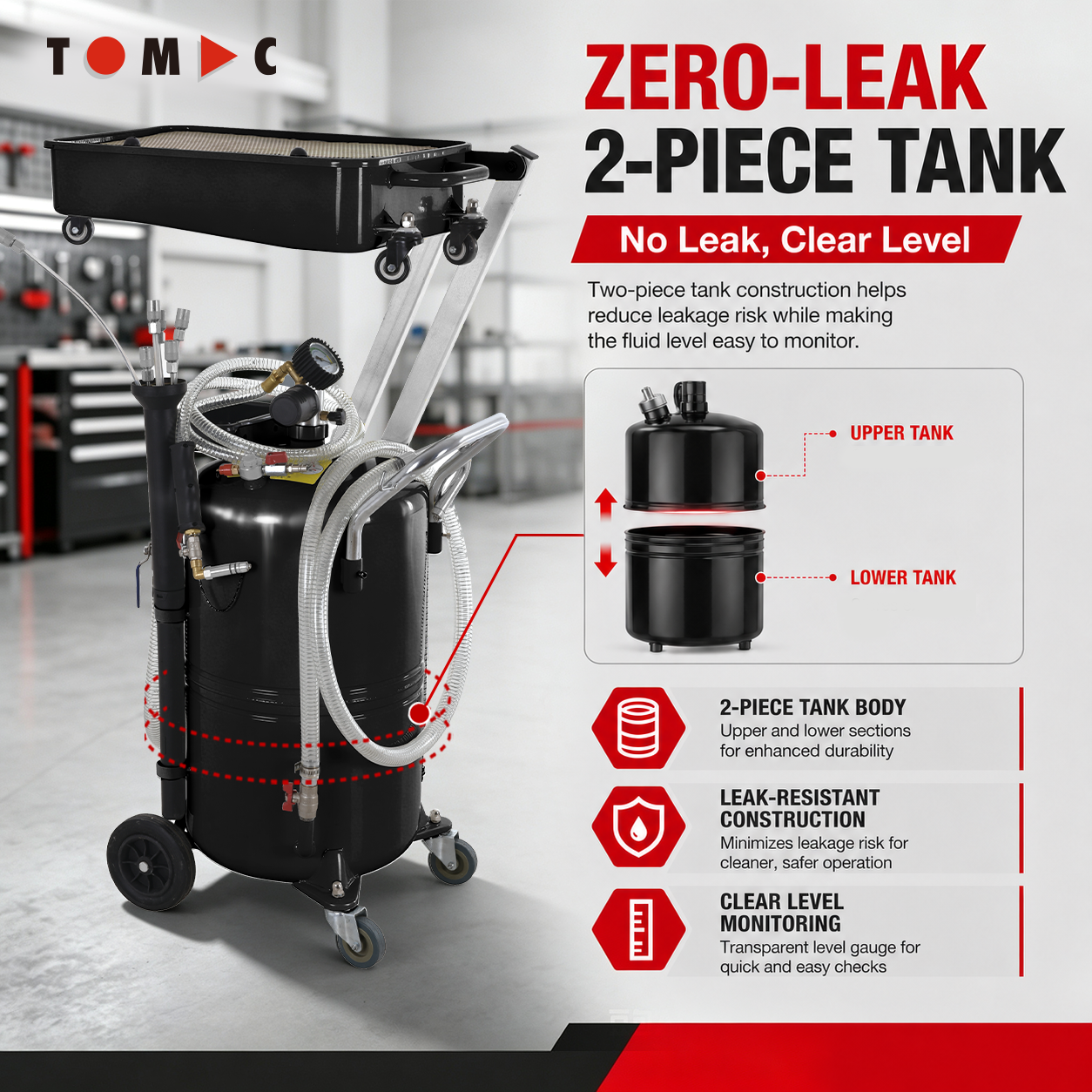

Tank Material	steel
Tank Size	370*696mm
Wall Thickness	1.5mm
Vacuum Meter	-1~0bar
Noise Level	75dB
Square Basin Capacity	14L
Dimension of the Square Basin	550360130mm
Iron Thickness	1.2mm
Tube Size	4025989mm
Tube Thickness	2.0mm
Iron Filter Size	520*330mm
Iron Filter Thickness	1.0mm
Max.Pressure for Draining	4-7bar
Gas Adapter Specifications	1/4"
Depressurisation Time	2min
Suction Speed	1.5-2L /min
Draining Size	3/4" *2m
Iron Bend Pipe Joint Specification	19x15.4mm
Suction Size	1/2" *2m
Iron Adapter Specification	15.8x10.6mm

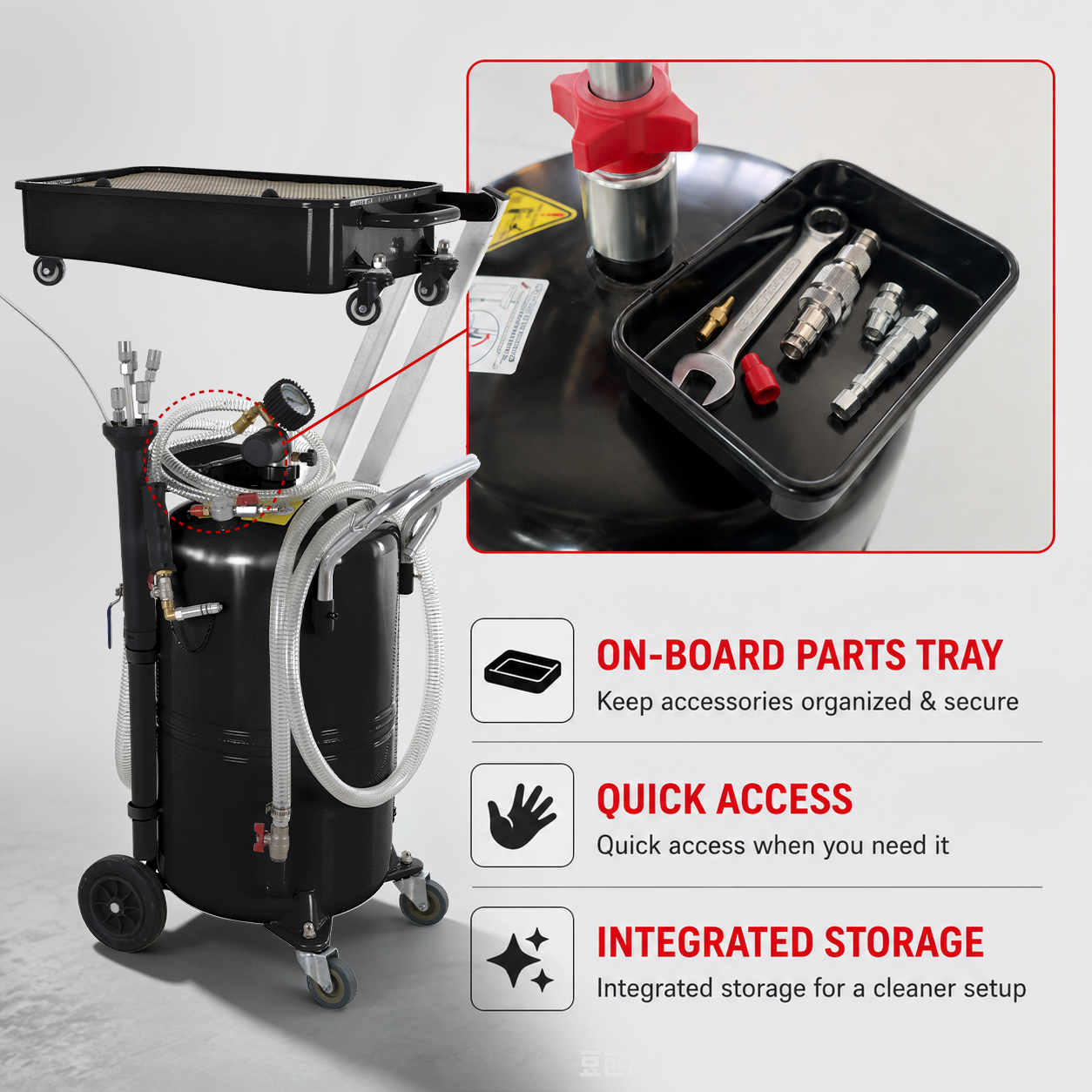

Steel Tool Box	19615145mm
Fixed Wheel	6"
Swivel Wheel	3"
Max Height	1160mm
Plastic Probe Kit Box Length	676mm
Probe Kit	PVC Flexible probe with iron adapter 5750mm PVC Flexible probe with iron adapter 6750mm PVC Flexible probe with iron adapter 7950mm PVC Flexible probe with iron adapter 8750mm SS braided hose with SS adapter 5750mm SS braided hose with SS adapter 6700mm
Package Method	2 outer carton
Package Size	B0X1(Barrel):1 PCS/CTN 4646105cm BOX2(Square Basin):1 PCS/CTN :826427cm
Net/Gross weight	50/51kgs
MOQ	10pcs
Delivery Time	60 days
