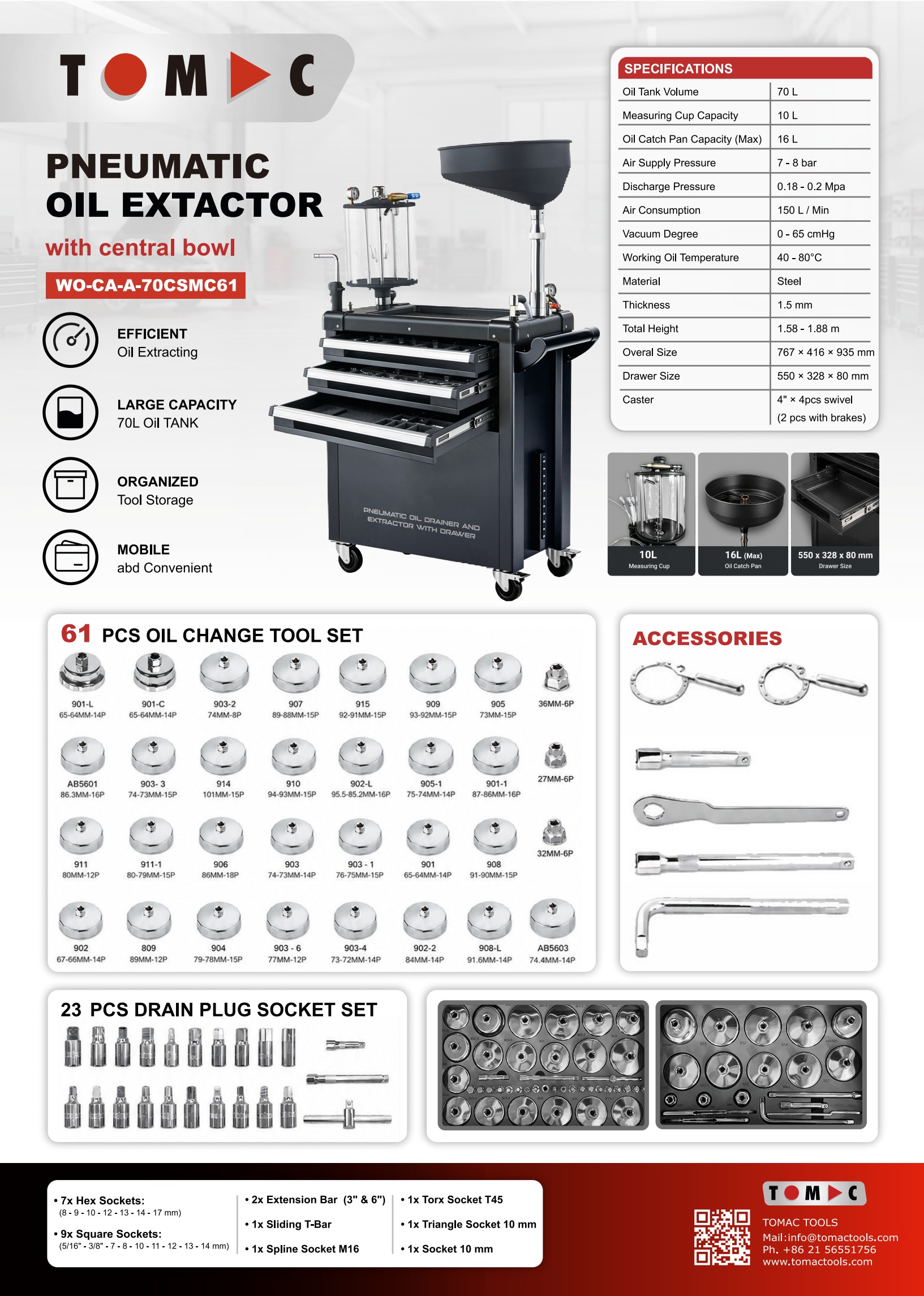

WO-CA-A-70CSMC61 TOMAC 70L Pneumatic Vacuum Oil Extractor with Tool Cabinet & Oil Filter Tool Kit
- Tool cabinet + vacuum oil extraction—all-in-one solution for oil & filter maintenance

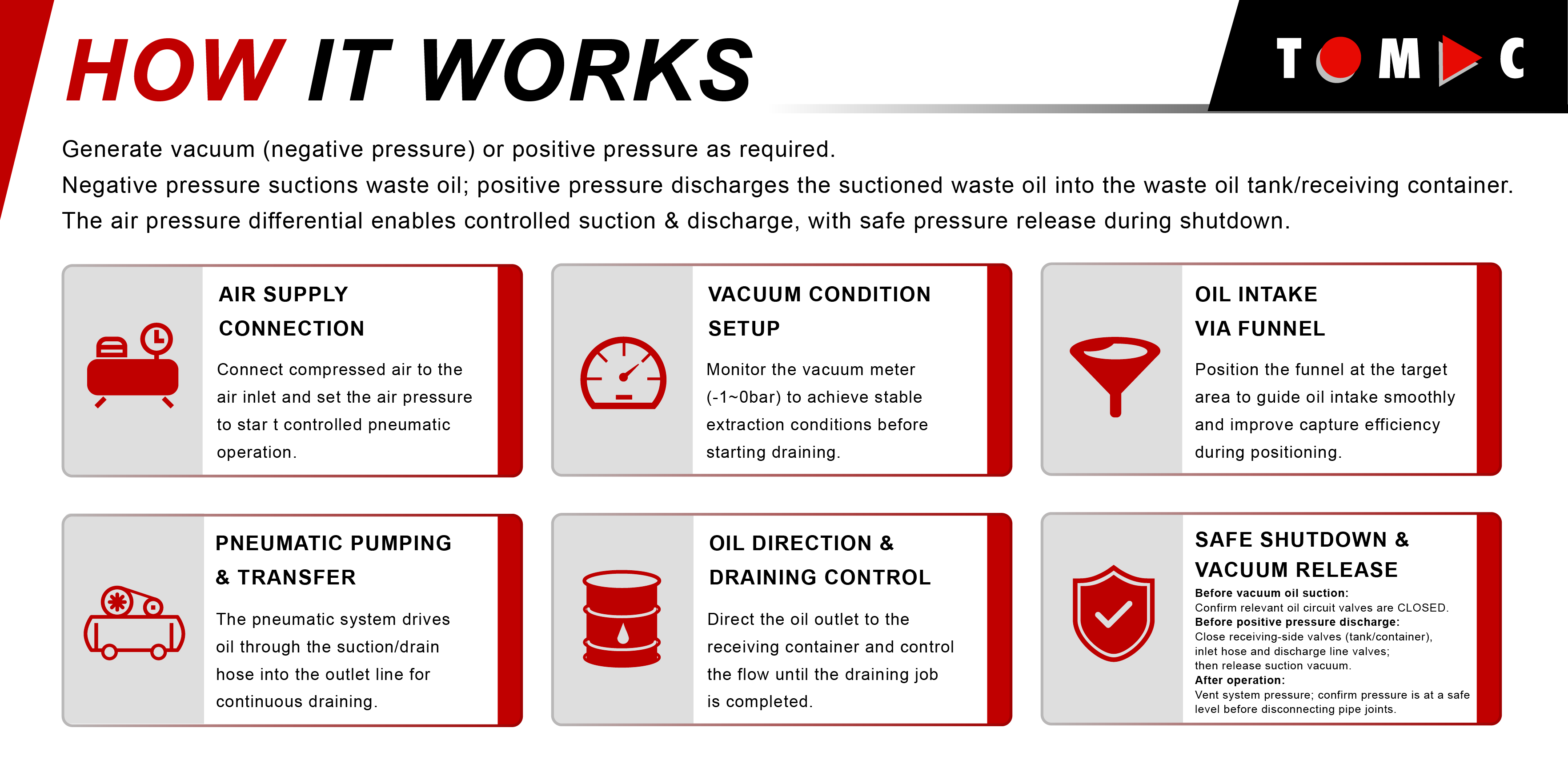

- Air pneumatic driven—no electricity required, safe & explosion-proof (spark-free)
- Powerful vacuum suction—fast extraction, improves shop efficiency
- 70L thickened steel tank—pressure-resistant, leak-proof, built for heavy-duty use

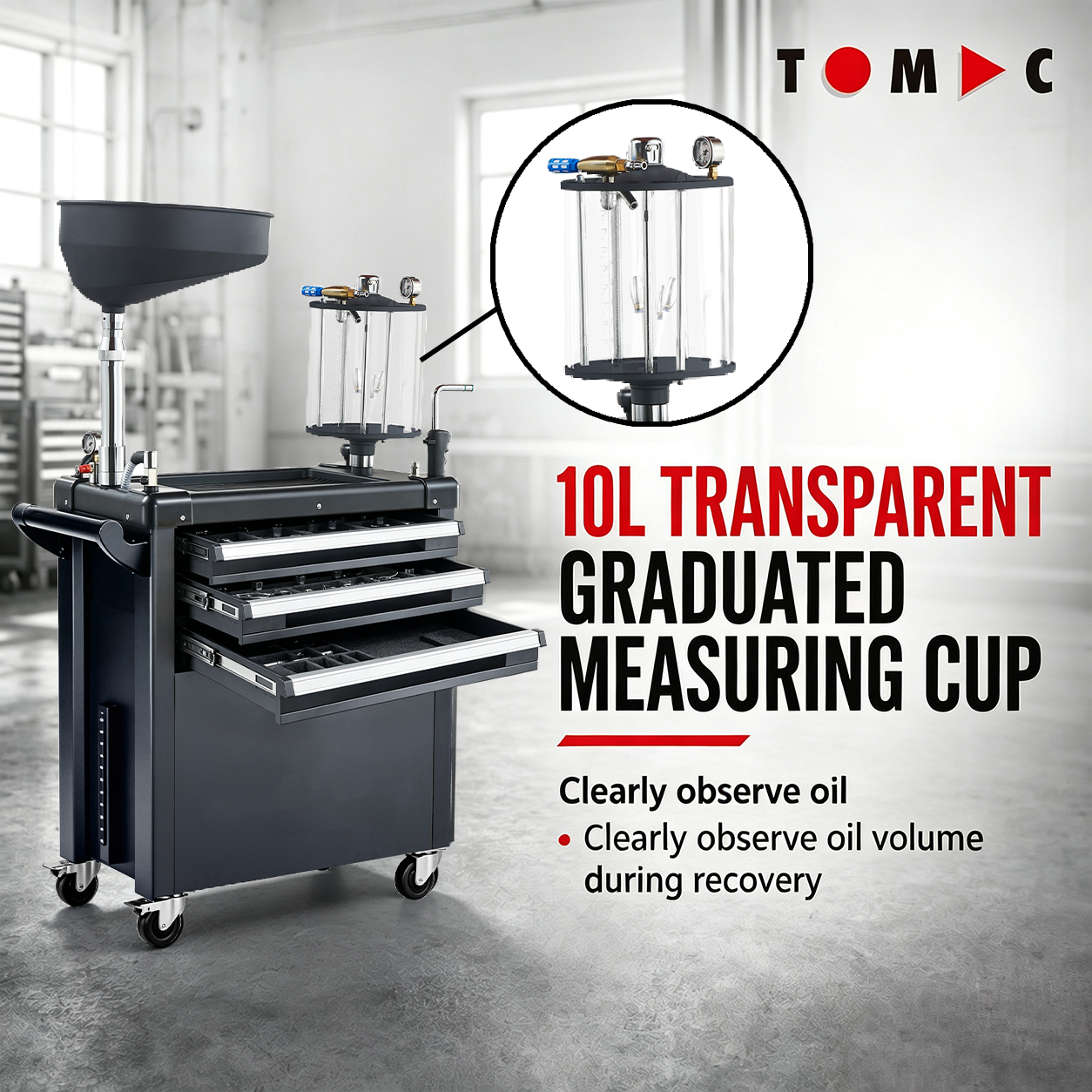

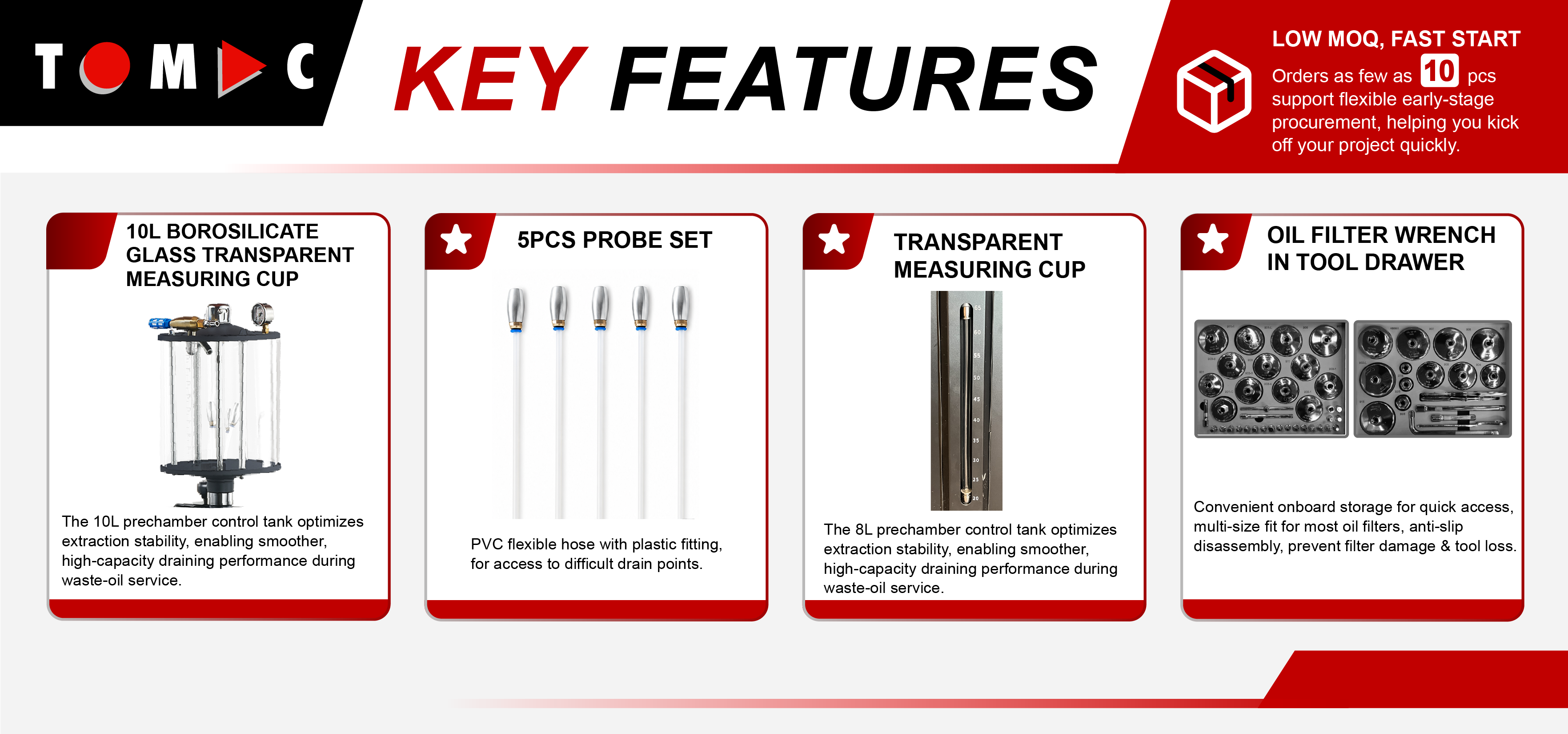

- Transparent graduated measuring cup—clearly observe oil volume during recovery

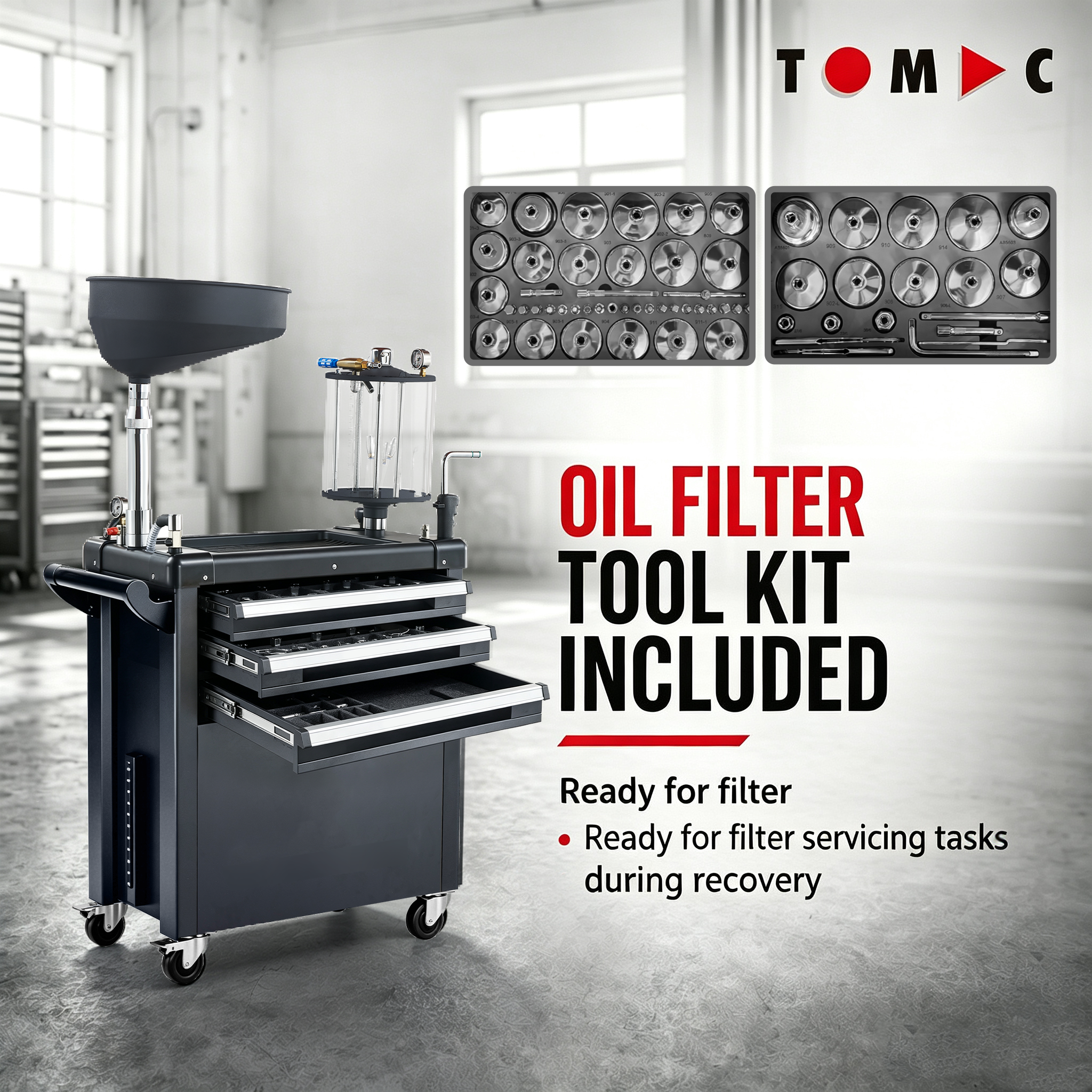

- Oil filter tool kit included—ready for filter servicing tasks
- Large capacity (less frequent disposal)—perfect for busy workshops and fleets

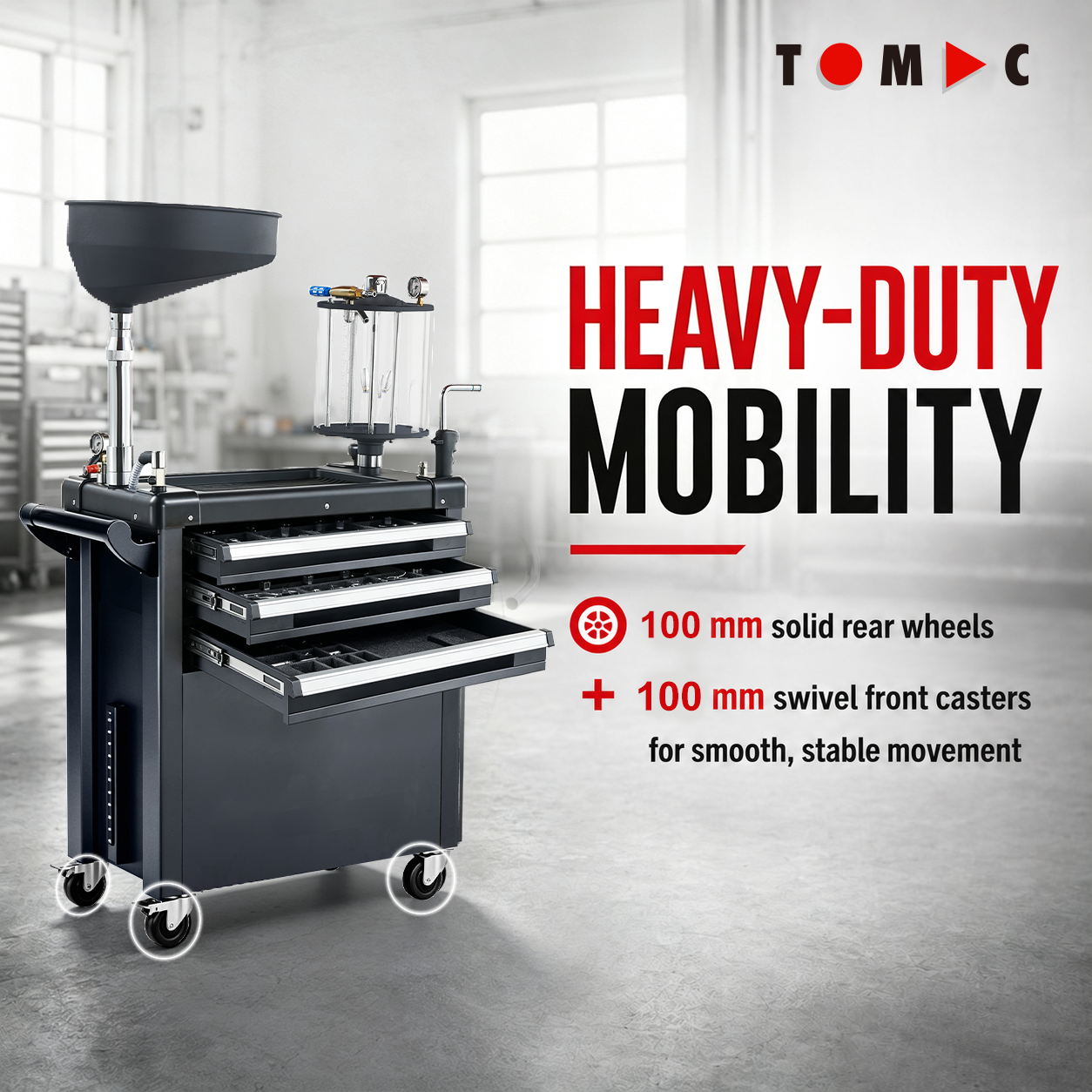

- Universal casters—flexible mobility for multi-station use
- Overview
- Recommended Products

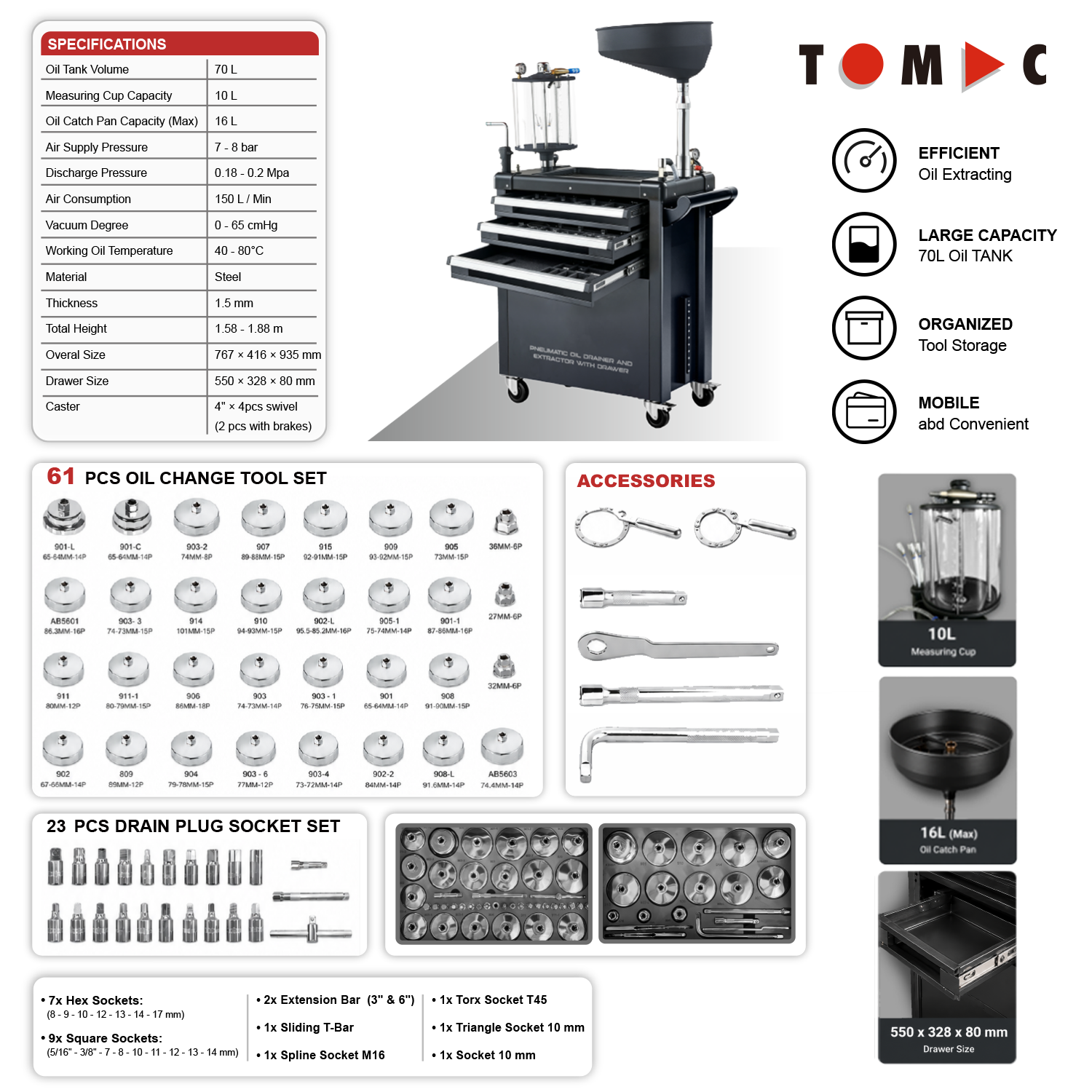

| Product Specification | Details |
| Model | WO-CA-A-70CSMC61 |
| Oil Tank Volume | 70L |
| Thickness | 1.5mm |
| Material | steel |
| Total Height | 1.4-1.56m |
| Overal Size |
697*416*785mm(w/o caster and handle) 767*465*935mm(w/ caster and handle) |
| Drawer Size | 550*328*80mm |
| Air Supply Pressure | 7-8bar |
| Discharge Pressure | 0.18 -0.2 Mpa |
| Air Consumption | 150L /Min |
| Vacuum Degree | 0~ 65cmHg |
| Measuring Cup Capacity | 10L |
| Oil Catch Pan Capacity | 16L(Max) |
| Working Oil Temperature | 40~80°C |
| Caster | 4"*2" |

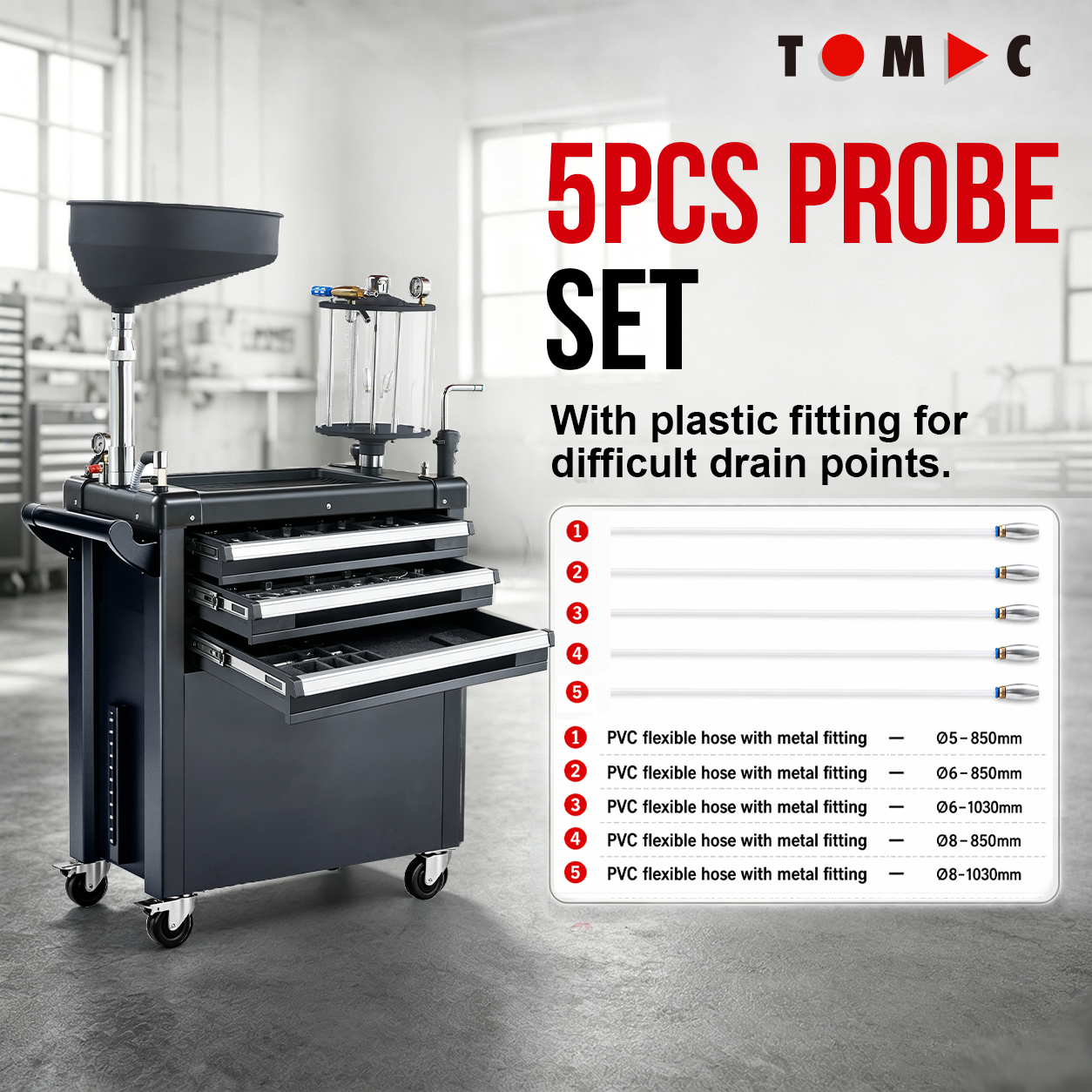

| Probe Kit |
PVC flexible hose with metal fitting 5*850mm PVC flexible hose with metal fitting 6*850mm PVC flexible hose with metal fitting 6*1030mm PVC flexible hose with metal fitting 8*850mm PVC flexible hose with metal fitting 8*1030mm |
| Package Method | 2 outer carton |
| Package Size |
B0X1:1 PCS/CTN 87*50*102cm BOX2:1 PCS/CTN :48*43*48cm |
| Net/Gross weight | 85.4/91.4kgs |

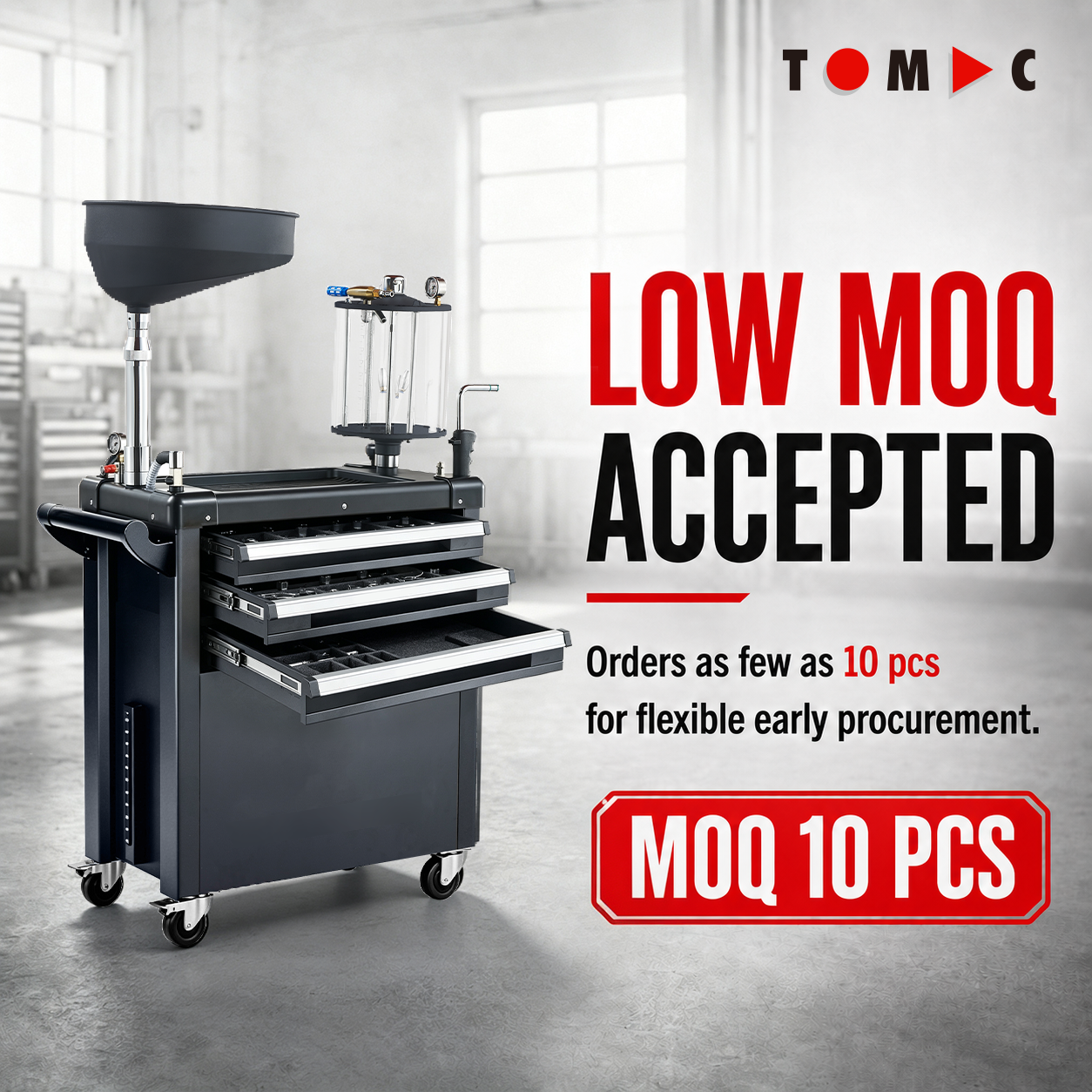

| MOQ | 10pcs |
| Delivery Time | 45 days |
