WO-CA-A-50CSMC54 TOMAC 50L Pneumatic Vacuum Oil Extractor with Tool Cabinet & Oil Filter Tool Kit
- Tool cabinet + vacuum oil extraction—innovative all-in-one for oil service & filter work
- Air pneumatic driven—no electricity, safe & explosion-proof (spark-free)
- Strong vacuum suction—fast oil extraction, saves time
- 50L thickened steel tank—pressure-resistant, leak-proof, long service life

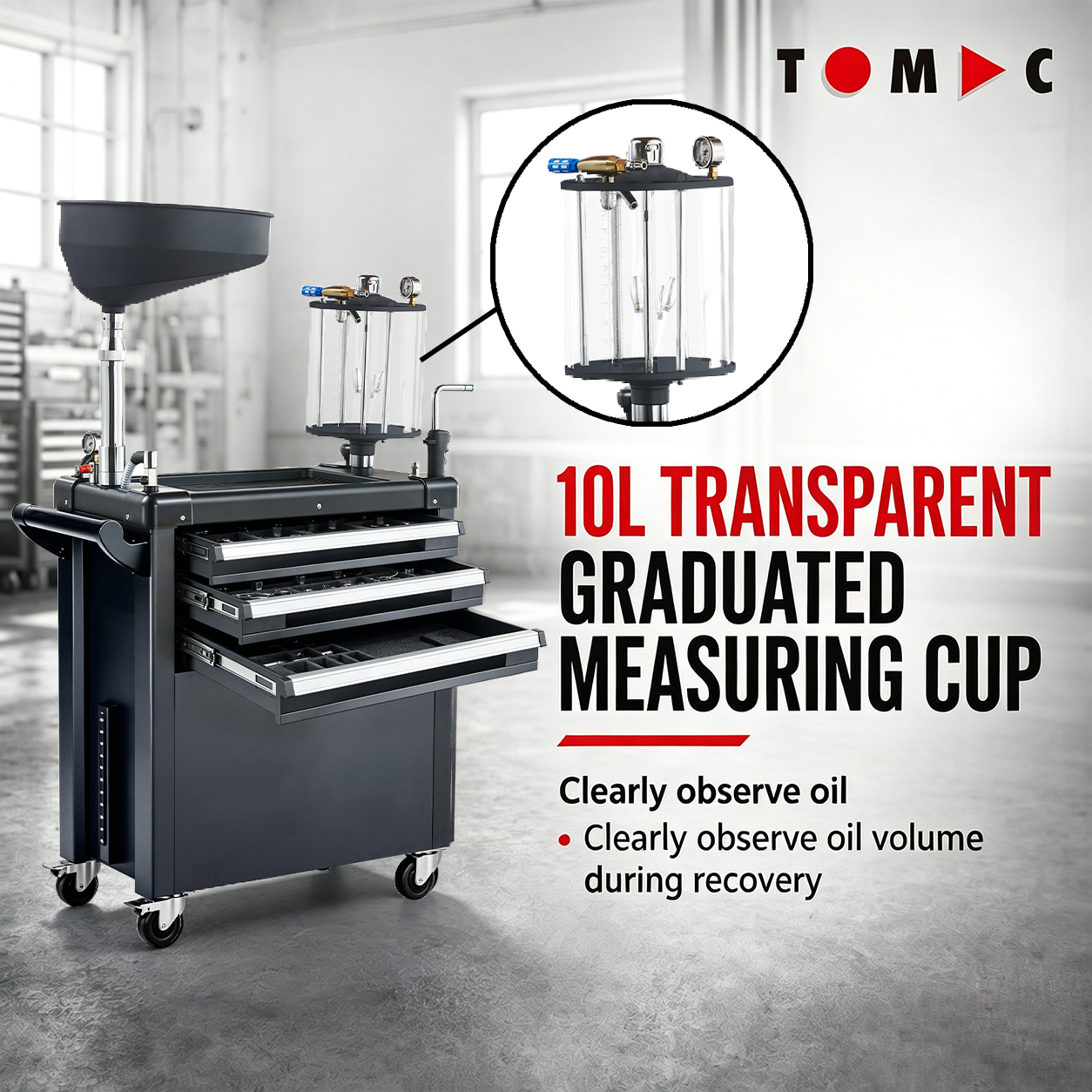

- Transparent graduated measuring cup—clean, controlled recovery with clear visibility
- Oil filter tool kit included—supports filter servicing with extraction in one setup
- Tool cabinet storage—keep tools organized for quick switching during service
- Universal casters—easy to roll, easy to position
- Overview
- Recommended Products

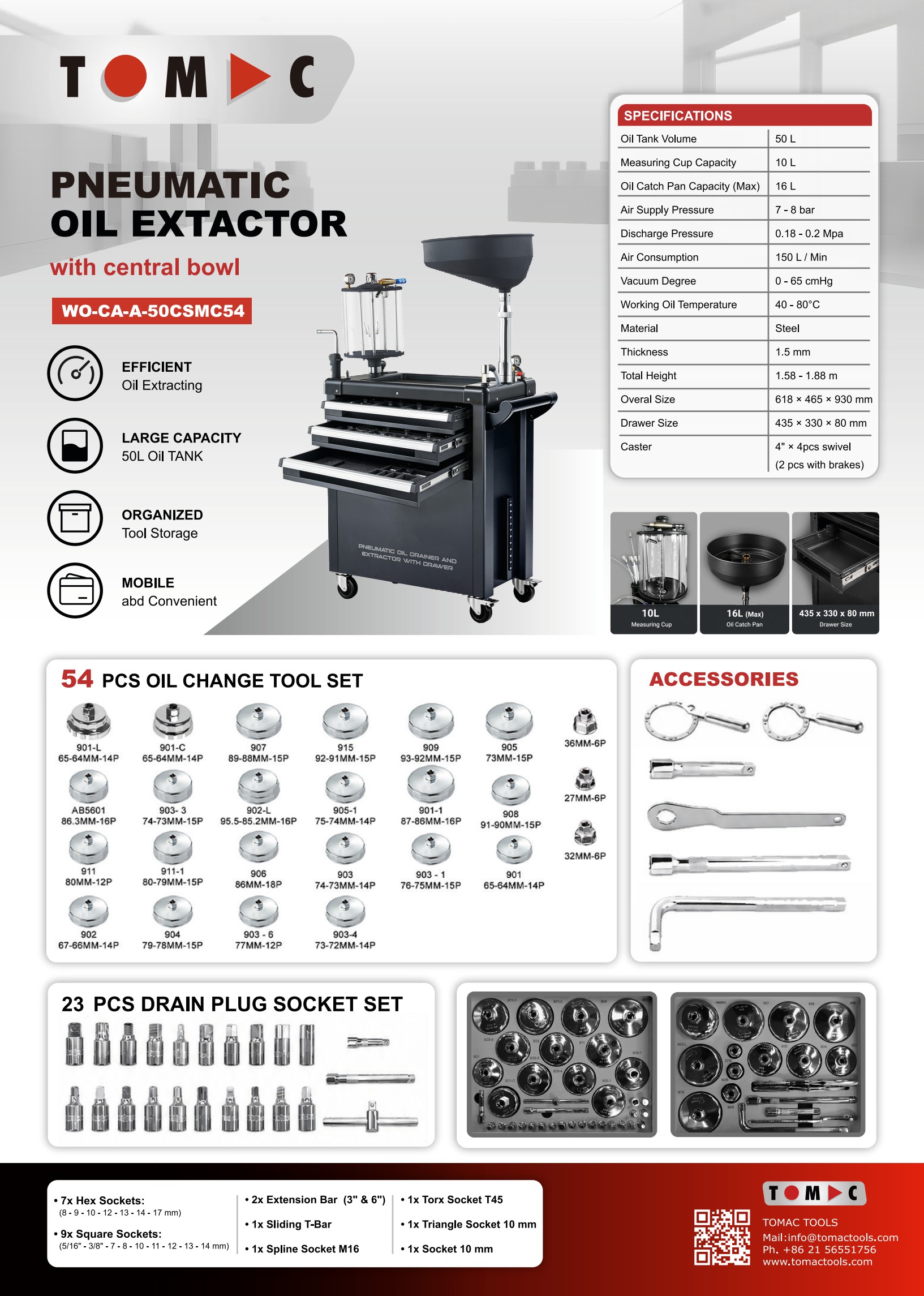

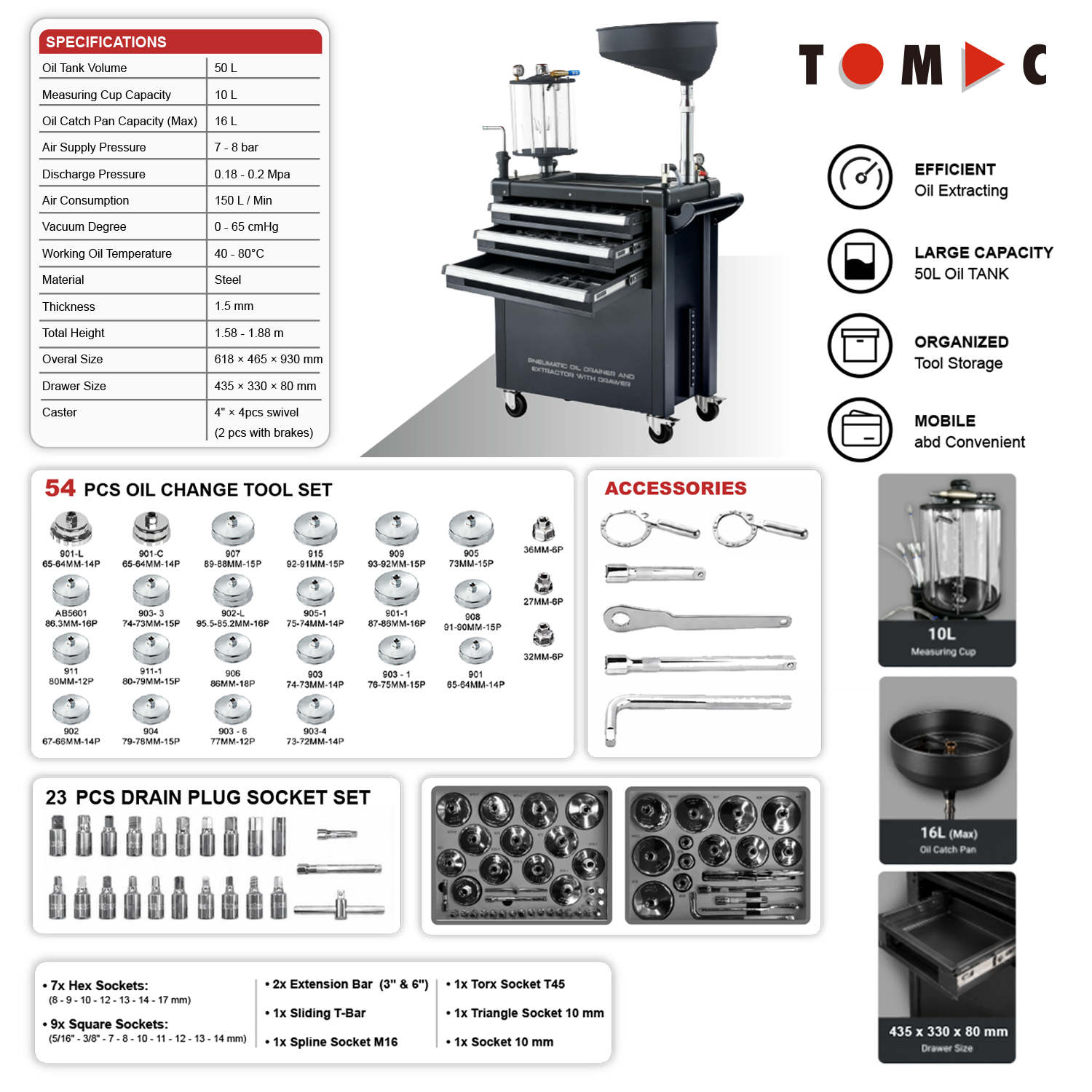

| Product Specification | Details |
| Model | WO-CA-A-50CSMC54 |
| Oil Tank Volume | 50L |
| Thickness | 1.5mm |
| Material | steel |
| Total Height | 1.4-1.56m |
| Overal Size |
548*416*780mm(w/o caster and handle) 618*465*930mm(w/ caster and handle) |
| Drawer Size | 435*330*80mm |
| Air Supply Pressure | 7-8bar |
| Discharge Pressure | 0.18 -0.2 Mpa |
| Air Consumption | 150L /Min |
| Vacuum Degree | 0~ 65cmHg |
| Measuring Cup Capacity | 10L |
| Oil Catch Pan Capacity | 16L(Max) |
| Working Oil Temperature | 40~80°C |
| Caster | 4"*2" |

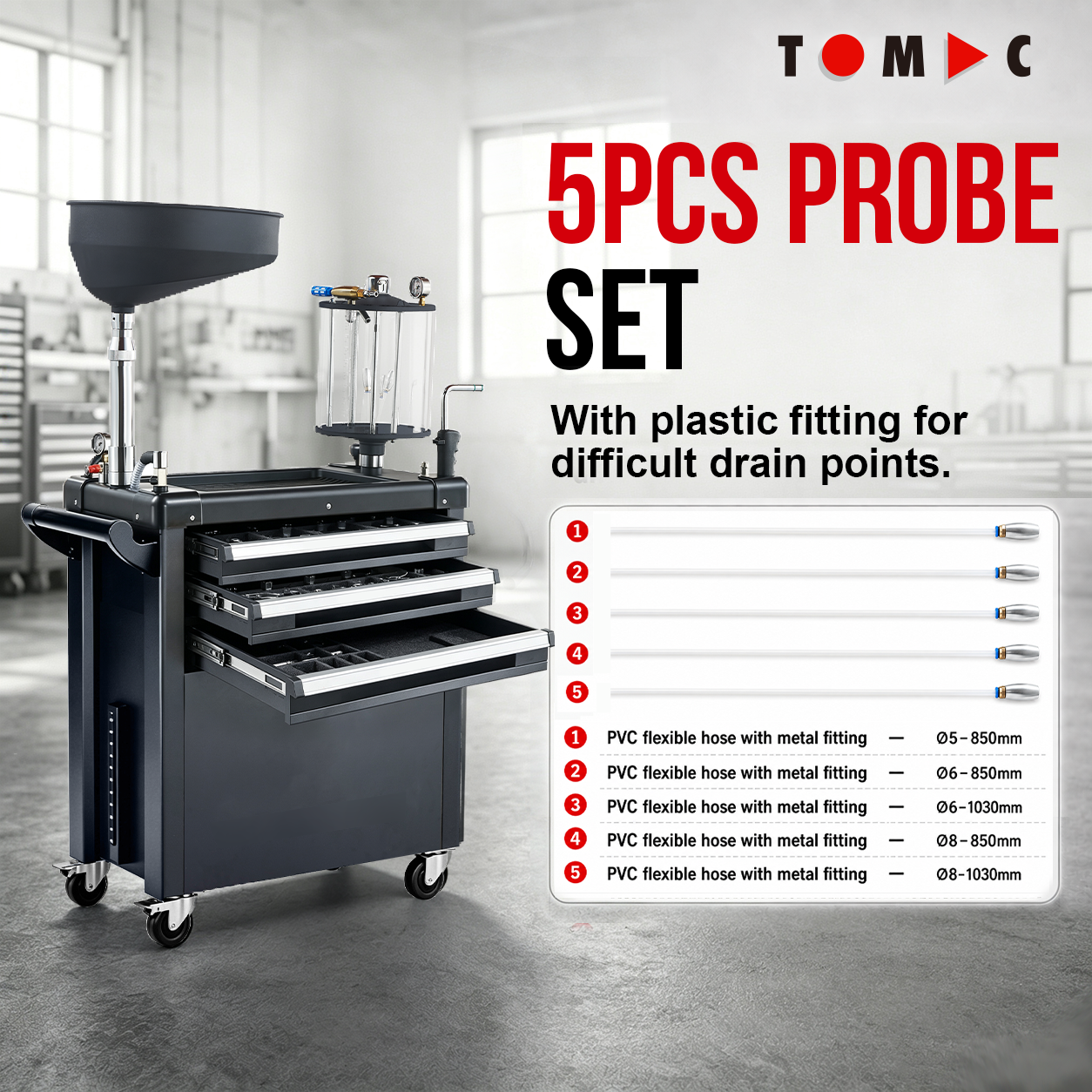

| Probe Kit |
PVC flexible hose with metal fitting 5*850mm PVC flexible hose with metal fitting 6*850mm PVC flexible hose with metal fitting 6*1030mm PVC flexible hose with metal fitting 8*850mm PVC flexible hose with metal fitting 8*1030mm |
| Package Method | 2 outer carton |
| Package Size |
B0X1:1 PCS/CTN 70.5*56.5*103cm BOX2:1 PCS/CTN :48*43*48cm |
| Net/Gross weight | 78.8/82.3kgs |
| MOQ | 10pcs |
| Delivery Time | 45 days |
