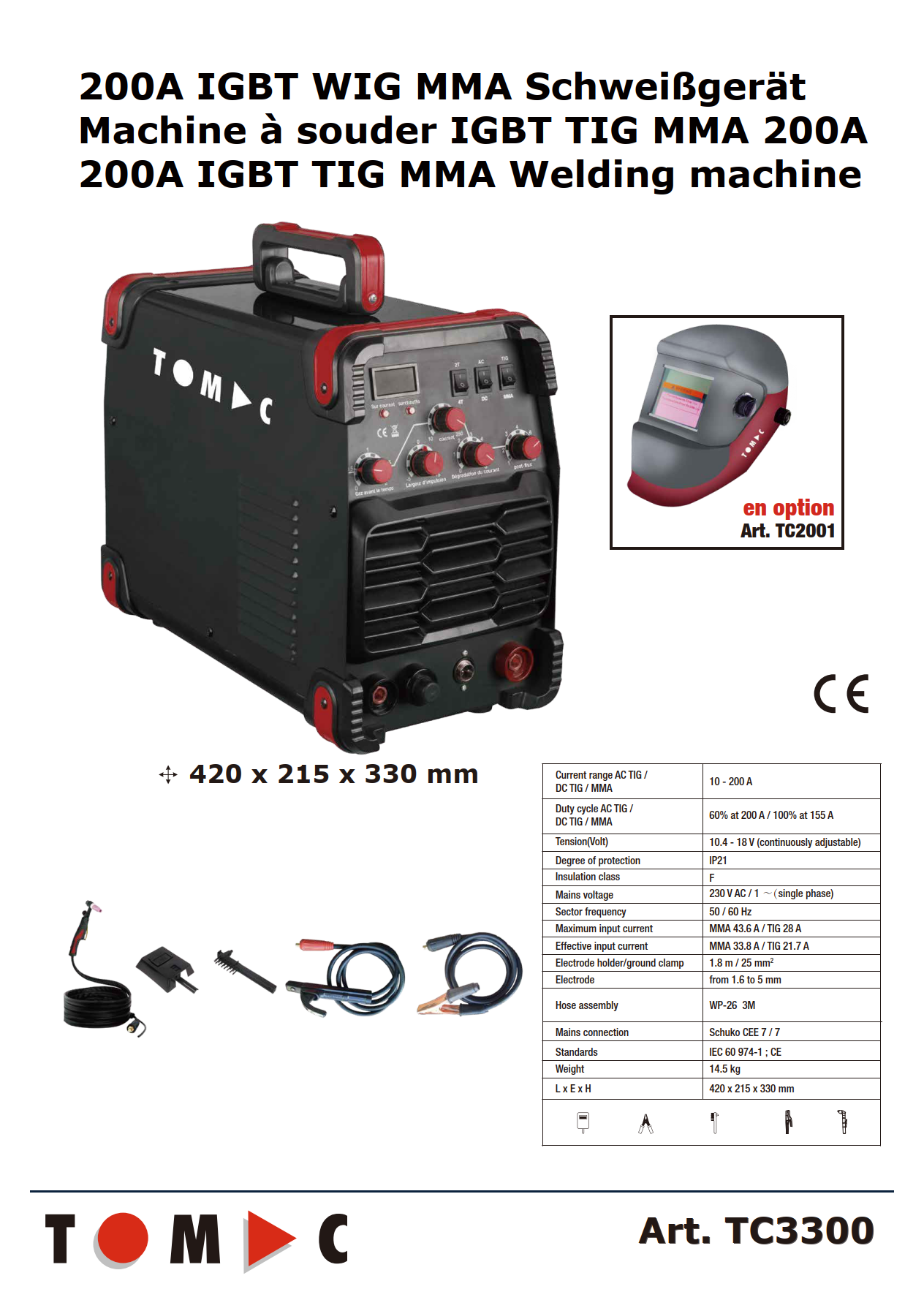

TC3300 IGBT ACDC TIG MMA Welding Machine
-
Suitable welding material:Stainless,alloy steel,carbon steel,copper,iron,titanium and other no-ferrous metal,aluminium and aluminium alloy.
- Advantage:Main welding stainless and aluminium,suit for thin material.
- Overview
- Recommended Products
| Specification | Details |
| Model | TC3300 |
| Machine Type | IGBT AC/DC TIG MMA Welding Machine |
| Welding Processes | AC/DC TIG, MMA |
| Max Output Current | 200A |
| Electrical Specifications | |
| Input Voltage | AC220V±15% |
| Frequency | 50Hz |
| No-load Voltage | 65V |
| Performance | |
| Current Range | 20-200A |
| Duty Cycle | 0.6 |
| Efficiency | 0.8 |
| Material Capability | |
| Compatible Materials |
DC TIG: Stainless Steel, Carbon Steel, Alloy Steel, Copper AC TIG: Aluminum and Aluminum Alloys MMA: Carbon Steel |
| Wire Diameter Range | 1.6-5.0 mm |
| Physical Specifications | |
| Dimensions | 420×220×330 mm |
| Protection Class | IP21S |
| Packaging Information | |
| Package Type | Color box |
| Quantity per Carton | 1 |
| Package Size | 530*340*450 mm |
| Net/Gross Weight | 17/18 kg |
| Certificate | CE |
