| Specification | Details |

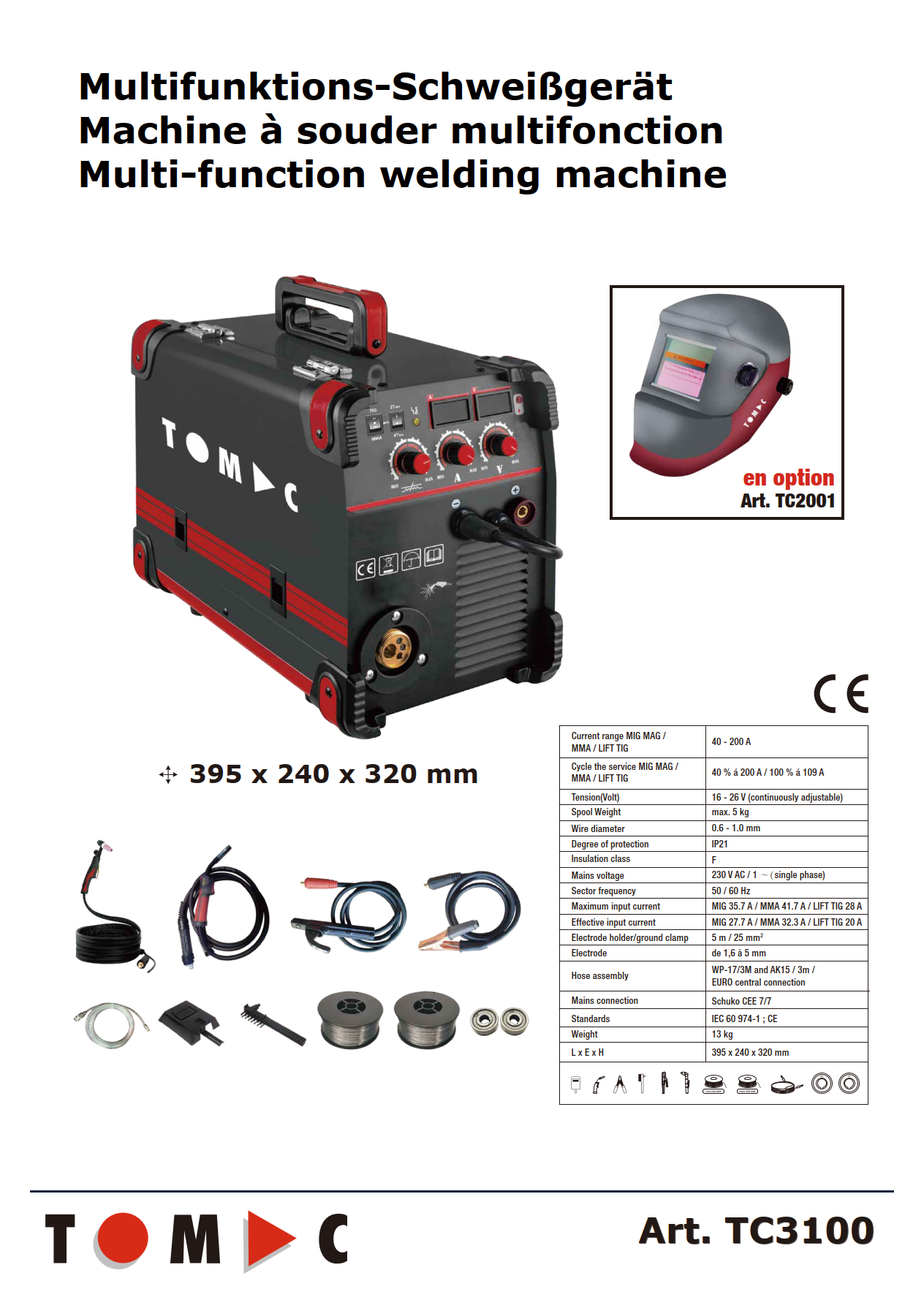

| Model | TC3100 |
| Machine Type | Multifunction IGBT Welding Machine (2T/4T) |
| Welding Processes | MIG/MAG/MMA/LIFT TIG |
| Max Output Current | 200A |
| Electrical Specifications | |
| Input Voltage | AC220V±15% |
| Frequency | 50Hz |
| No-load Voltage | 62V |
| Performance | |
| Current Range | Up to 200A |
| Duty Cycle | 0.6 |
| Efficiency | 0.8 |
| Material Capability | |
| Compatible Materials | Steel, Stainless Steel, Aluminum |
| Wire Diameter Range | 0.6-1.0 mm |
| Physical Specifications | |
| Dimensions | 395×240×320 mm |
| Protection Class | IP21S |
| Packaging Information | |
| Package Type | Color box |
| Quantity per Carton | 1 |
| Package Size | 610*380*420 mm |
| Net/Gross Weight | 18/20 kg |
| Certificate | CE |
