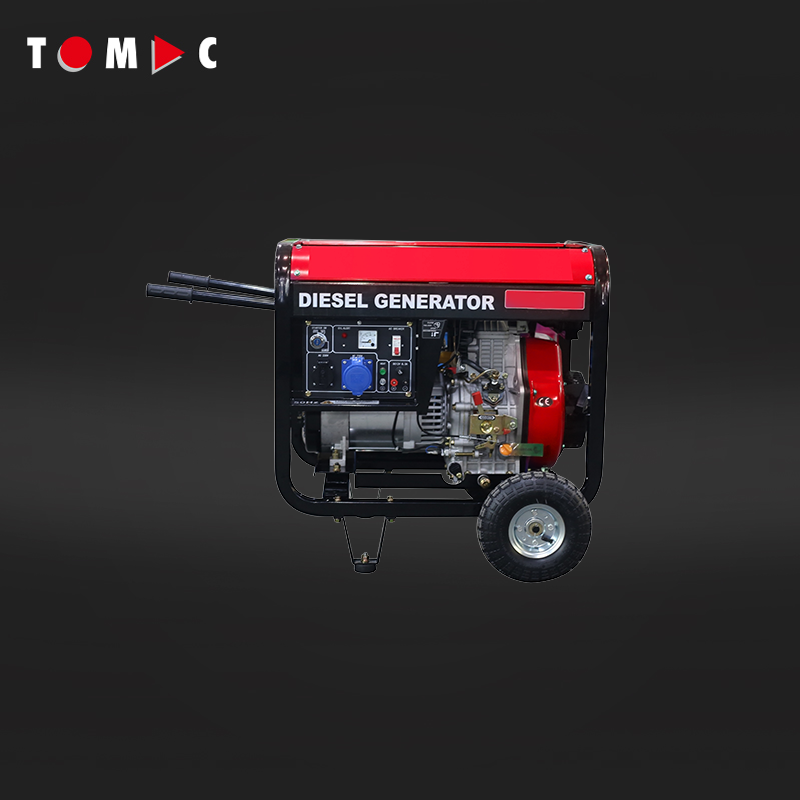

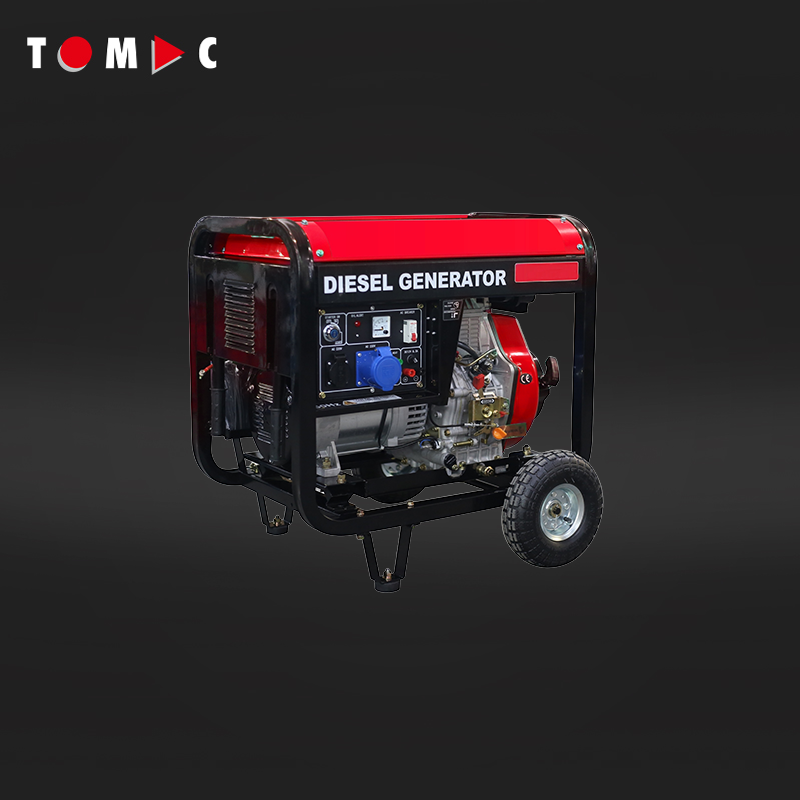

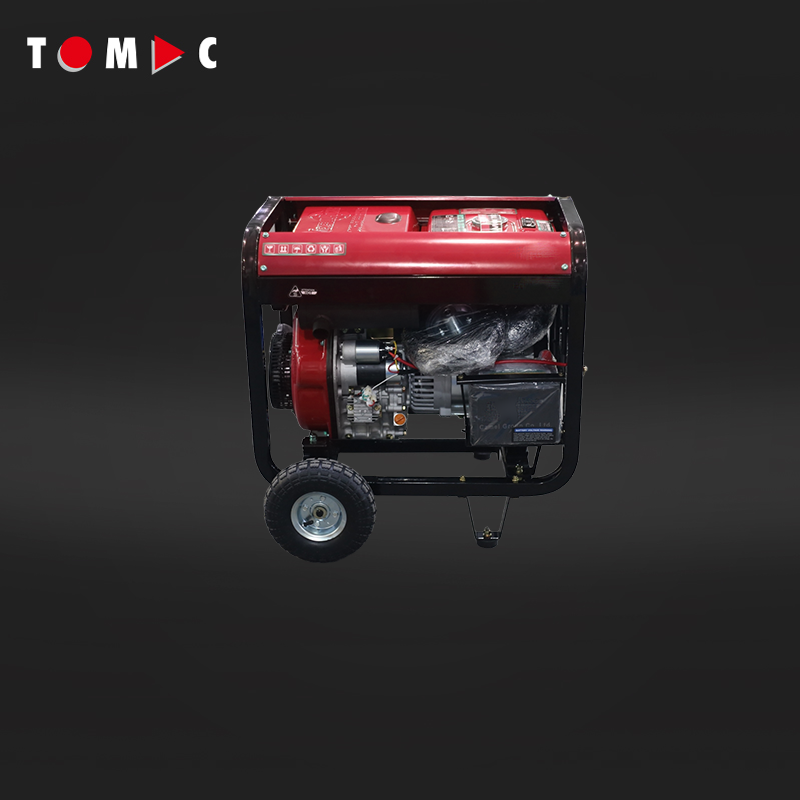

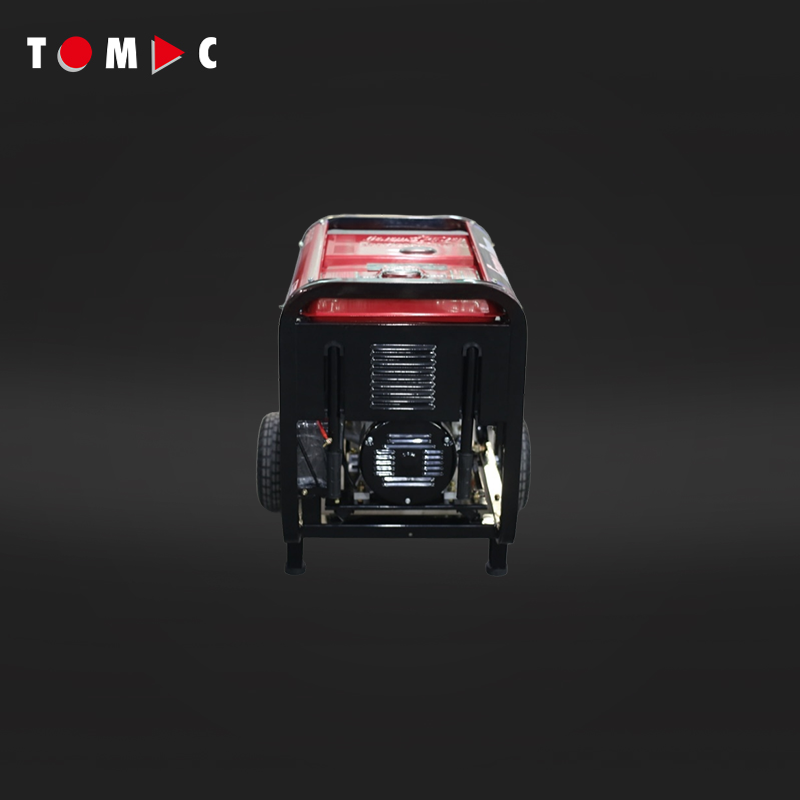

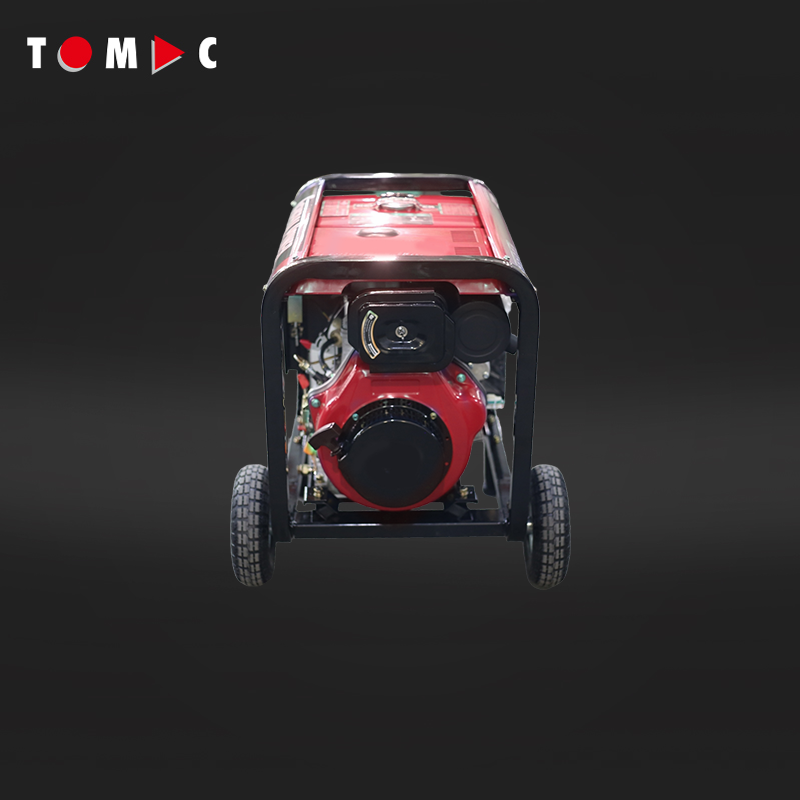

TC13800E3D Diesel Generator 9.5kW Three Phase Open Type

Powerful Output Capacity:
Provides a maximum output of 9.5kW, ideal for powering large machinery and equipment in industrial settings.
Comprehensive Socket Options:
Equipped with versatile socket arrangements to support multiple devices simultaneously.
Rugged and Reliable Construction:
Features an open-type, heavy-duty frame that enhances durability and supports maintenance in demanding conditions.
Economical Diesel Operation:
Engineered for fuel efficiency, ensuring cost-effective operation over extended periods.
Advanced Safety Provisions:
Includes overload protection and intuitive controls, offering safe and reliable use in various environments.
Internationally Certified:
Meets CE and EURO V certification standards, and holds a noise level certificate, ensuring quality, safety, and compliance.

Specification	Details
Model	TC13800E3D
Generator Type	Diesel Generator 9.5kW Three Phase Open Type
Max Power Output	9.5kW
Rated Power Output	9.0kW
Performance
Generator Description	-Three phase equal power - 230V&400V/50HZ - 3 in 1 digital meter(V/HZ/H) - Key start with 36Ah battery - Alternator size: 245*130mm - 35mm square frame
Fuel Type	Diesel
Fuel Tank Capacity	15 L
Noise Level	≤96 dB (7m@25% load)
Engine Description	- 1105FE - 1 cylinder - Bore&stroke: 105*85mm - Displacement: 736ml - Rated speed: 3000rpm - Rated power: 12.0kw - Max power: 13.0kw
Usability
Starting Method	Electric start
Outlets	1 x single-phase European socket (three-phase equal power) with blue cover (230V 16A) 1 x single-phase Industrial socket (three-phase equal power) with blue cover (230V 32A ) 1 x three phases industrial socket with red cover (400V 32A) DC 12V terminal
Physical
Weight	165 kg
Dimensions	790595725 mm
Additional Features	Wheels and handrail, Three in one digital display meter
Packaging Information
Package Type	Outer carton
Quantity per Carton	1
Package Size	\
Net/Gross Weight	165/175 kg
Certificate	CE/EU V
