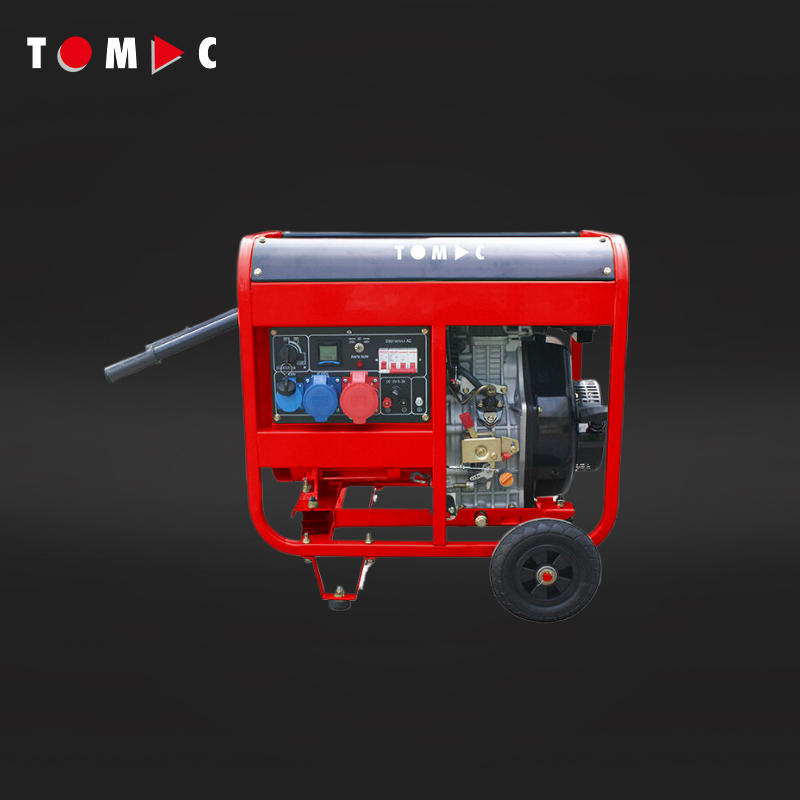

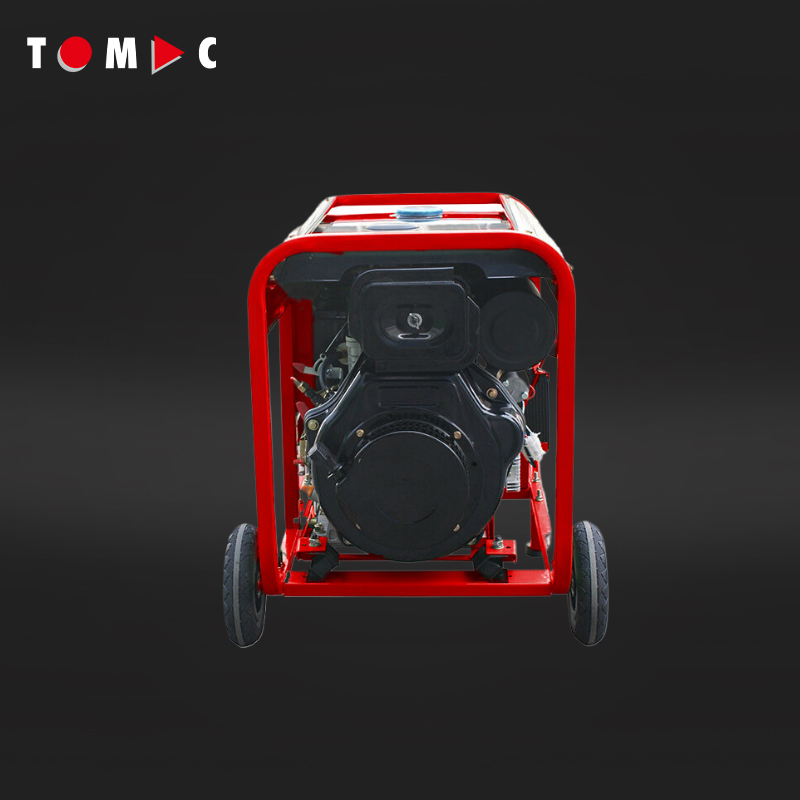

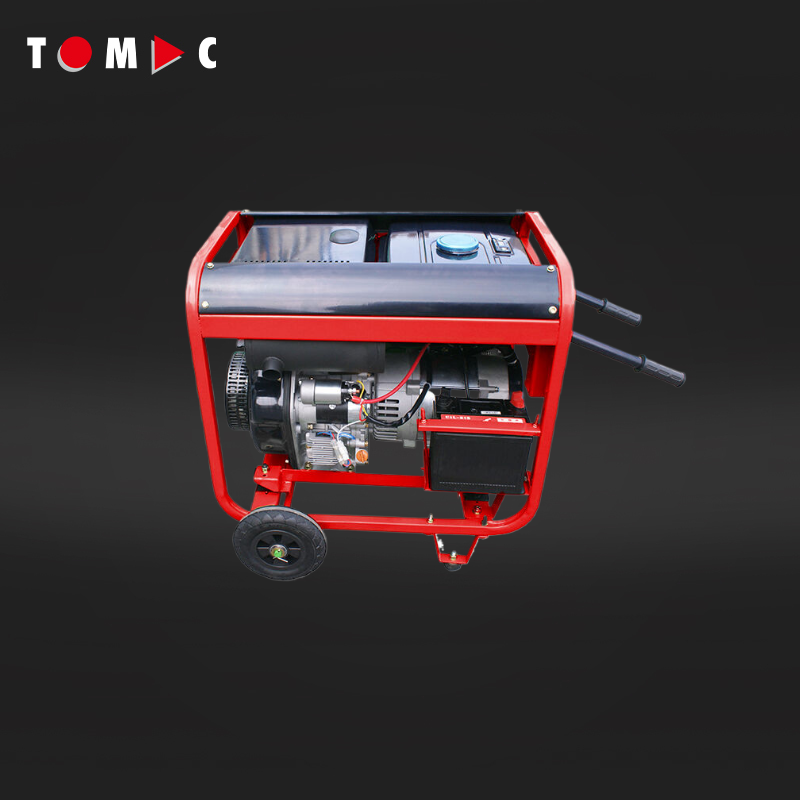

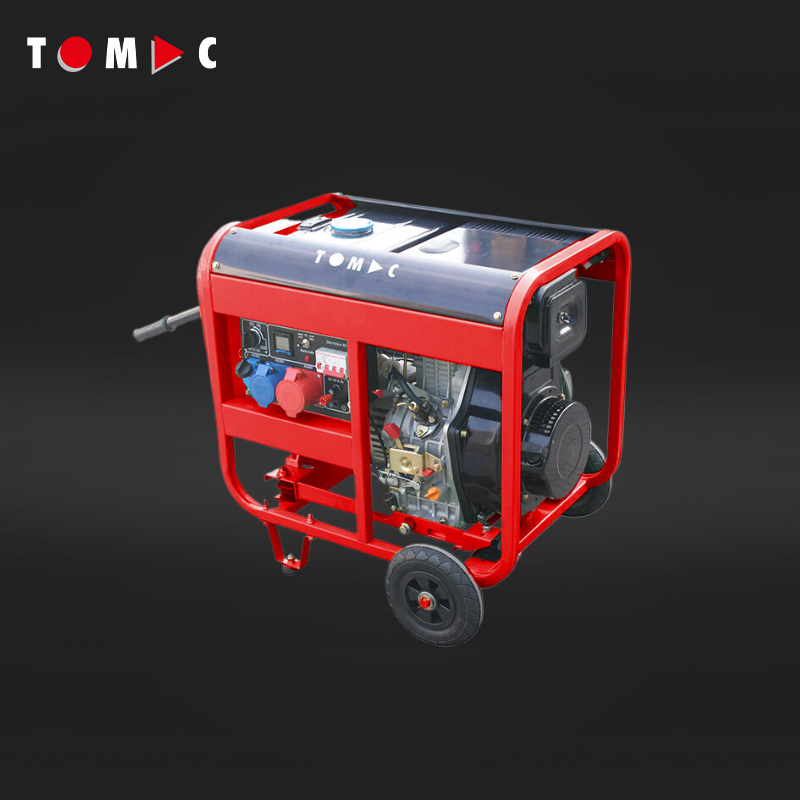

TC019000 Diesel Generator 7.0kW Three Phase Open Type
- Competitive price,stable power supply, more lifetime.
- Open frame design, sturdy,durable.
- Overload protection.
- Portable wheels & handrail design, applicable to the fields of industry, construction and agricultural production.
- Overview
- Recommended Products
| Specification | Details |
| Model | TC019000 |
| Generator Type | Diesel Generator 7.0kW Three Phase Open Type |
| Max Power Output | 7.0kW |
| Rated Power Output | 6.5kW |
| Performance | |
| Generator Description |
-Three phase equal power -230V&400V/50HZ -3 in 1 digital meter(V/HZ/H) -30mm square frame -30Ah free maintance battery |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 15 L |
| Noise Level |
≤96 dB (7m@25% load) |
| Engine Description |
-YM195FE -Single cylinder - Bore&stroke:95*75mm -Displacement:531ml -Rated speed: 3000rpm -Rated power:8.1kw -Max power:8.7kw |
| Usability | |
| Starting Method | Electric start |
| Outlets |
1 x single-phase European socket (three-phase equal power) with blue cover (230V 16A) 1 x single-phase Industrial socket (three-phase equal power) with blue cover (230V 32A ) 1 x three phases industrial socket with red cover (400V 32A) DC 12V terminal |
| Physical | |
| Weight | 125.6 kg |
| Dimensions | 755*520*645 mm |
| Additional Features | Wheels and handrail, Three in one digital display meter |
| Packaging Information | |
| Package Type | Outer carton |
| Quantity per Carton | 1 |
| Package Size | 755*520*645 mm |
| Net/Gross Weight | 125.6/129 kg |
| Certificate | CE/EU V |
