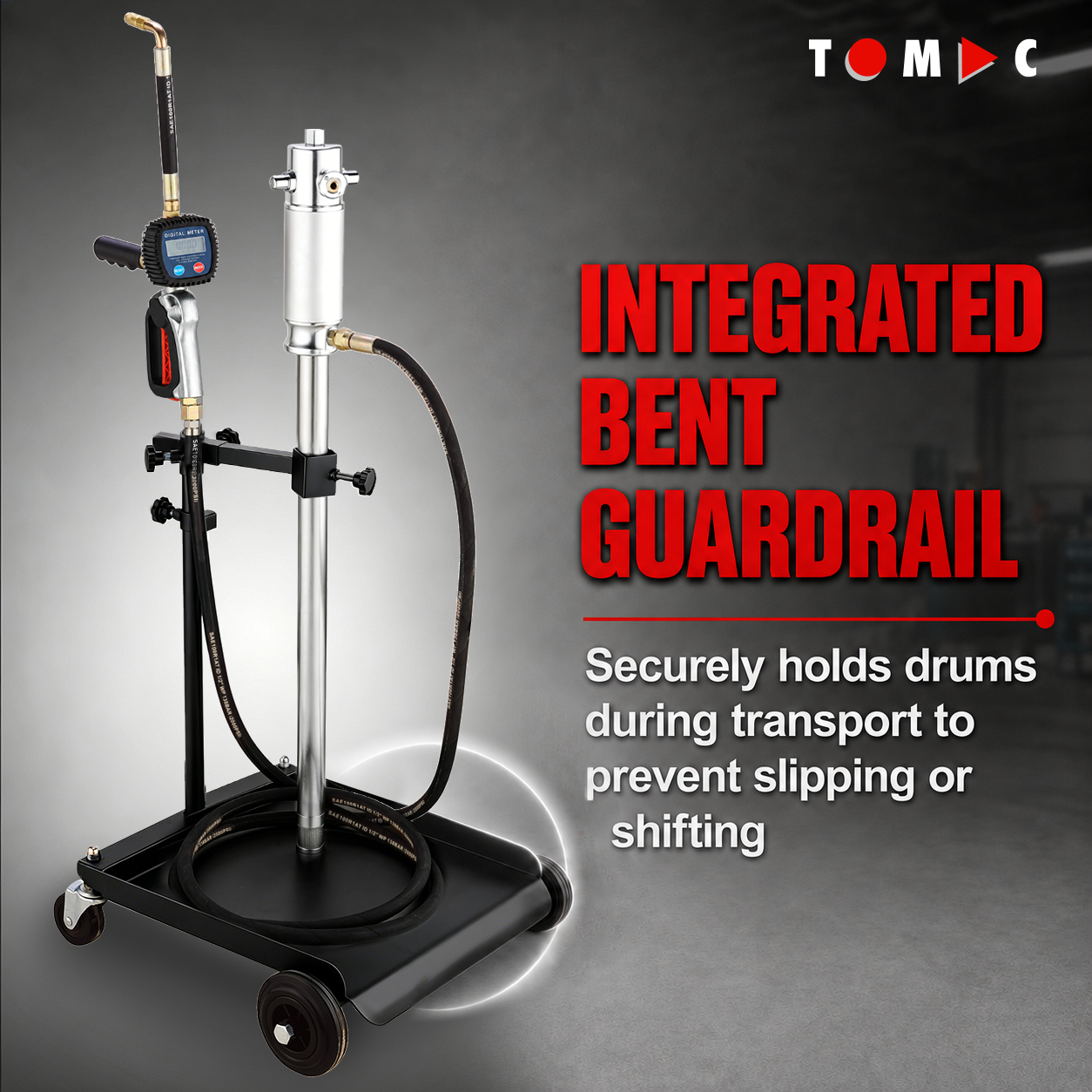

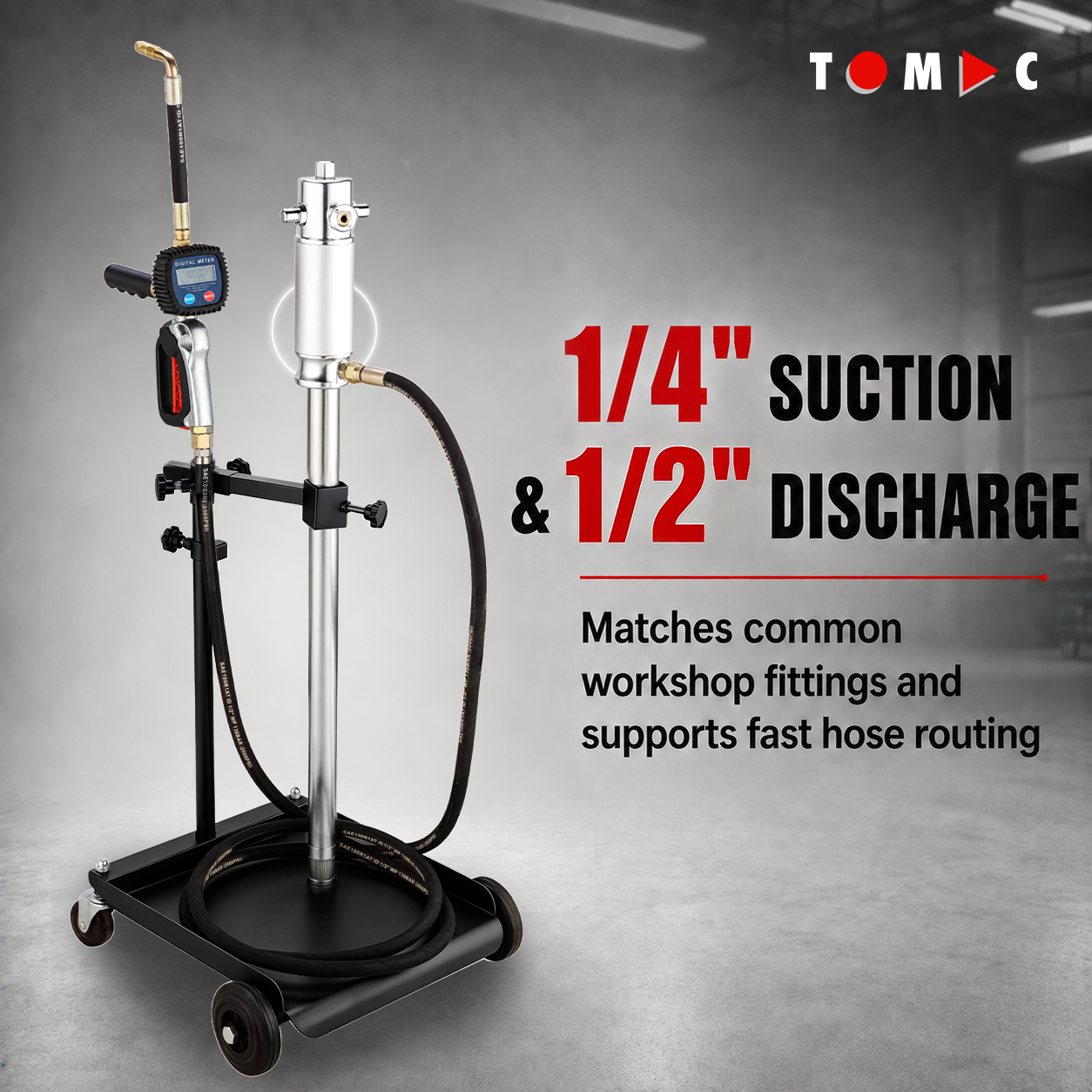

OL-TK-A-51-60 TOMAC 5:1 Pneumatic Oil Pump Trolley Kit for 20-60L Drums with 4M Hose and Digital Meter Gun

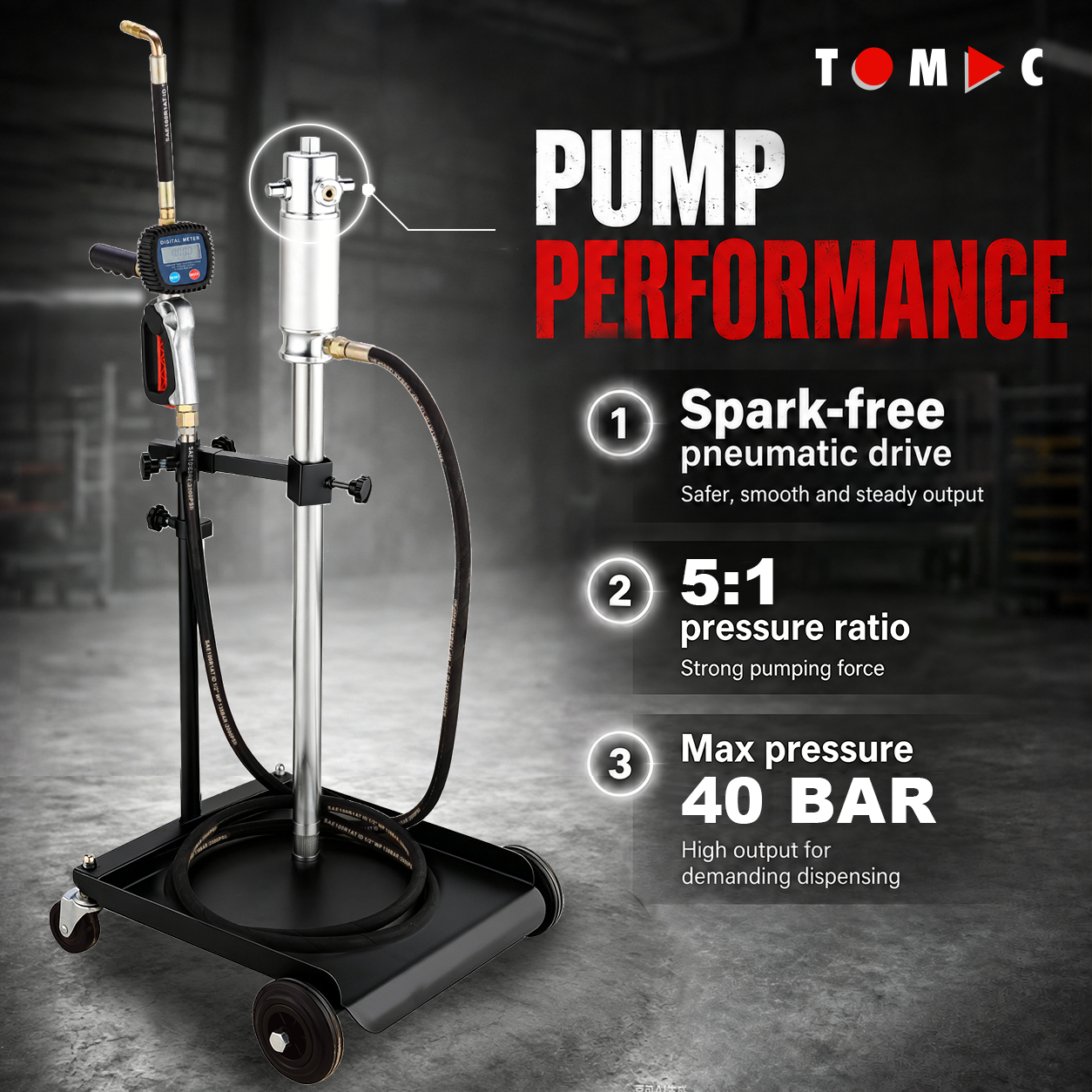

Powerful 5:1 oil pump: Produces up to 40 bar output pressure and a rated flow of 14 L/min for fast dispensing of compatible lubricating oils.

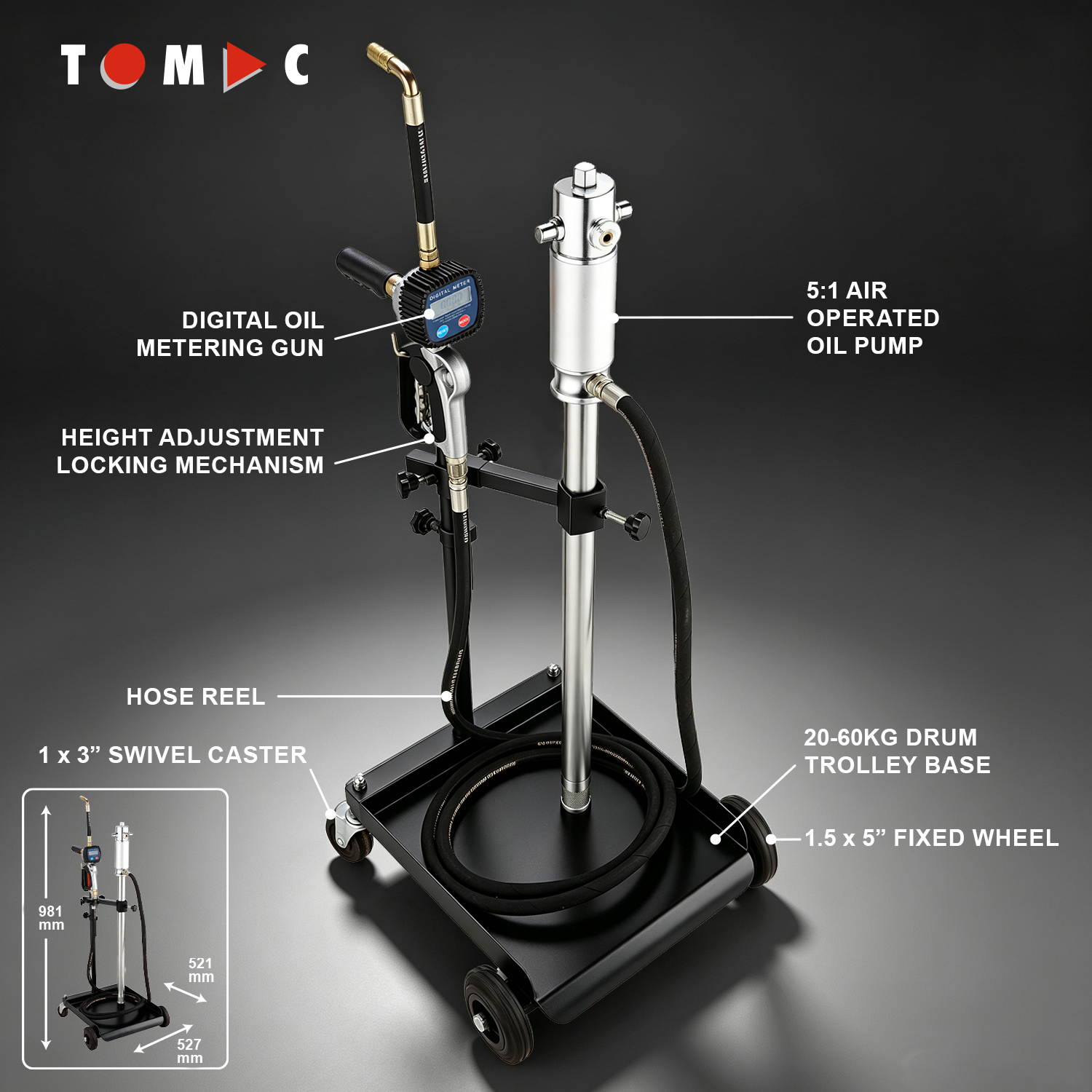

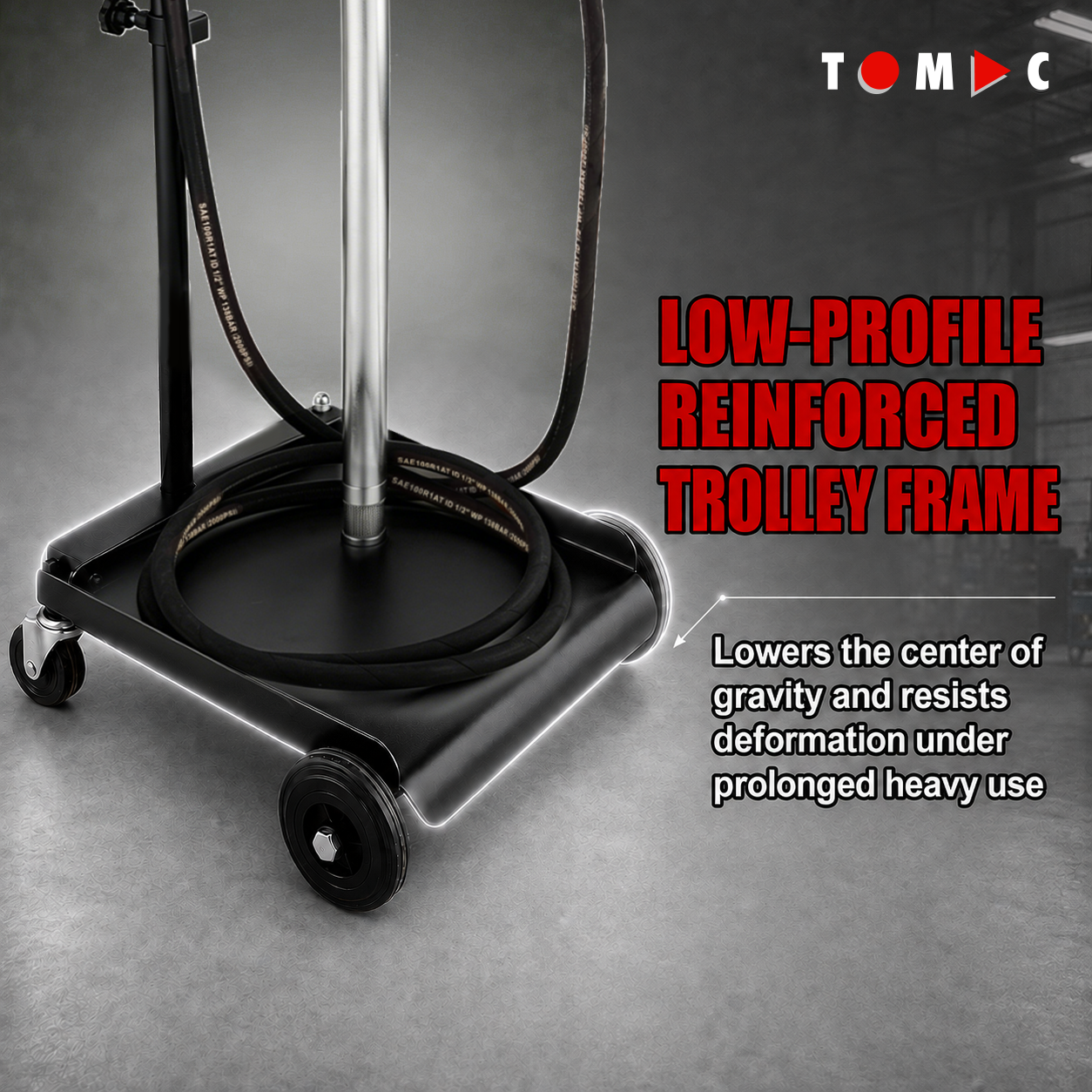

Compact mobile package: Designed for 20–60 L drums, the 521 × 527 × 981 mm trolley saves space and moves conveniently around service bays.
Safe pneumatic operation: Spark-free air drive runs at 8 bar and provides smooth, continuous pressure without an electric pump motor.
Industrial delivery hose: The 4 m DN8 steel-wire reinforced rubber hose meets EN857 1SC / SAE 100 R17 with a 160 bar working-pressure rating.
Precision digital oil gun: Handles engine and gear oil at 0–35 L/min with ±0.3% accuracy, a six-digit display and 100 bar maximum pressure.

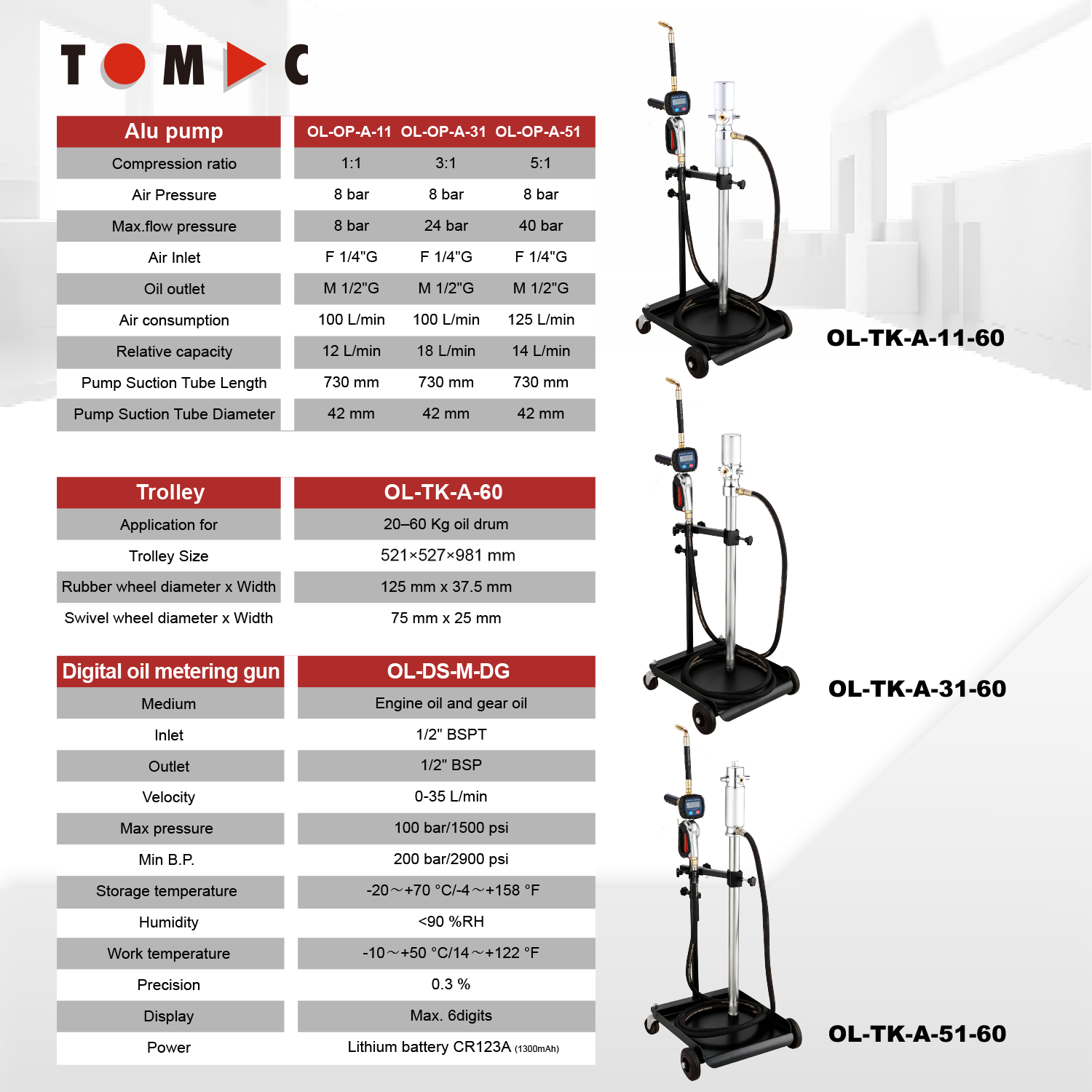

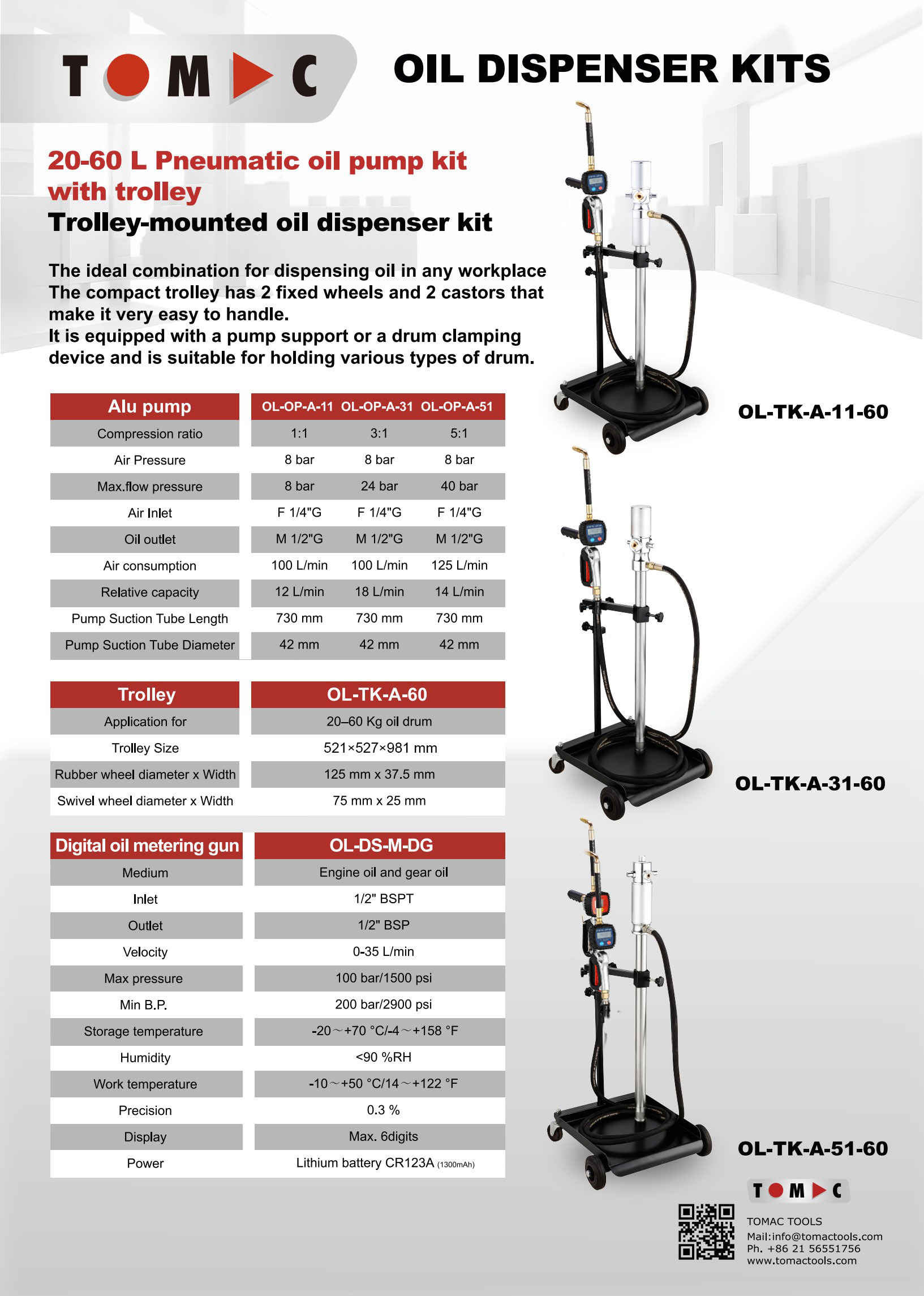

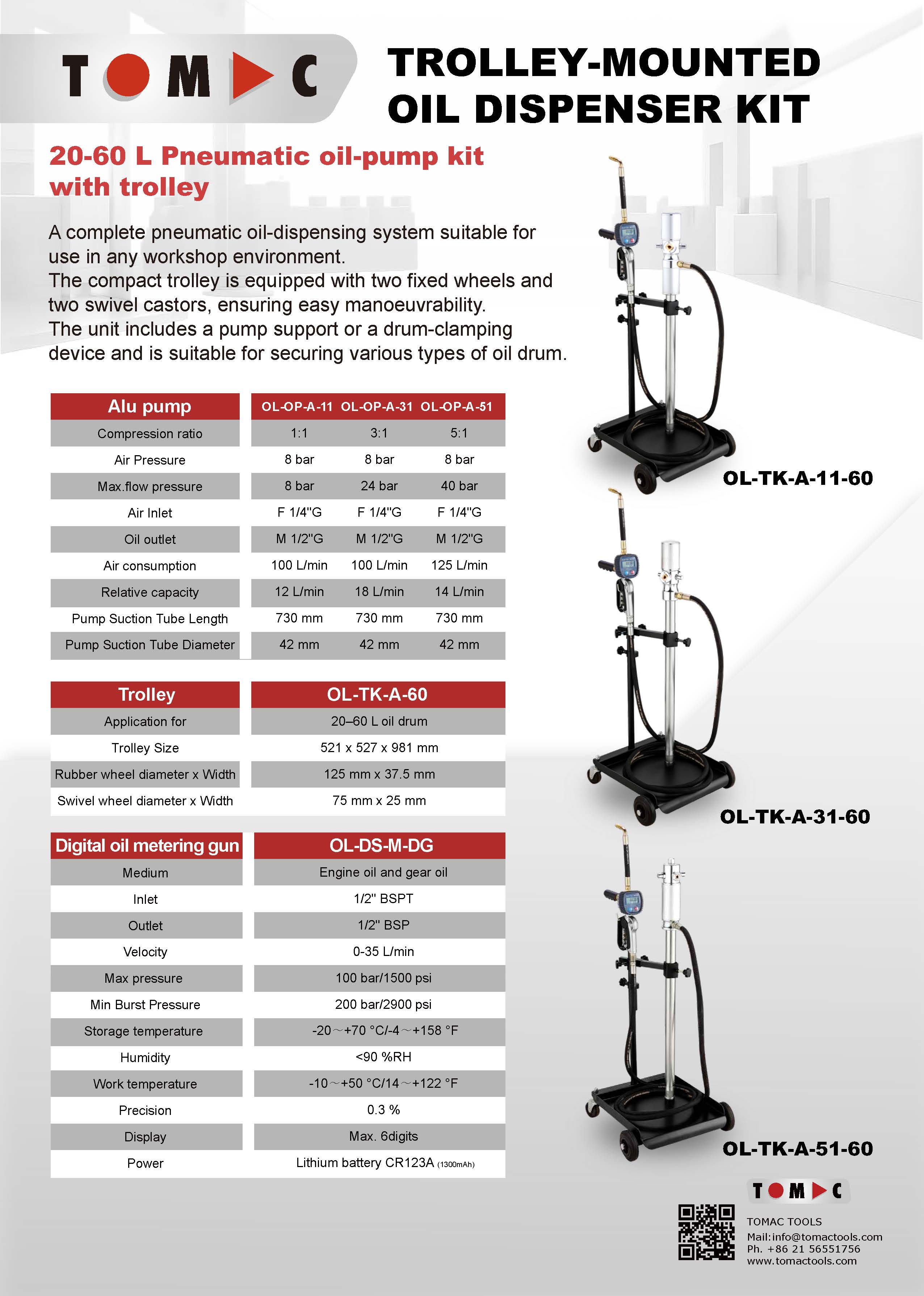

Product Specification	Details
Model	OL-TK-A-51-60
Alu Pump
Air Pressure	8bar
Max.flow Pressure	40bar
Air Inlet	F 1/4"G
Oil Outlet	M 1/2"G
Air Comsumption	125L/min
Relative Capacity	14L/min
Pressure Ratio	5:1 for lubricating oil
Oil Outlet Tube	1/2”x4m Oil hose
Material	Rubber hose with steel wire braiding
Pump Suction Tube Diameter	42 mm
Pump Suction Tube Length	730mm
Tube Printing	EN857 1SC/SAE 100 R17 DN-8 1/2" WP 160BAR 2320.5PSI

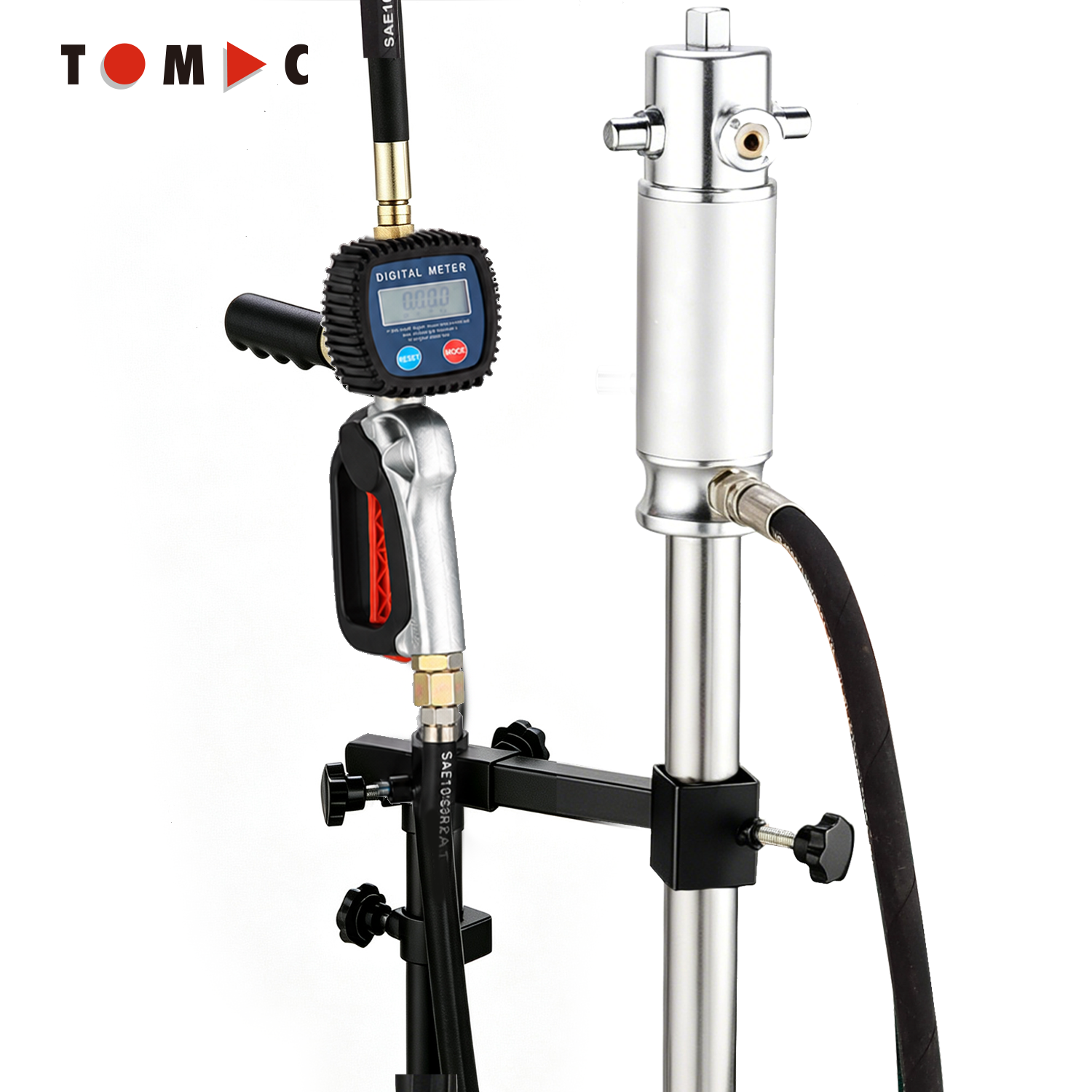

Digital Oil Metering Gun
Medium	Engine oil and gear oil
Inlet	1/2" BSPT
Outlet	1/2" BSP
Velocity	0-35L/min
Max Pressure	100bar/1500psi
Min B.P.	200bar/2900psi
Storage Temperature	-20～+70℃/-4～+158℉
Humidity	＜90%RH
Work Temperature	-10～+50℃/14～+122℉
Precision	0.3%
Display	Max.6 digits
Power	Lithium battery CR123A(1300mAH)
Trolley Size	521527981mm

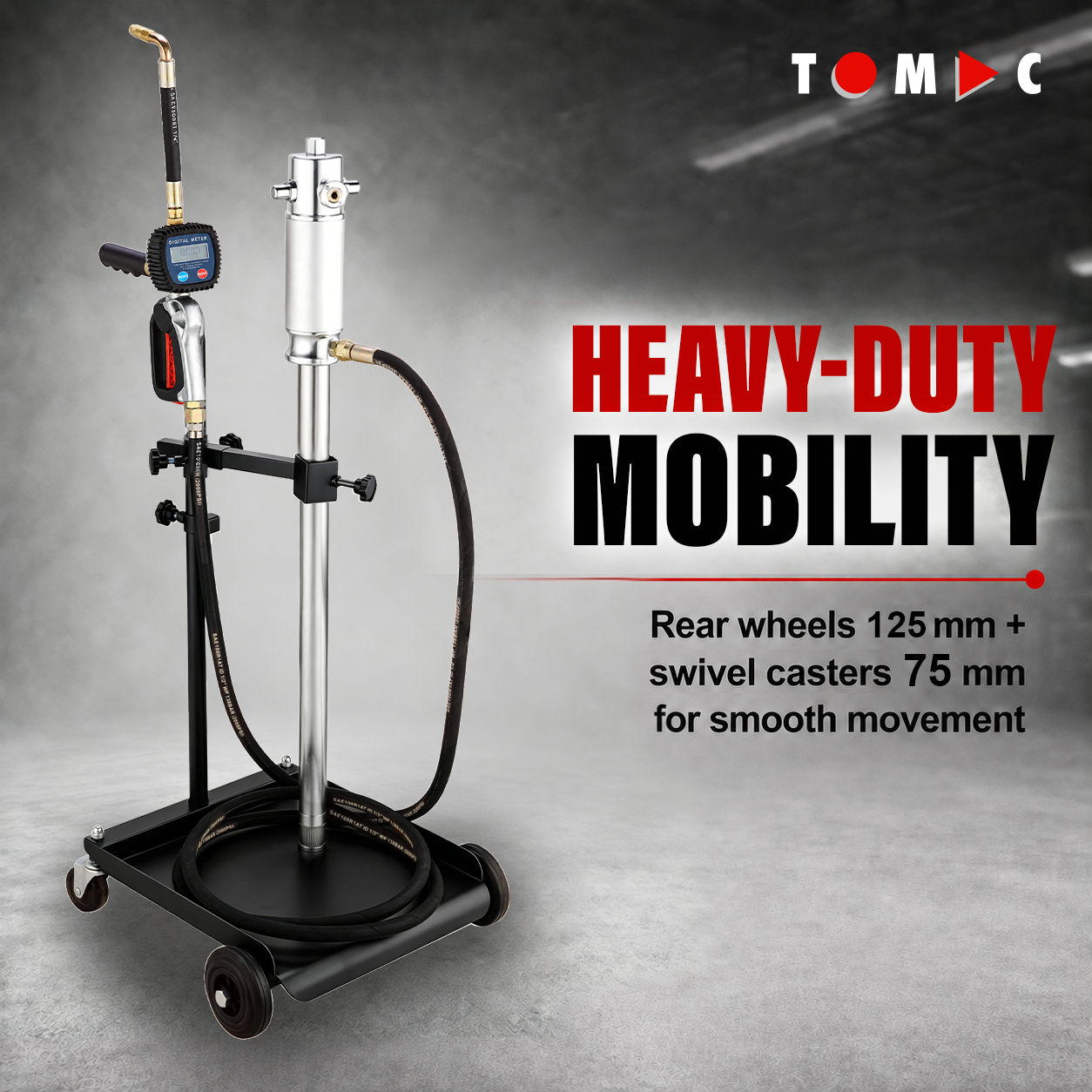

Wheel Size	Fixed wheel:12537.5mm Swivel wheel:7525mm
Package Method	3 outer cartons
Package Size	BOX1(Trolley):1 PCS/CTN 451191cm BOX2(Gun):10PCS/CTN 6432.573cm BOX3(Pump):5PCS/CTN 110.52944.5cm
Net/Gross weight	BOX1:11/12kgs BOX2:20.5/22kgs BOX3:27.5/30kgs
MOQ	10pcs
Delivery Time	60 days
