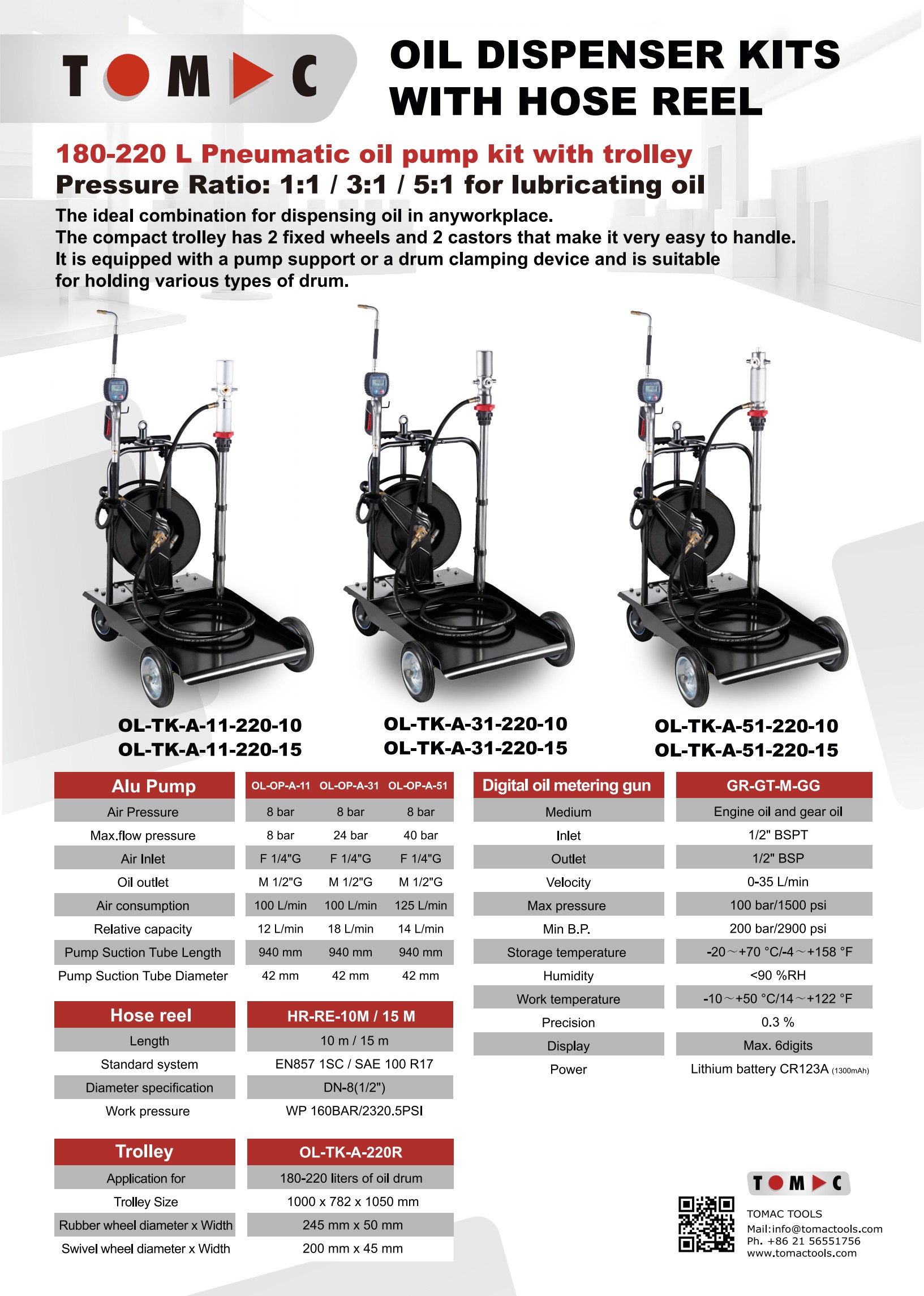

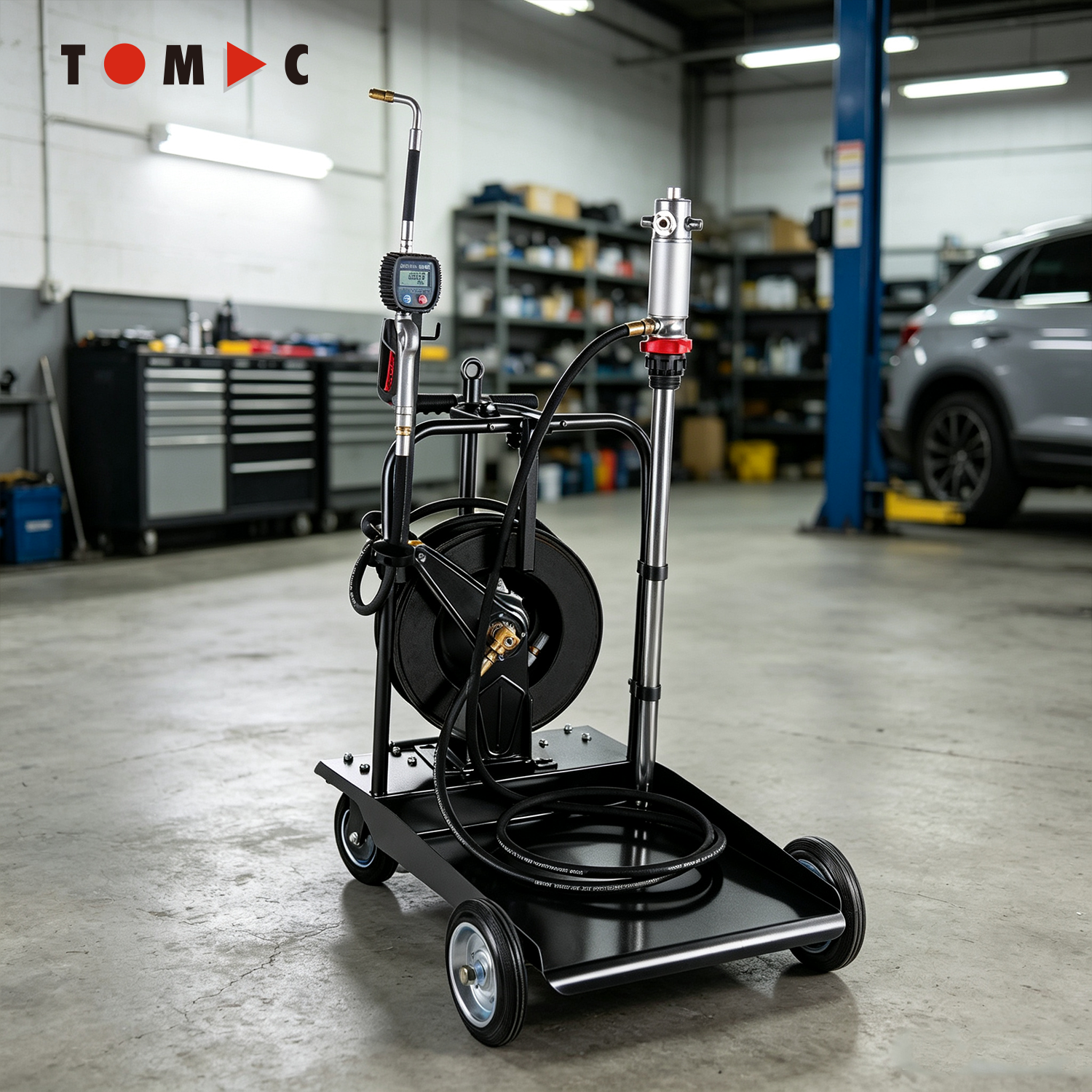

OL-TK-A-51-220-15 TOMAC 5:1 Pneumatic Oil Pump Trolley Kit for 180-220L Drums with 15M Hose Reel and Digital Meter Gun

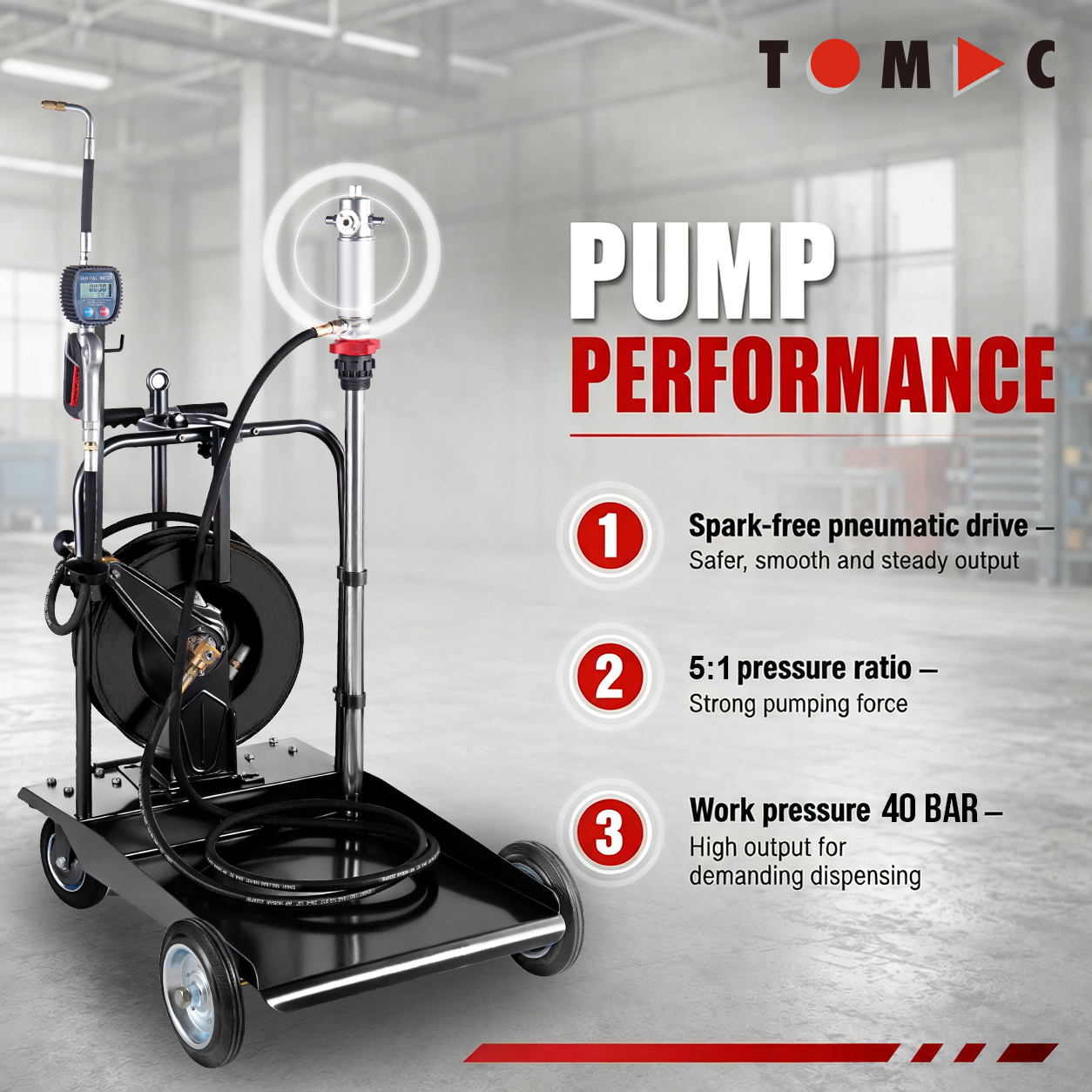

High-pressure 5:1 performance: Generates output pressure up to 40 bar with a rated flow of 14 L/min for fast, dependable lubricating-oil dispensing.
15 m operating reach: Long retractable hose reduces drum repositioning and makes it easier to serve multiple vehicles or machines from one station.

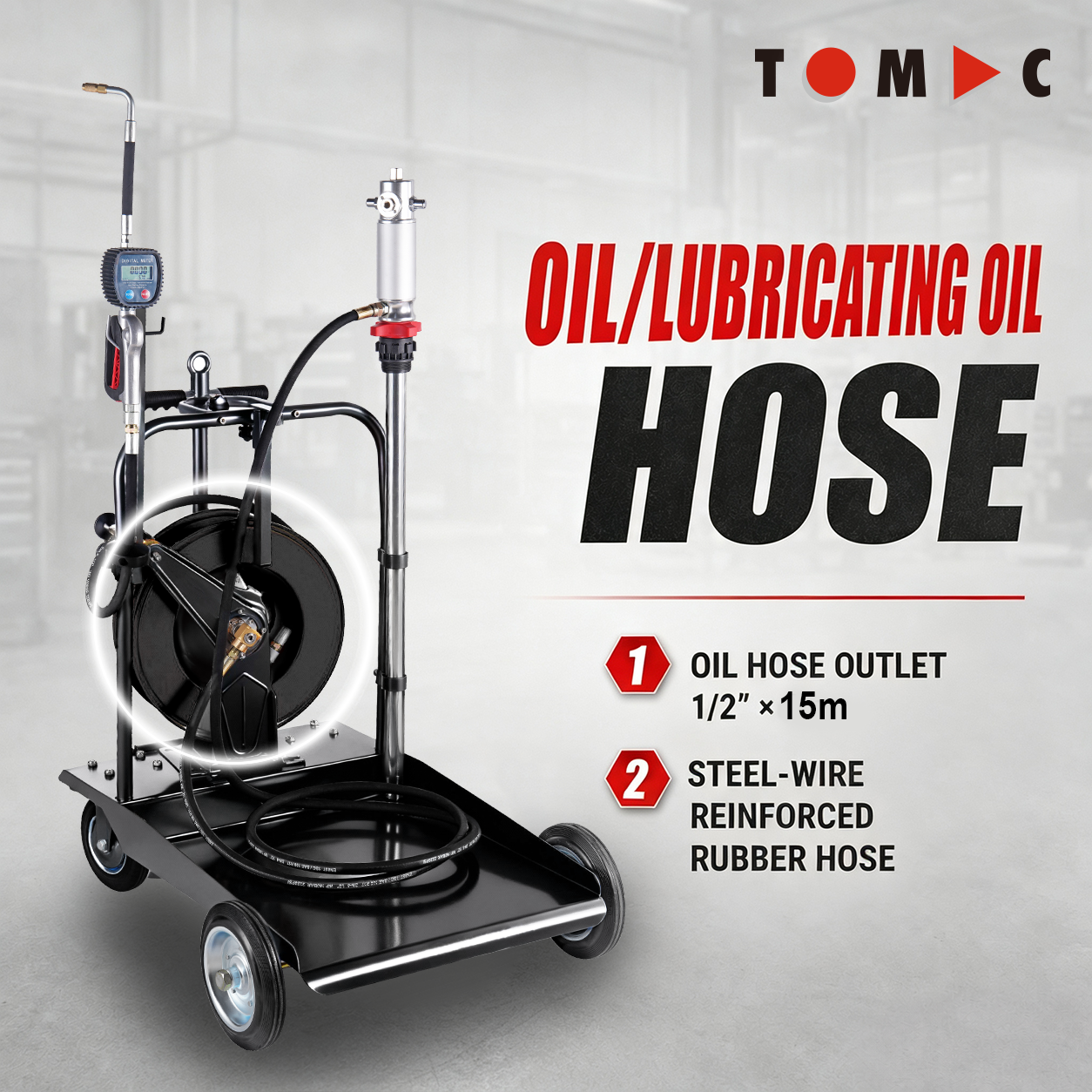

Industrial-grade hose: DN8 steel-wire braided rubber hose complies with EN857 1SC / SAE 100 R17 and withstands working pressure up to 160 bar.
Precise dispensing: Digital gun measures engine and gear oil at 0–35 L/min with ±0.3% accuracy, six-digit display and 100 bar maximum pressure.

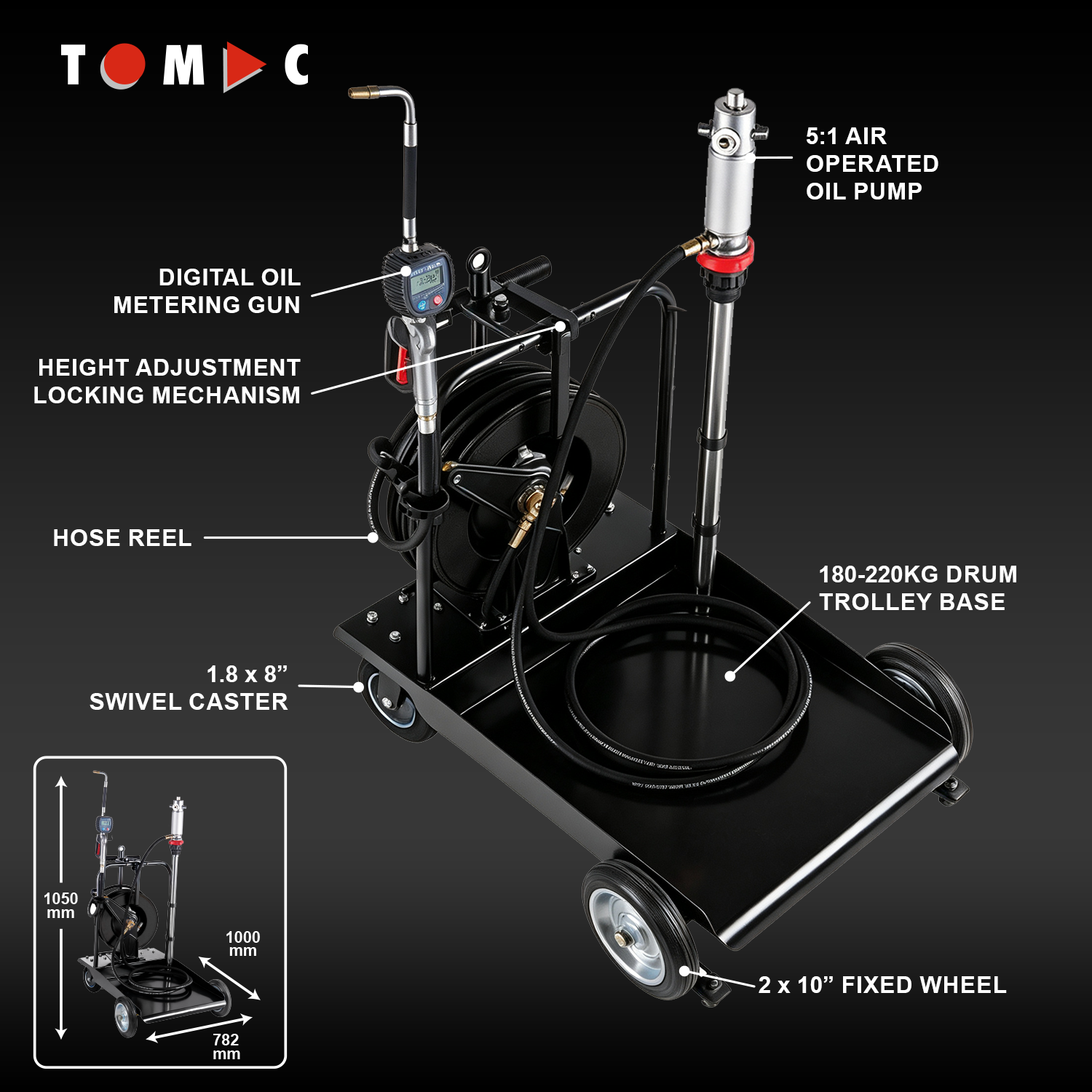

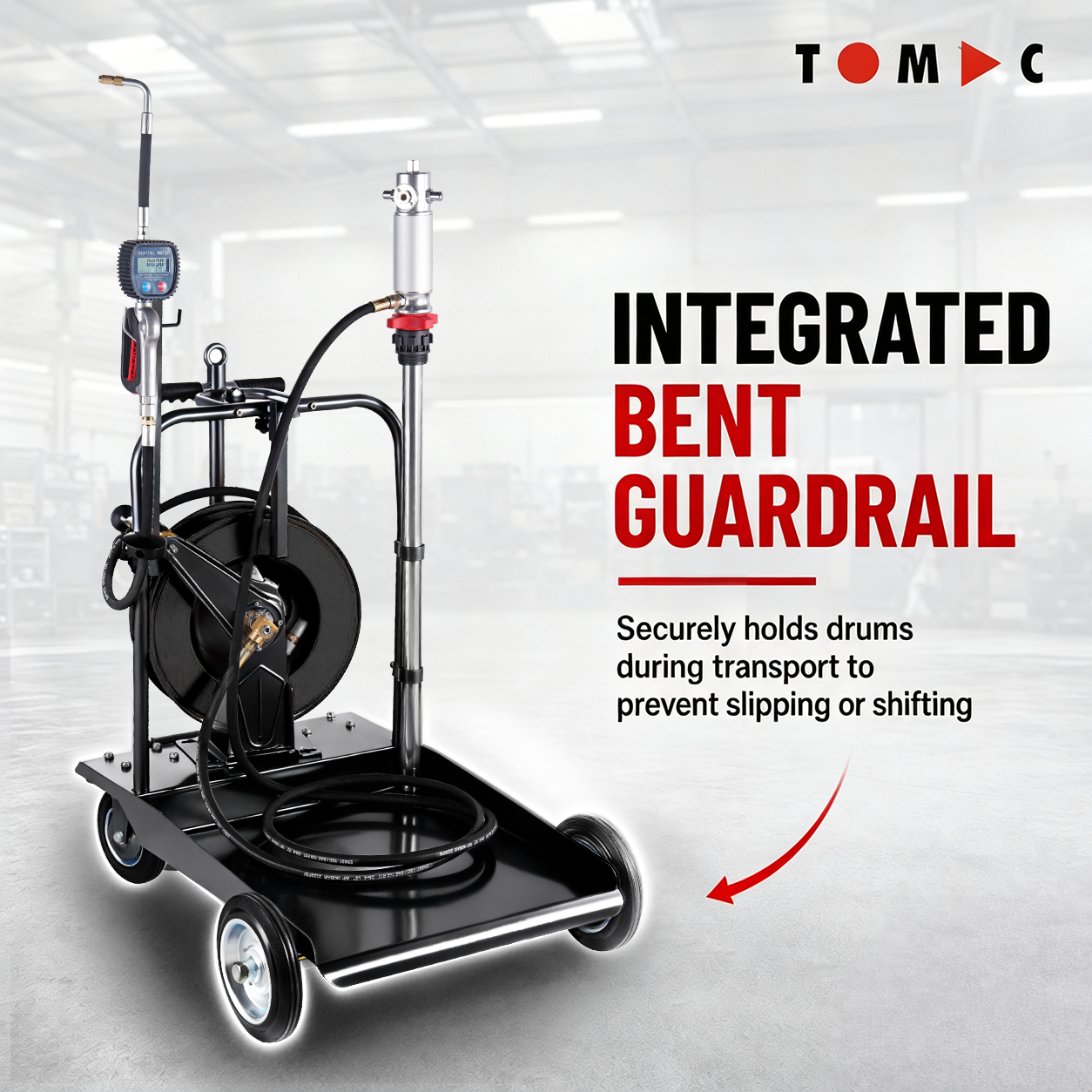

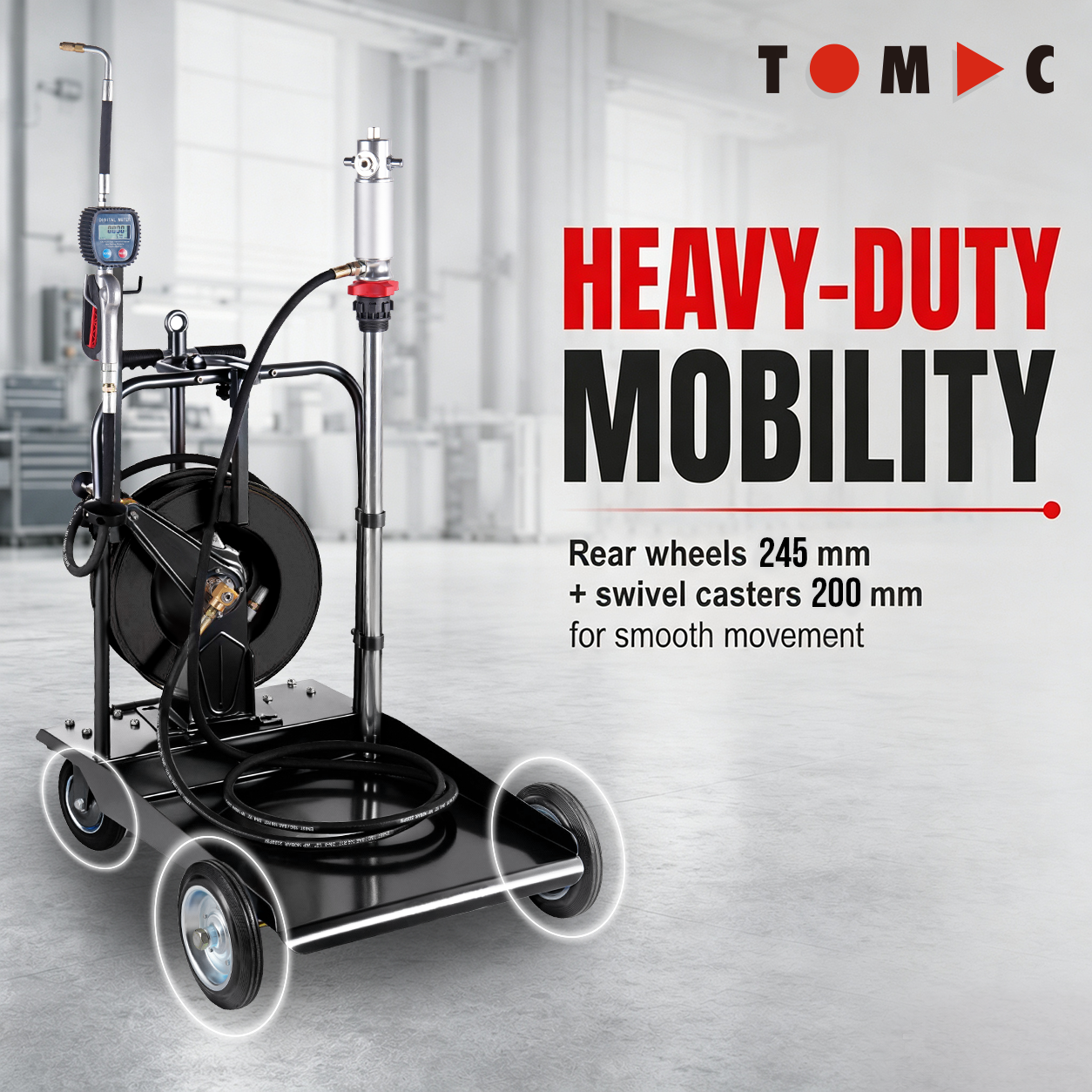

Heavy-duty mobile frame: Reinforced low-profile trolley securely carries 180–220 L drums, with large rubber wheels and a swivel caster for controlled transport.

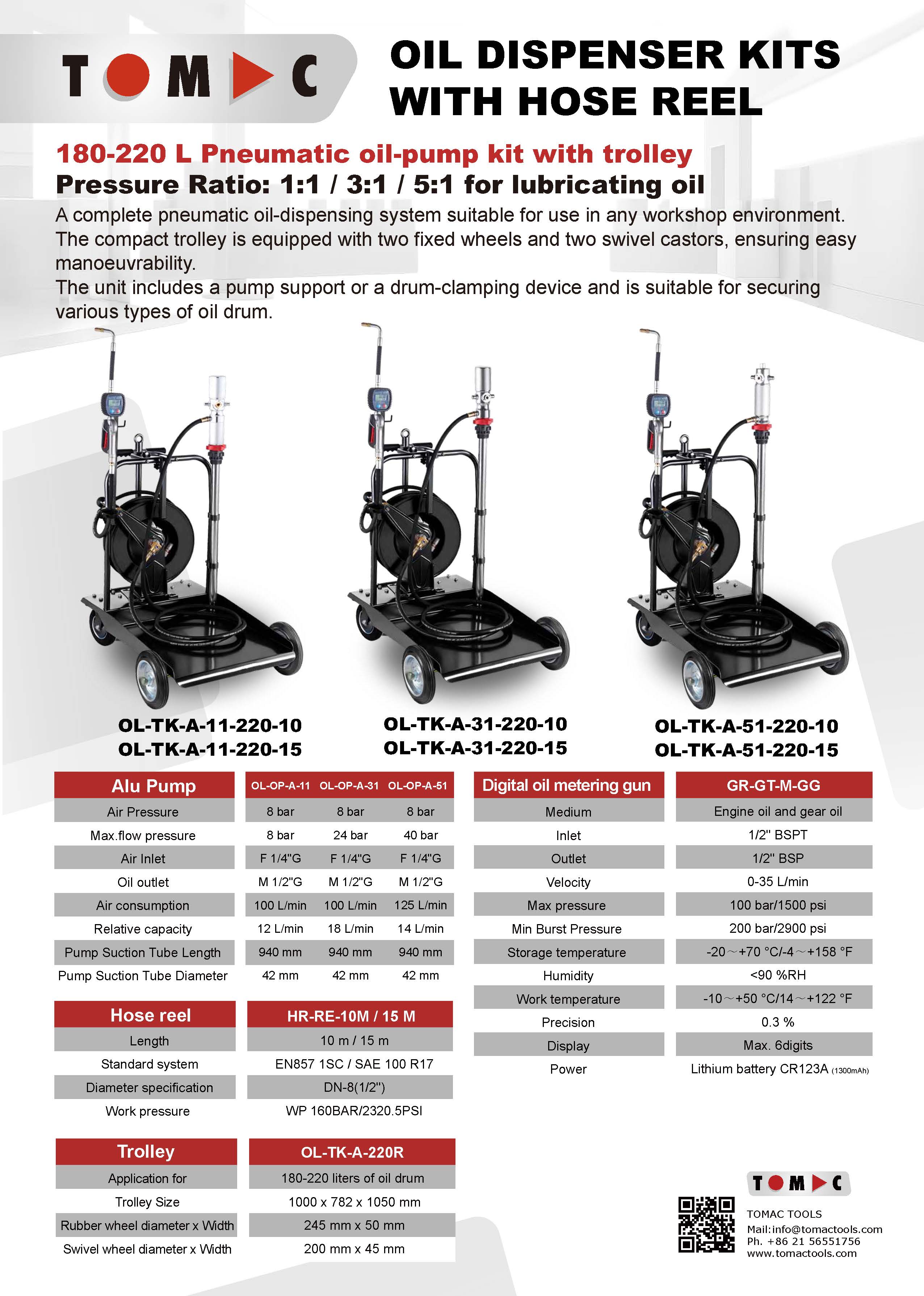

Product Specification	Details
Model	OL-TK-A-51-220-15
Alu Pump
Air Pressure	8bar
Max.flow Pressure	40bar
Air Inlet	F 1/4"G
Oil Outlet	M 1/2"G
Air Comsumption	125L/min
Relative Capacity	14L/min
Pressure Ratio	5:1 for lubricating oil
Oil Outlet Tube	1/2”x4m Oil hose
Material	Rubber hose with steel wire braiding
Pump Suction Tube Diameter	42 mm
Pump Suction Tube Length	940mm
Tube Printing	EN857 1SC/SAE 100 R17 DN-8 1/2" WP 160BAR 2320.5PSI

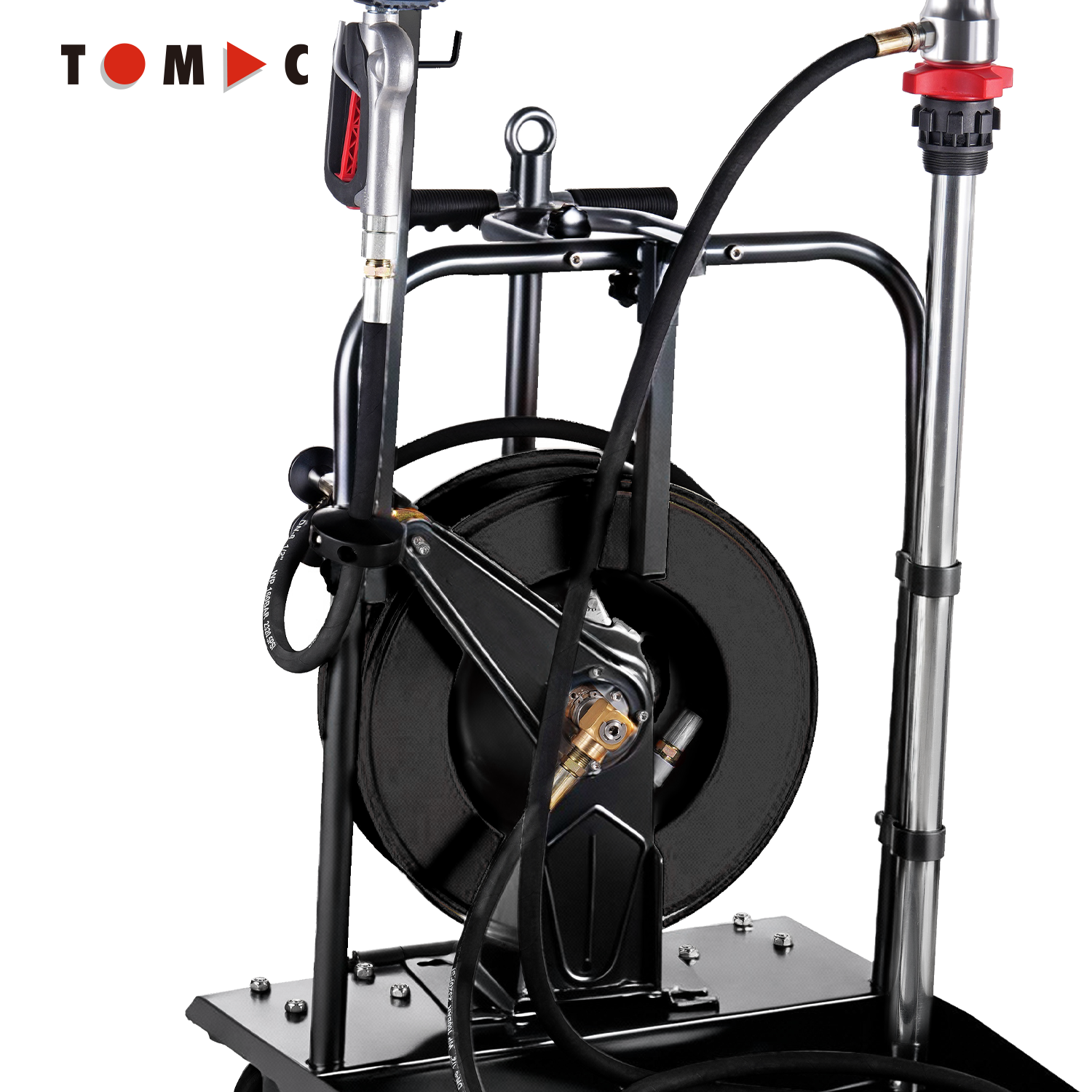

Hose Reel
Length	15m
Standard System	EN857 1SC / SAE 100 R17
Diameter Specification	DN-8（1/2"）
Work Pressure	WP 160BAR/2320.5PSI

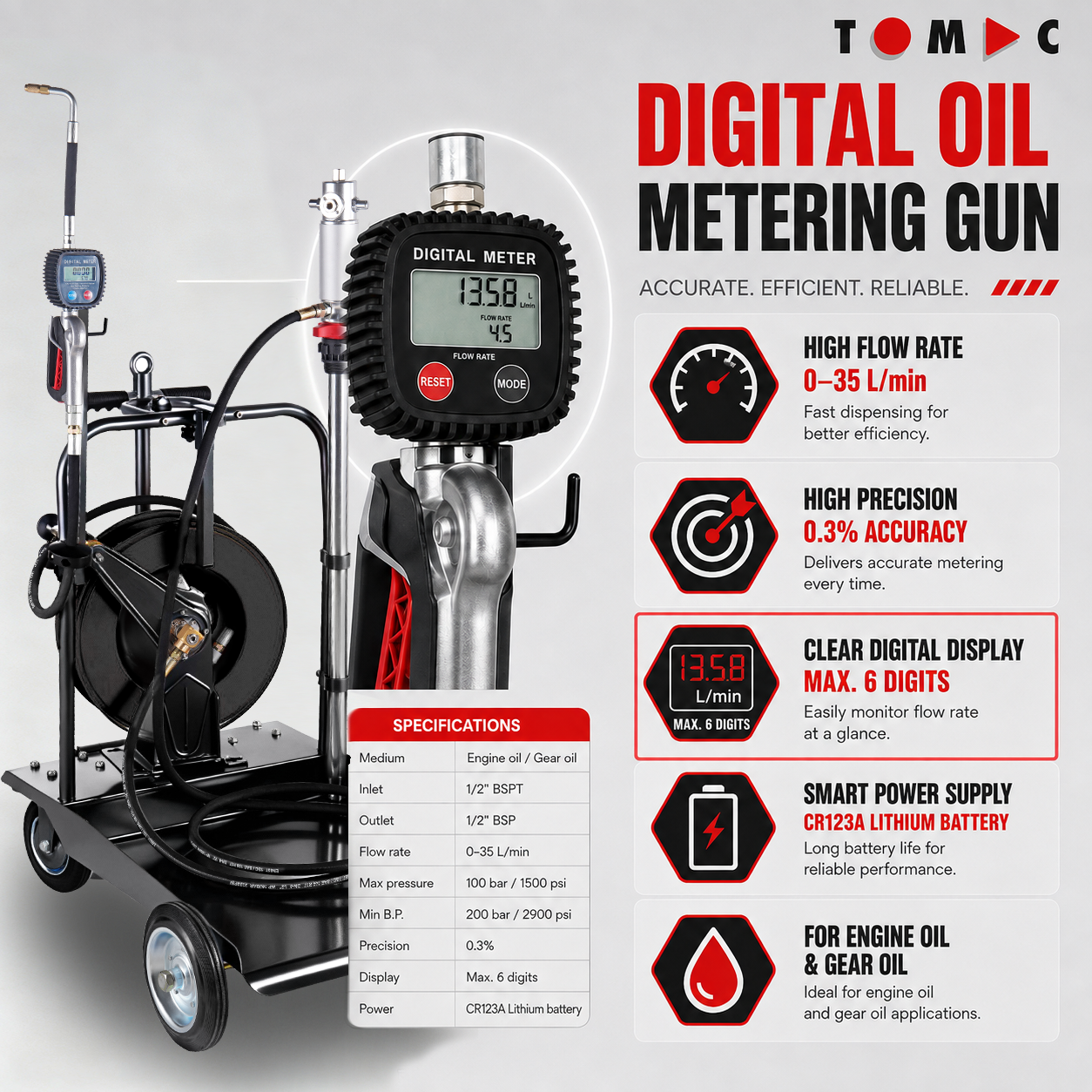

Digital Oil Metering Gun
Medium	Engine oil and gear oil
Inlet	1/2" BSPT
Outlet	1/2" BSP
Velocity	0-35L/min
Max Pressure	100bar/1500psi
Min B.P.	200bar/2900psi
Storage Temperature	-20～+70℃/-4～+158℉
Humidity	＜90%RH
Work Temperature	-10～+50℃/14～+122℉
Precision	0.3%
Display	Max.6 digits
Power	Lithium battery CR123A(1300mAH)
Trolley Size	1000x782x1050mm
Wheel Size	Fixed wheel:24550mm Swivel wheel:20045mm
Package Method	4 outer cartons
Package Size	BOX1(Trolley):1 PCS/CTN 631594cm BOX2(Hose Reel):1 PCS/CTN 562356.5cm BOX3(Pump):5PCS/CTN 1342842cm BOX4(Gun):10PCS/CTN 643072cm
Net/Gross weight	BOX1:31/32kgs BOX2:18/19kgs BOX3:31/33kgs BOX4:20/22kgs
MOQ	10pcs
Delivery Time	60 days
