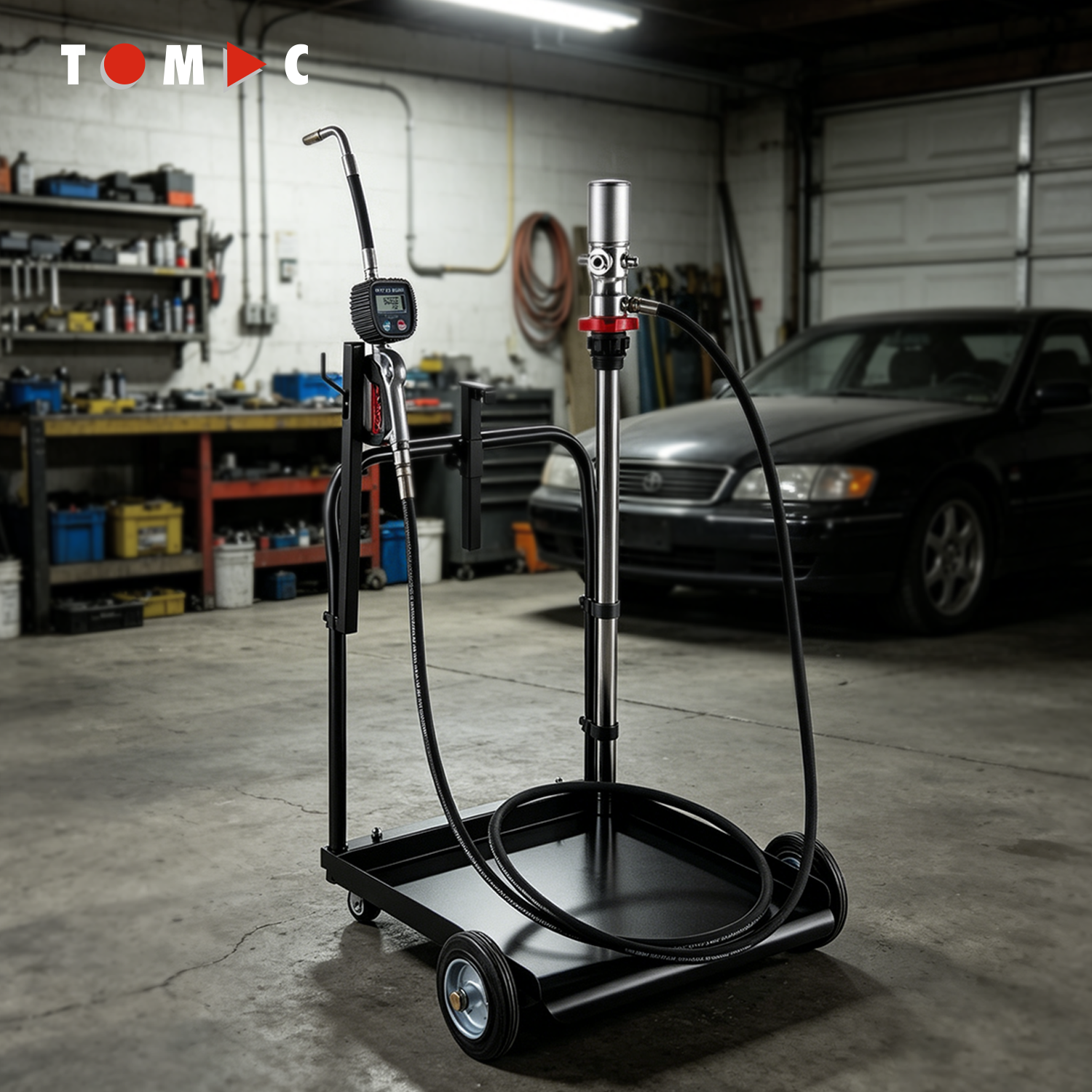

OL-TK-A-31-220 TOMAC 3:1 Pneumatic Oil Pump Trolley Kit for 180-220L Drums with 4M Hose and Digital Meter Gun

High-flow 3:1 delivery: Generates up to 24 bar output pressure and a rated flow of 18 L/min to shorten oil-filling time in busy workshops.

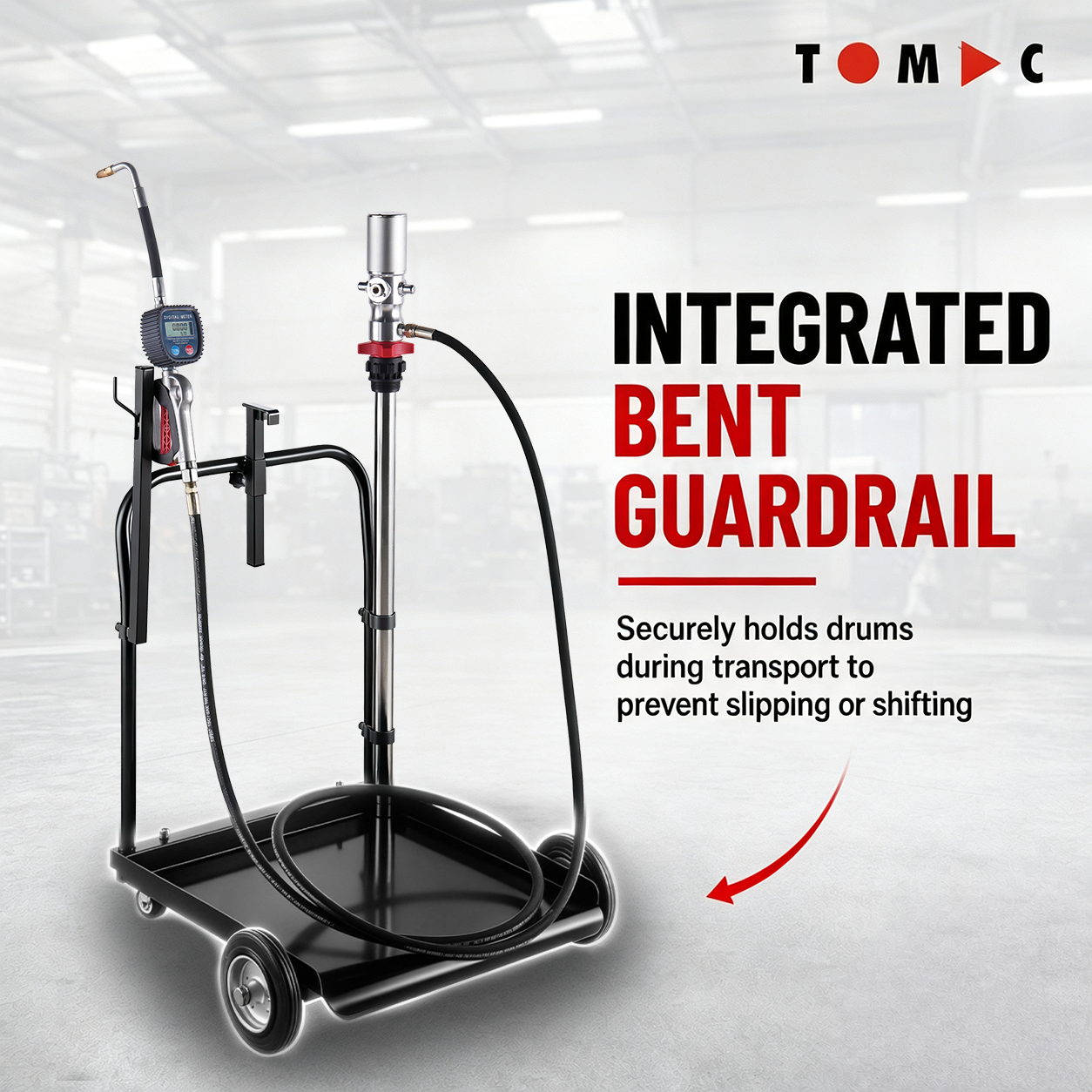

Large-drum compatibility: The reinforced 780 × 710 × 873 mm trolley is engineered to carry standard 180–220 L oil drums securely.

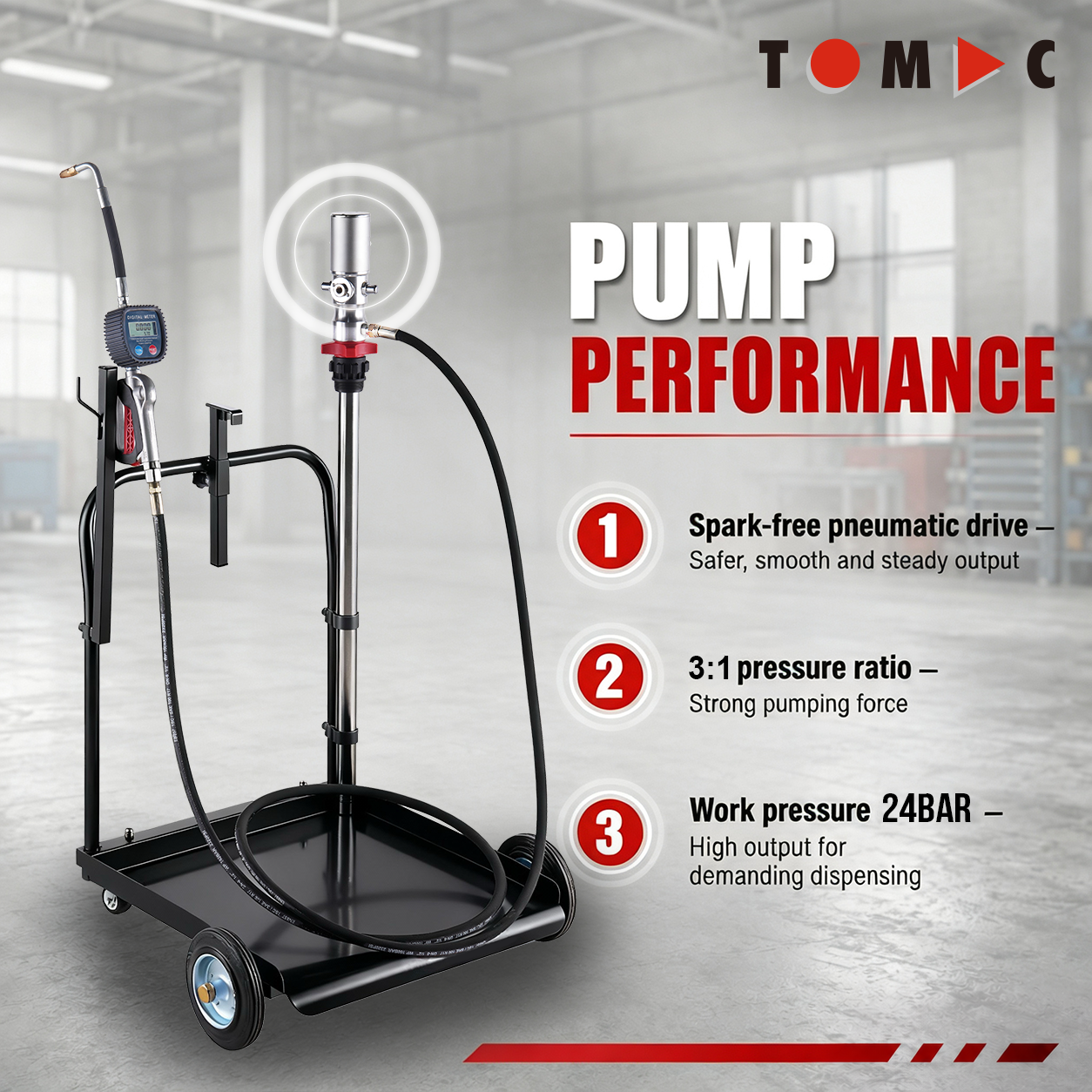

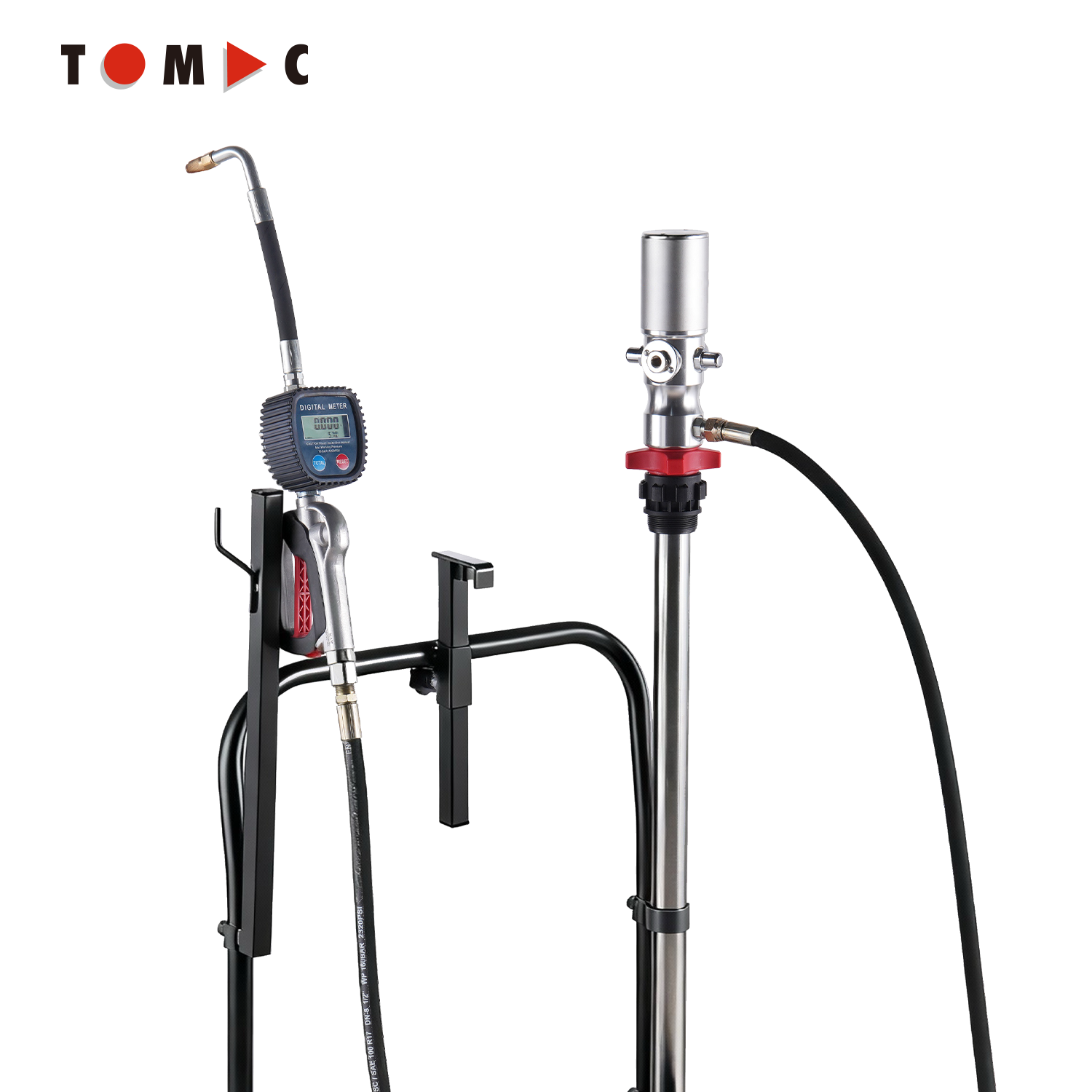

Reliable pneumatic pump: Spark-free air drive operates at 8 bar, while the aluminum body and oil-resistant seals support steady, low-maintenance operation.

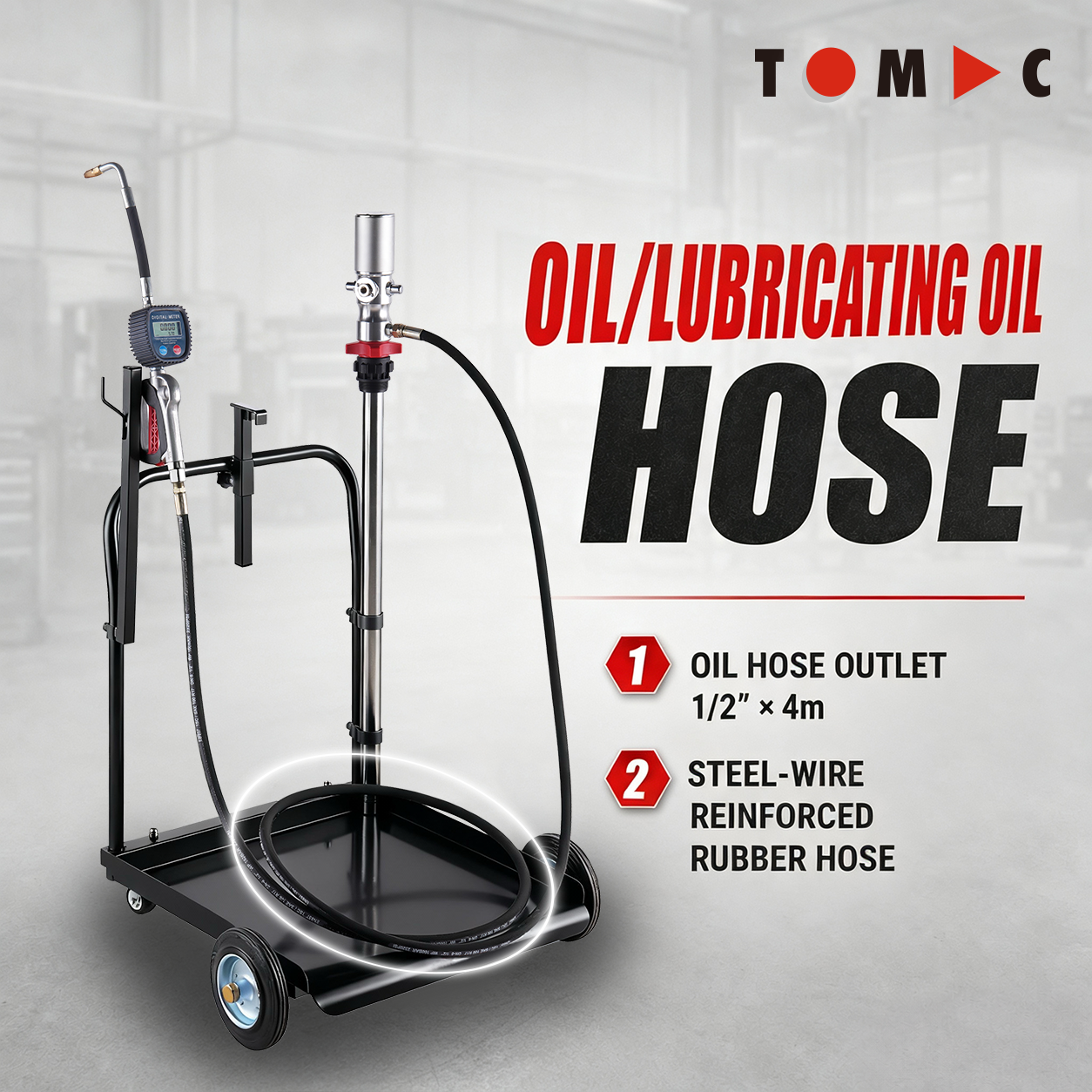

Durable 4 m oil hose: The DN8 steel-wire braided rubber hose meets EN857 1SC / SAE 100 R17 and carries a 160 bar working-pressure rating.
Precision dispensing gun: Measures engine and gear oil at 0–35 L/min with ±0.3% accuracy, a six-digit display and 100 bar maximum pressure.

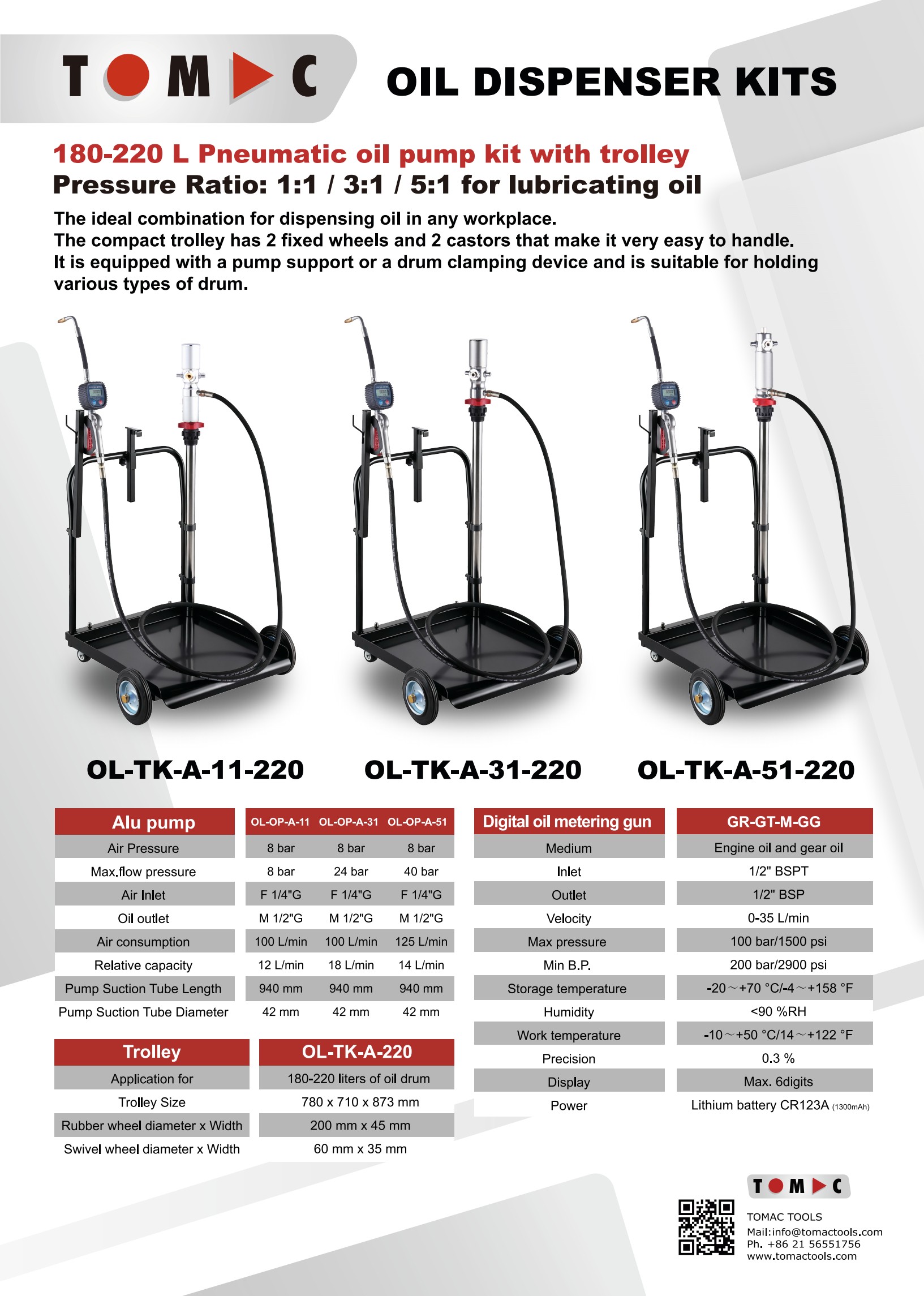

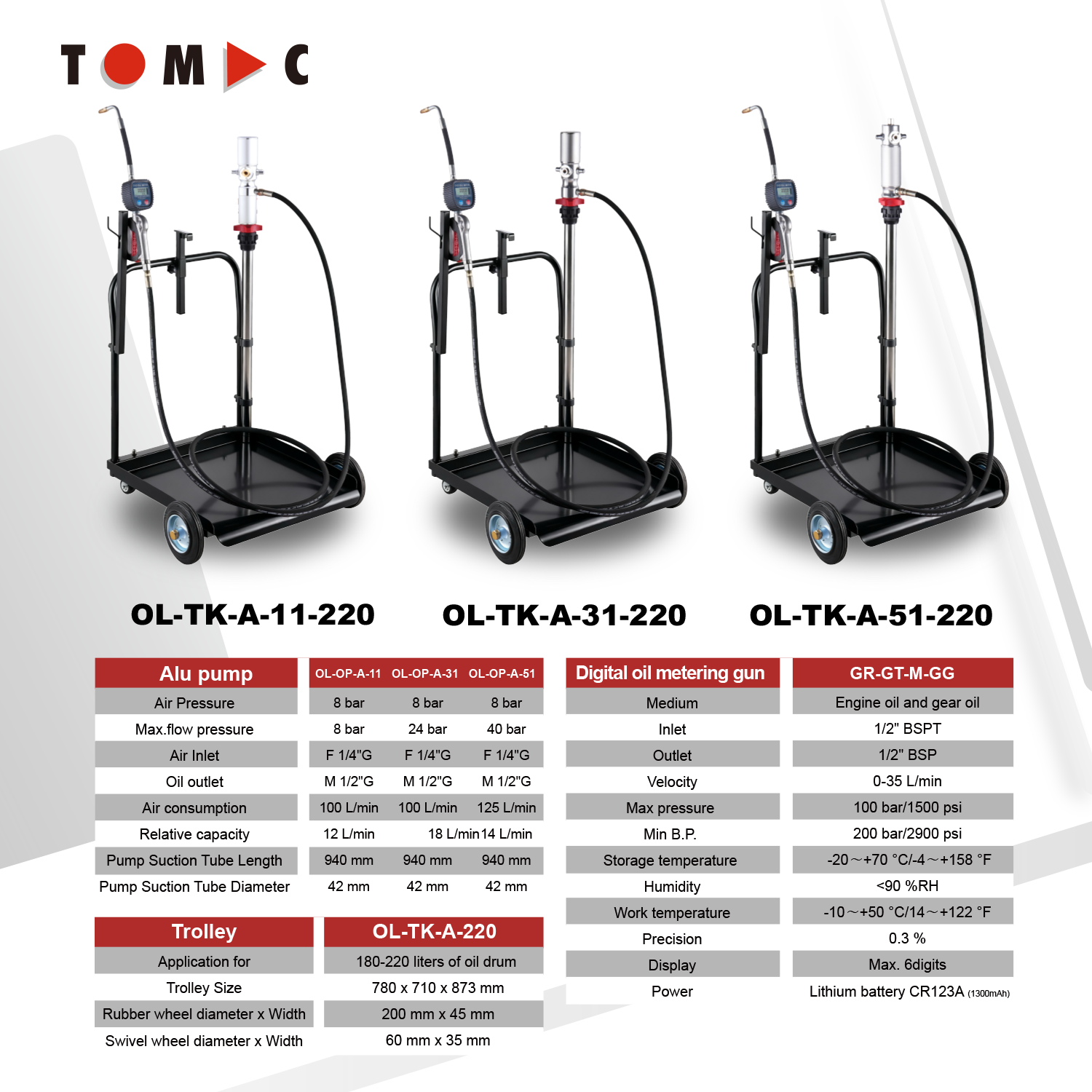

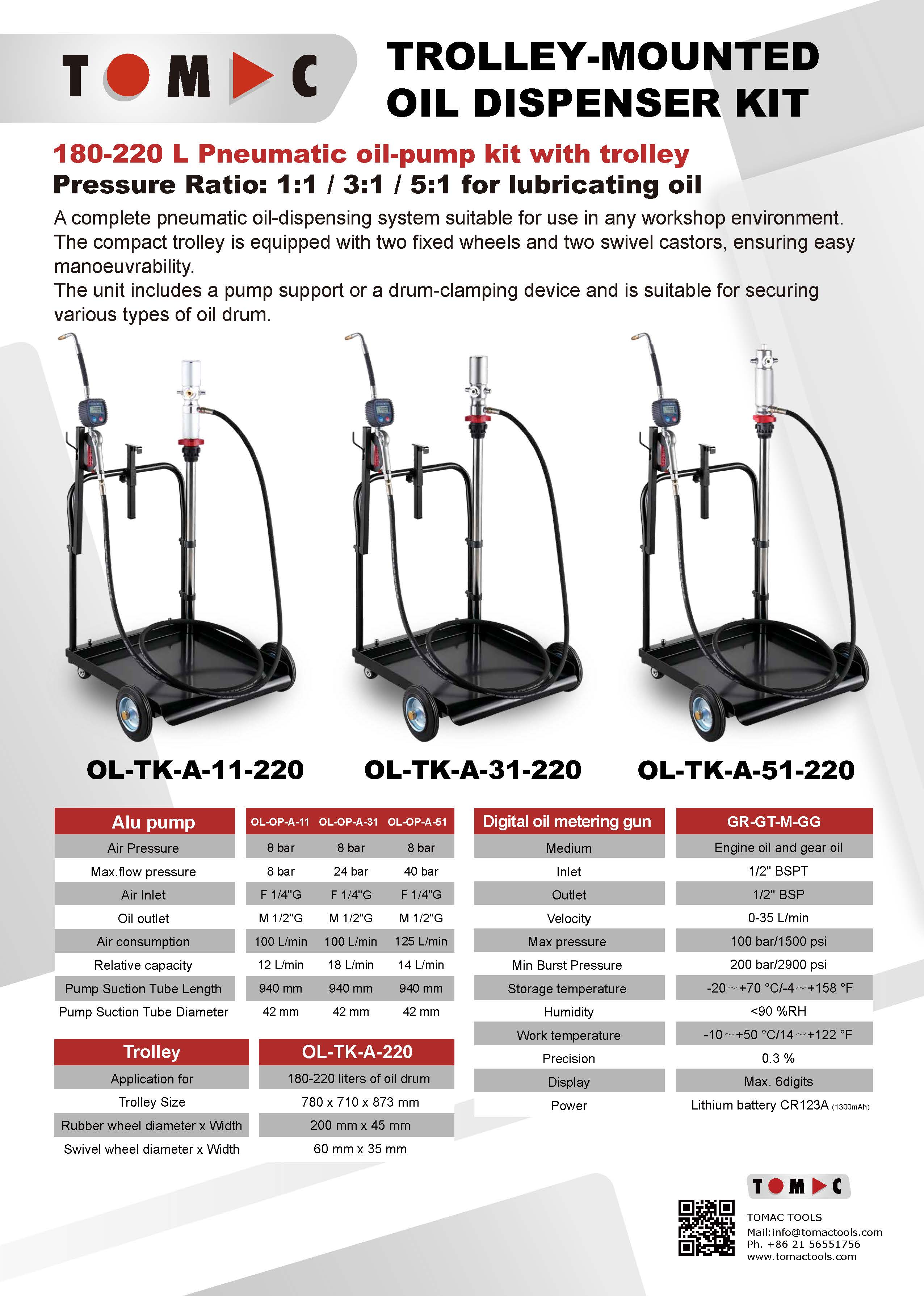

Product Specification	Details
Model	OL-TK-A-31-220
Alu Pump
Air Pressure	8bar
Max.flow Pressure	24bar
Air Inlet	F 1/4"G
Oil Outlet	M 1/2"G
Air Comsumption	100L/min
Relative Capacity	18L/min
Pressure Ratio	3:1 for lubricating oil
Oil Outlet Tube	1/2”x4m Oil hose
Material	Rubber hose with steel wire braiding
Pump Suction Tube Diameter	42 mm
Pump Suction Tube Length	940mm
Tube Printing	EN857 1SC/SAE 100 R17 DN-8 1/2" WP 160BAR 2320.5PSI

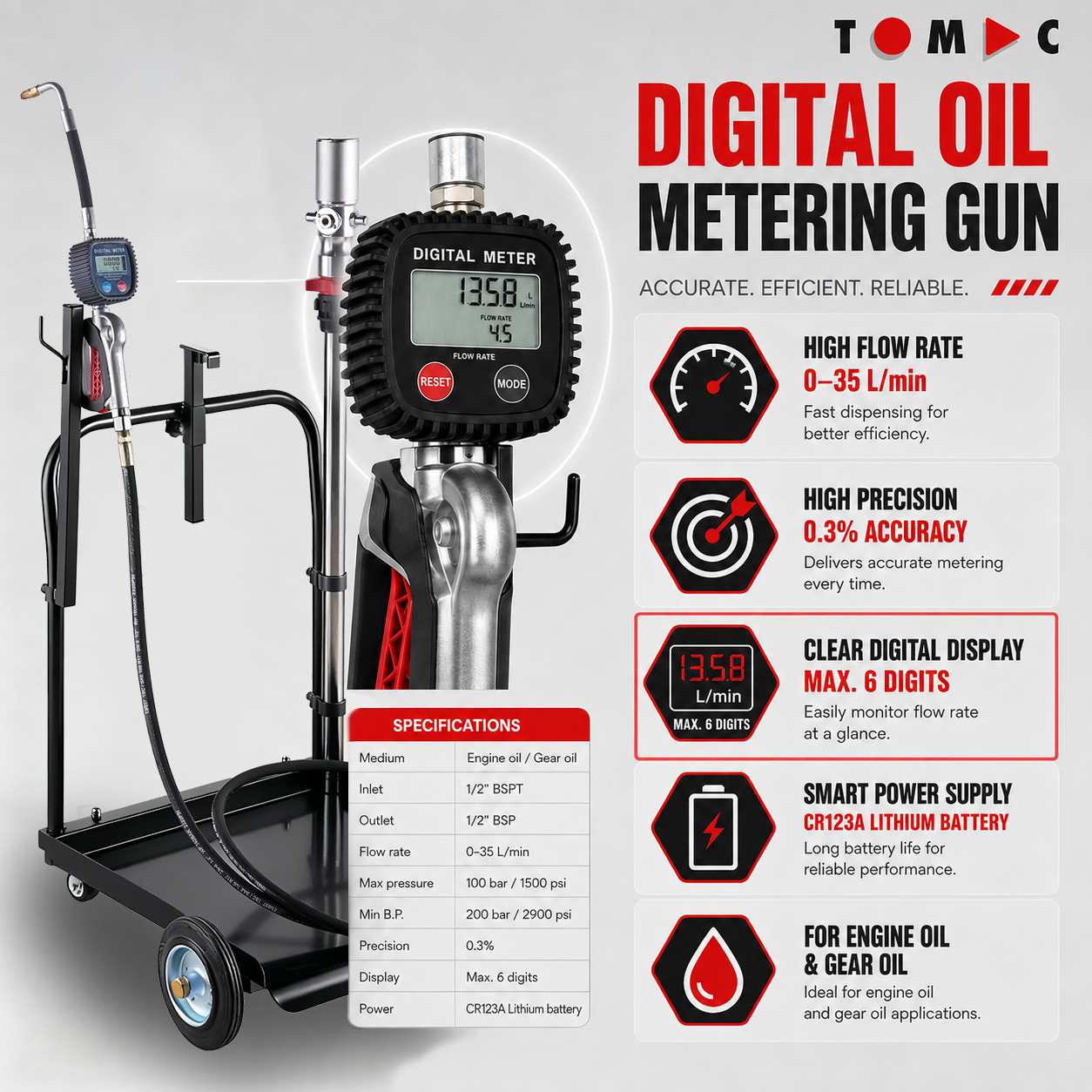

Digital Oil Metering Gun
Medium	Engine oil and gear oil
Inlet	1/2" BSPT
Outlet	1/2" BSP
Velocity	0-35L/min
Max Pressure	100bar/1500psi
Min B.P.	200bar/2900psi
Storage Temperature	-20～+70℃/-4～+158℉
Humidity	＜90%RH
Work Temperature	-10～+50℃/14～+122℉
Precision	0.3%
Display	Max.6 digits
Power	Lithium battery CR123A(1300mAH)

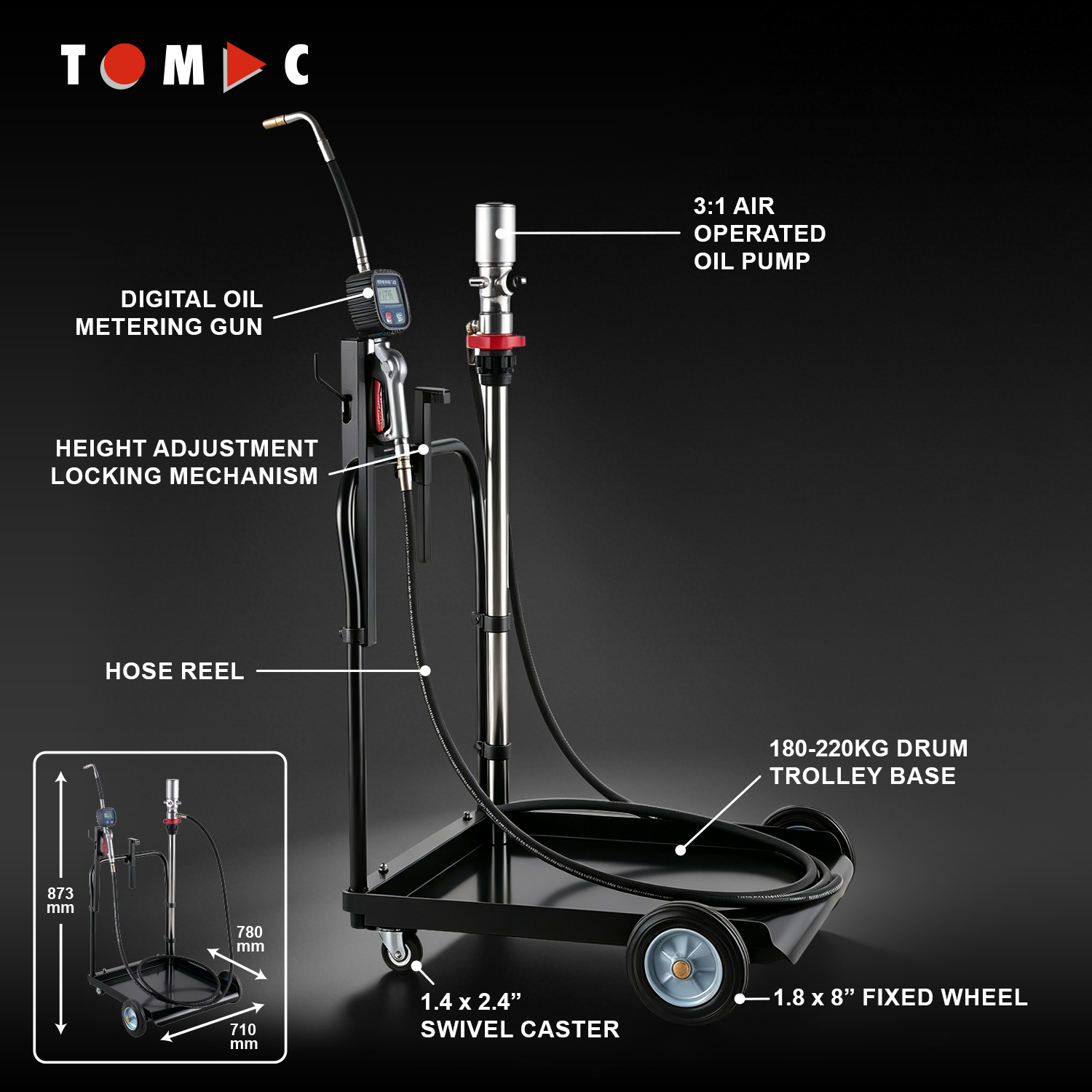

Trolley Size	780x710x873mm

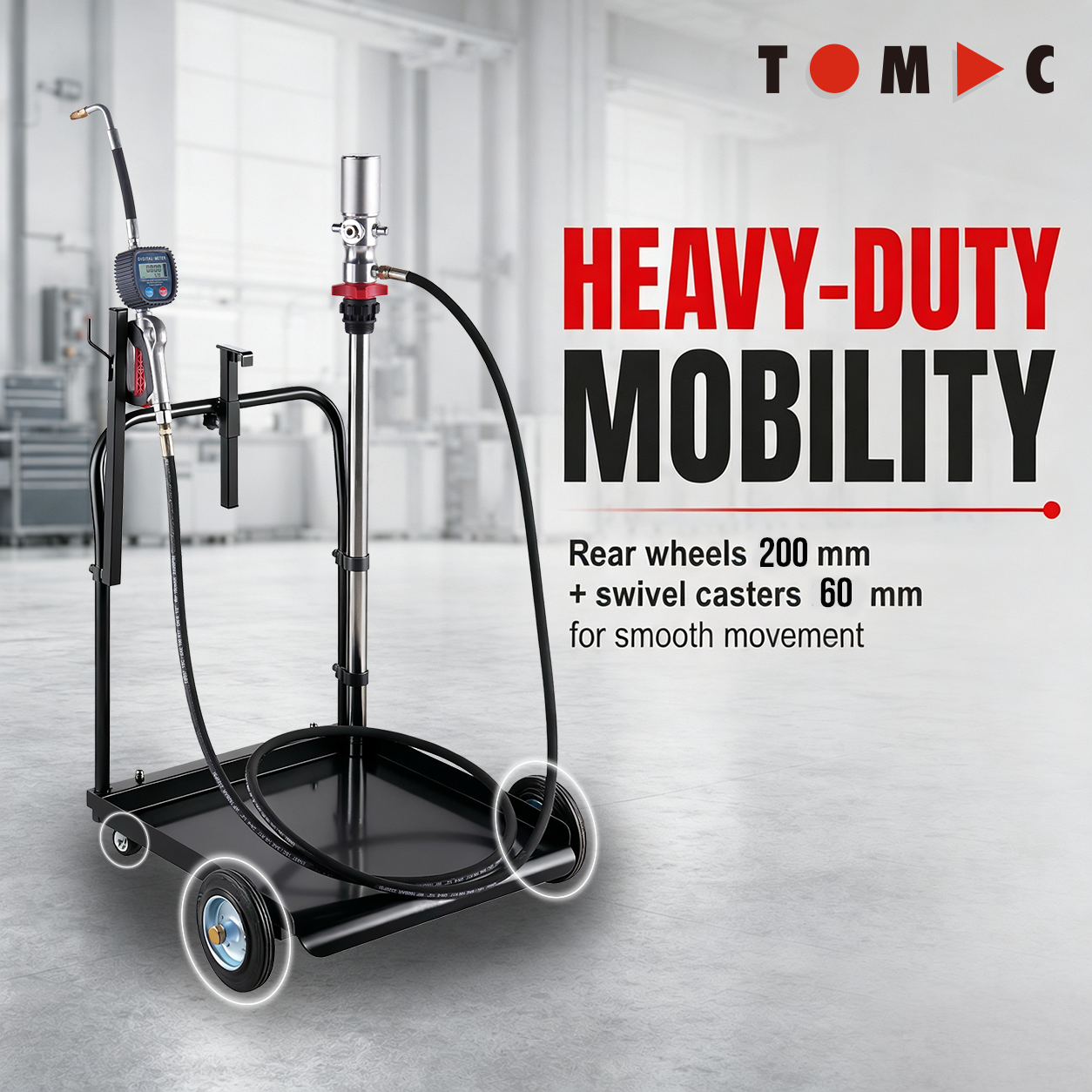

Wheel Size	Fixed wheel:20045mm Swivel wheel:6035mm
Package Method	3 outer cartons
Package Size	BOX1(Trolley):1 PCS/CTN 651080cm BOX2(Gun):10PCS/CTN 643072cm BOX3(Pump):5PCS/CTN 1342842cm
Net/Gross weight	BOX1:21/22kgs BOX2:20/22kgs BOX3:31/33kgs
MOQ	10pcs
Delivery Time	60 days
