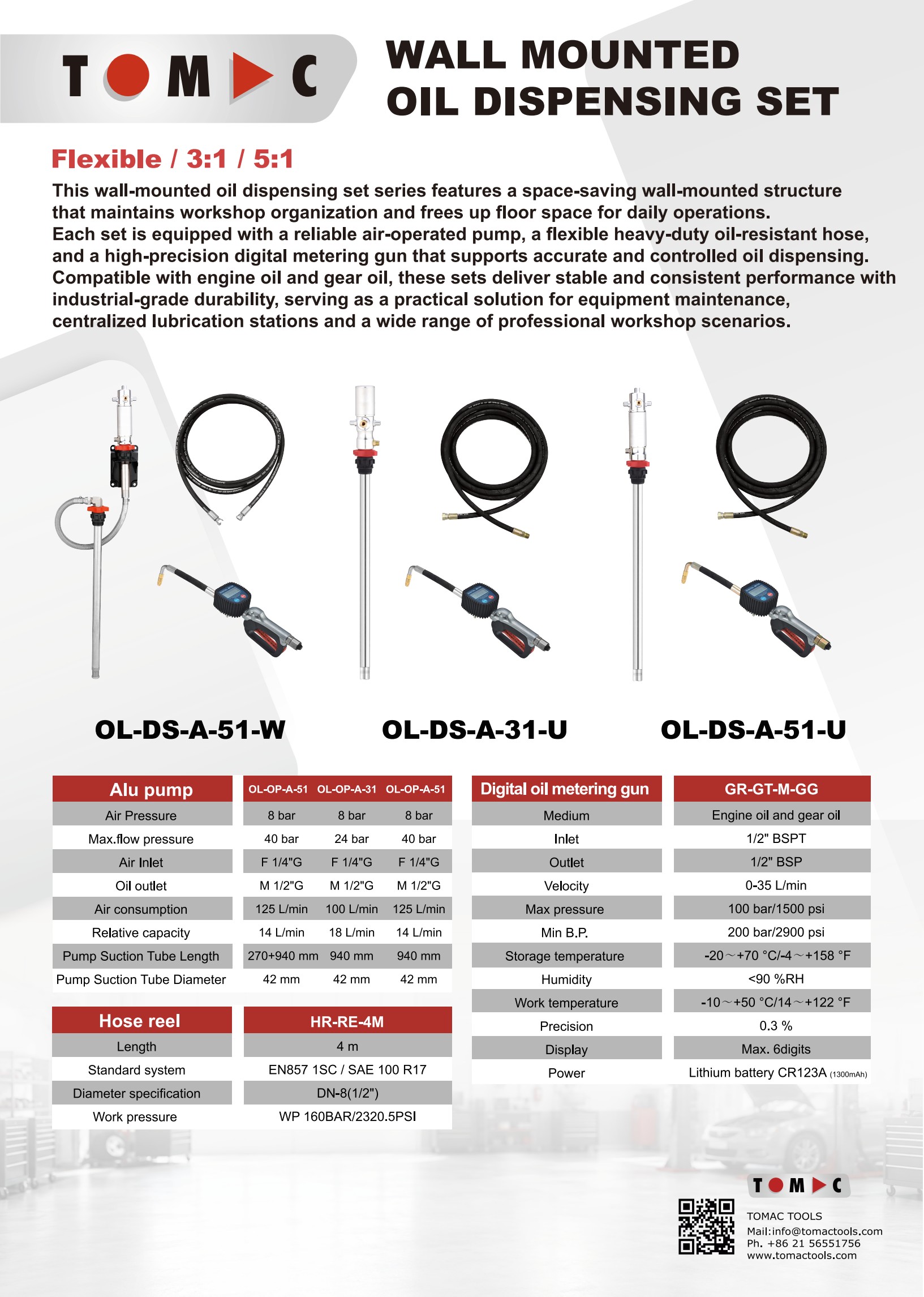

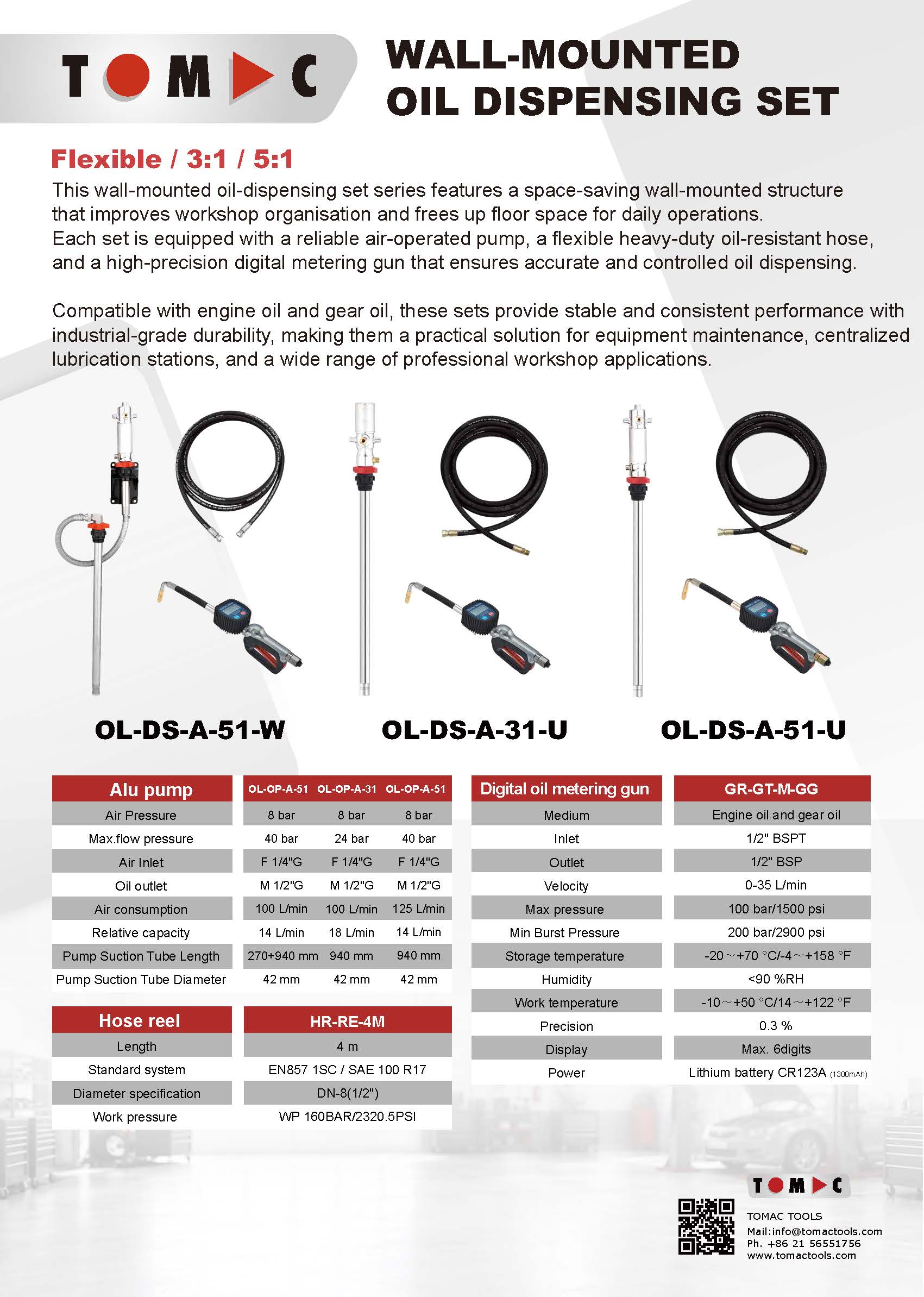

OL-DS-A-51-W TOMAC 5:1 Pneumatic Wall Mounted Oil Dispensing Kit with 4M Hose and Digital Meter Gun

Space-saving wall installation: Keeps dispensing equipment organized and off the floor, making it ideal for fixed workshop oil stations and compact service areas.

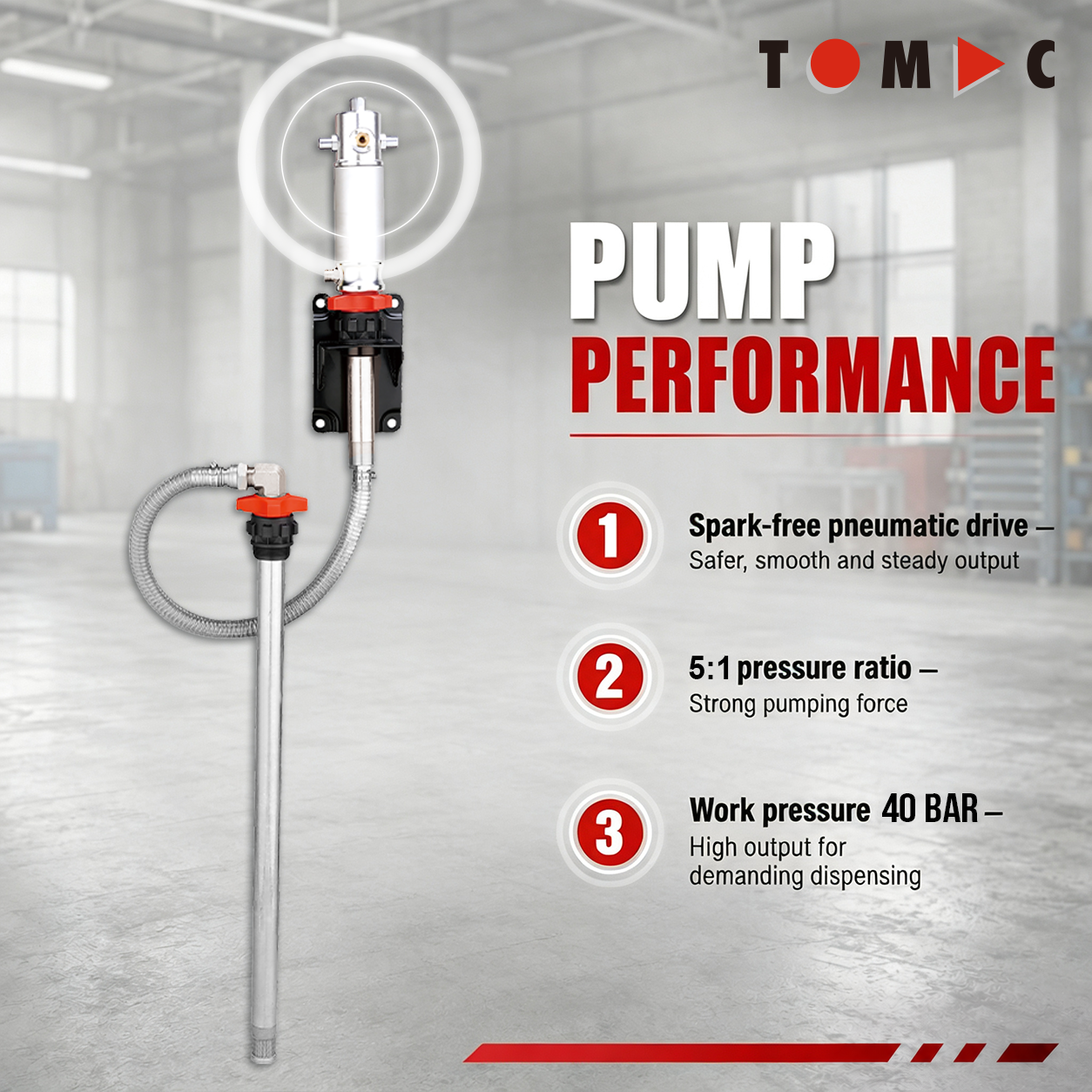

Powerful 5:1 pneumatic pump: Operates at 8 bar air pressure and delivers up to 40 bar output pressure with a rated flow of 14 L/min.
Flexible drum connection: Includes a 2 m flexible suction hose and 940 mm rigid zinc-plated steel suction tube for practical installation and oil pickup.

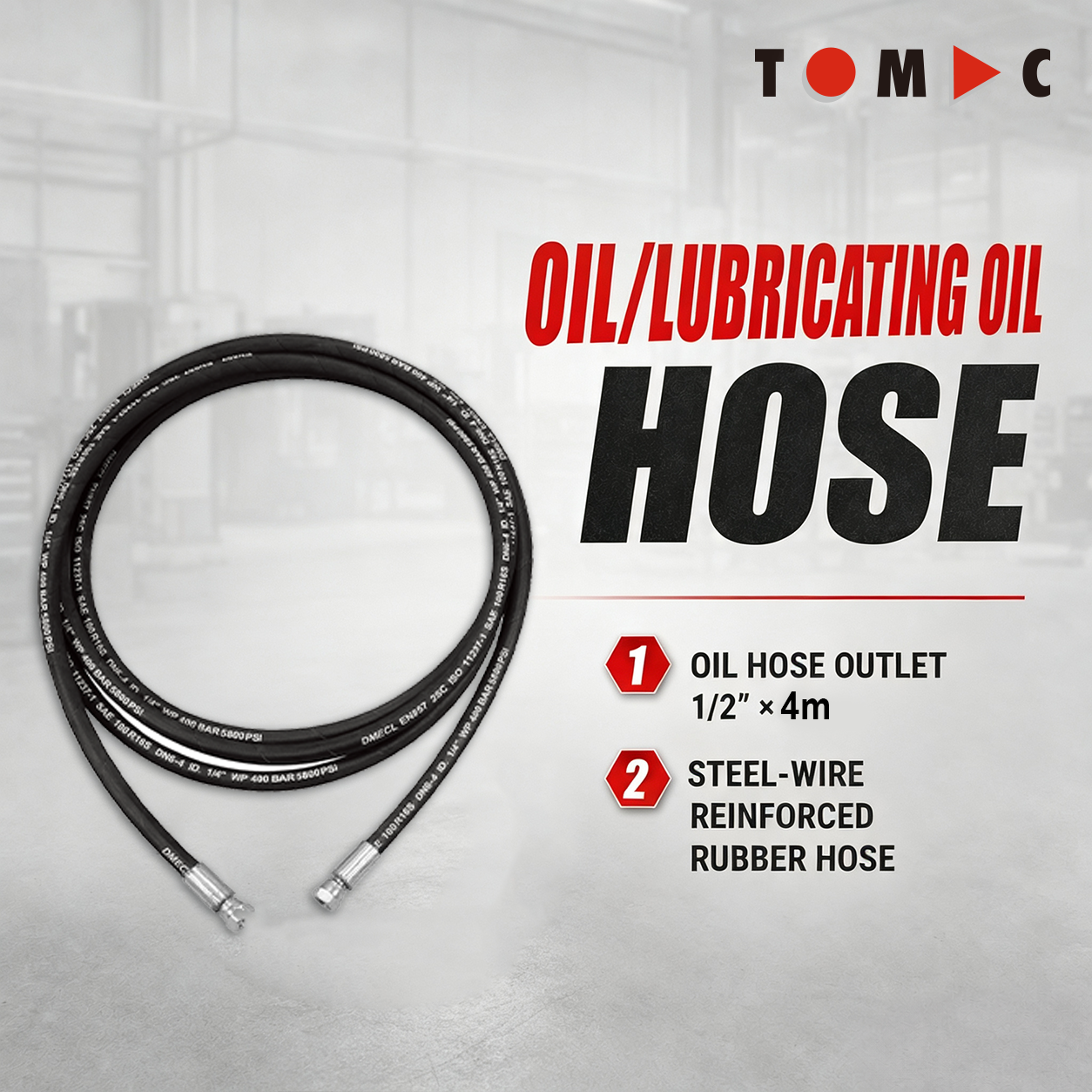

Durable 4 m delivery hose: DN8 steel-wire braided rubber hose meets EN857 1SC / SAE 100 R17 and is rated to 160 bar working pressure.
Accurate digital dispensing: Meter gun handles engine and gear oil at 0–35 L/min with ±0.3% accuracy, six-digit display and CR123A battery power.

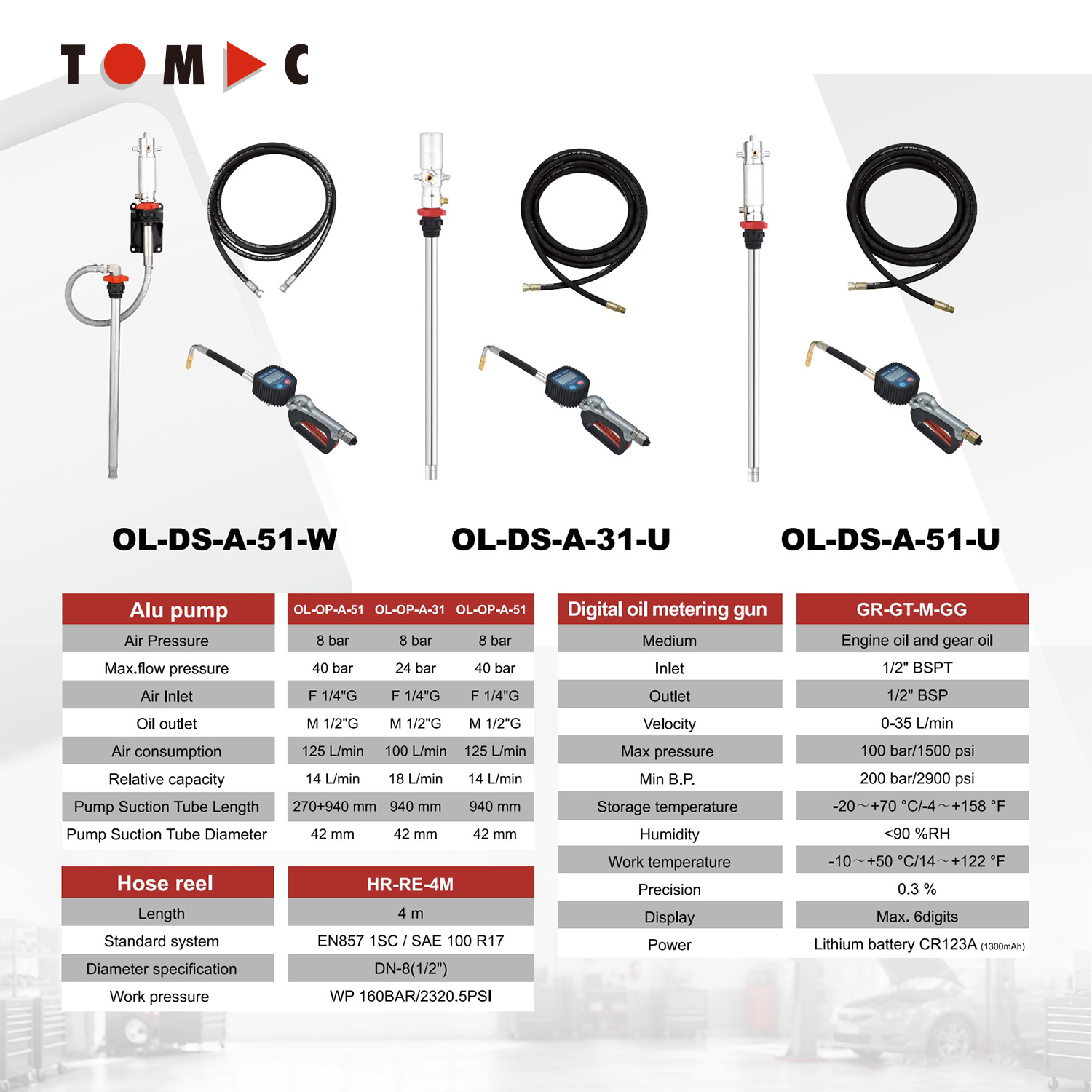

Product Specification	Details
Model	OL-DS-A-51-W
Alu Pump
Air Pressure	8bar
Max.flow Pressure	40bar
Air Comsumption	125L/min
Relative Capacity	14L/min
Pressure Ratio	5:1 for lubricating oil
Oil Outlet Tube	1/2”x4m Oil hose with 2m flexible suction tube
Material	Rubber hose with steel wire braiding
Pump Suction Tube Diameter	42 mm
Pump Suction Tube Length	940mm
Tube Printing	EN857 1SC/SAE 100 R17 DN-8 1/2" WP 160BAR 2320.5PSI
Hose Reel
Length	4m
Standard System	EN857 1SC / SAE 100 R17
Diameter Specification	DN-8（1/2"）
Work Pressure	WP 160BAR/2320.5PSI

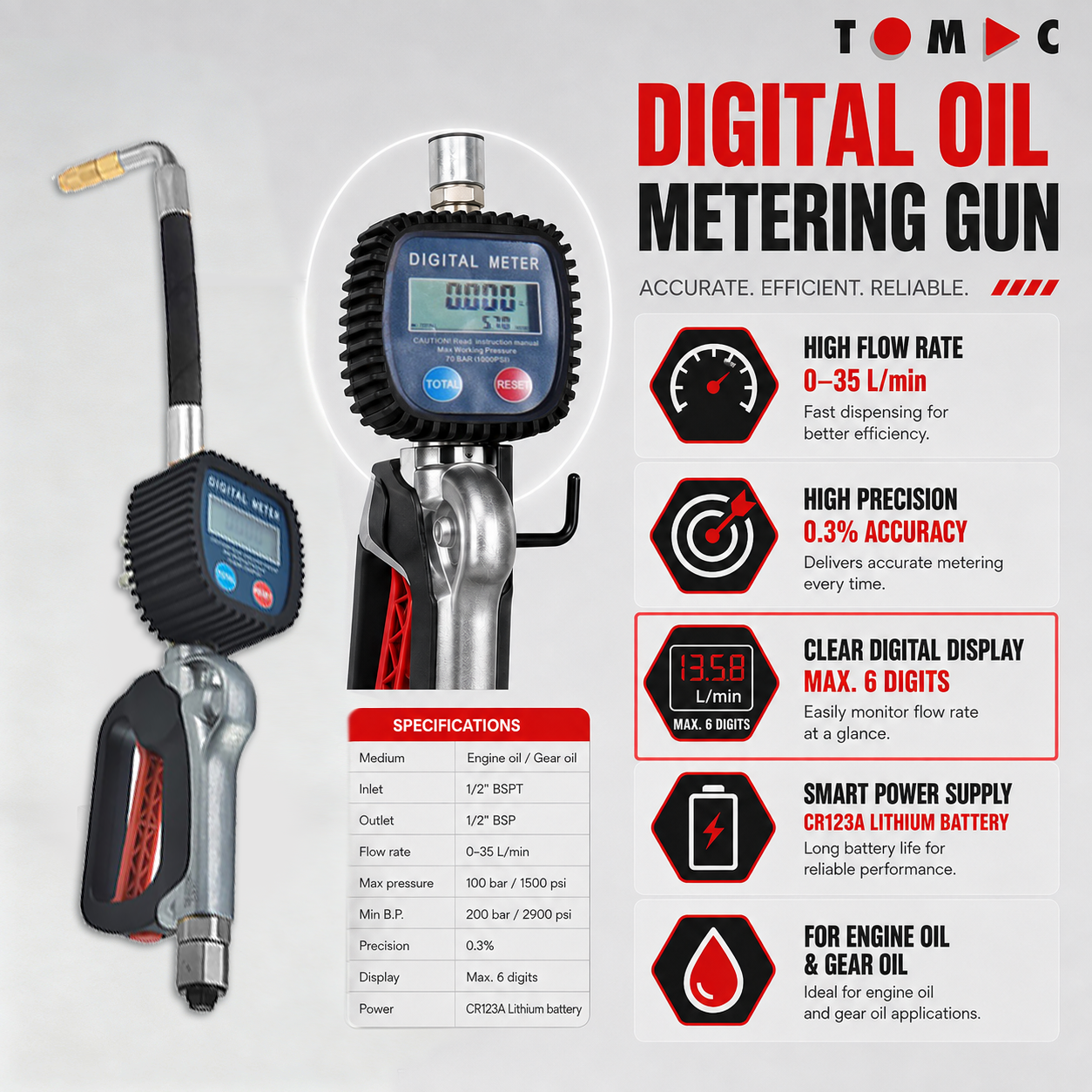

Digital Oil Metering Gun
Medium	Engine oil and gear oil
Inlet	1/2" BSPT
Outlet	1/2" BSP
Velocity	0-35L/min
Max Pressure	100bar/1500psi
Min B.P.	200bar/2900psi
Storage Temperature	-20～+70℃/-4～+158℉
Humidity	＜90%RH
Work Temperature	-10～+50℃/14～+122℉
Precision	0.3%
Display	Max.6 digits
Power	Lithium battery CR123A(1300mAH)
Package Method	1 outer cartons
Package Size	1323116cm
Net/Gross weight	14/14.5kgs
MOQ	10pcs
Delivery Time	60 days
