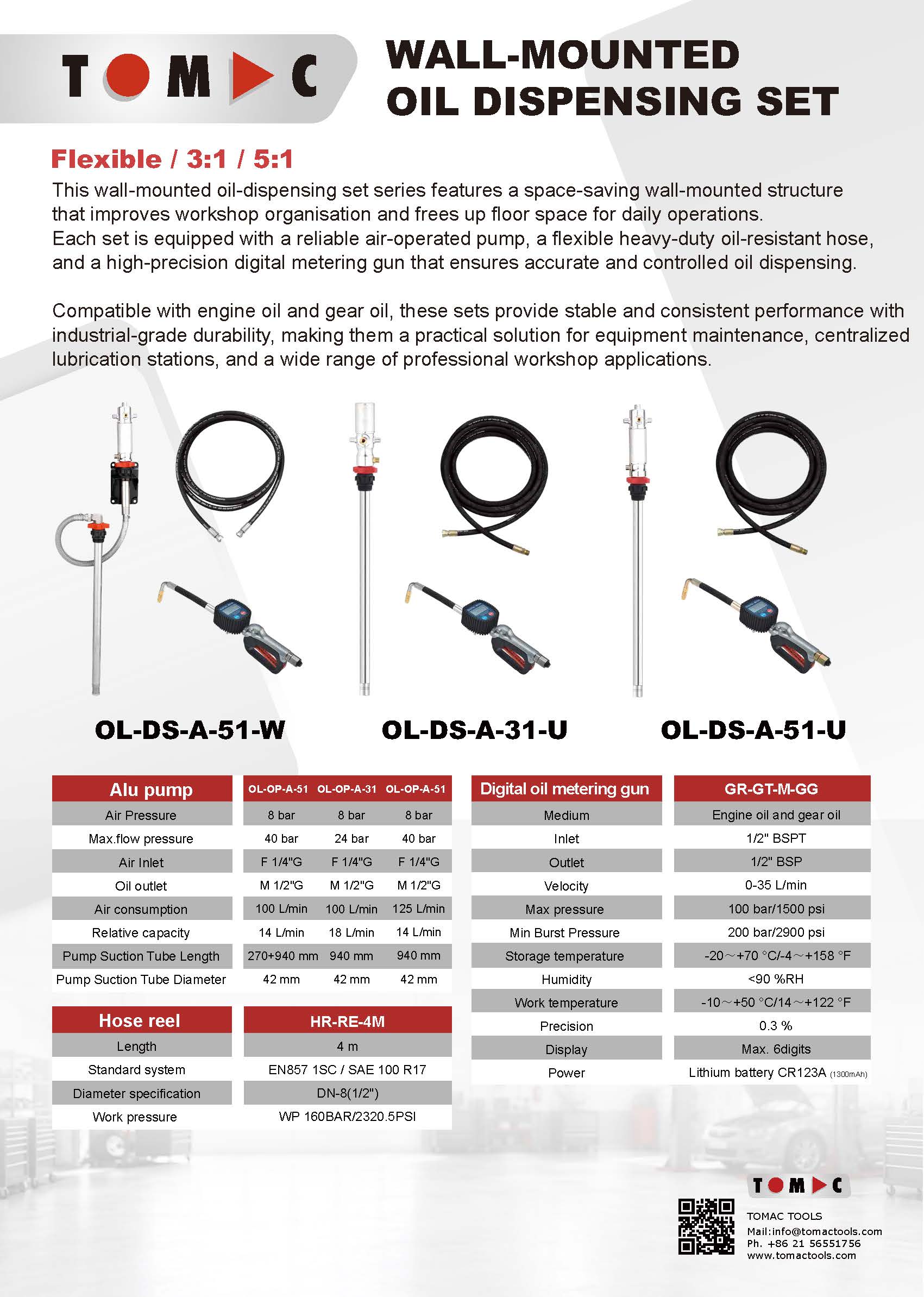

OL-DS-A-51-U TOMAC 5:1 Pneumatic Universal Oil Dispensing Kit with 4M Hose and Digital Meter Gun

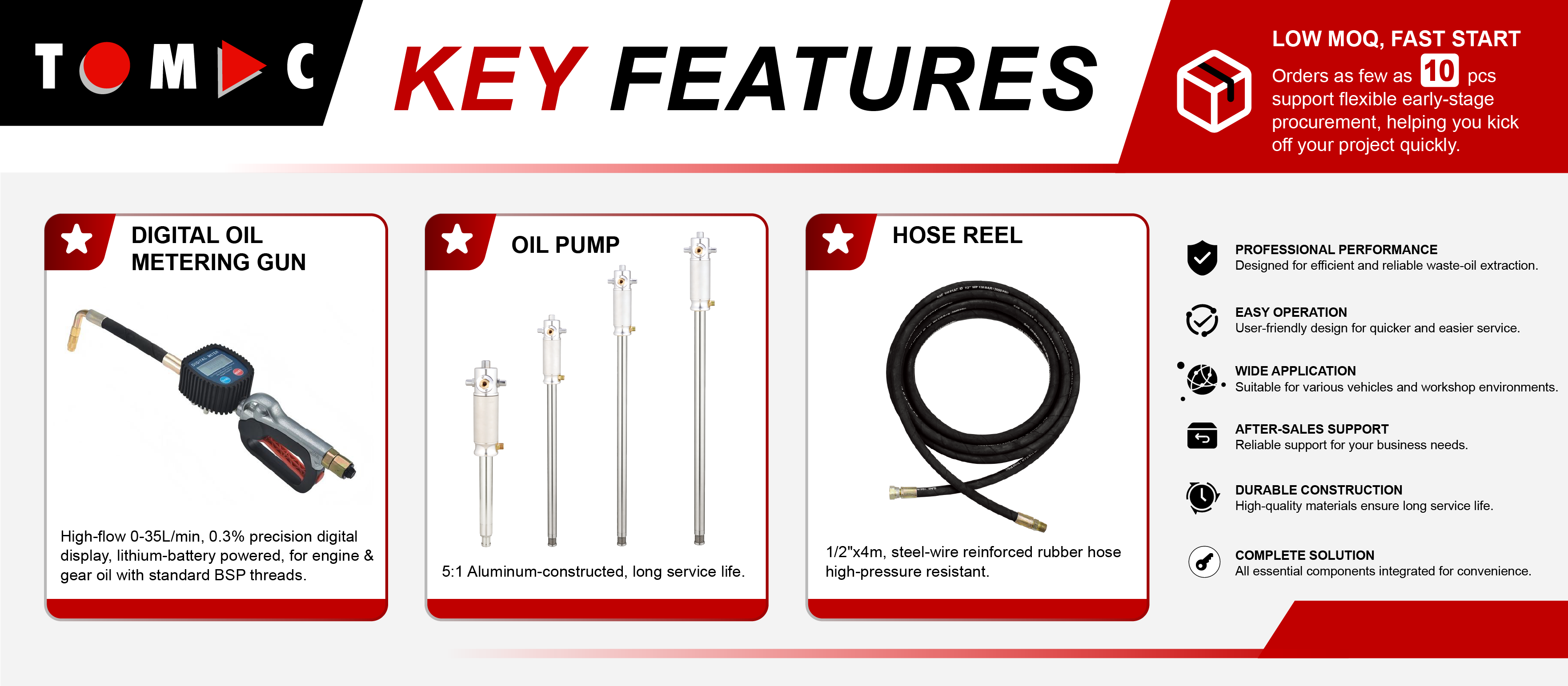

High-pressure universal system: The 5:1 pneumatic pump delivers output pressure up to 40 bar and rated flow of 14 L/min for demanding workshop applications.

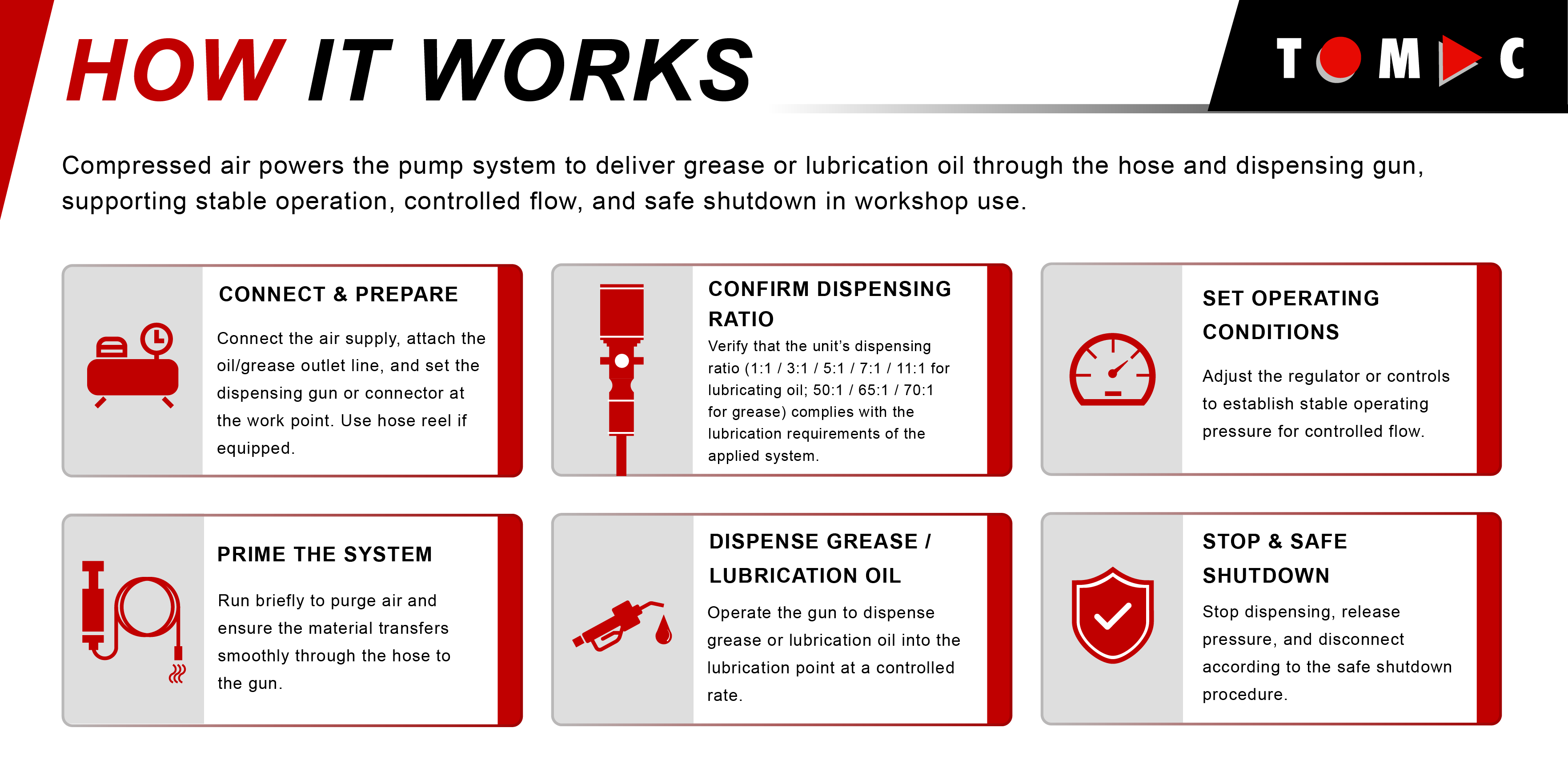

Safe, stable air operation: Spark-free pneumatic drive runs at 8 bar and provides smooth pressure for continuous dispensing of compatible lubricating oils.
Long-life construction: Aluminum pump body, oil-resistant seals and a 940 mm zinc-plated steel suction tube help resist wear, aging and leakage.

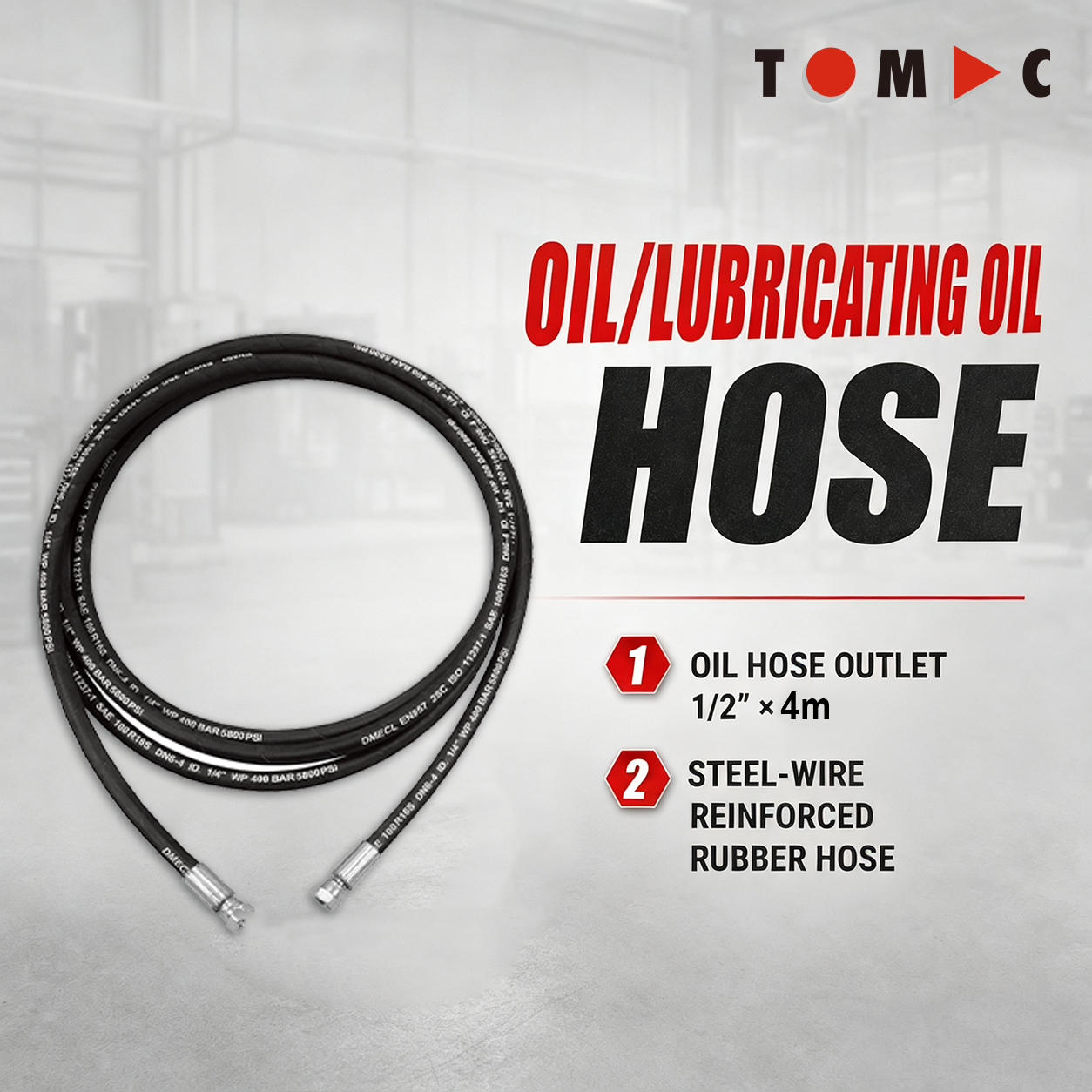

Heavy-duty 4 m hose: DN8 steel-wire braided rubber hose meets EN857 1SC / SAE 100 R17 and is rated for working pressure up to 160 bar.
Accurate digital control: Meter gun handles engine and gear oil at 0–35 L/min with ±0.3% accuracy, six-digit display and maximum pressure of 100 bar.

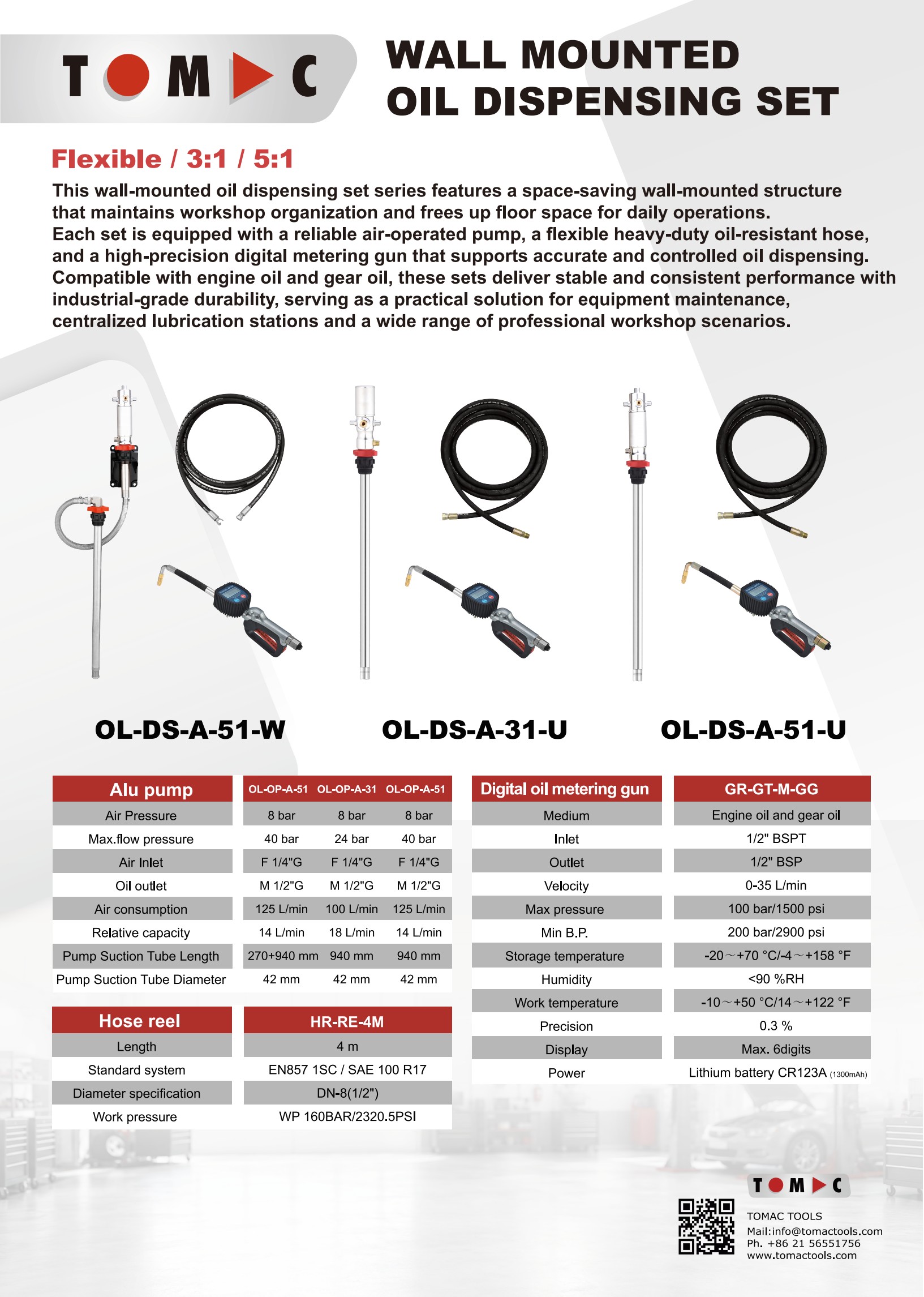

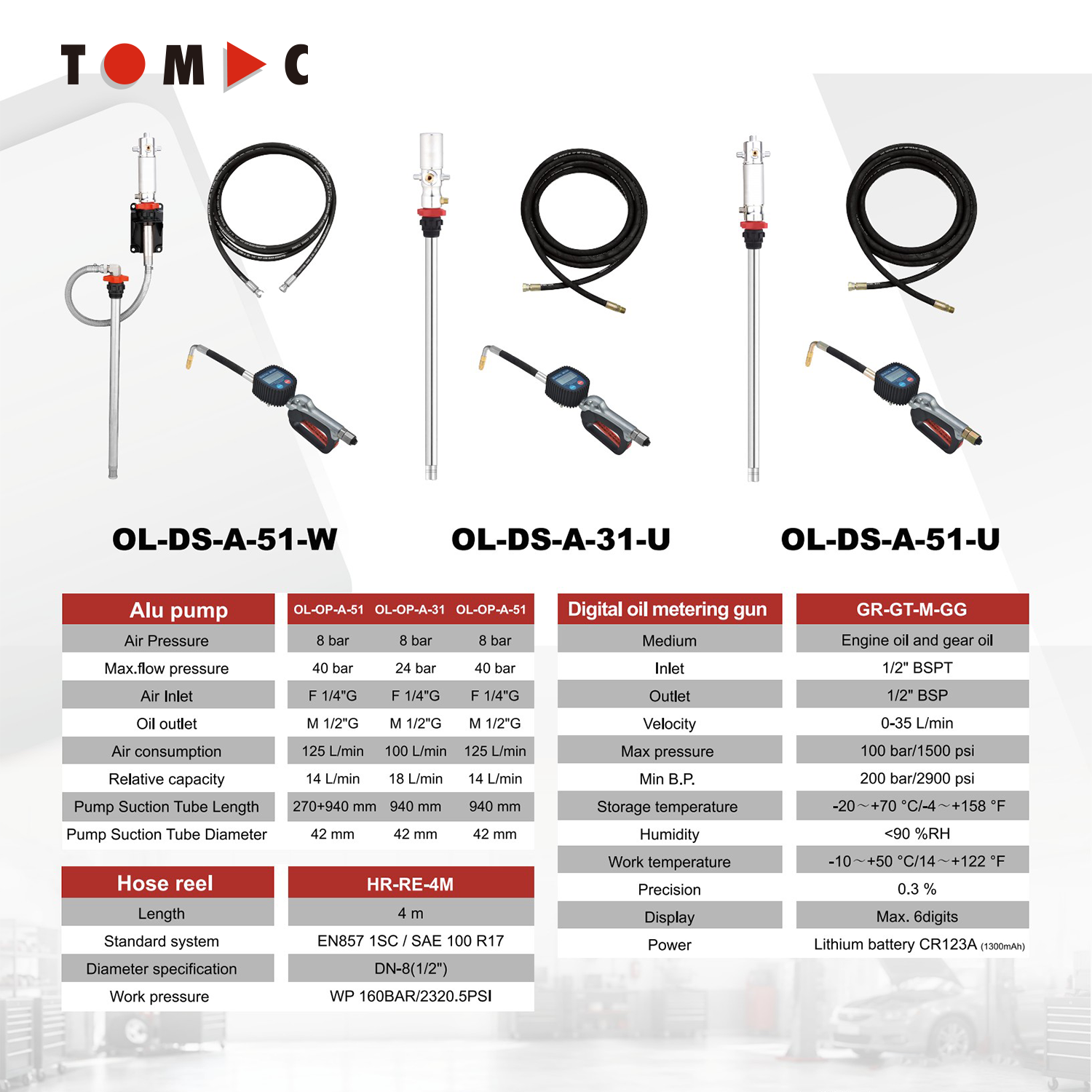

Product Specification	Details
Model	OL-DS-A-51-U

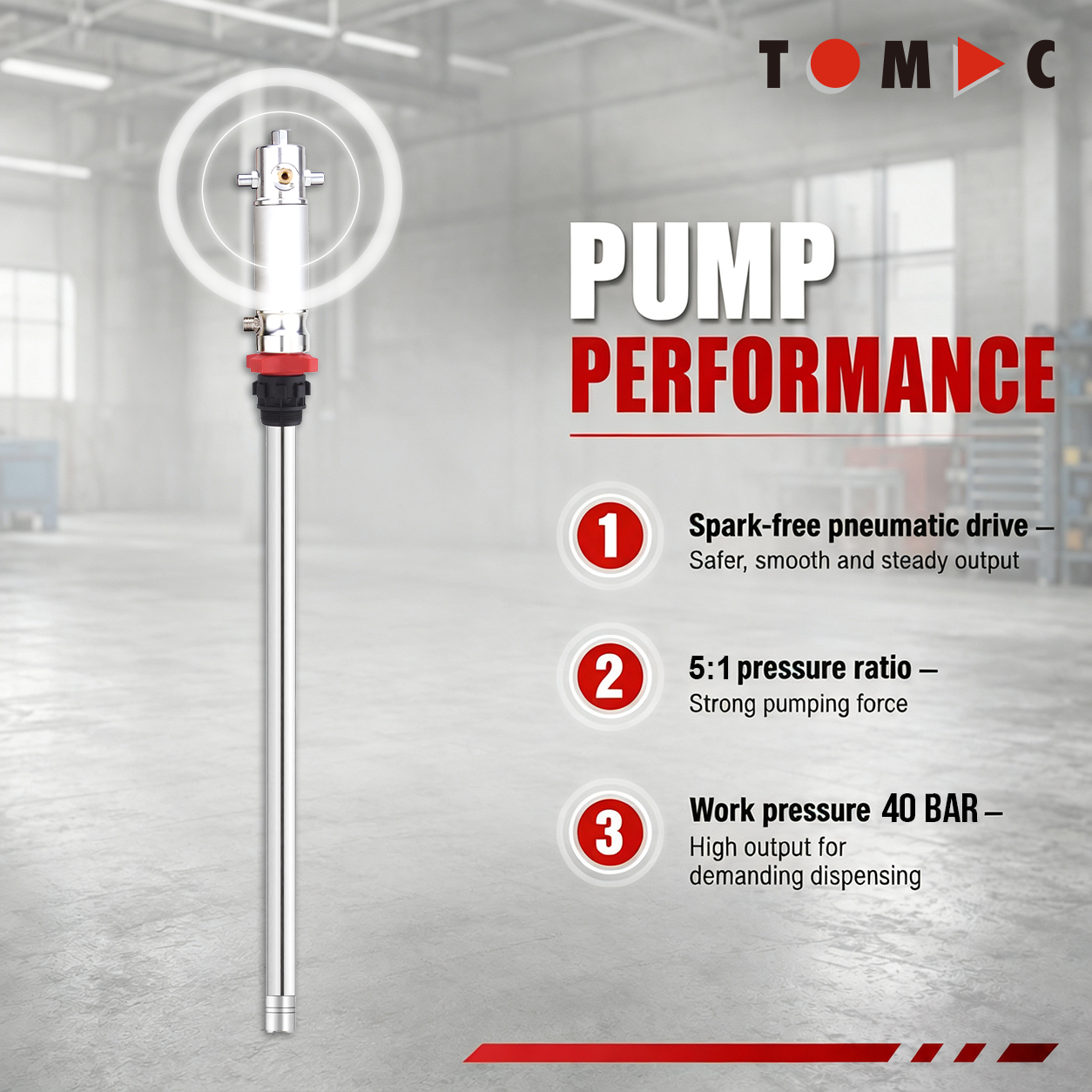

Alu Pump
Air Pressure	8bar
Max.flow Pressure	40bar
Air Comsumption	125L/min
Relative Capacity	14L/min
Pressure Ratio	5:1 for lubricating oil
Oil Outlet Tube	1/2”x4m Oil hose
Material	Rubber hose with steel wire braiding
Pump Suction Tube Diameter	42 mm
Pump Suction Tube Length	940mm
Tube Printing	EN857 1SC/SAE 100 R17 DN-8 1/2" WP 160BAR 2320.5PSI
Hose Reel
Length	4m
Standard System	EN857 1SC / SAE 100 R17
Diameter Specification	DN-8（1/2"）
Work Pressure	WP 160BAR/2320.5PSI

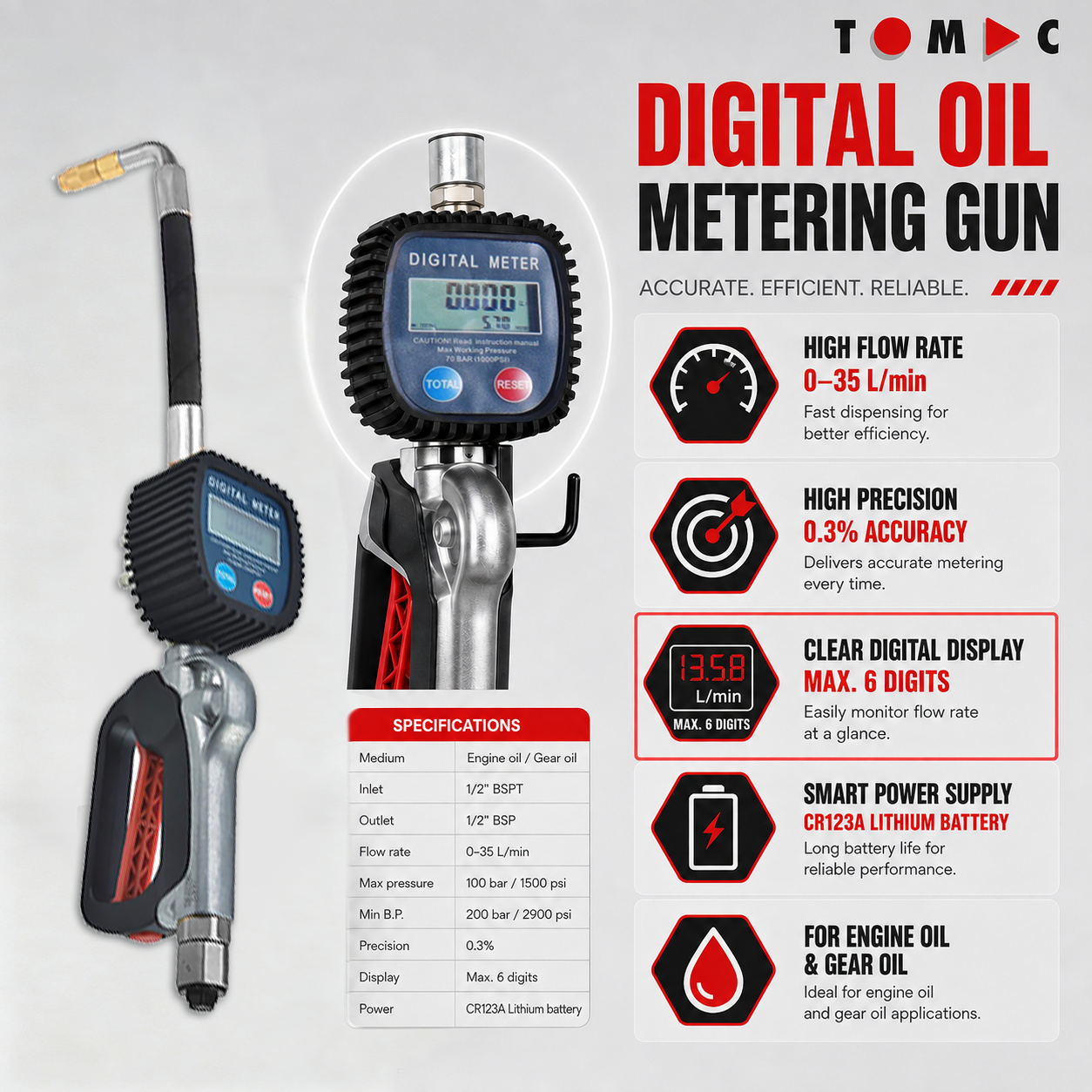

Digital Oil Metering Gun
Medium	Engine oil and gear oil
Inlet	1/2" BSPT
Outlet	1/2" BSP
Velocity	0-35L/min
Max Pressure	100bar/1500psi
Min B.P.	200bar/2900psi
Storage Temperature	-20～+70℃/-4～+158℉
Humidity	＜90%RH
Work Temperature	-10～+50℃/14～+122℉
Precision	0.3%
Display	Max.6 digits
Power	Lithium battery CR123A(1300mAH)
Package Method	1 outer cartons
Package Size	1323116cm
Net/Gross weight	14/14.5kgs
MOQ	10pcs
Delivery Time	60 days
