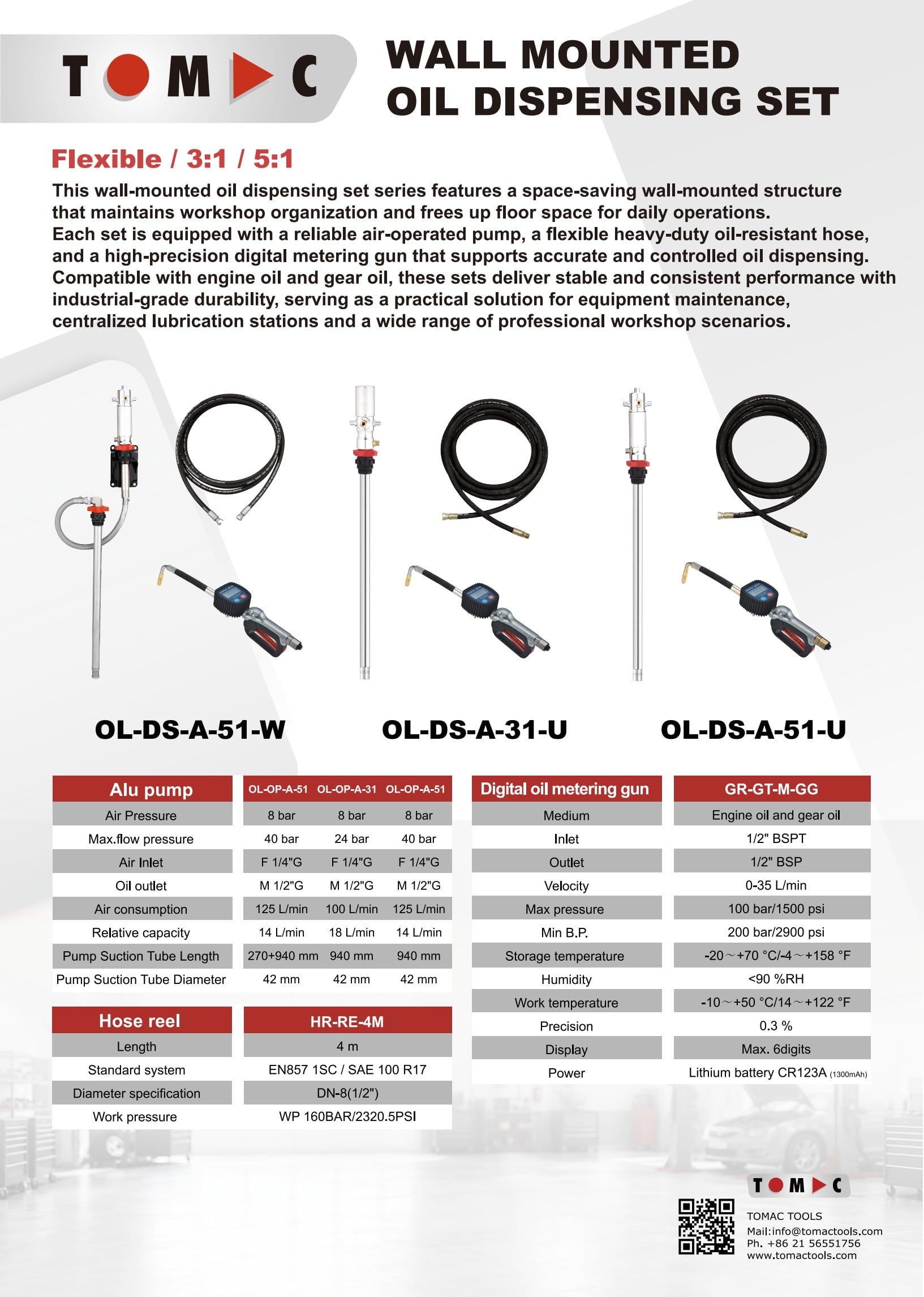

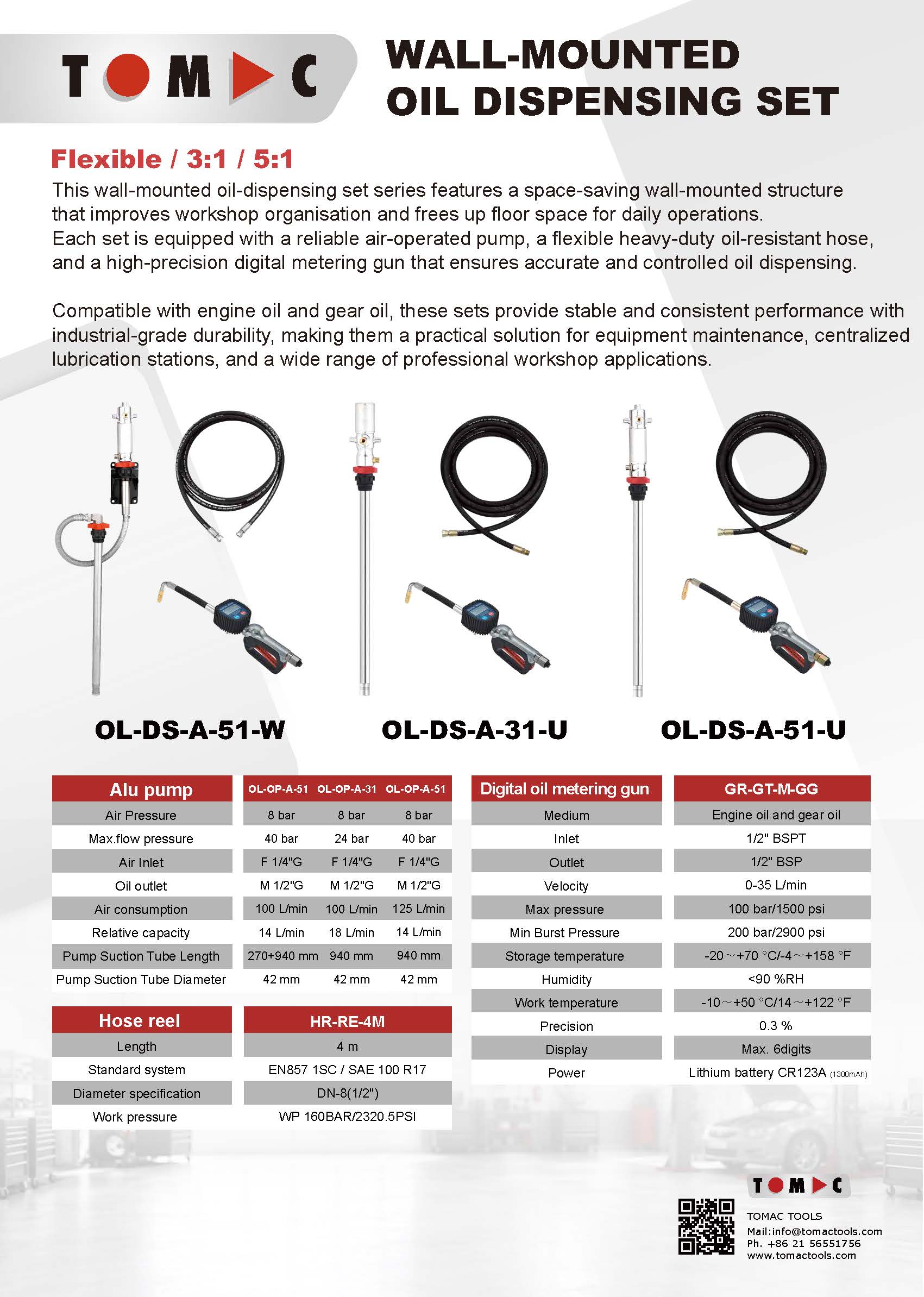

OL-DS-A-31-U TOMAC 3:1 Pneumatic Universal Oil Dispensing Kit with 4M Hose and Digital Meter Gun

Versatile workshop solution: Designed for controlled dispensing of engine oil, gear oil and other compatible lubricants from standard oil drums.

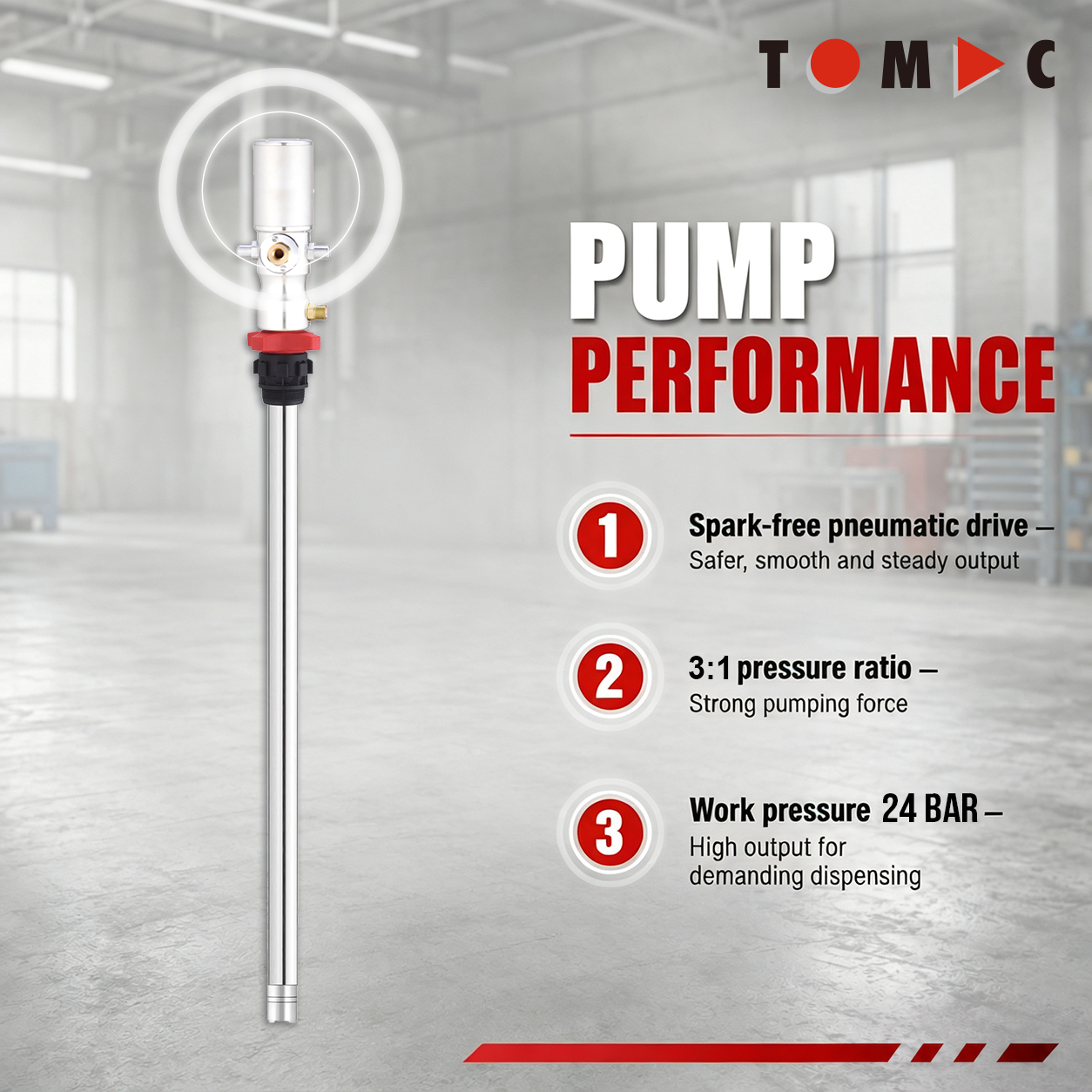

Efficient 3:1 pneumatic pump: Operates at 8 bar air pressure, delivering output pressure up to 24 bar and rated flow of 12 L/min.
Durable pump construction: Aluminum body, oil-resistant sealing system and 940 mm zinc-plated steel suction tube provide reliable everyday performance.
Reinforced 4 m hose: DN8 steel-wire braided rubber hose complies with EN857 1SC / SAE 100 R17 and carries a 160 bar working-pressure rating.
Precise metered delivery: Digital oil gun provides ±0.3% accuracy, 0–35 L/min flow range, six-digit display and maximum operating pressure of 100 bar.

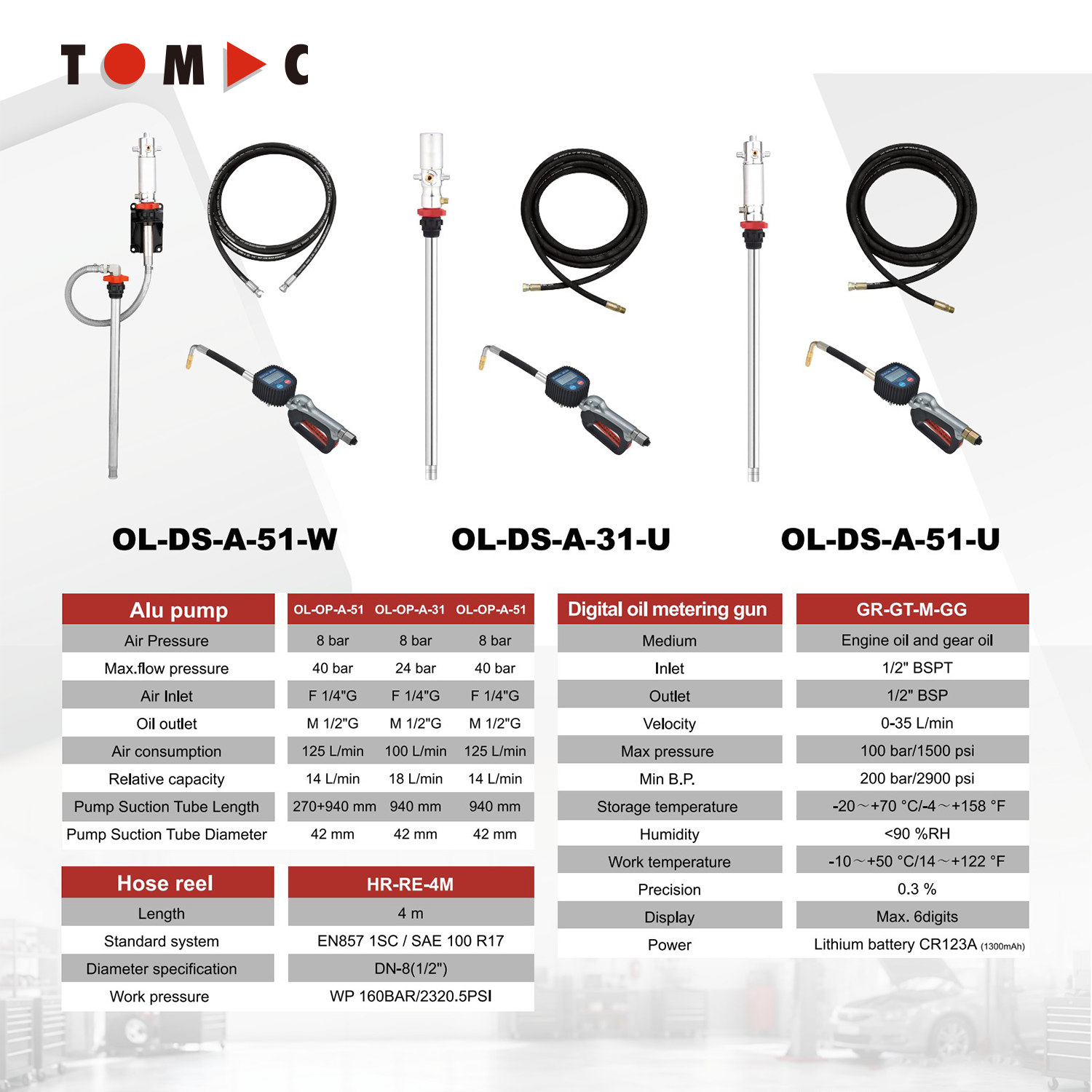

Product Specification	Details
Model	OL-DS-A-31-U
Alu Pump
Air Pressure	8bar
Max.flow Pressure	24bar
Air Comsumption	100L/min
Relative Capacity	12L/min
Pressure Ratio	3:1 for lubricating oil

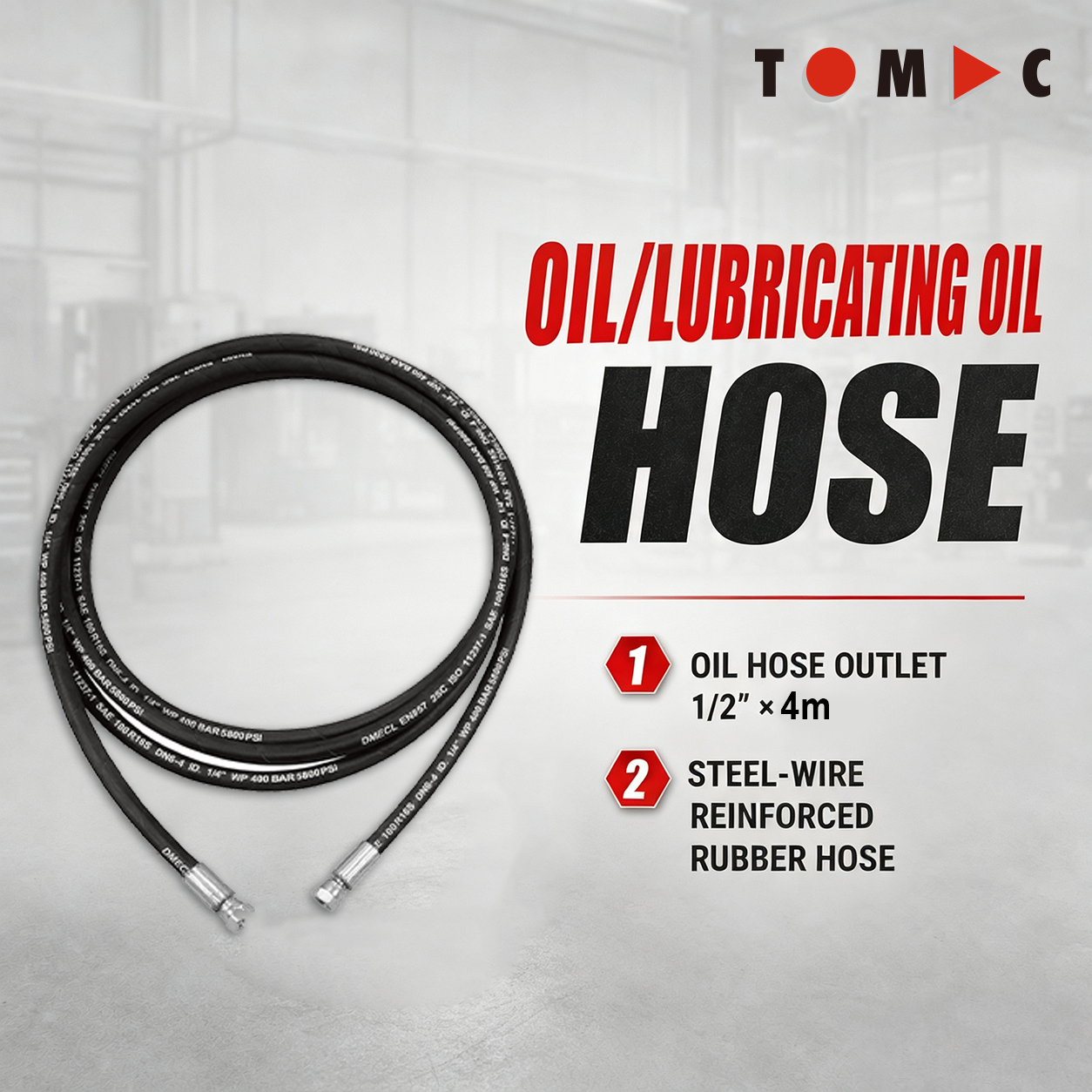

Oil Outlet Tube	1/2”x4m Oil hose
Material	Rubber hose with steel wire braiding
Pump Suction Tube Diameter	42 mm
Pump Suction Tube Length	940mm
Tube Printing	EN857 1SC/SAE 100 R17 DN-8 1/2" WP 160BAR 2320.5PSI
Hose Reel
Length	4m
Standard System	EN857 1SC / SAE 100 R17
Diameter Specification	DN-8（1/2"）
Work Pressure	WP 160BAR/2320.5PSI

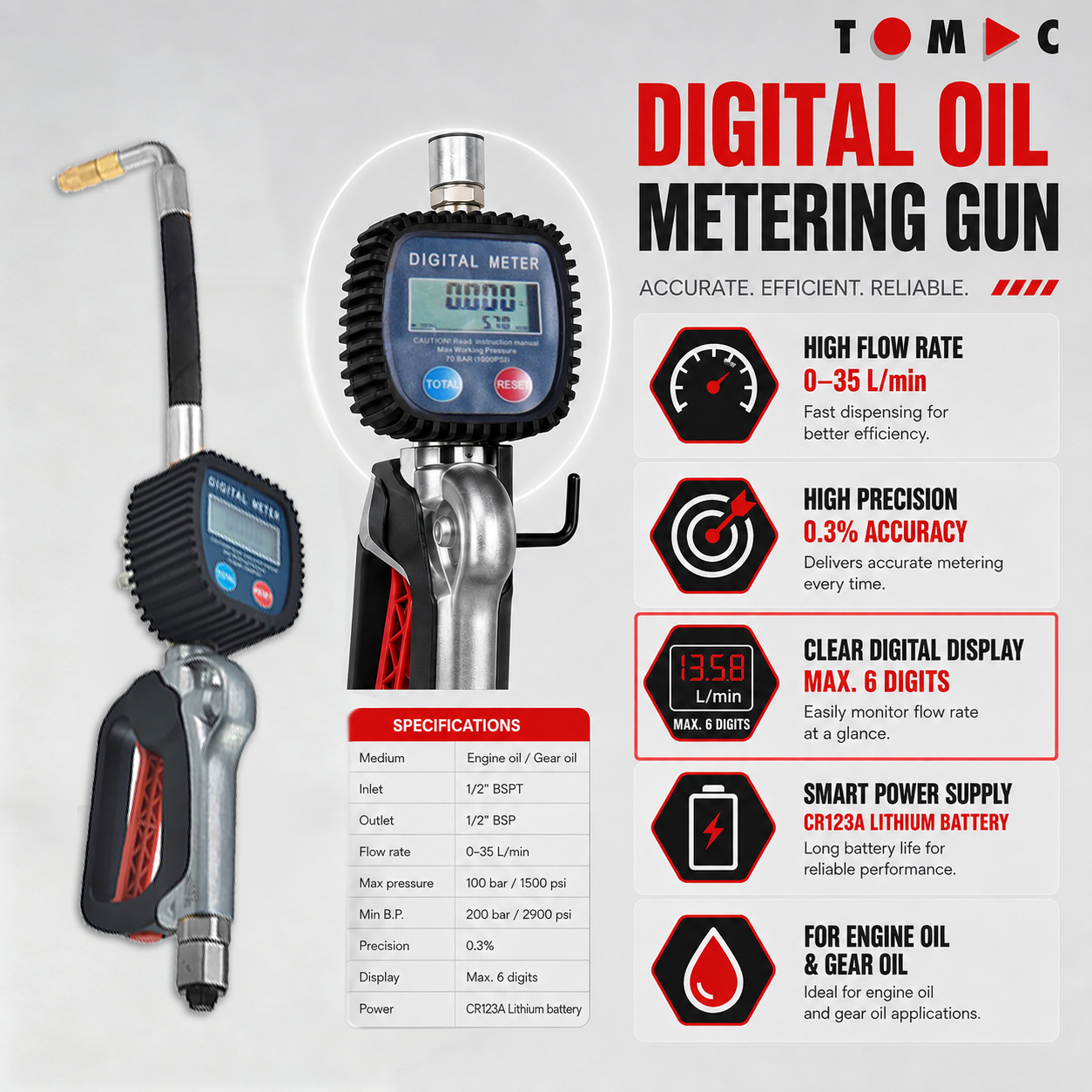

Digital Oil Metering Gun
Medium	Engine oil and gear oil
Inlet	1/2" BSPT
Outlet	1/2" BSP
Velocity	0-35L/min
Max Pressure	100bar/1500psi
Min B.P.	200bar/2900psi
Storage Temperature	-20～+70℃/-4～+158℉
Humidity	＜90%RH
Work Temperature	-10～+50℃/14～+122℉
Precision	0.3%
Display	Max.6 digits
Power	Lithium battery CR123A(1300mAH)
Package Method	1 outer cartons
Package Size	1323116cm
Net/Gross weight	14/14.5kgs
MOQ	10pcs
Delivery Time	60 days
