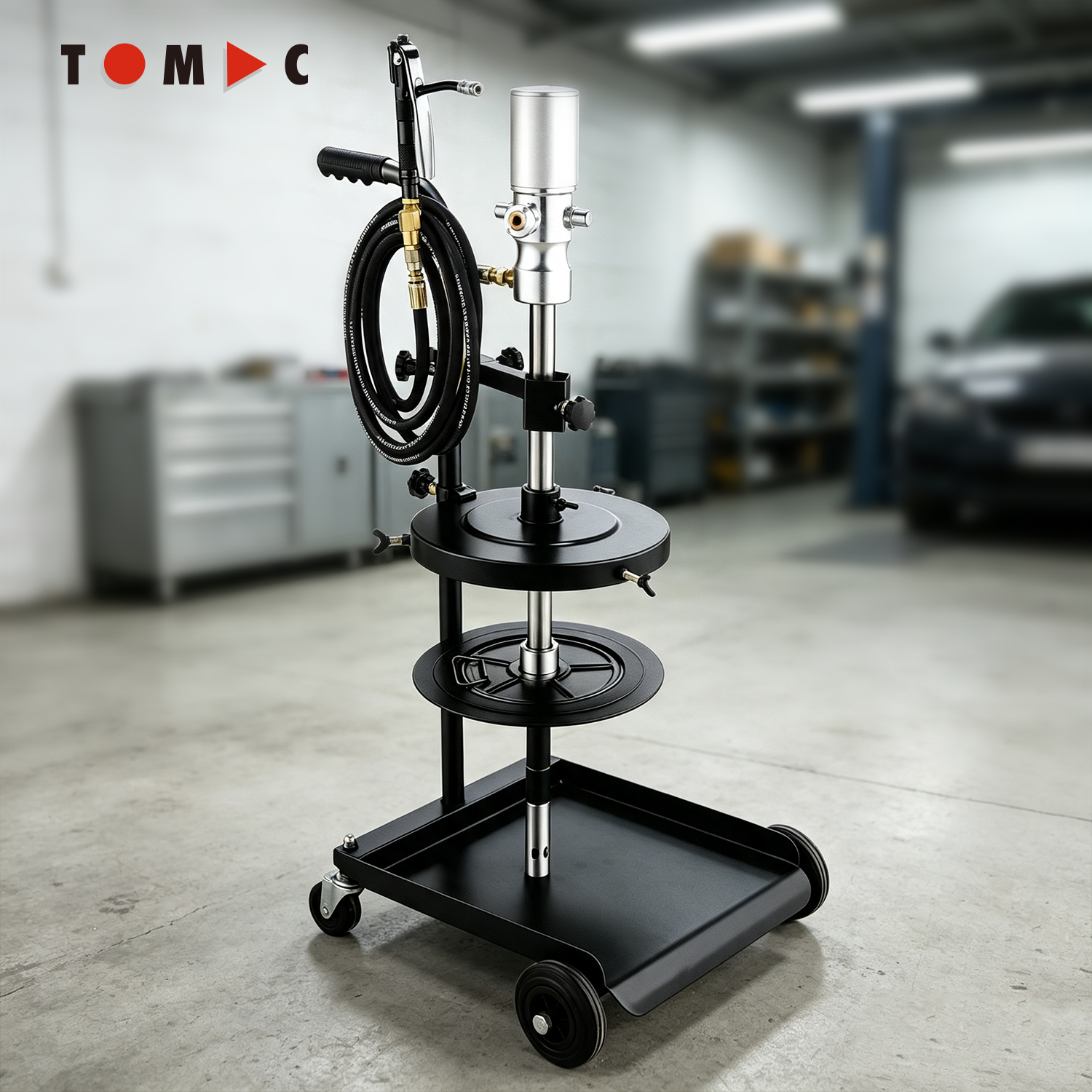

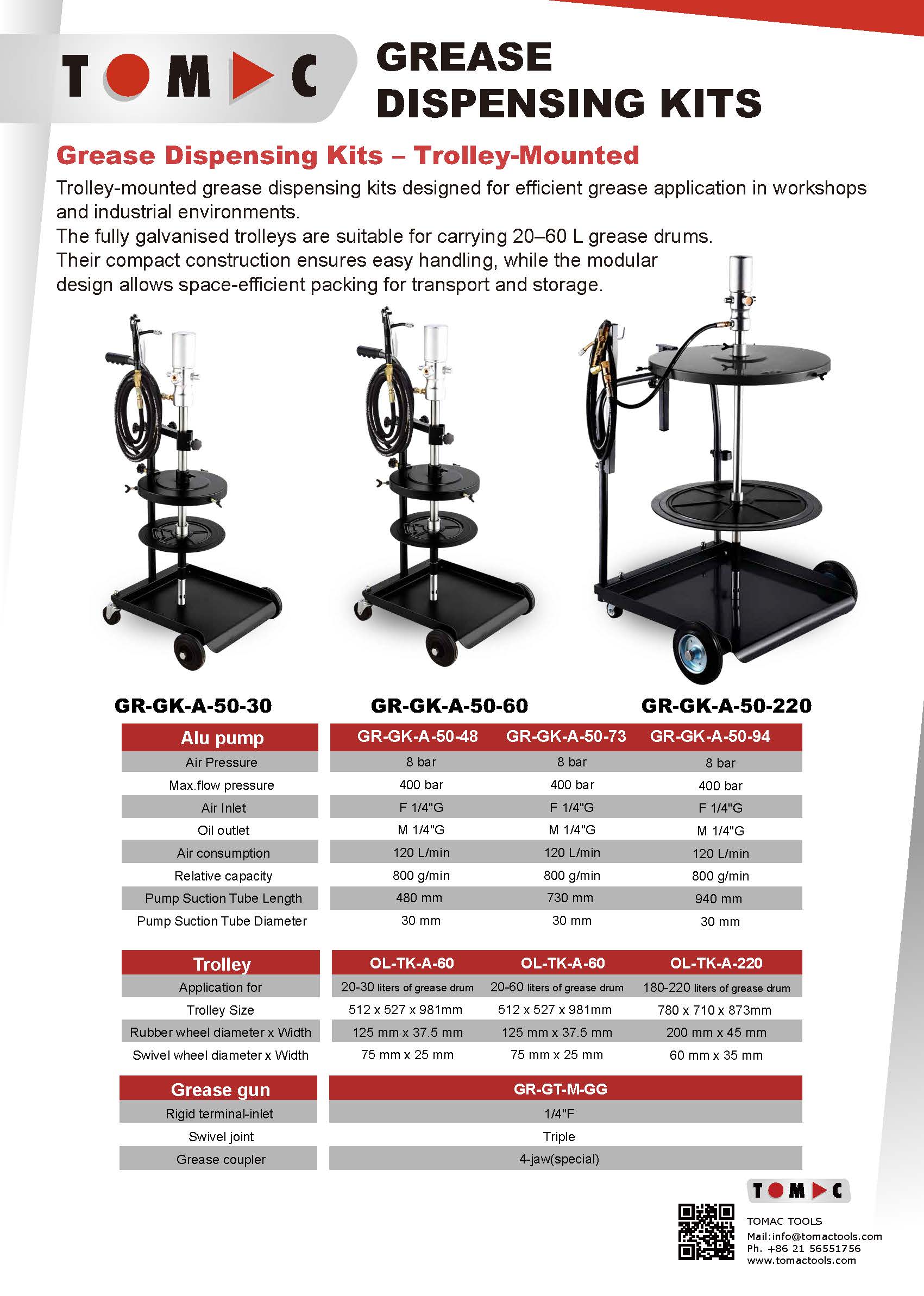

GR-GK-A-50-30 TOMAC 20-30L Pneumatic Grease Pump Kit 50:1 400bar 1/4"x4m Hose 8bar Cart Wheels

Low MOQ accepted — orders as few as 10 pcs

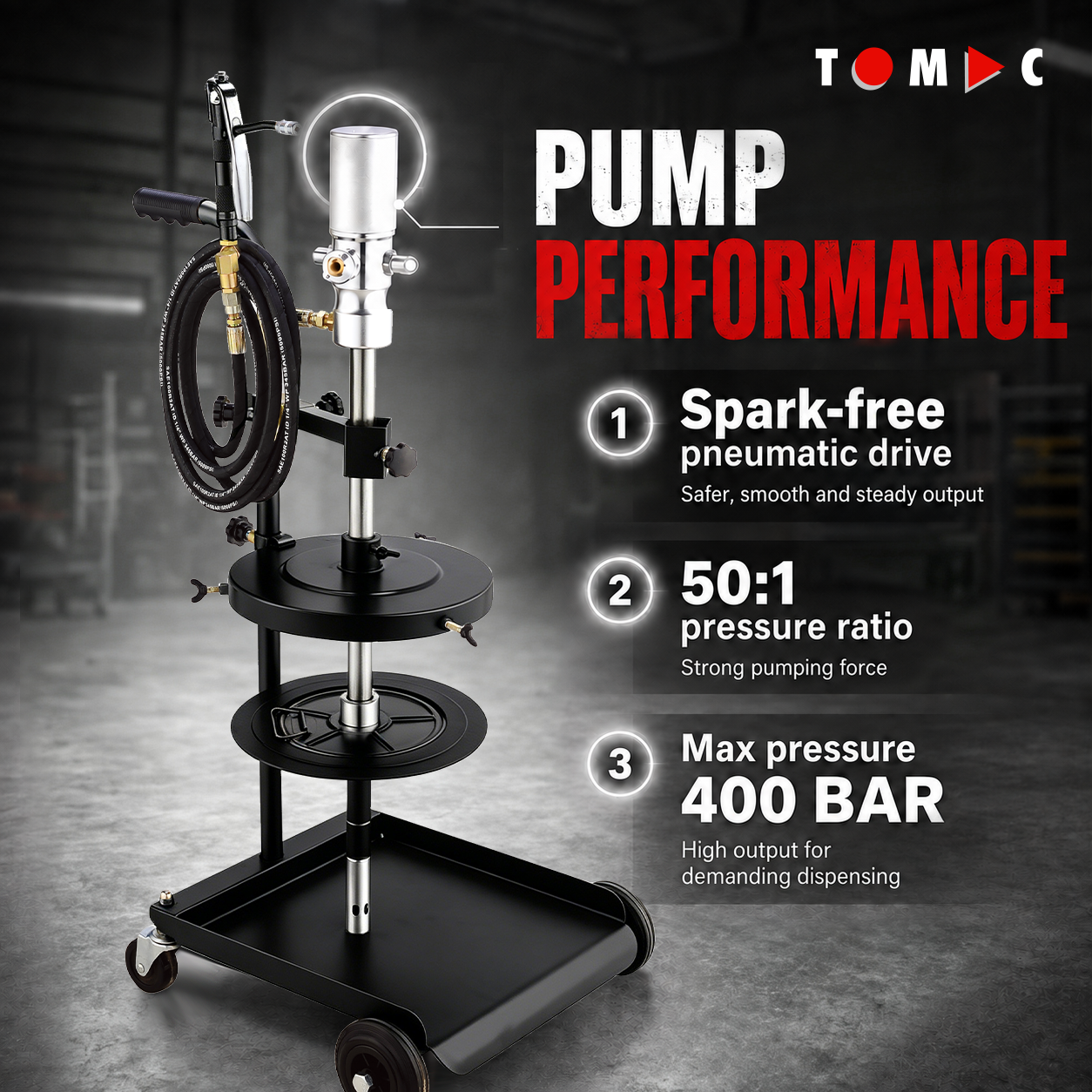

Pneumatic drive (spark-free): safer for workshops, smoother and steadier pressure output
Pressure ratio 50:1: strong pumping force for consistent grease delivery
Max flow pressure up to 400 bar

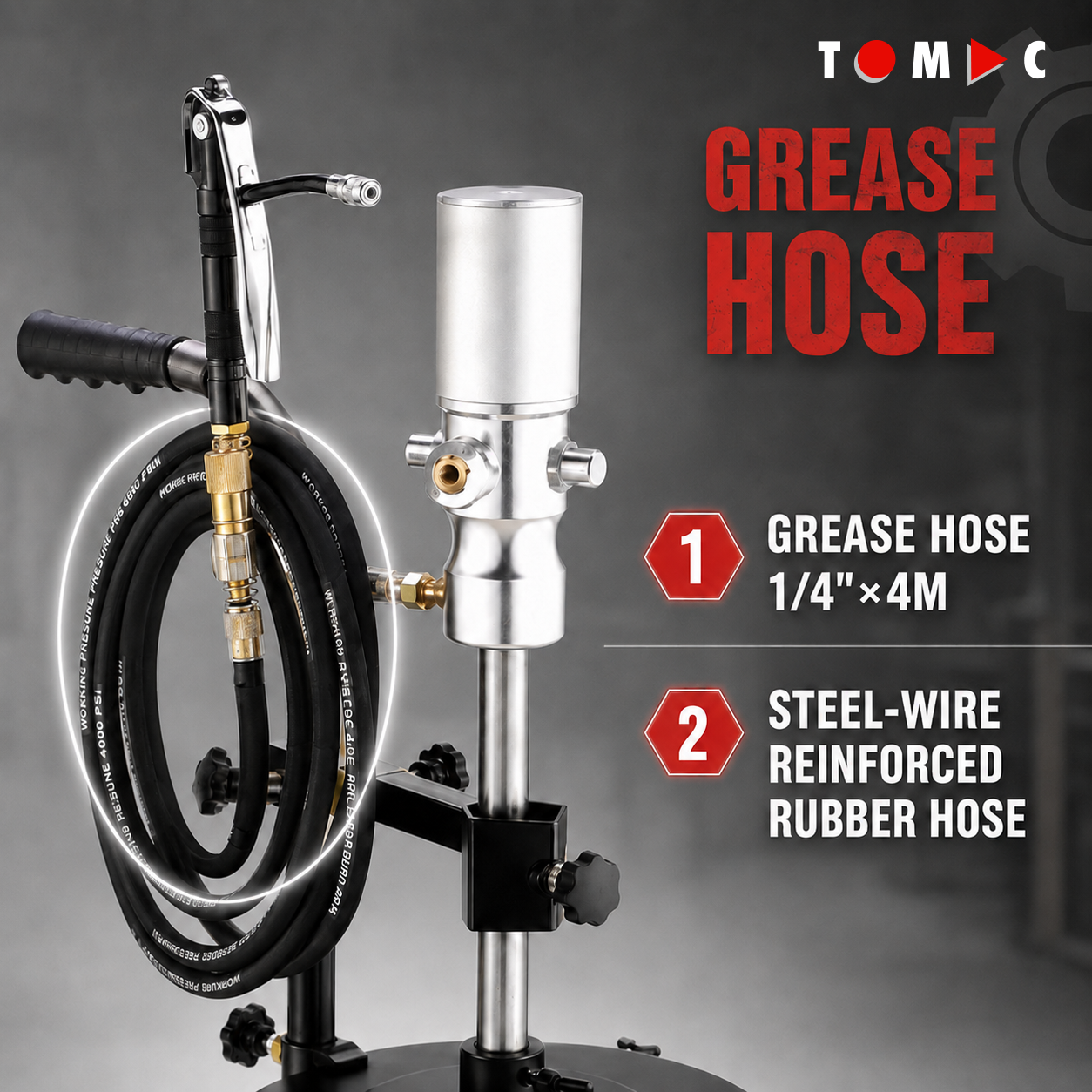

Steel-wire reinforced rubber hose
High delivery rate: relative capacity 800 g/min for quicker filling and less waiting in the bay

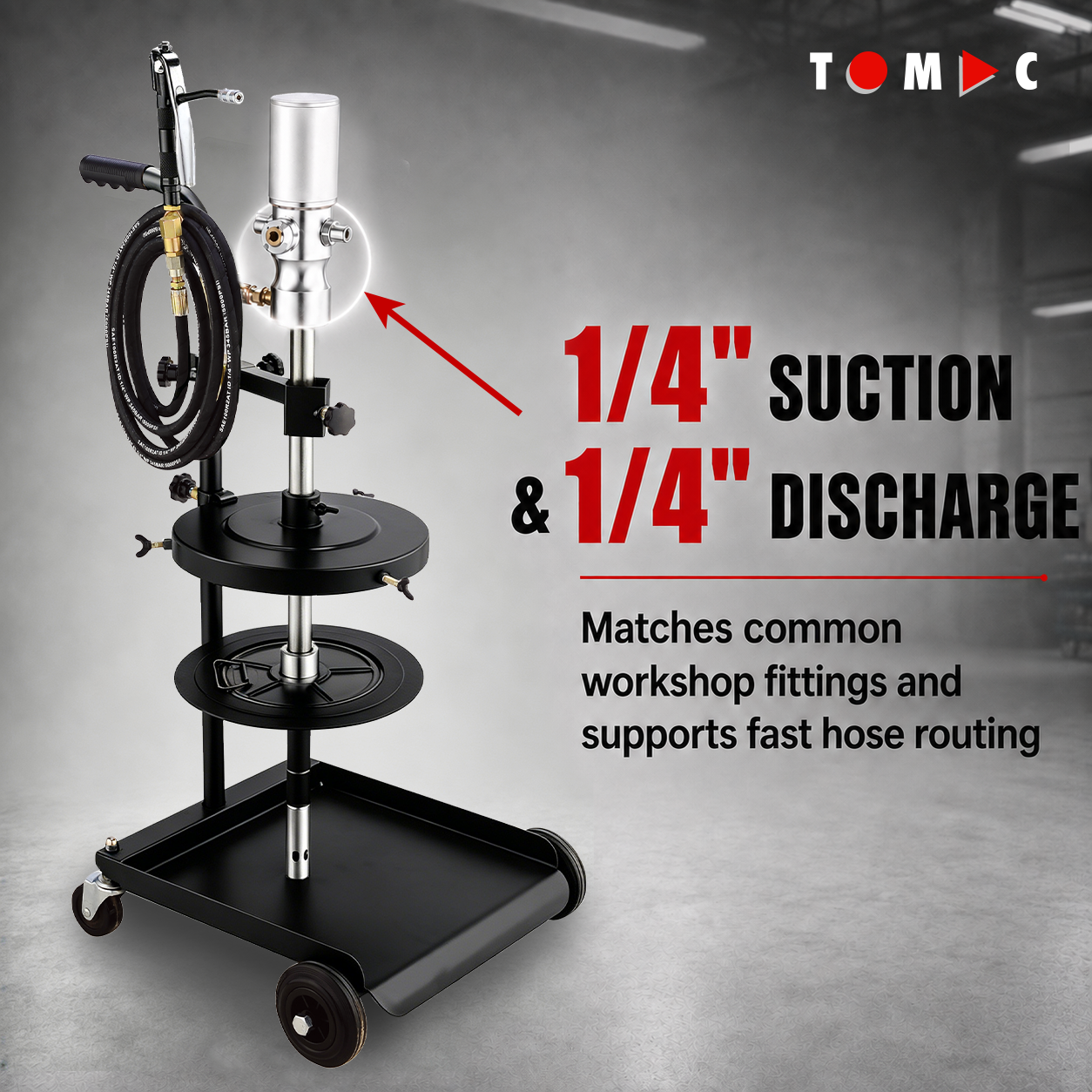

1/4" suction & 1/4" discharge setup: matches common workshop fittings and fast hose routing

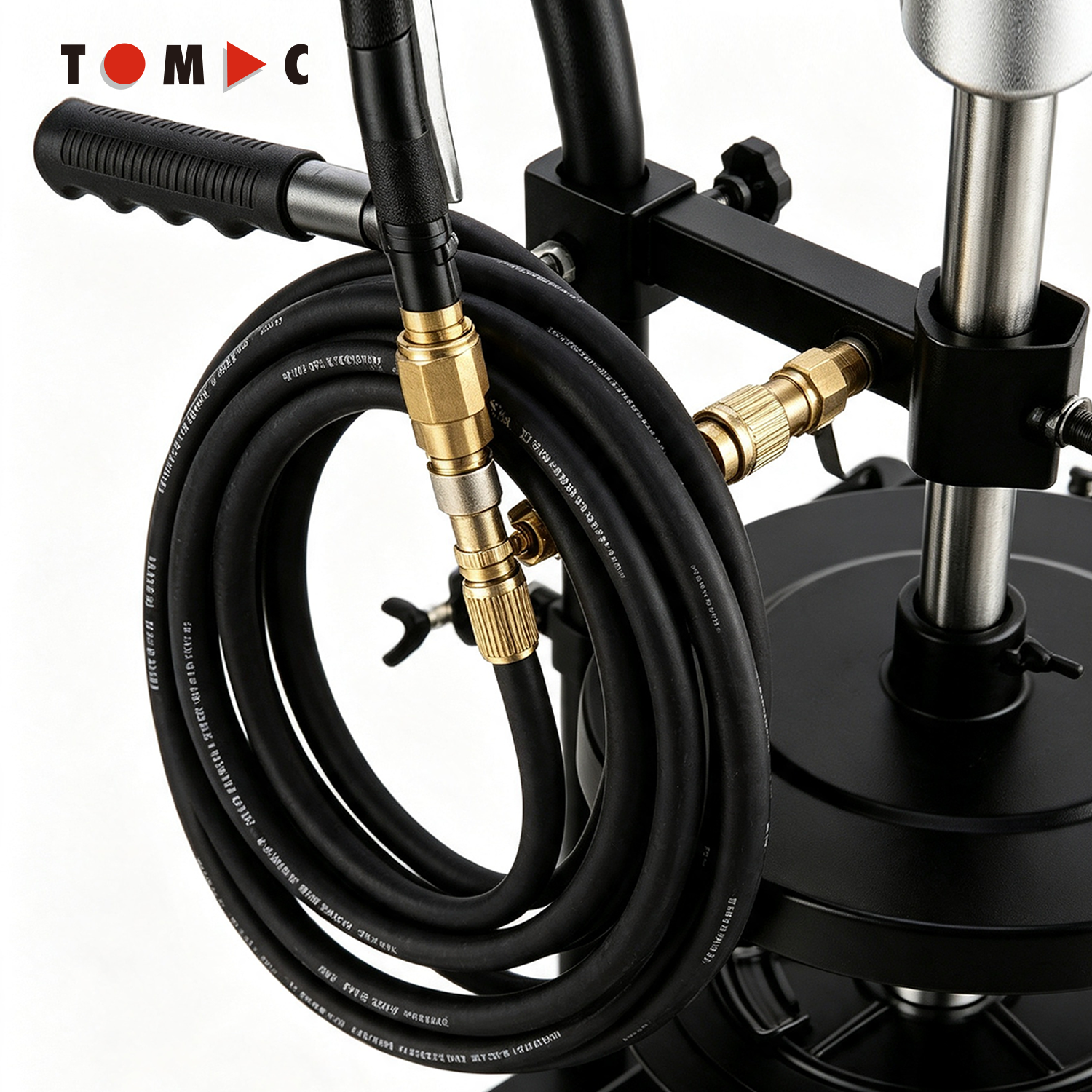

Grease hose output: 1/4" × 4 m grease hose length for flexible operation

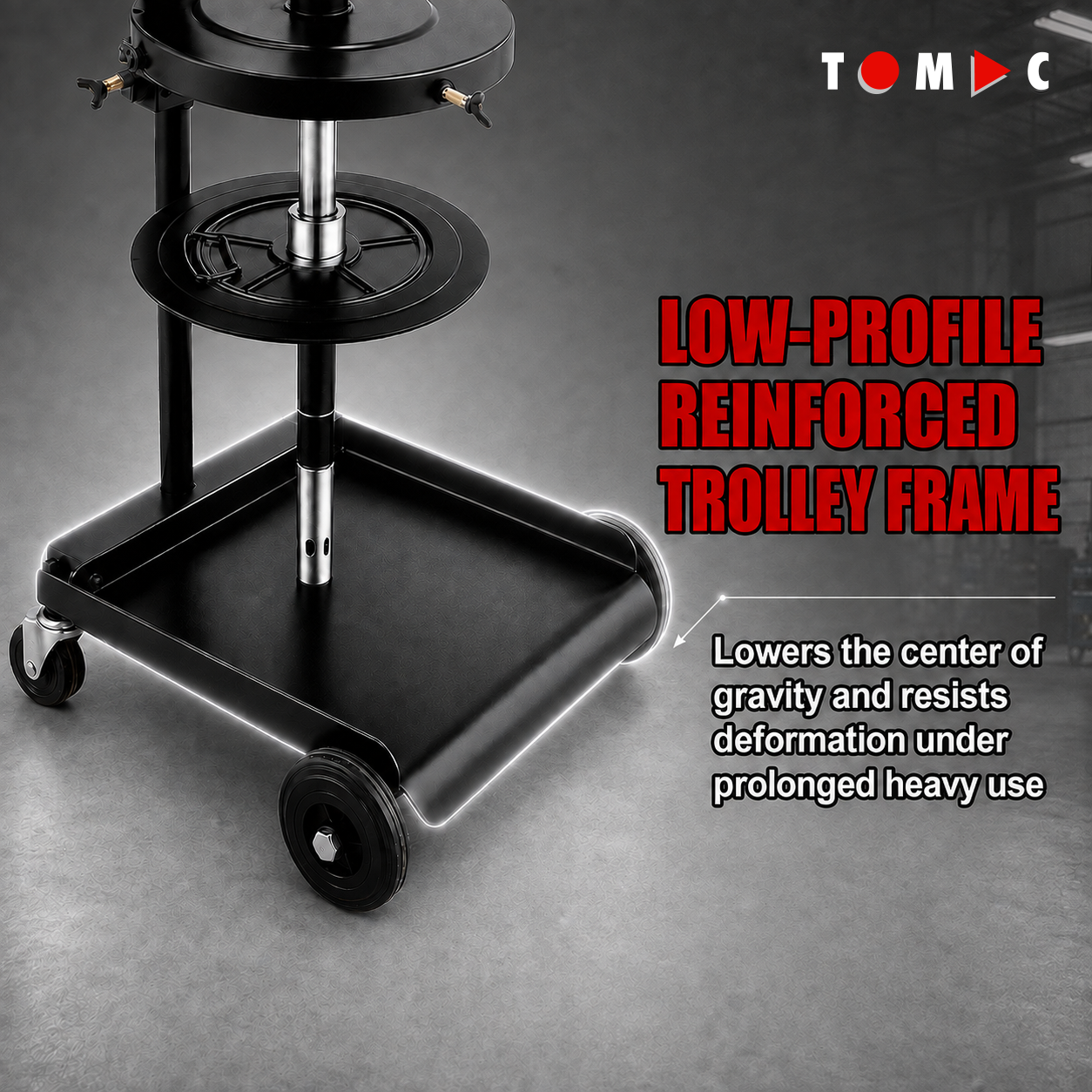

Low-profile, reinforced trolley frame: lowers the center of gravity and resists deformation under prolonged heavy use

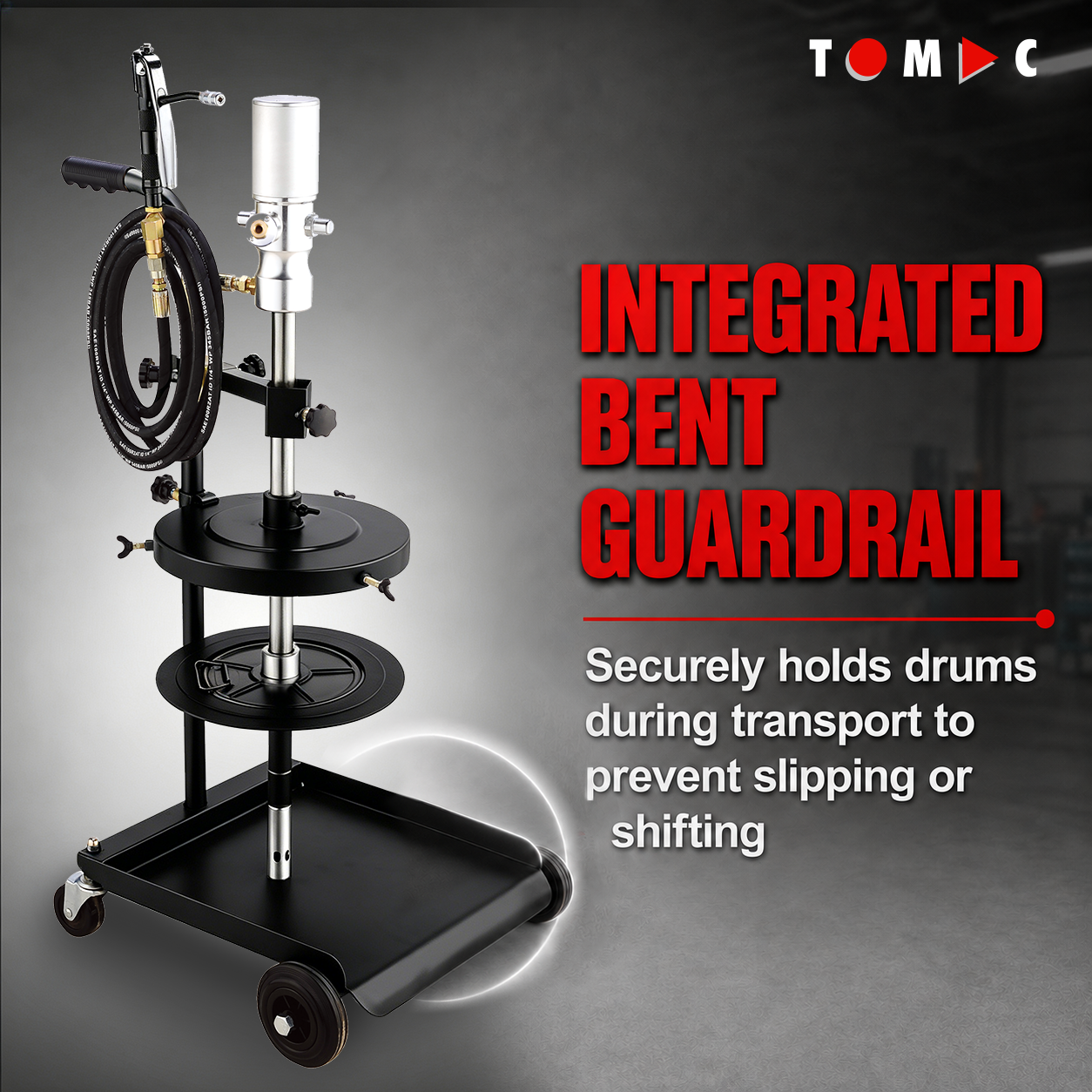

Integrated bent guardrail: securely holds drums during transport to prevent slipping or shifting

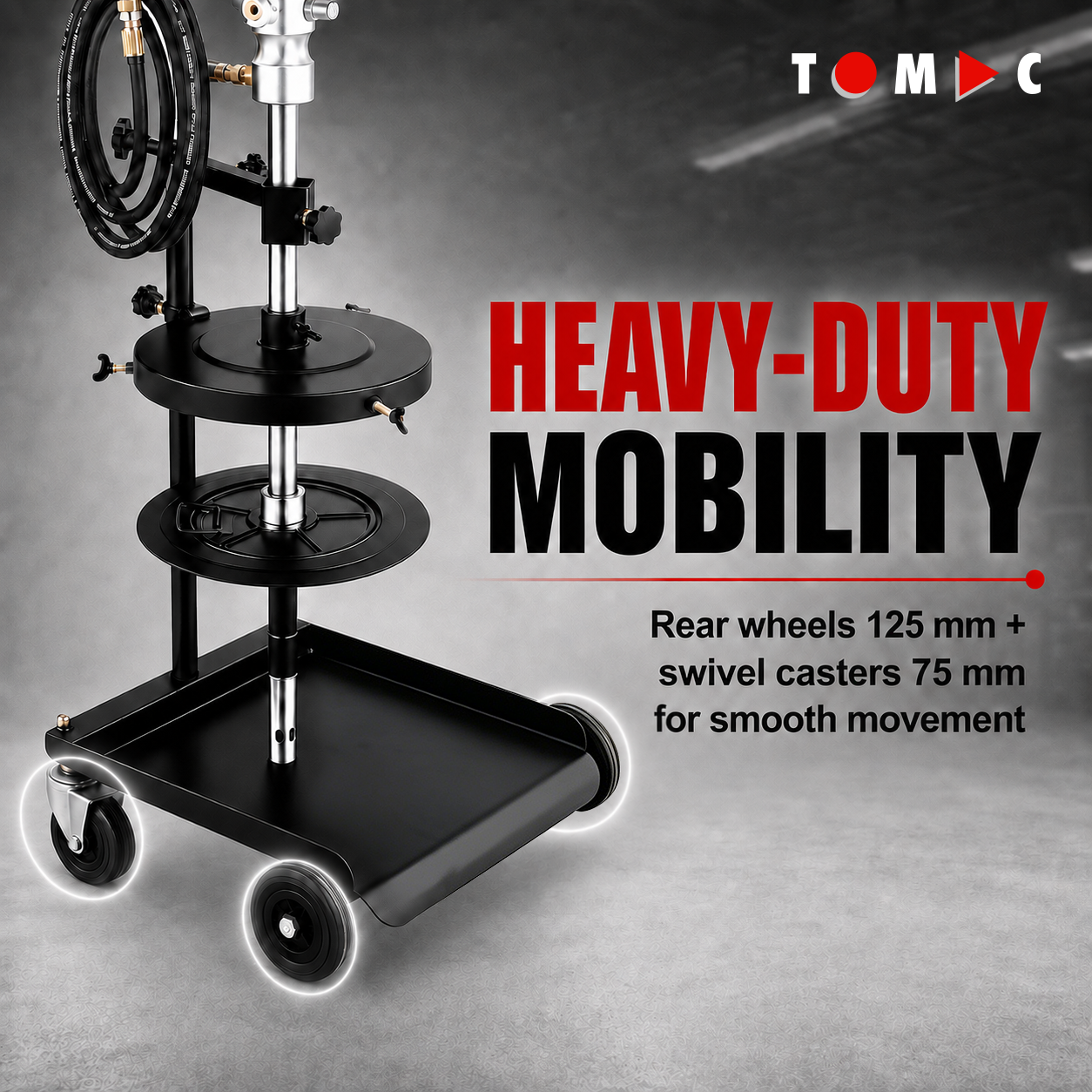

Heavy-duty mobility: rear wheels 125 mm + swivel casters 75 mm for smooth movement

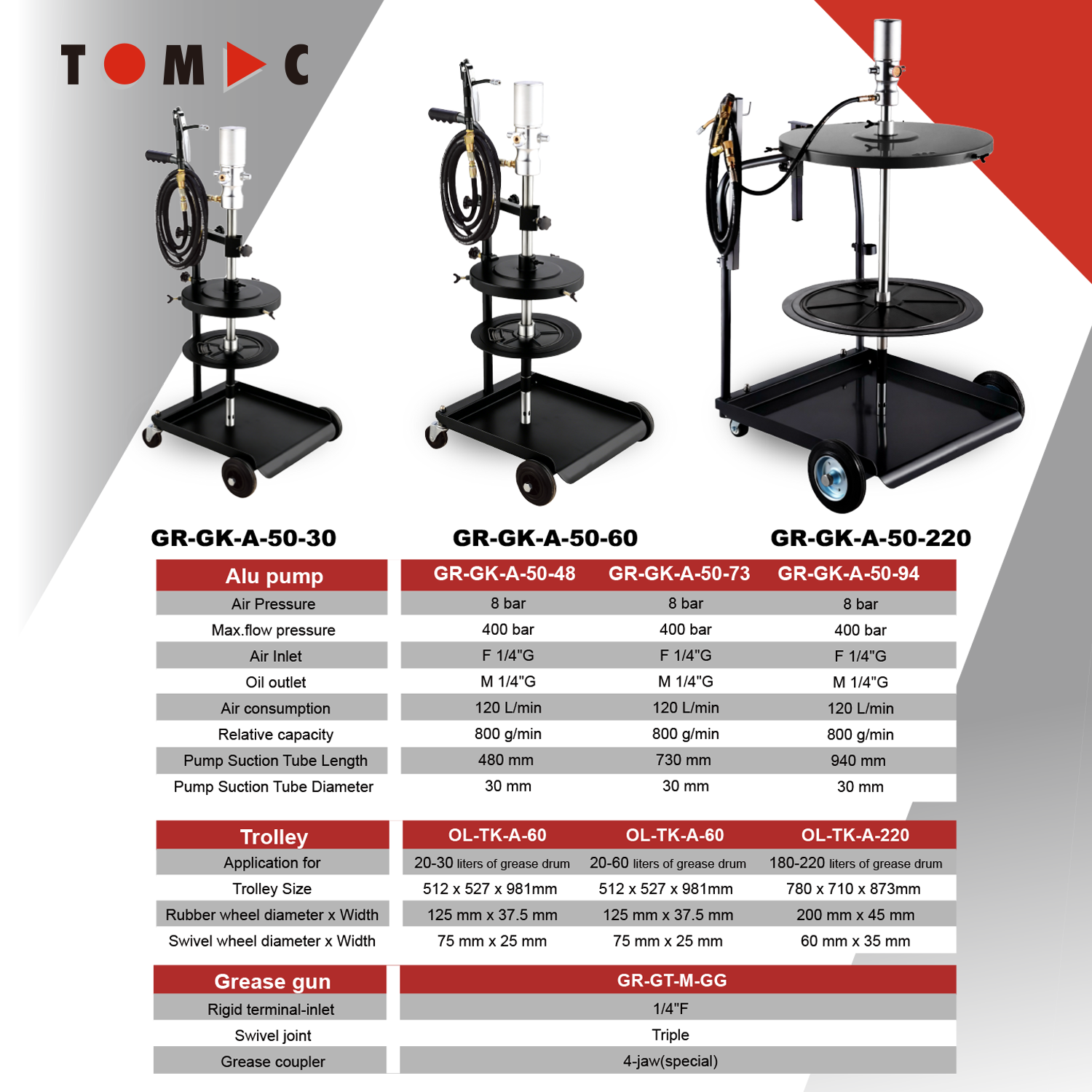

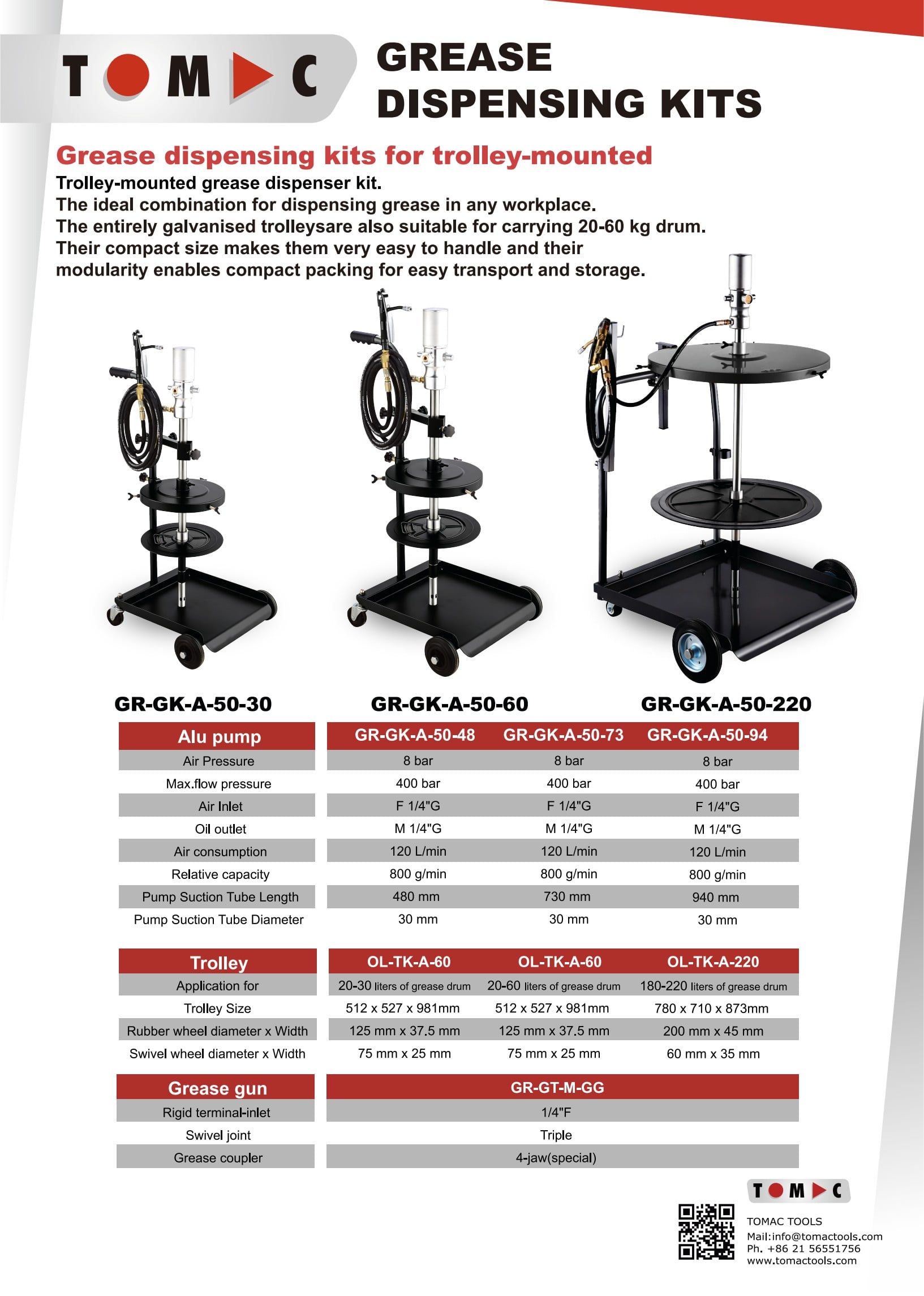

Product Specification	Details
Model	GR-GK-A-50-30
Alu Pump
Air Pressure	8bar
Max.flow Pressure	400bar
Air Inlet	F 1/4"G
Oil Outlet	M 1/4"G
Air Comsumption	120L/min
Relative Capacity	800g/min
Pressure Ratio	50:1 for grease
Oil Outlet Tube	1/4”x4m Oil hose
Material	Rubber hose with steel wire braiding
Pump Suction Tube Diameter	30mm
Pump Suction Tube Length	480mm
Tube Printing	EN857 2SC/SAE 100 R16 DN-4 1/4" WP 400BAR 5800PSI
Grease Gun
Rigid Terminal-inlet	1/4"F
Swivel Joint	Triple
Grease Coupler	4-jaw（special）
Trolley Size	512527981mm
Drum Cover	310mm
Follower Plate	310mm
Wheel Size	Fixed wheel:12537.5mm Swivel wheel:7525mm
Package Method	2 outer cartons
Package Size	BOX1(Pump):5PCS/CTN 441890cm BOX2(Trolley+Drum Cover+Follower Plate+Gun):1 PCS/CTN 842842cm
Net/Gross weight	18/19kgs
MOQ	10pcs
Delivery Time	60 days
