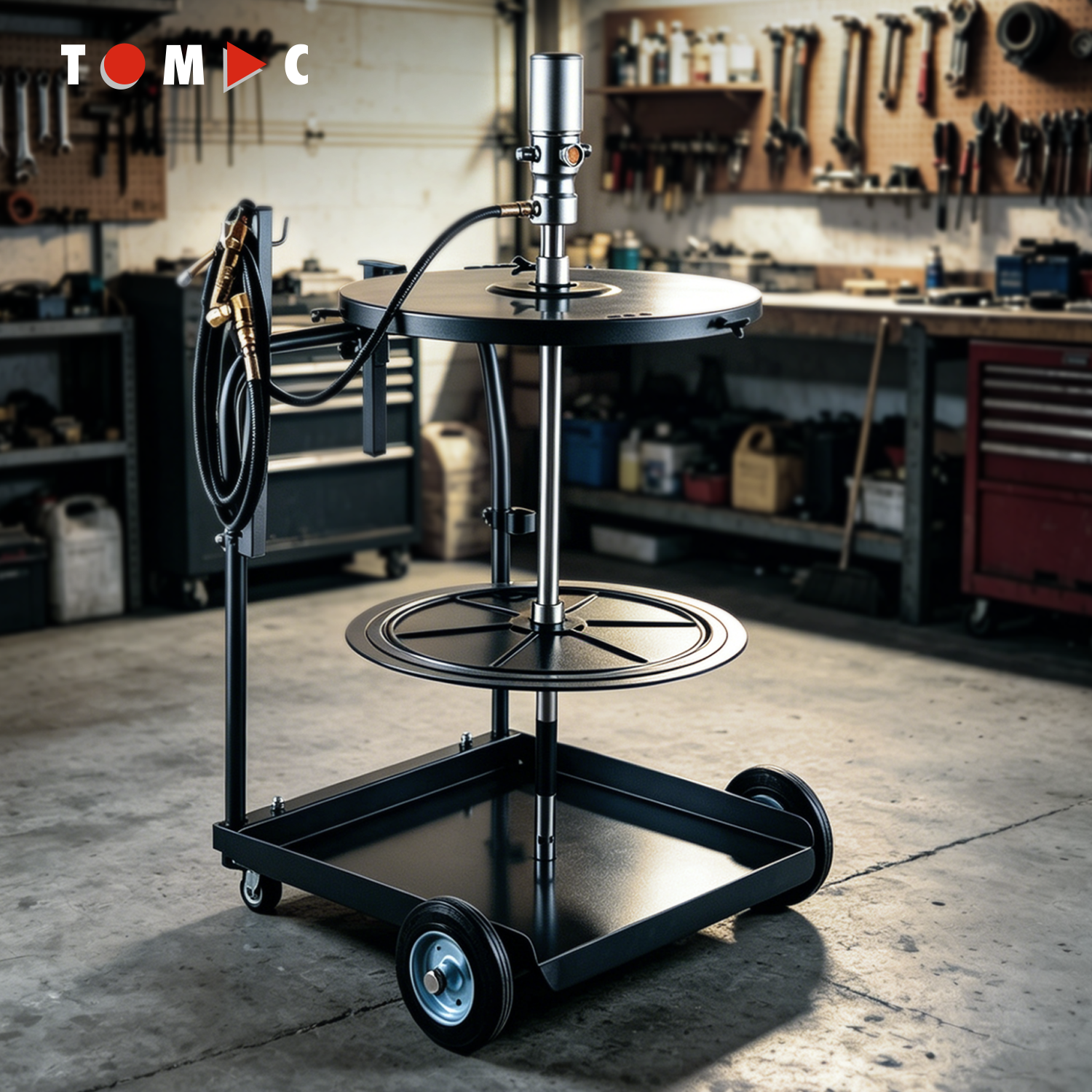

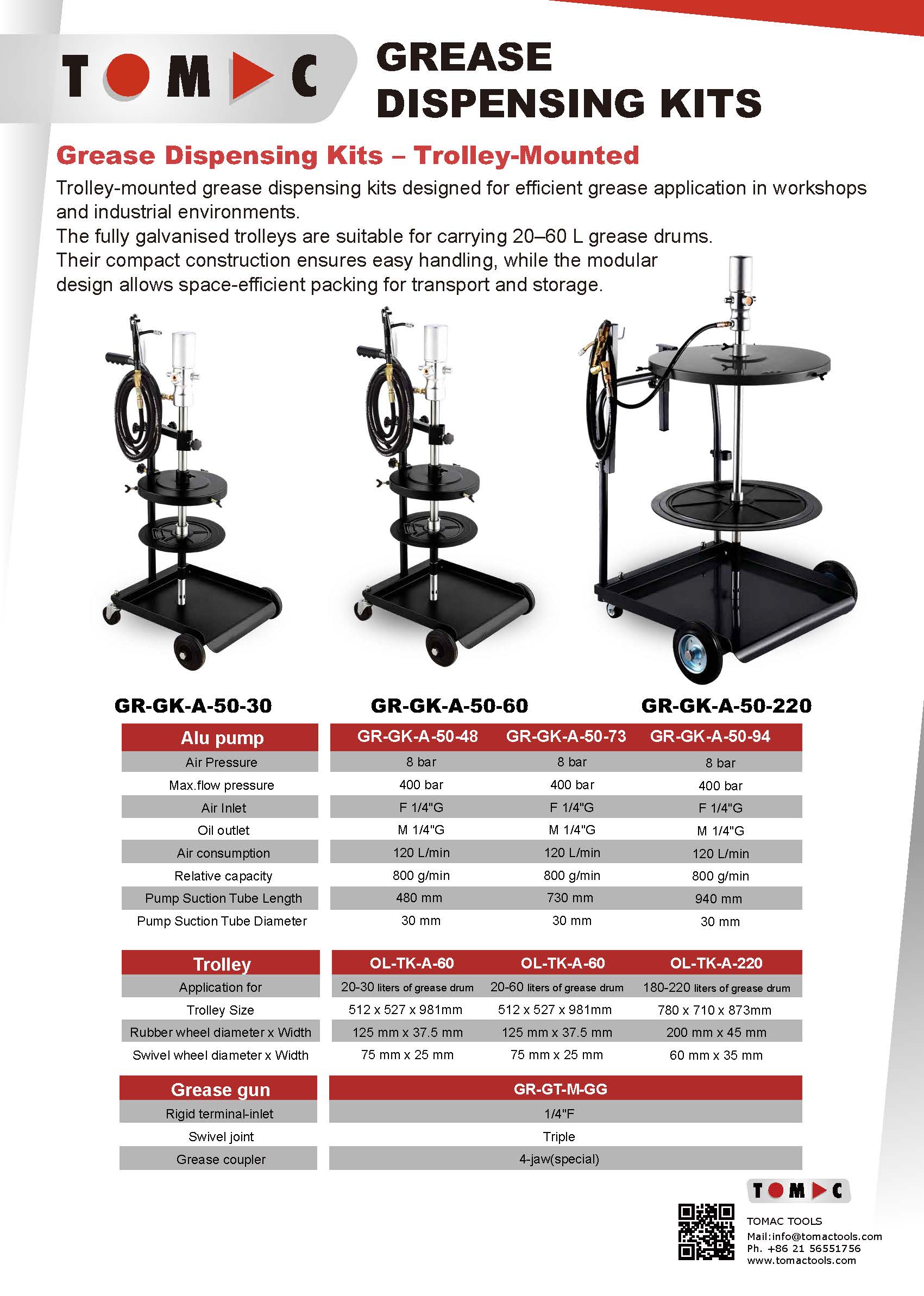

GR-GK-A-50-220 TOMAC 180-220L Pneumatic Grease Pump Kit 50:1 400bar 1/4"x4m Hose 8bar Cart Wheels

Low MOQ accepted — orders as few as 10 pcs

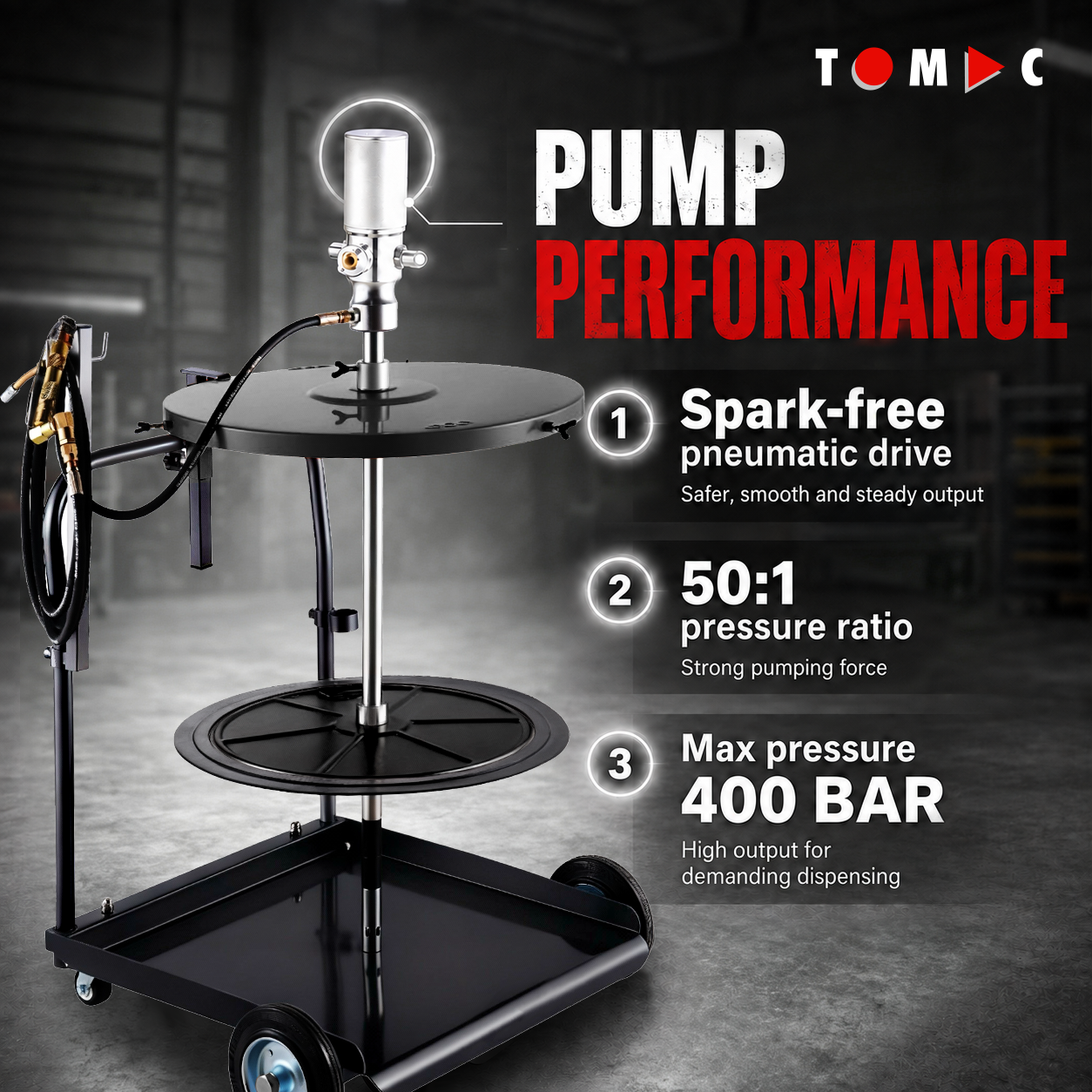

Spark-free pneumatic drive: safe for workshops, steady and consistent pressure output
50:1 pressure ratio: strong pumping for large-volume grease dispensing
Max 400 bar (5800 PSI):
Heavy-duty oil-resistant hoses:
Fast, continuous delivery: 800 g/min relative capacity speeds up job completion
Large drum compatibility: designed for 180–220L grease drums

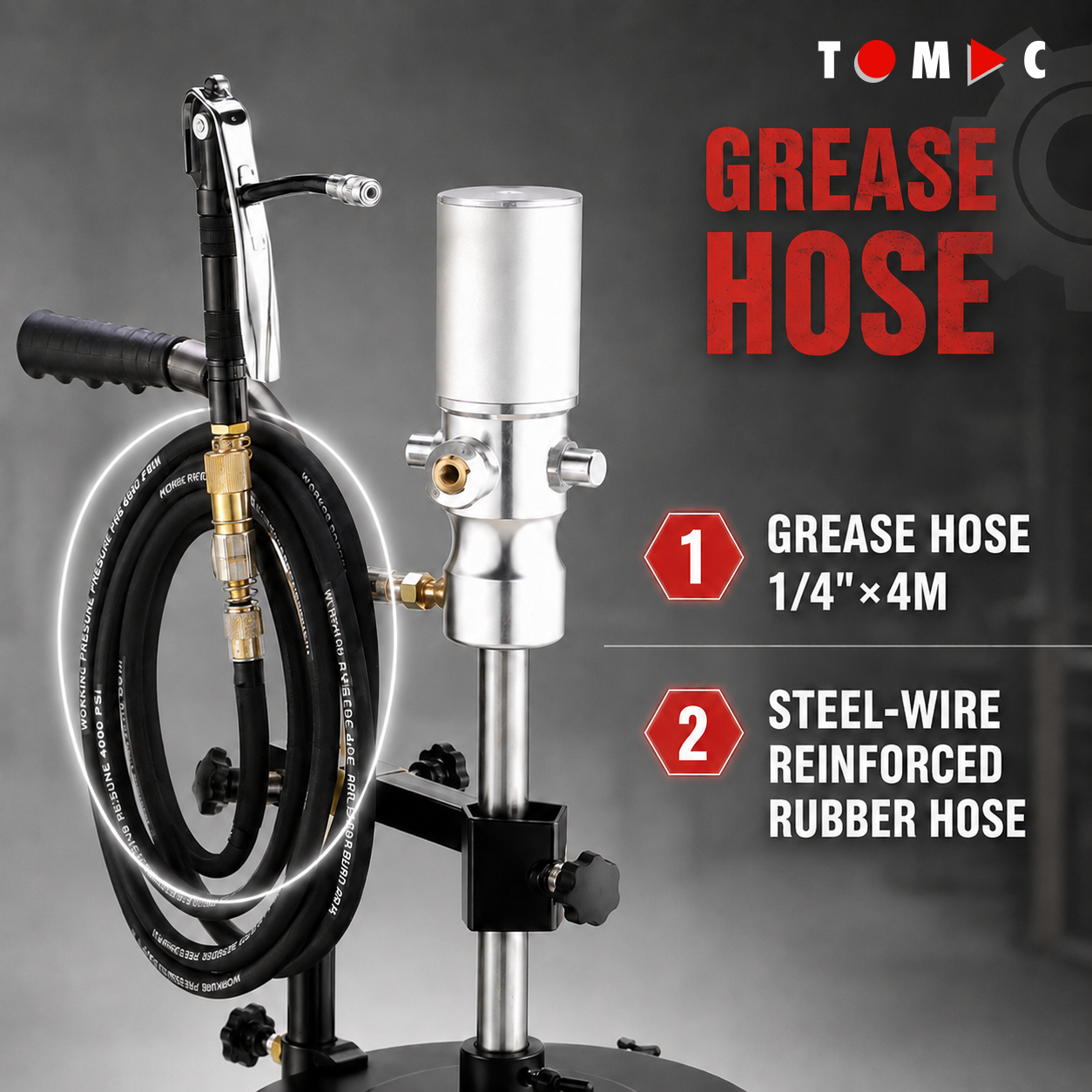

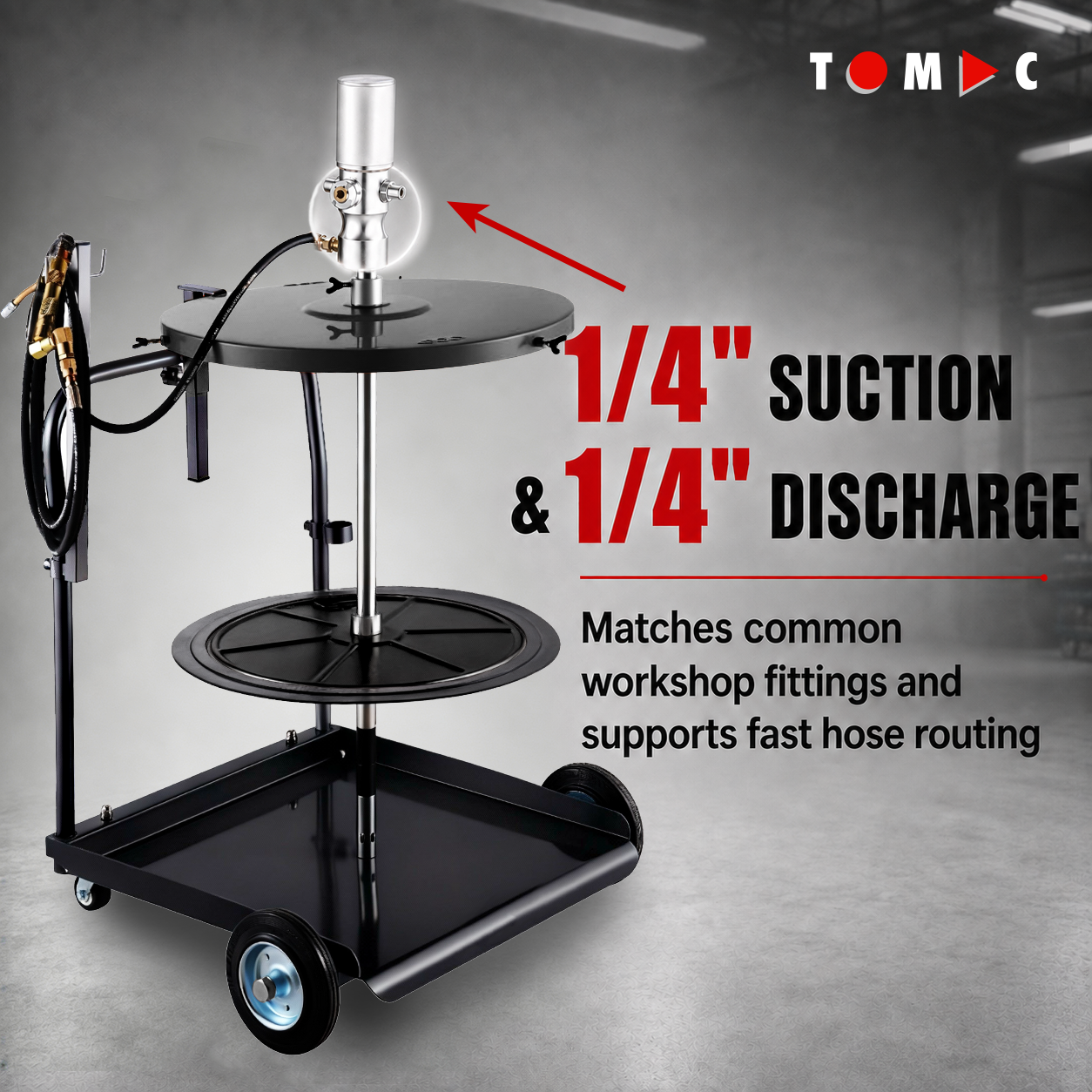

Hose delivery: 1/4" × 4 m grease outlet for practical workshop reach
Suction tube length 940mm: helps match the higher drum setup for easier operation

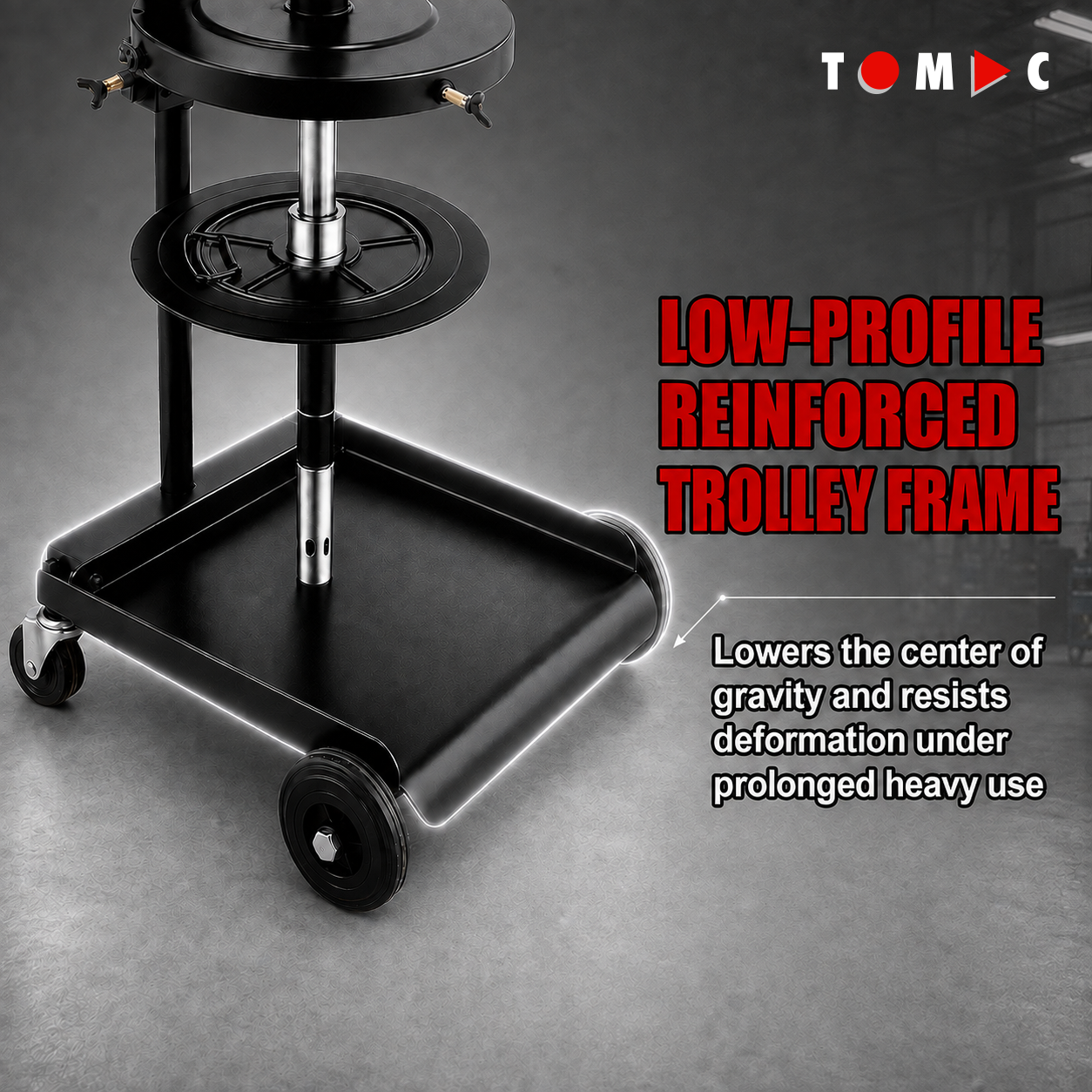

Low-profile frame + reinforced structure: lower center of gravity and improved resistance to deformation

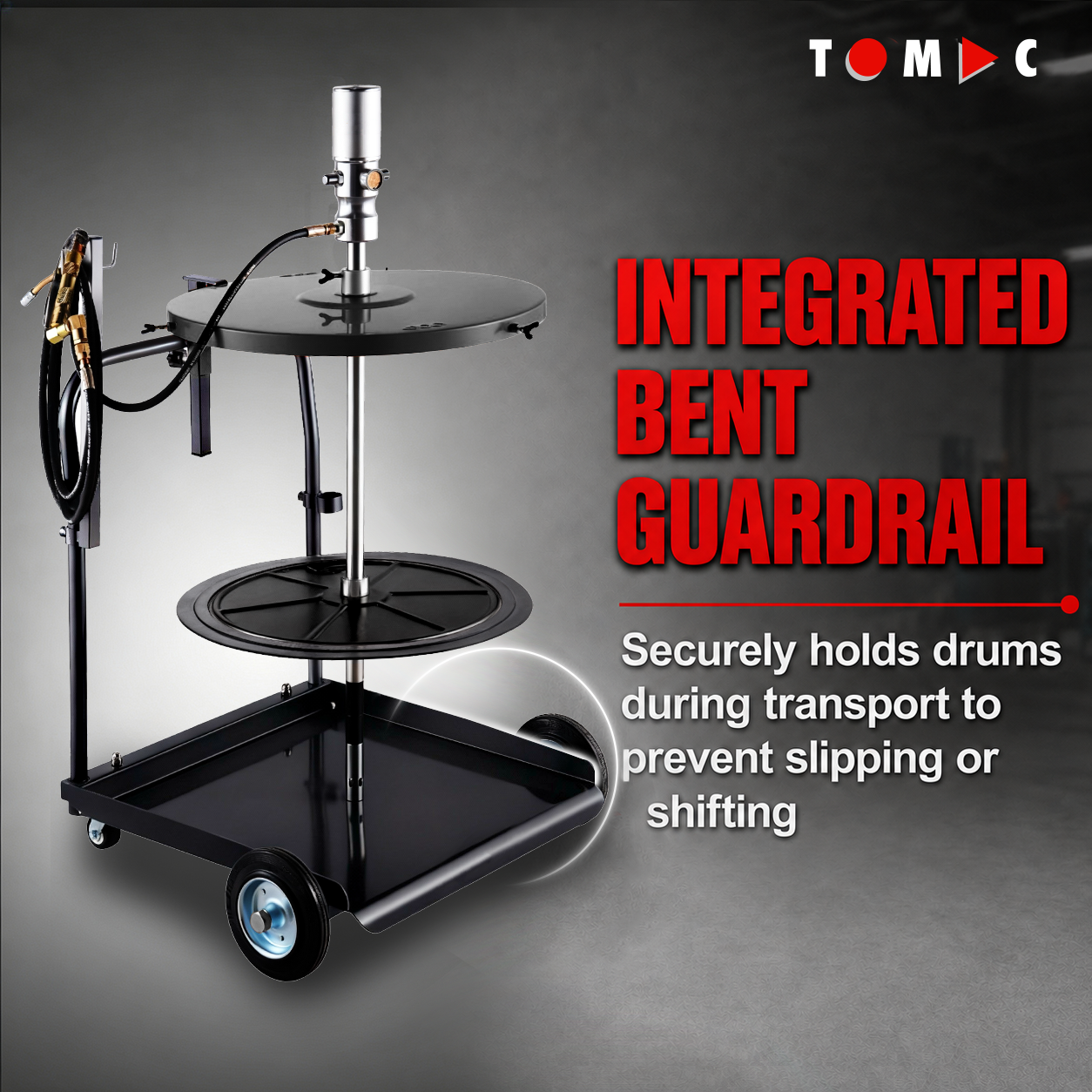

Integrated bent guardrail: securely supports large drums to prevent shifting during transport
Heavy-duty trolley mobility: rear wheels 200 mm + swivel casters 60 mm

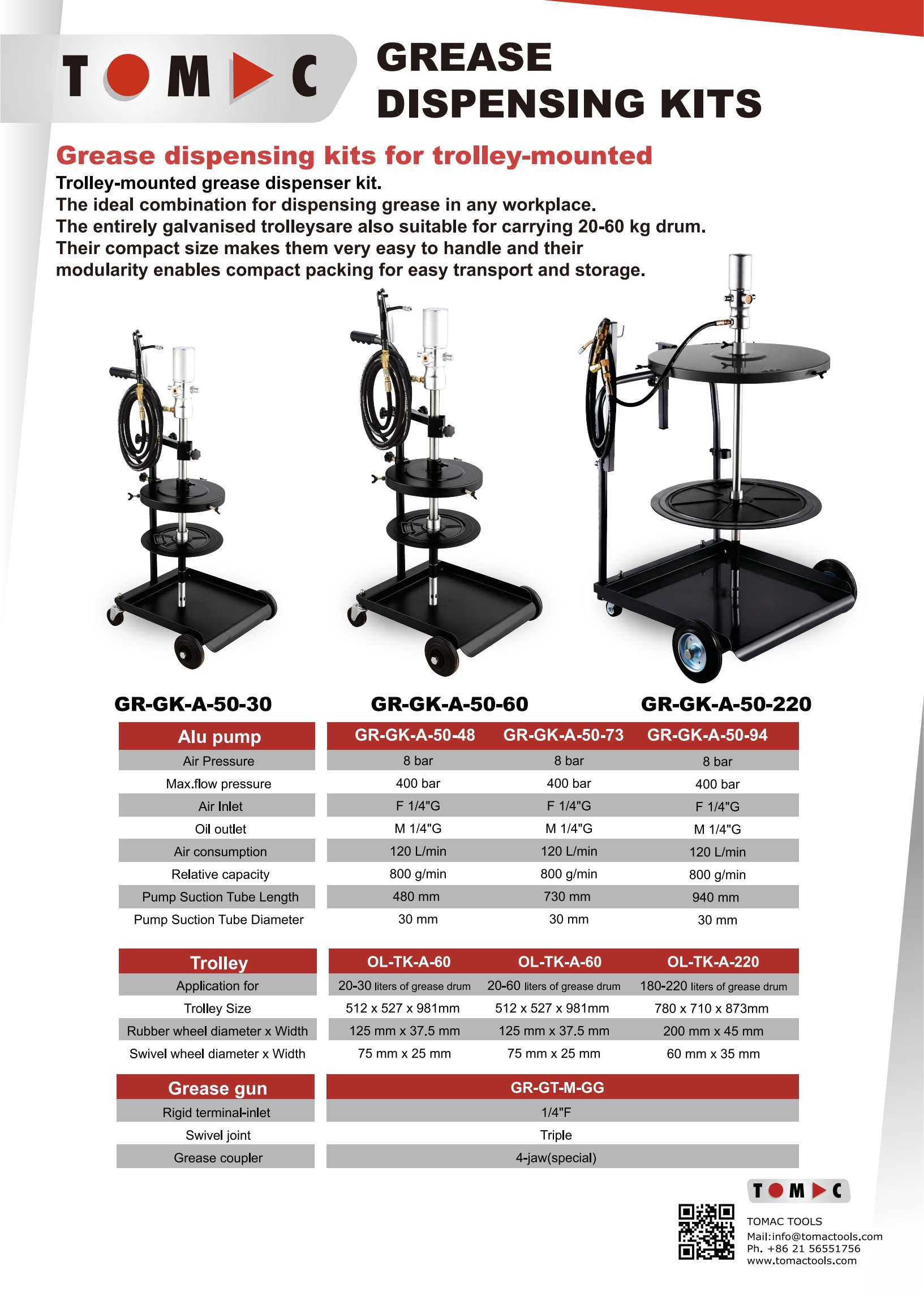

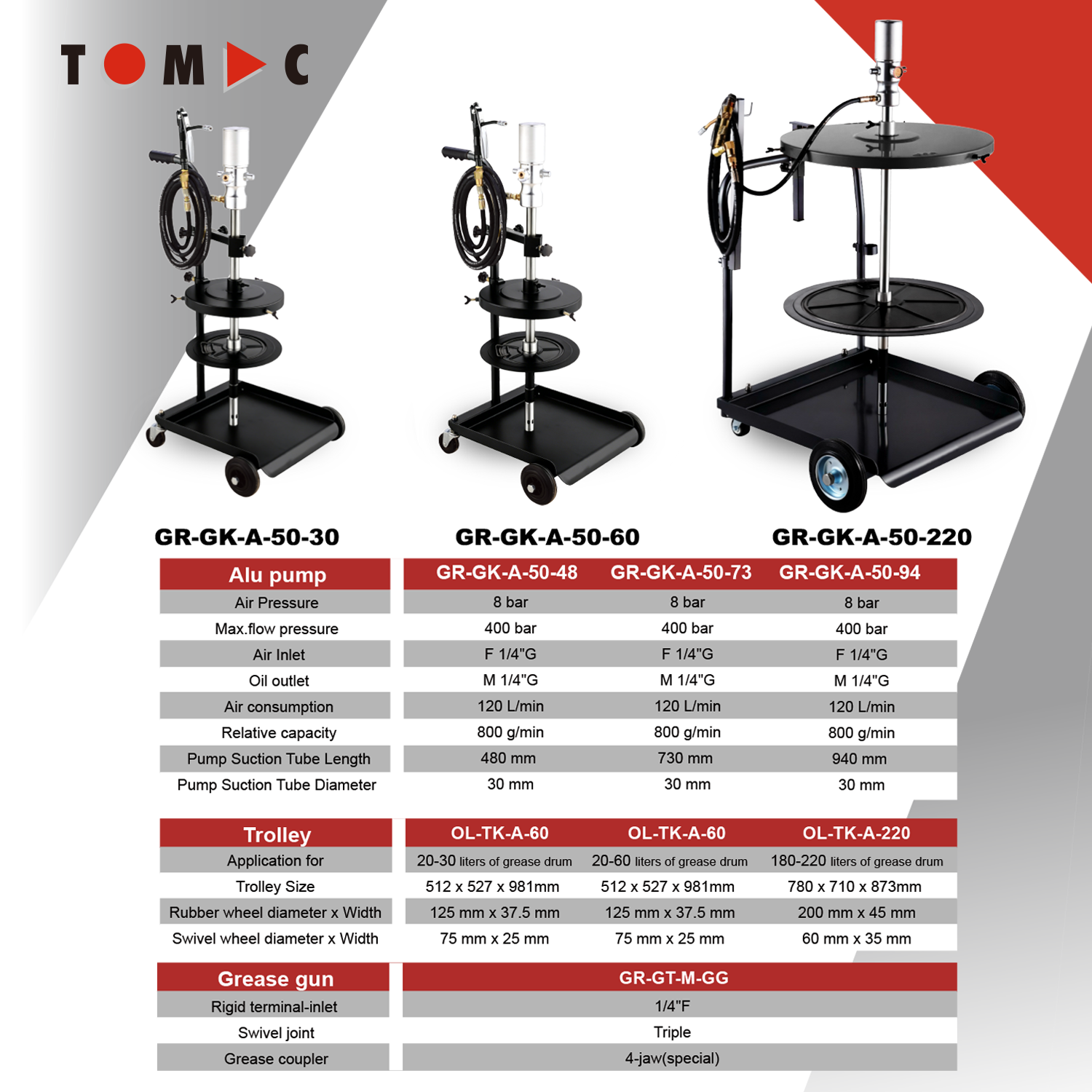

Product Specification	Details
Model	GR-GK-A-50-220
Alu Pump
Air Pressure	8bar
Max.flow Pressure	400bar
Air Inlet	F 1/4"G
Oil Outlet	M 1/4"G
Air Comsumption	120L/min
Relative Capacity	800g/min
Pressure Ratio	50:1 for grease
Oil Outlet Tube	1/4”x4m Oil hose
Material	Rubber hose with steel wire braiding
Pump Suction Tube Diameter	30mm
Pump Suction Tube Length	940mm
Tube Printing	EN857 2SC/SAE 100 R16 DN-4 1/4" WP 400BAR 5800PSI
Grease Gun
Rigid Terminal-inlet	1/4"F
Swivel Joint	Triple
Grease Coupler	4-jaw（special）

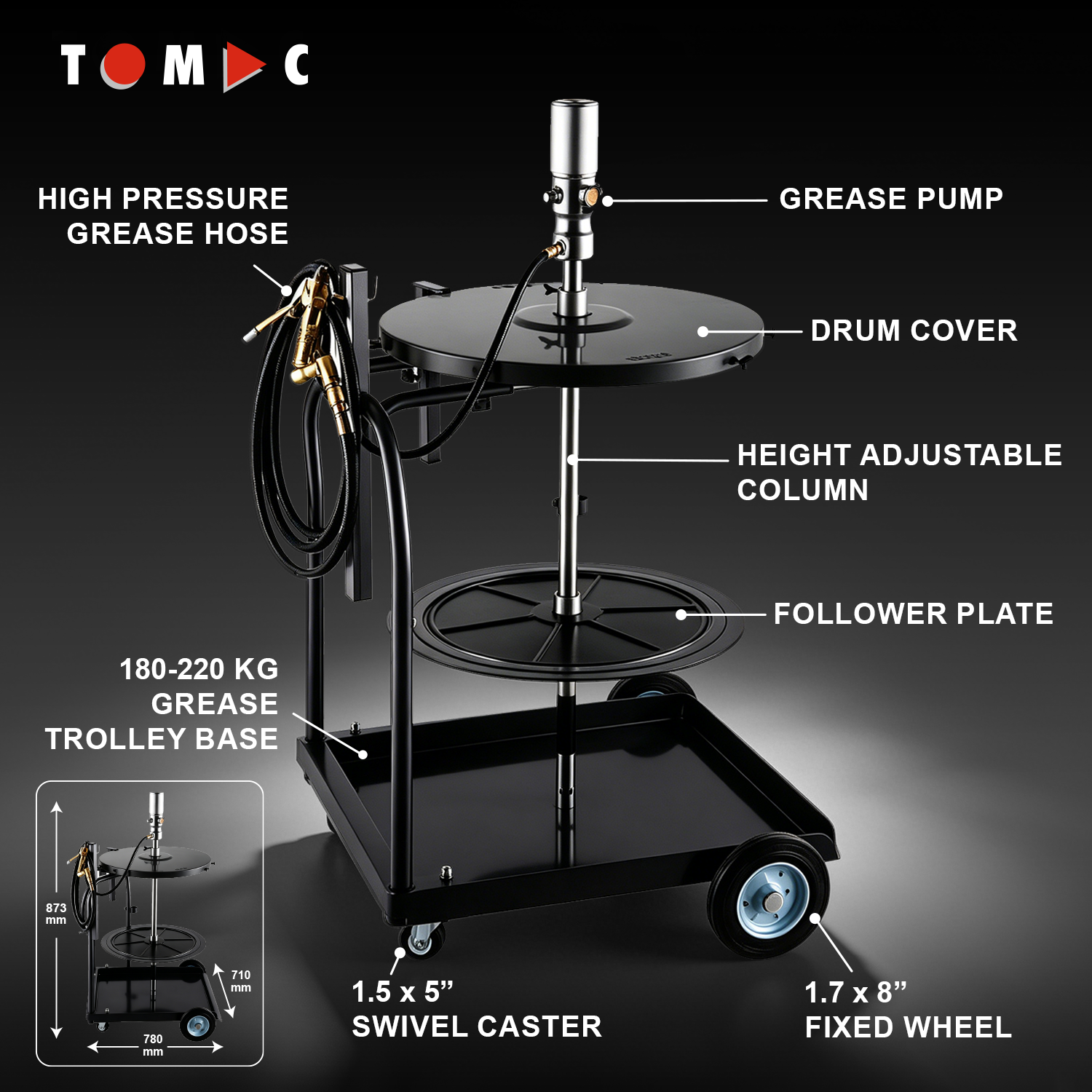

Trolley Size	780x710x873mm
Drum Cover	600mm

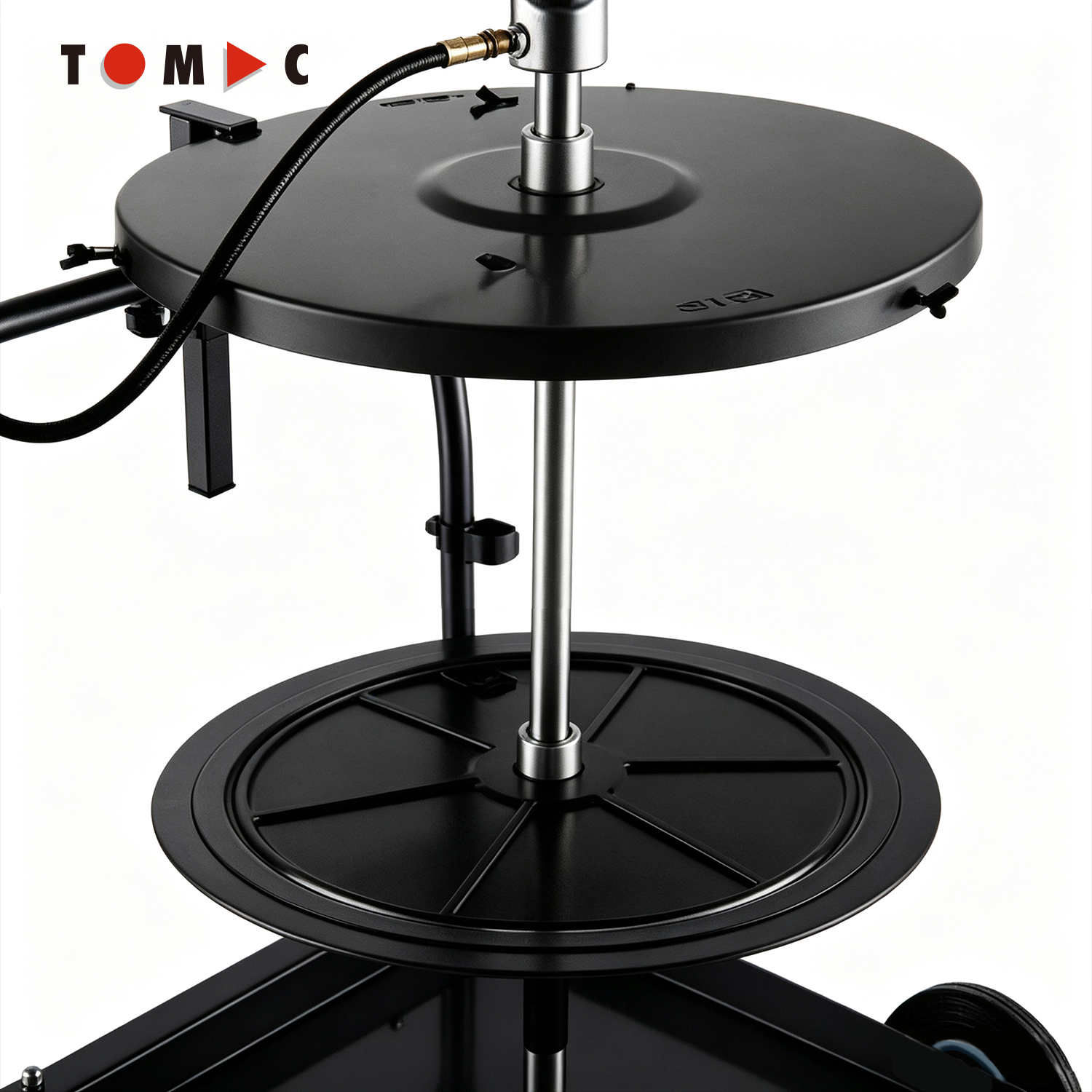

Follower Plate	585mm
Wheel Size	Fixed wheel:20045mm Swivel wheel:6035mm
Package Method	3 outer cartons
Package Size	BOX1(Trolley+Drum Cover+Follower Plate):1 PCS/CTN 651780cm BOX2(Gun):20PCS/CTN 512237cm BOX3(Pump):5PCS/CTN 1342842cm
Net/Gross weight	BOX1:29/30kgs BOX2:24/25kgs BOX3:31/34kgs
MOQ	10pcs
Delivery Time	60 days
