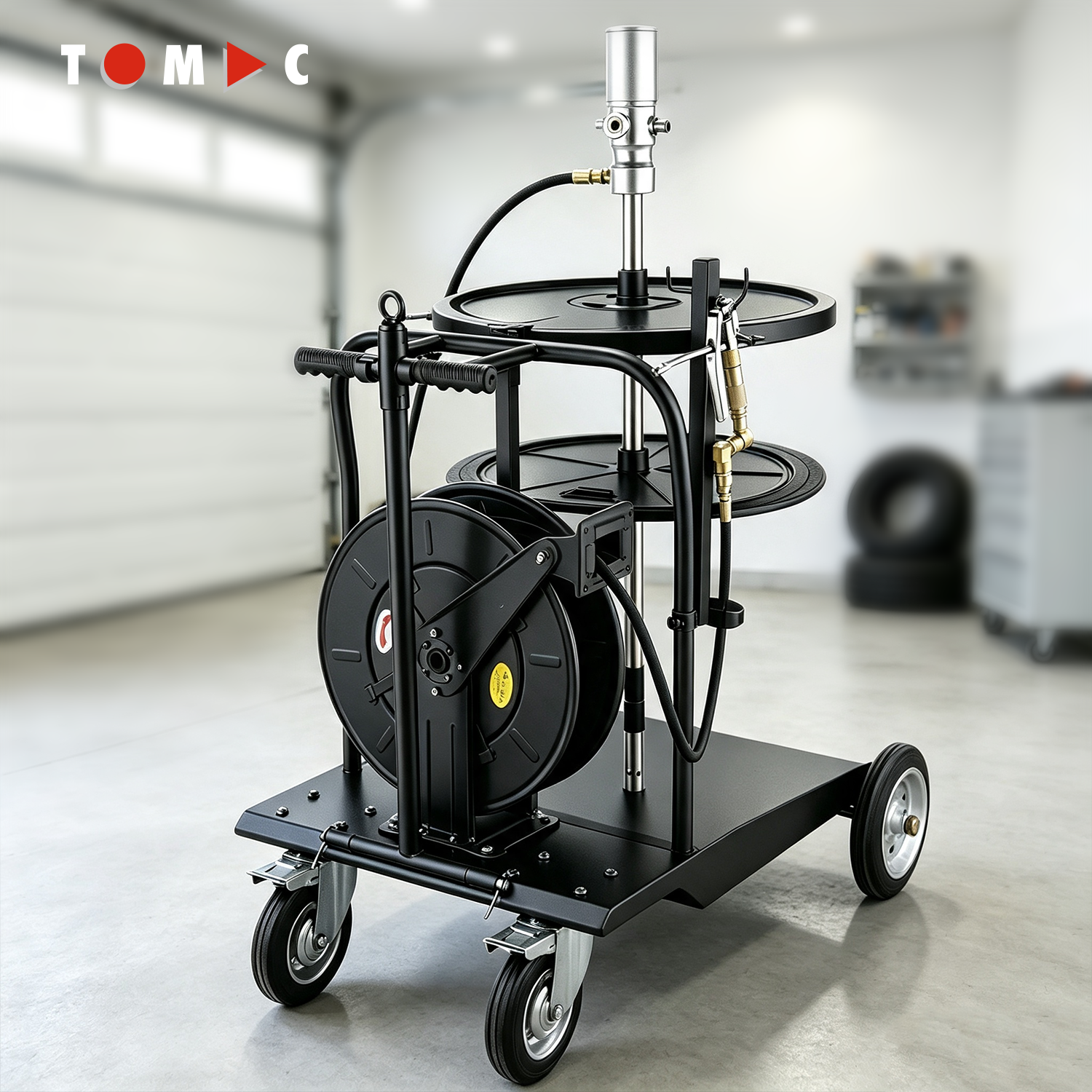

GR-GK-A-50-220-10 TOMAC 180-220L Pneumatic Grease Pump Kit w/ Trolley & 10m Hose Reel, 50:1, 1/4", 400bar

Low MOQ accepted — orders as few as 10 pcs

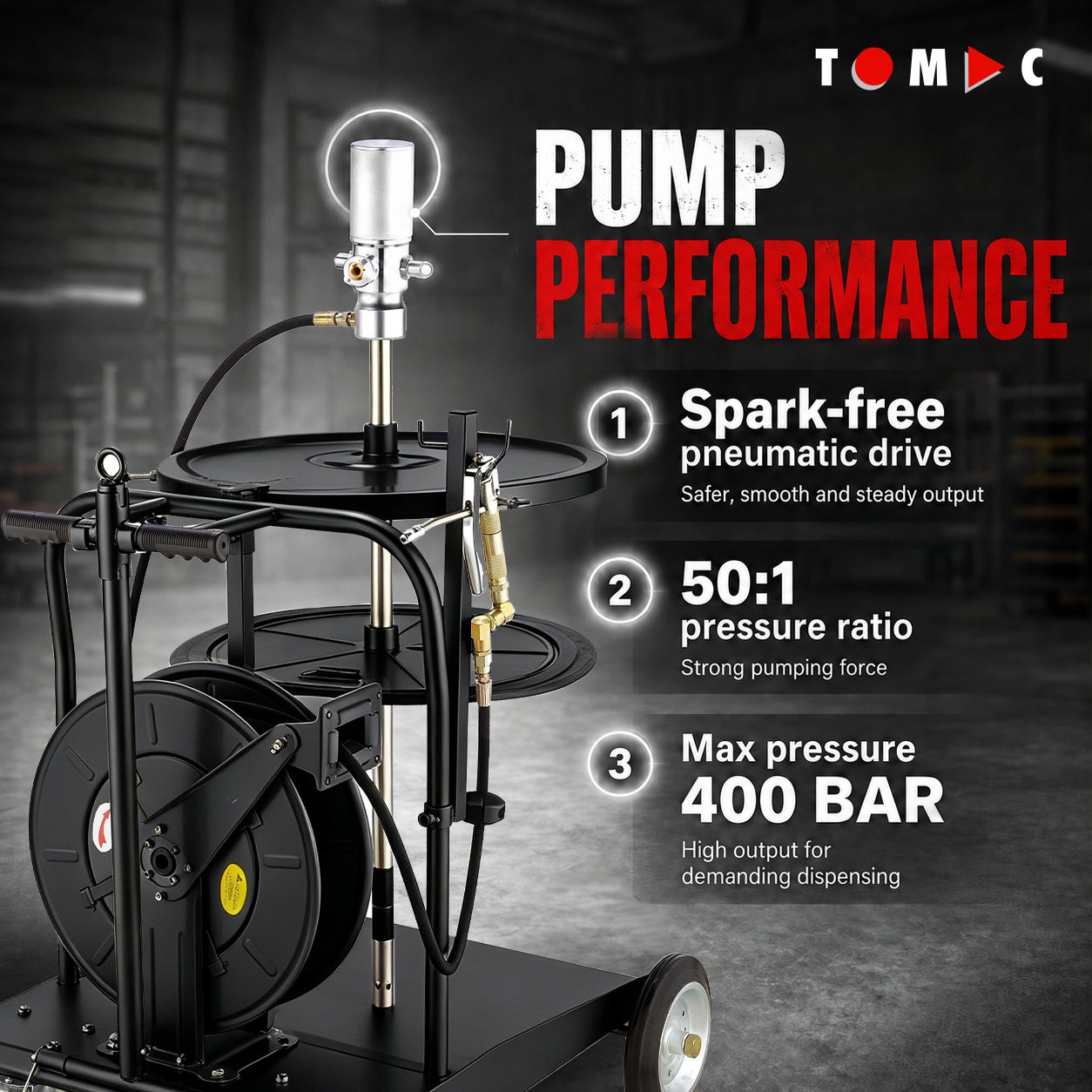

Pressure ratio 50:1 for grease / lubricants; steady, reliable lubrication delivery

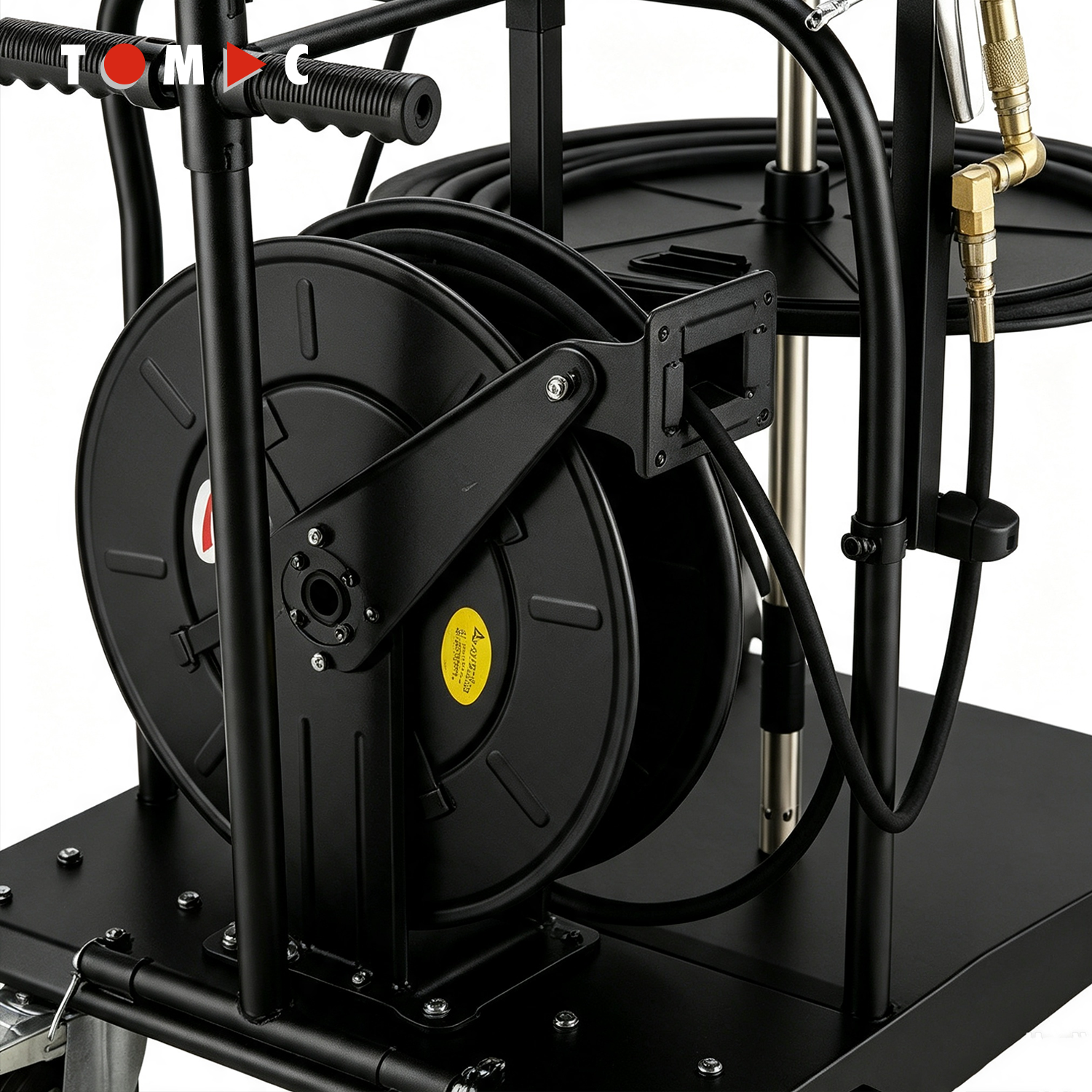

Hose reel length: 10m
Work pressure for reel system: 160BAR (2320.5PSI); max flow pressure: 400bar (5800PSI)
Air pressure: 8bar; air consumption 120 L/min; relative capacity 800 g/min

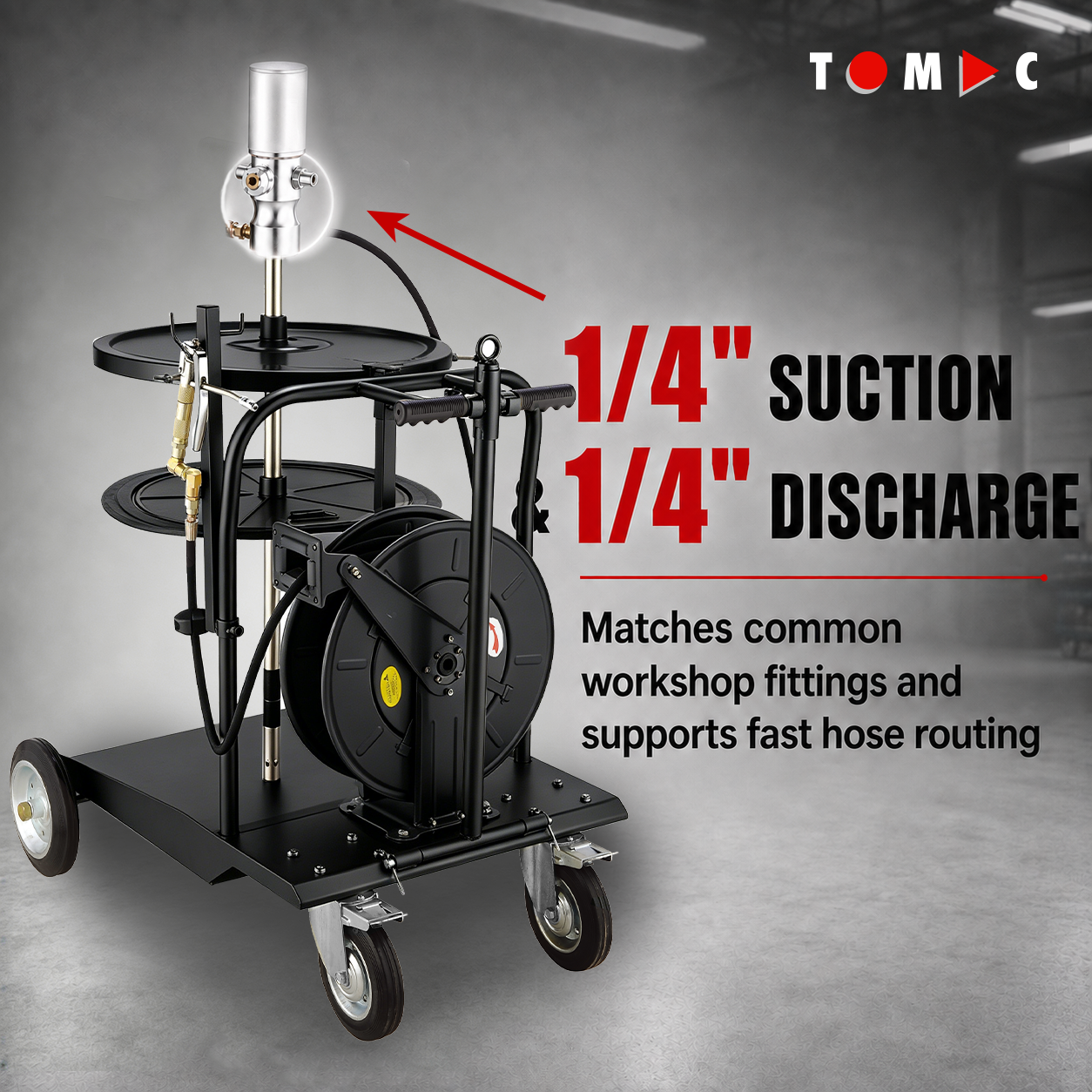

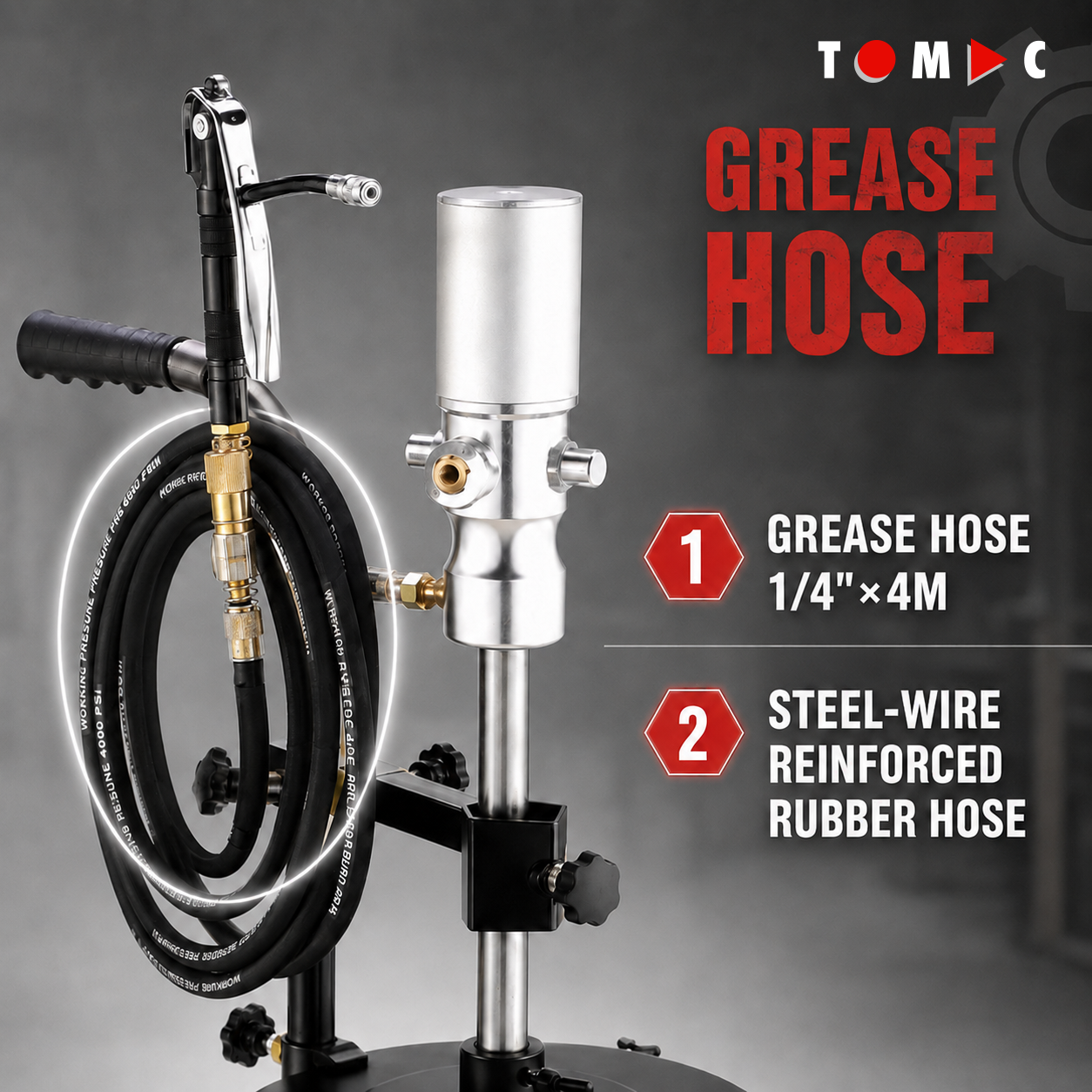

Oil outlet: 1/4” x 4m grease hose (kit standard); suction tube 940mm (iron, white zinc plated)
Material: steel-wire reinforced rubber hose + aluminum pump; oil-resistant performance
Grease gun: 1/4"F rigid terminal inlet + triple swivel + 4-jaw coupler (special)

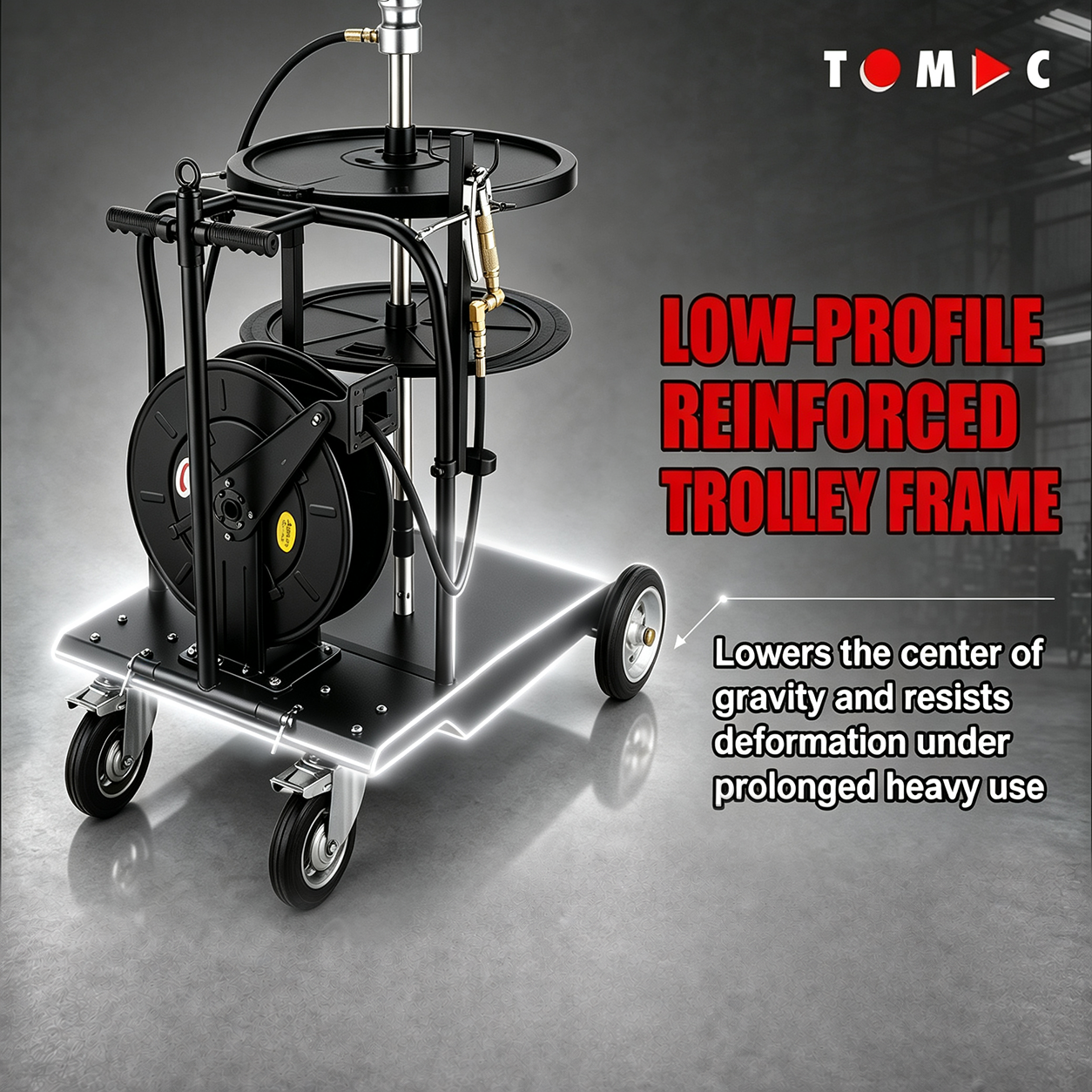

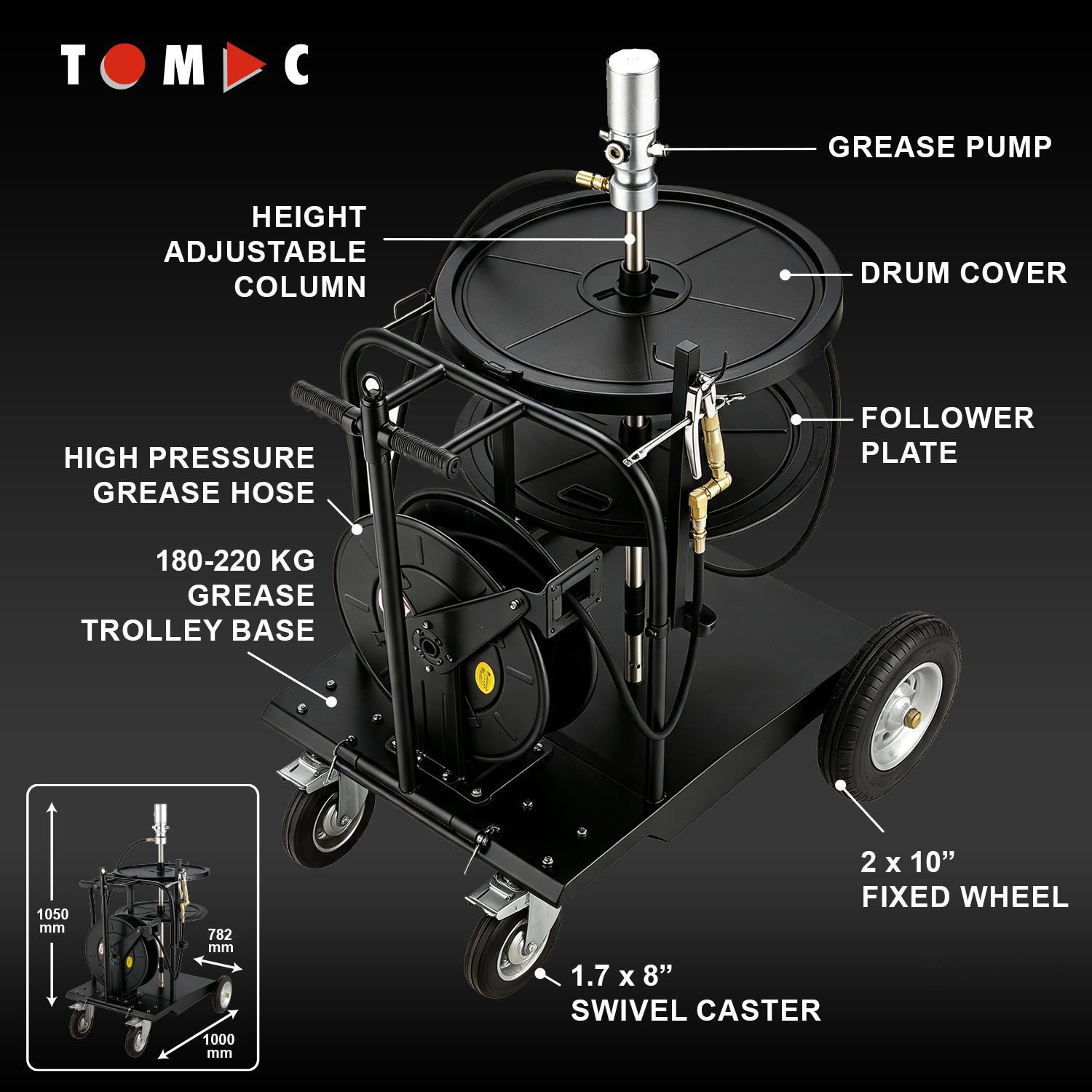

Application: for 180–220 liters grease drum; trolley size 1000×782×1050mm

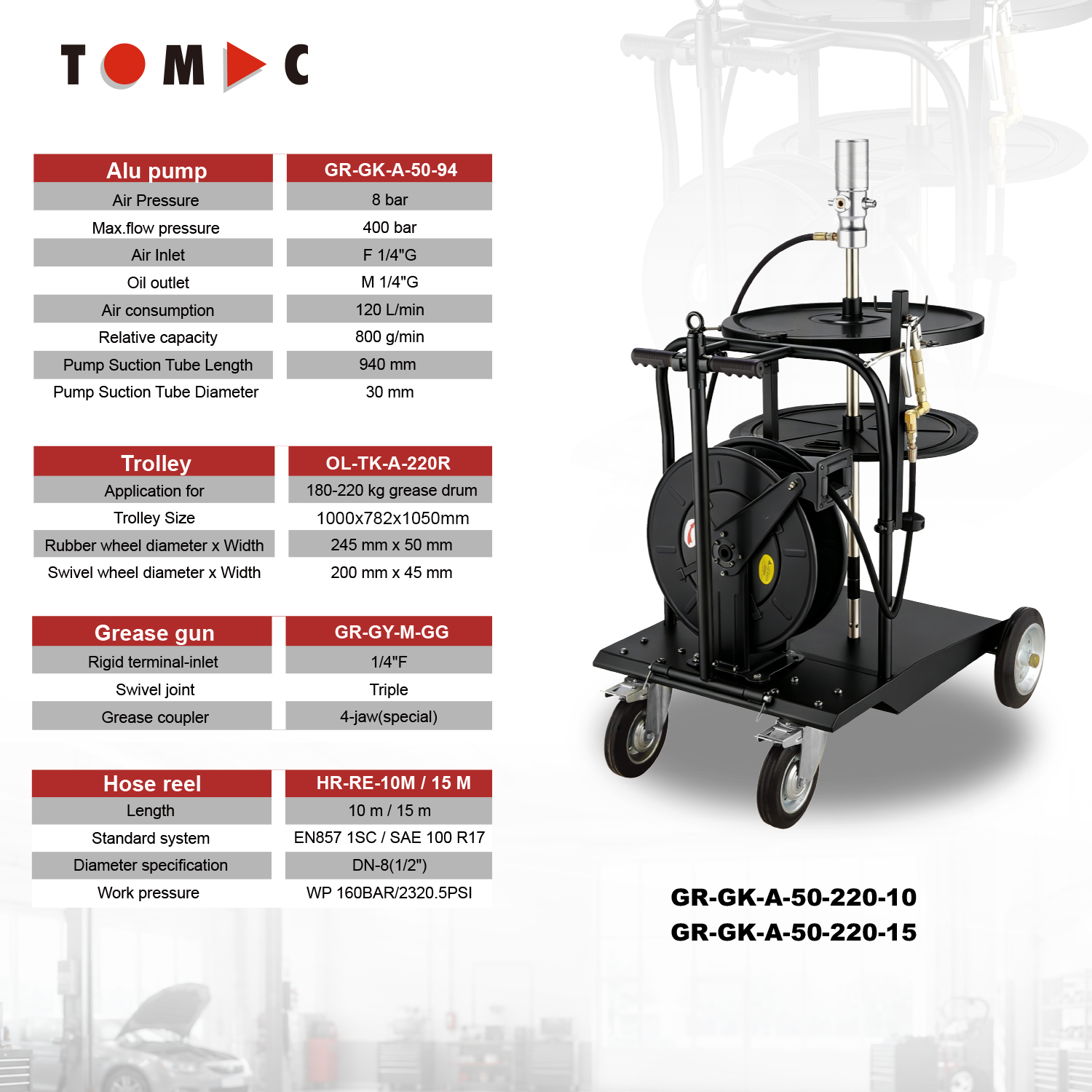

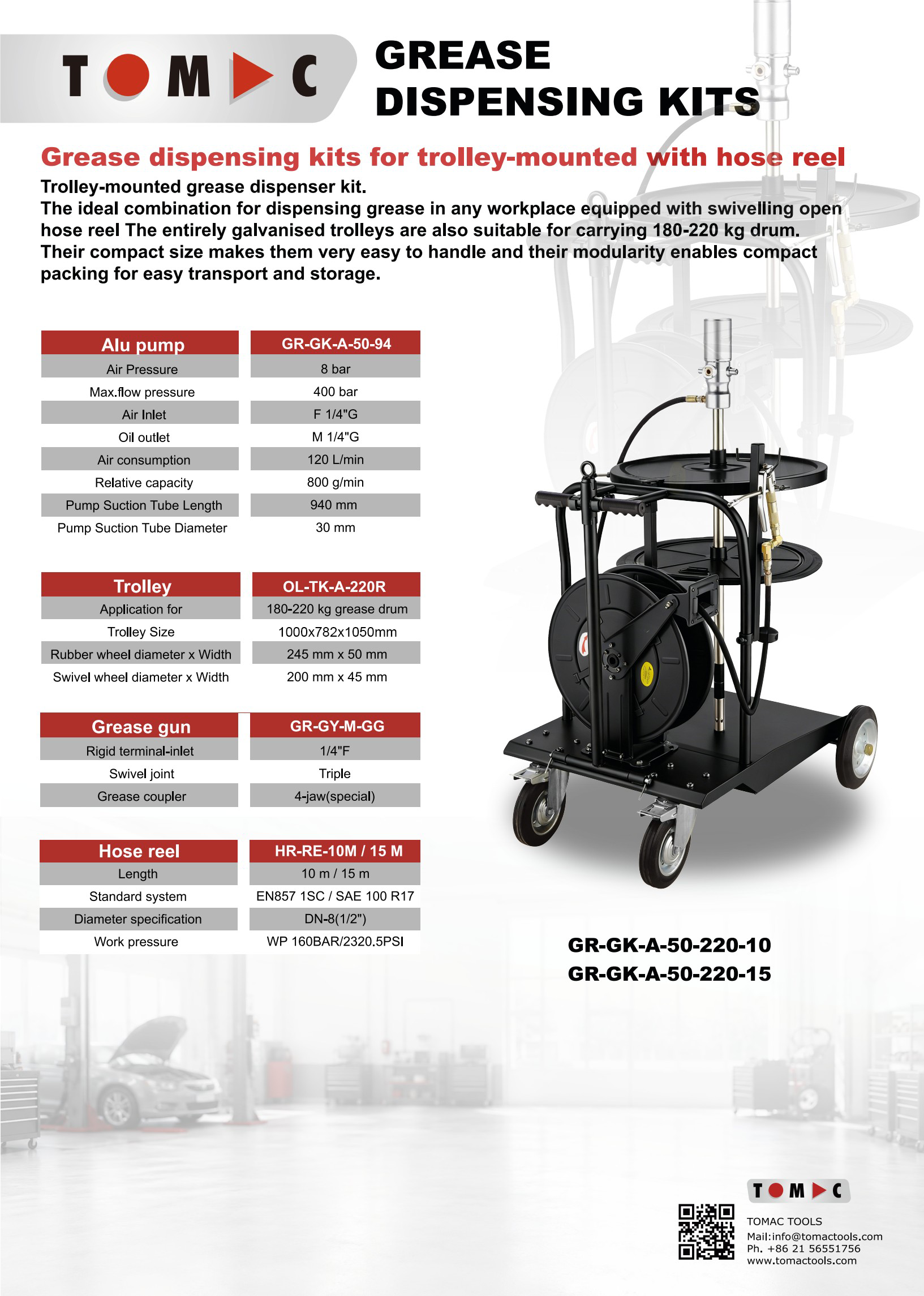

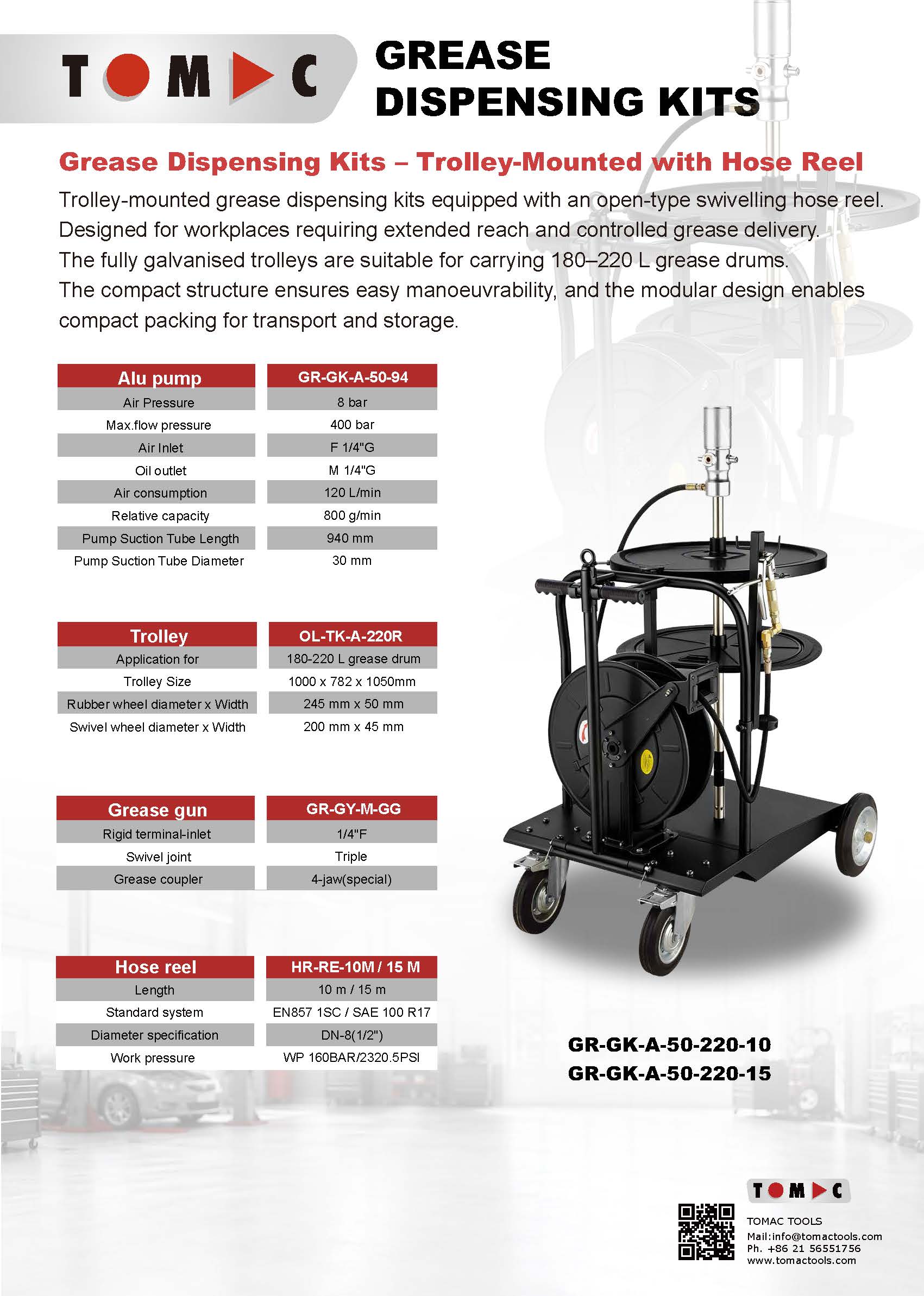

Product Specification	Details
Model	GR-GK-A-50-220-10
Alu Pump
Air Pressure	8bar
Max.flow Pressure	400bar
Air Inlet	F 1/4"G
Oil Outlet	M 1/4"G
Air Comsumption	120L/min
Relative Capacity	800g/min
Pressure Ratio	50:1 for grease
Oil Outlet Tube	1/4”x4m Oil hose
Material	Rubber hose with steel wire braiding
Pump Suction Tube Diameter	30 mm
Pump Suction Tube Length	940mm
Tube Printing	EN857 2SC/SAE 100 R16 DN-4 1/4" WP 400BAR 5800PSI
Hose Reel
Length	10m
Standard System	EN857 2SC/SAE 100 R16
Diameter Specification	DN-4（1/4"）
Work Pressure	WP 400BAR/5800PSI
Grease Gun
Rigid Terminal-inlet	1/4"F
Swivel Joint	Triple
Grease Coupler	4-jaw（special）
Trolley Size	10007821050mm
Drum Cover	600mm
Follower Plate	585mm

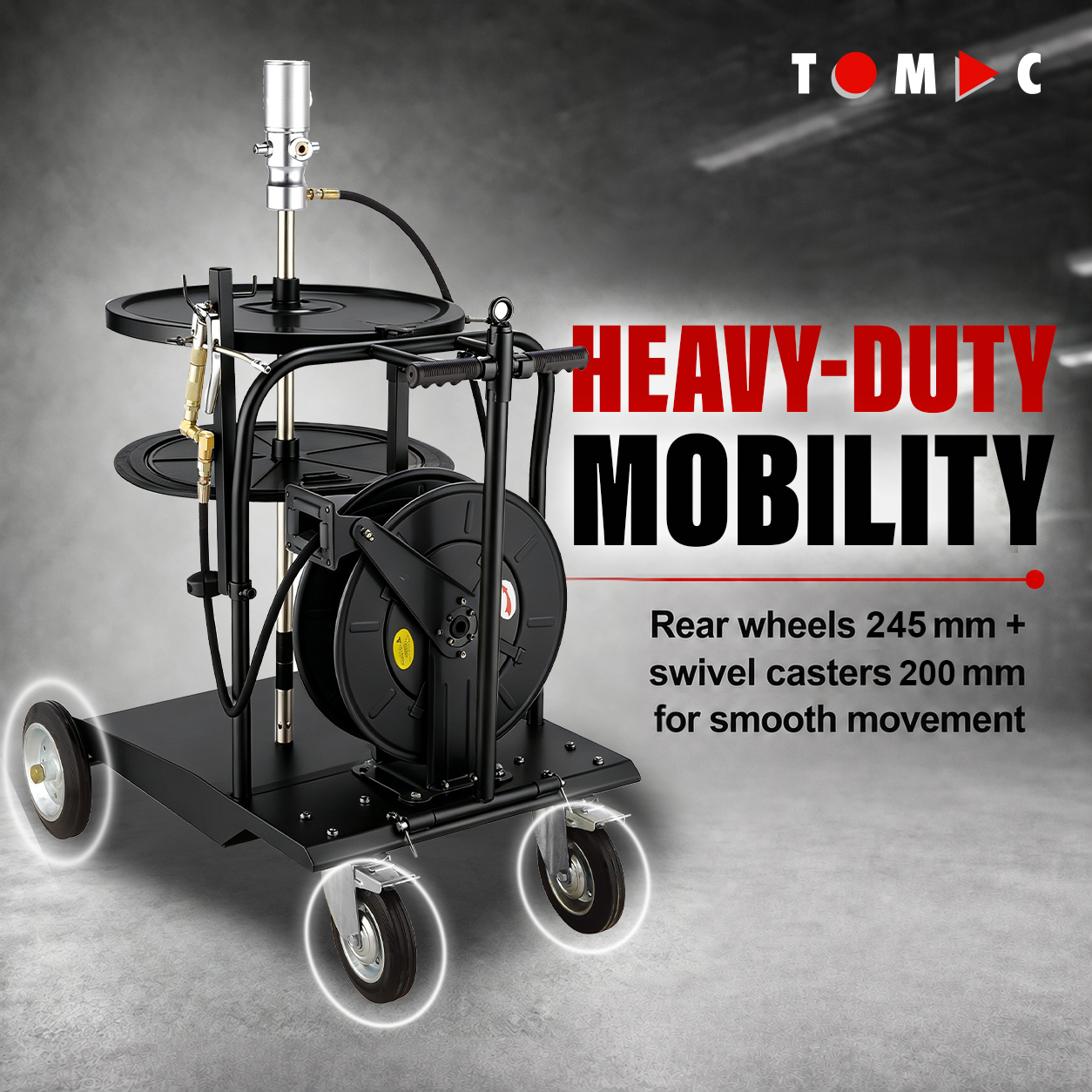

Wheel Size	Fixed wheel:24550mm Swivel wheel:20045mm
Package Method	3 outer cartons
Package Size	BOX1(Trolley+Drum Cover+Follower Plate+Gun):1 PCS/CTN 631594cm BOX2(Hose Reel):1 PCS/CTN 562356cm BOX3(Pump):5PCS/CTN 1102842cm
Net/Gross weight	70/71kgs
MOQ	10pcs
Delivery Time	60 days
